Fluke | SKU:
FLUKE-1555

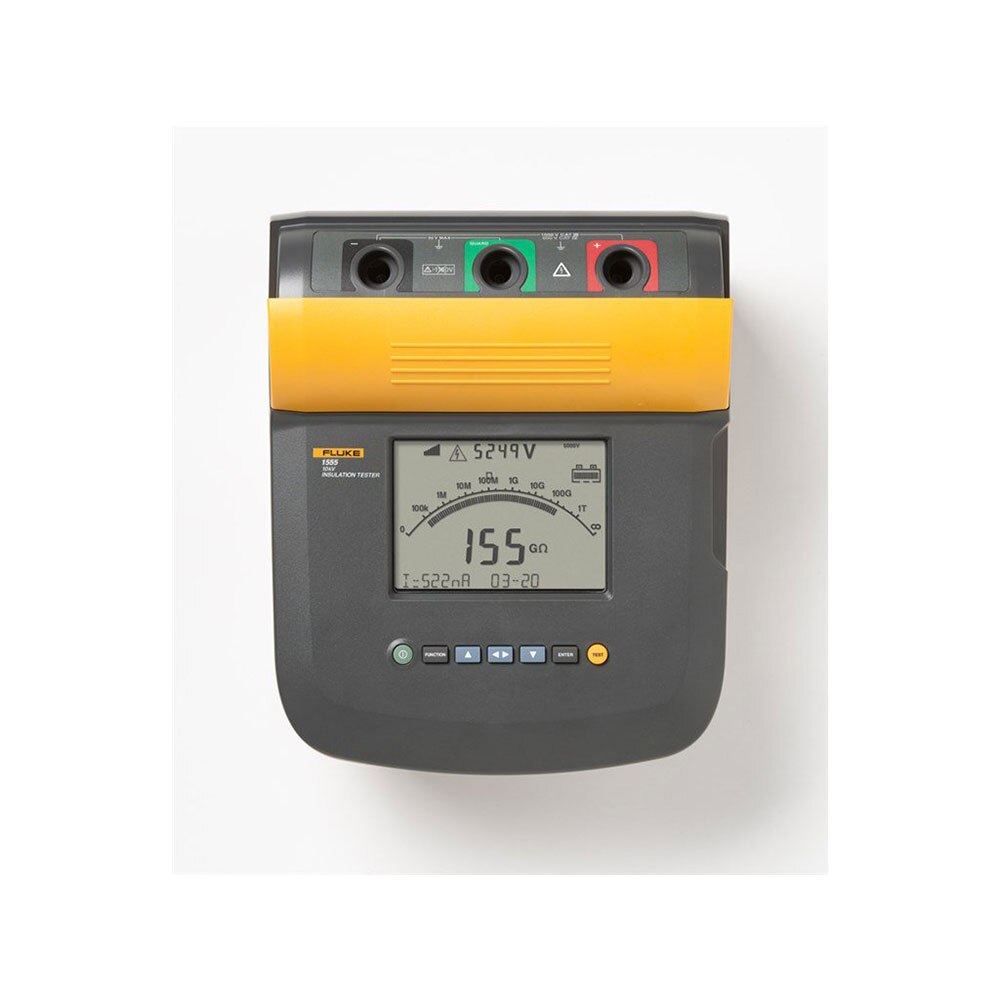

Fluke 1555 Insulation Resistance Tester, 10kV
Free Shipping
$7,070.99
Unit price
/
Unavailable
Description
Description
Fluke 3665056 Description
Evaluate the trends and eliminate the doubt with this insulation resistance tester. Ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables, the CAT III 1000 V/CAT IV 600 V safety-rated tester can conduct digital insulation testing up to 10 kV. By adding this to your preventive or predictive maintenance programs, it can help to identify potential equipment failures before they occur.
Fluke 3665056 Includes
- (1) Insulation Resistance Tester
- (1) Set Test Cables with Alligator Clips
- (1) Infrared adapter with interface cable
- (1) FlukeView® Forms Basic CD-ROM
- (1) AC Power Cord
- (1) English Manual
- (1) Users Manual on CD-ROM
- (1) Quick Reference Card
- (1) Software License Agreement
- (1) Registration Card
- (1) FlukeView® Forms Installation Guide
- (1) USB-IR Cable Installation Guide
- (1) Soft Carrying Case
Fluke 3665056 Features
- Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
- CAT III 1000 V, CAT IV 600 V safety rating
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2 TΩ
- Timer settings up to 99 minutes for timed tests
- 3-year warranty
Fluke 3665056 Specifications
| Bar Graph Range | 0 to 1 TΩ |
| Insulation Test Voltage Accuracy | -0 %, +10 % at 1 mA load current |
| Induced AC Mains Current Rejection | 2 mA maximum |
| Charging Rate for Capacitive Load | 5 seconds per °F |
| Discharge Rate for Capacitive Load | 1.5 s/°F |
