Fluke | SKU:
FLUKE-1587/MDT FC
Fluke 1587/MDT FC Advanced Motor and Drive Troubleshooting Kit
Free Shipping
See Price In Cart
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Fluke 4692716 Description

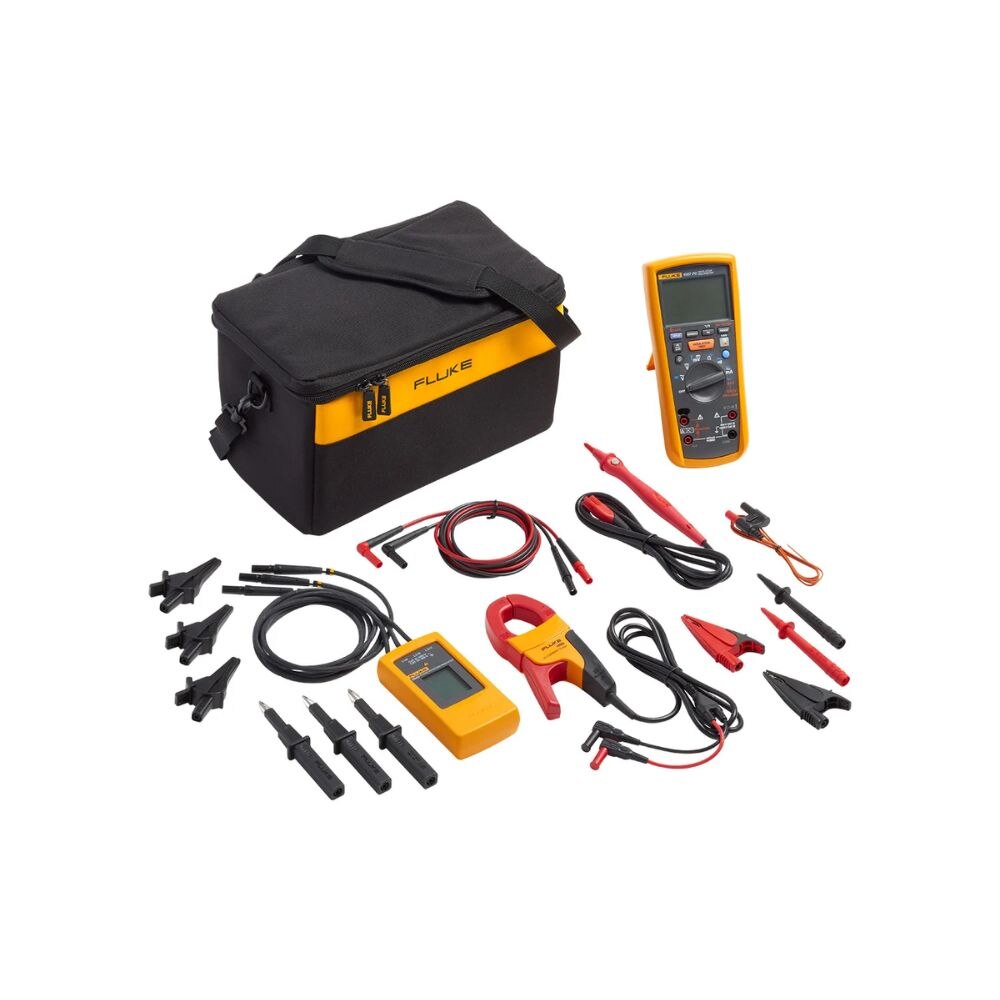

This kit Includes a Fluke 1587 with Fluke Connects 2-in-1 Insulation DMM, Fluke i400 Current Clamp, and a Fluke 9040 Phase Rotation Indicator.
Fluke 4692716 Includes
- (1) 1587 FC Insulation Multimeter
- (1) i400 Current Clamp
- (1) 9040 Phase Rotation Indicator
- (1) Remote probe
- (1) Set Test leads
- (1) Set Alligator clips
- (1) K-type thermocouple
- (1) Hard case
- (1) User documentation
Fluke 4692716 Features
- PI/DAR timed ratio tests (1587 FC only)
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- VFD low-pass filter for accurate motor drive measurements (1587 FC only)
- Auto-discharge of capacitive voltage for added user protection
- Insulation test (1587 FC: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to 600 MΩ)
- Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V),(1577: 500 V, 1000 V) for many applications
- AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (Ω), Continuity
- Capacitance, diode test, temperature, Min/Max, frequency (Hz)(1587 FC only)
- Auto power off to save battery power
- CAT III 1000 V, CAT IV 600 V measurement category
- Rugged, utility hard case allows you to bring everything you need for the job
- Large display with backlight
- Companion to your DMM to measure up to 400 A AC
- 1mA/Amp output guarantees easy reading on you meter
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a very compact shape
Fluke 4692716 Specifications
| Maximum voltage applied to any terminal and common | 1000 V |
| Storage temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating temperature | -20 °C to 55 °C (-4 °F to 131 °F) |
| Temperature coefficient | 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F) |
| Vibration | Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument |
| Radio frequency communication | 2.4 GHz ISM Band |
| Radio frequency certification | FCC |
