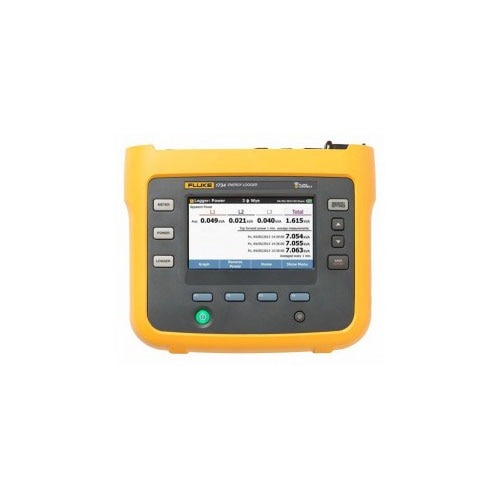

Fluke 1734/EUS Three Phase Electrical Energy Logger
Description
Description
Fluke 4706594 Description
Energy logging is now within your reach— discover where you're wasting energy, optimize your facility's energy use and reduce your bill. The three-phase electrical energy logger introduces a new simplicity to discovering sources of electrical energy waste. Discover when and where energy in your facility is being consumed; from the service entrance to individual circuits. The purpose of this tool is to make it feasible for a greater variety of licensed electrical professionals to setup and connect the logger, and for a facility manager to review energy usage logs without being a power quality expert. Profiling energy usage across your facility helps you identify opportunities for energy savings, and provides you with the data you need to act on them. The new Energy Analyze software package allows you to compare multiple data points over time to build a complete picture of energy usage, which is the first step to reduce the cost of your energy bill.
Fluke 4706594 Includes
- (1) Energy Logger
- (1) Power Supply
- (1) Voltage Test Leads
- (4) Alligator Clips
- (3) 12" 1500A Flexible Current Probe
- (1) Soft Case
- (1) Energy Analyze Plus Software
- (1) Magnetic Probe Set
- (1) Magnetic Hanger
- (1) Magnetic Hanging Strap
- (1) Magnetic Voltage Probes
- (1) WiFi/BLE Adapter
- (1) Line Cords, Color Coding Set and Documentation on USB Flash Drive
Fluke 4706594 Features
- Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented
- Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
- Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis. More than 20 separate logging sessions can be stored on the instrument
- Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
- Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel
- Fluke Connect Enabled: Connect to up to two FC modules for associated analog values and view live data wirelessly for the Fluke 1734
- Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
- Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices.
- Compact size: designed to fit in tight spaces and panels
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
- Optimized measurement accessories: flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces
- Battery life: four-hour operating time (backup time) per charge on lithium-ion battery
- Security: safeguard against theft with a Kensington lock
Fluke 4706594 Specifications
| Voltage Range | 100 V to 500 V using safety plug input when powering from the measurement circuit |
| Power Consumption | Maximum 50 VA (max. 15 VA when powered using IEC 60320 input) |
| Efficiency | ≥68.2 % (in accordance with energy efficiency regulations) |
| Maximum No-Load Consumption | <0.3 W only when powered using IEC 60320 input |
| Mains Power Frequency | 50/60 Hz ± 15 % |
| Resolution | 16-bit synchronous sampling |
| Sampling Frequency | 10.24 kHz at 50/60 Hz, synchronized to mains frequency |
| Input Signal Frequency | 50/60 Hz (42.5 to 69 Hz) |
| Memory Size | Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events |
| Measured Parameters | Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy |
| Averaging Intervals | User selectable |
| Averaging Time Min/Max Values | Voltage, Current |
| Number of Inputs | 4 (3 phases and neutral) |
| Maximum Input Voltage | 1000 Vrms, CF 1.7 |
| Input Impedance | 10 MΩ |
| Number of Inputs | 3, mode selected automatically for attached sensor |
| Input voltage | Clamp input |
| Bandwidth | 42.5 Hz - 3.5 kHz |
