Fluke | SKU:
FLUKE-1736/B

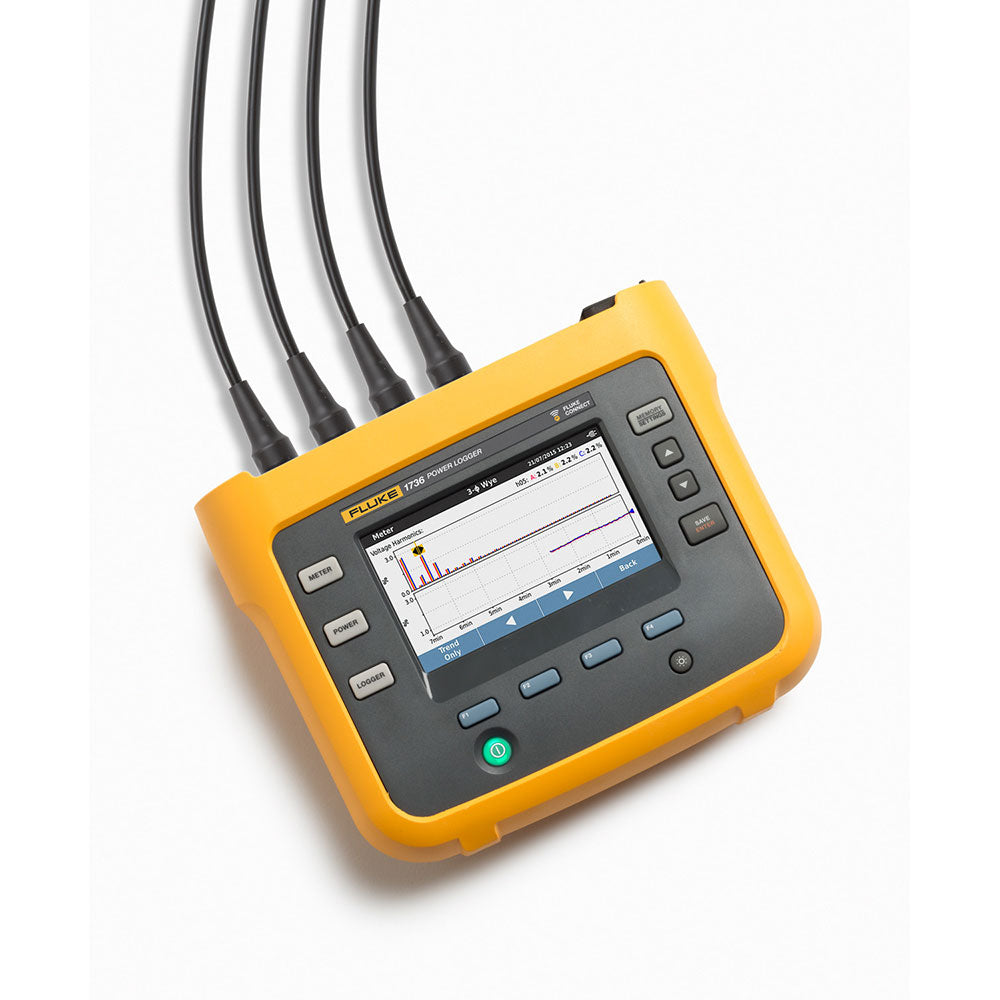

Fluke 1736/B 3-Phase Power Logger
Free Shipping
$6,975.99
Unit price
/
Unavailable
Description
Description
Fluke 4563561 Description
More visibility, reduced uncertainty and better power quality and energy consumption decisions . The Fluke 1736 Three-Phase Power Loggers built with Fluke Connect® mobile app and desktop software compatibility give you the data you need to make critical power quality and energy decisions in real-time. The ideal test tools for conducting energy studies and basic power quality logging, it automatically captures and logs over 500 power quality parameters so you have more visibility into the data you need to optimize system reliability and savings.
Fluke 4563561 Includes
- (1) 1736B/B Power Energy Logger
- (1) Power Supply
- (1) Pair Voltage Test Leads
- (4) Alligator Clips (4x)
- (1) Soft Case
- (1) Energy Analzye Software
- (1) WiFi Adapter
- (1) Line Cords
- (1) Color Coding Set
- (1) Documentation on USB Flash Drive
Fluke 4563561 Features
- Automatically capture and log voltage, current, power, harmonics and associated power quality values
- Fluke Connect® compatible*: View data locally on the instrument or via Fluke Connect mobile app and desktop software.
- Convenient instrument powering: Power instrument directly from the measured circuit
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
- Comprehensive logging: Store 20+ logging sessions. Values automatically logged. Review during logging/before downloading for real-time analysis.
- Capture dips, swells, and inrush currents: event waveform snapshot and high resolution RMS profile, date, timestamp to see root causes of PQ issues.
- Energy Analyze Plus application software: get every detail of energy consumption and power quality state of health with automated reporting.
- Optimized user interface: Get the right data with, graphical setup. Reduce uncertainty about your connections with intelligent verification function.
- Complete "in-the-field" setup through the front panel or Fluke Connect App.
Fluke 4563561 Specifications
| Voltage Range | 1000 V |
| Current Direct Input i17xx-flex 1500 12" | 150A / 1500A |
| Current Direct Input i17xx-flex 3000 24" | 300A / 3000A |
| Current Direct Input i17xx-flex 6000 36" | 600A / 6000A |
| Current Direct Input i40s-EL clamp | 4A / 40A |
| Frequency | 42.5 Hz to 69 Hz |
| Auxillary Input | ±10 V DC |
| Voltage Min/Max | 1000 V |
