Fluke | SKU:
FLUKE-1736/EUS

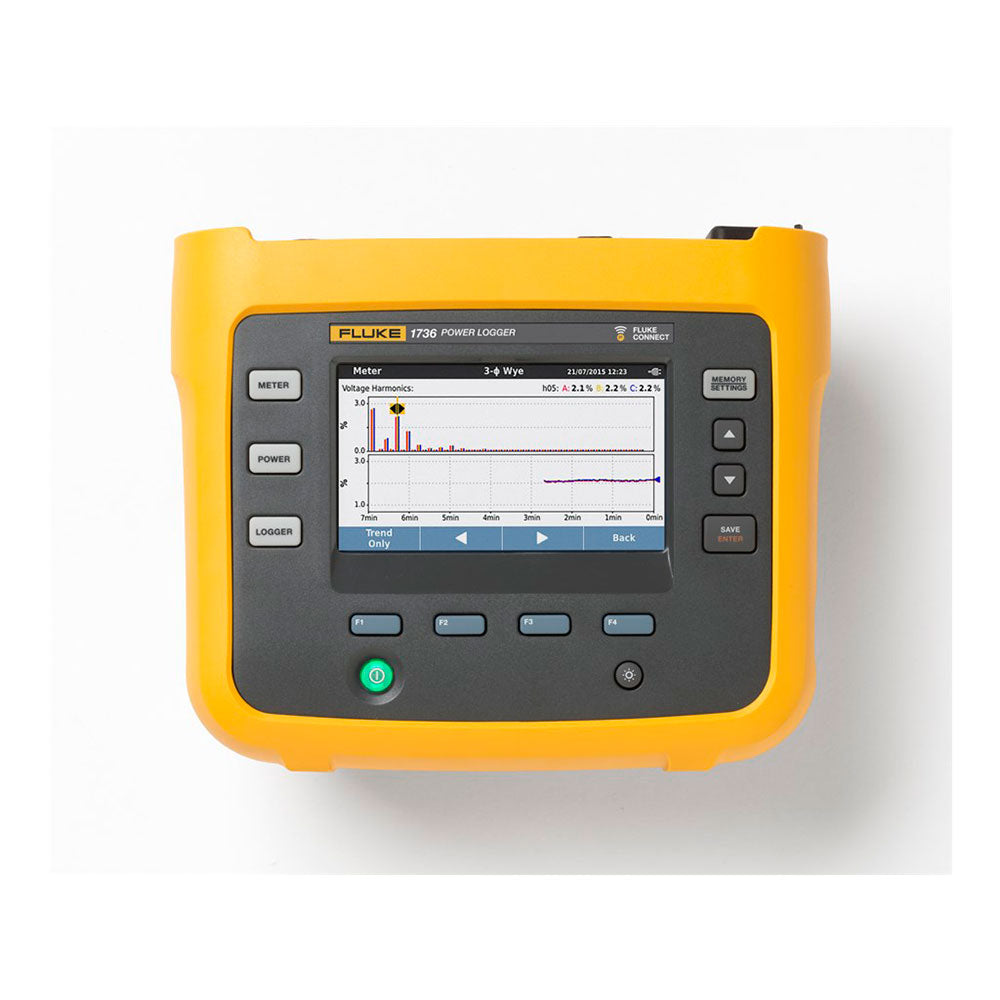

Fluke 1736/EUS Portable Power Logger EU/US Version
Free Shipping
$7,511.99
Unit price
/
Unavailable
Description
Description
Fluke 4534519 Description
The Fluke 1736 Three-Phase Power Logger is designed to give users the information they need to make crucial power qualiy and energy decisions as efficently and quickly as possible. Fluke has paired the 1736 with its Fluke Connect® mobile app and desktop software to give users immediate access to critical information anywhere. Out of the box, the 1736 is capable of automatically capturing and storing more than 500 PQ paramters.
Fluke 4534519 Includes
- (1) 1736 Power Energy Logger
- (1) Power Supply
- (1) Voltage Test Leads
- (4) Alligator Clips
- (4) 12" 1500A Flexible Current Probes
- (1) Soft Case
- (1) Energy Analyze Software
- (1) WiFi Adapter
- (1) Line Cords
- (1) Color Coding Set
- (1) Documentation on USB Flash Drive
Fluke 4534519 Features
- Measure all three phases and neutral with included 4 flexible current probes.
- Comprehensive logging:More than 20 separate logging sessions can be stored on the instruments. In fact, all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis.
- Capture dips, swells, and inrush currents: includes event waveform snapshot and high resolution RMS profile, along with date, timestamp and severity to help pinpoint potential root causes of power quality issues.
- Fully integrated logging: Connect other Fluke Connect devices to the Fluke 1738 to simultaneously log up to two other measurement parameters, virtually any parameter available on a Fluke Connect wireless digital multimeter or module.*
- Energy Analyze Plus application software: Download and analyze every detail of energy consumption and power quality state of health with our automated reporting.
- Bright, color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display.
- Optimized user interface: Capture the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function.
- Measure all three phases and neutral with included 4 flexible current probes.
Fluke 4534519 Specifications
| Current Input Channels | 4 |
| Voltage Input Channels | 4 |
| Measurement Frequency | 50 Hz, 60 Hz |
| Display (Energy Management) | Digital, Graphical |
| Input(power loggers) | Single Phase, Three Phase |
| Type(Power loggers) | Digital, Portable Hand Held |
| Maximum Current AC | 1500 A |
| Maximum Voltage AC | 1000 V |
