Fluke  |  SKU: FLUKE-1760 TR US  |  Barcode: 095969348256

Fluke 1760 TR US Topas Three-Phase Power Quality Recorder

Free Shipping
$41,763.99

Description

Fluke 2637641 Description

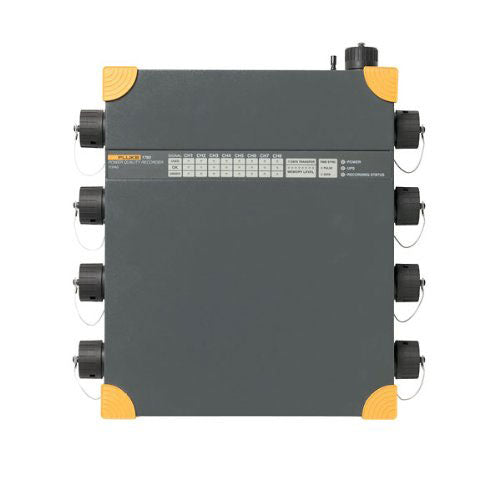

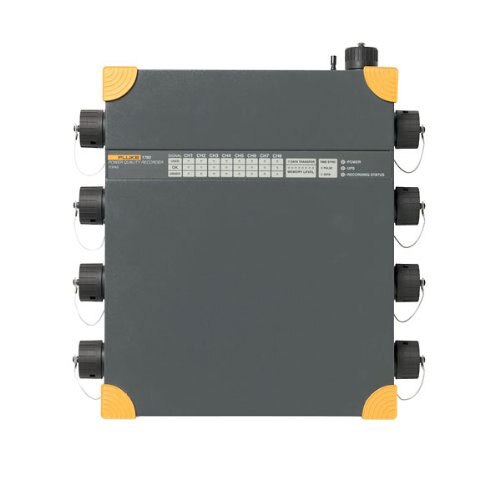

The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports.

Fluke 2637641 Includes

  • (1) Power Quality Recorder W/Trans-Topas,Configured US/Can Range
  • (1) 2GB Internal Flash Memory Card
  • (1) PQ Analyze Software CD
  • (1) Ethernet Cable
  • (1) Crosslink Ethernet Cable
  • (1) Mains Cable
  • (1) Carrying Case/Bag
  • (4) Voltage Probes (600V for INTL Set, 1000V for US Set)
  • (4) Dual-Range Flexible Current Probes 1000A/200A AC
  • (1) GPS Time Sync Receiver

Fluke 2637641 Features

  • Fully Class-A compliant: conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
  • GPS time synchronization: correlate data with events or datasets from other instruments with precision
  • Flexible and fully configurable thresholds and scale factors: allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances
  • 10 MHz, 6000 Vpk waveform capture: get a detailed picture of even the shortest event
  • 2 GB data memory: enables detailed, simultaneous recording of numerous power parameters for long periods of time
  • Comprehensive software included: provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
  • Plug and play: allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
  • Power quality statistics according to EN50160

Fluke 2637641 Specifications

Unit Weight (KG) 11.04
Unit Height (CM) 42
Unit Length (CM) 50.5
Unit Width (CM) 41
