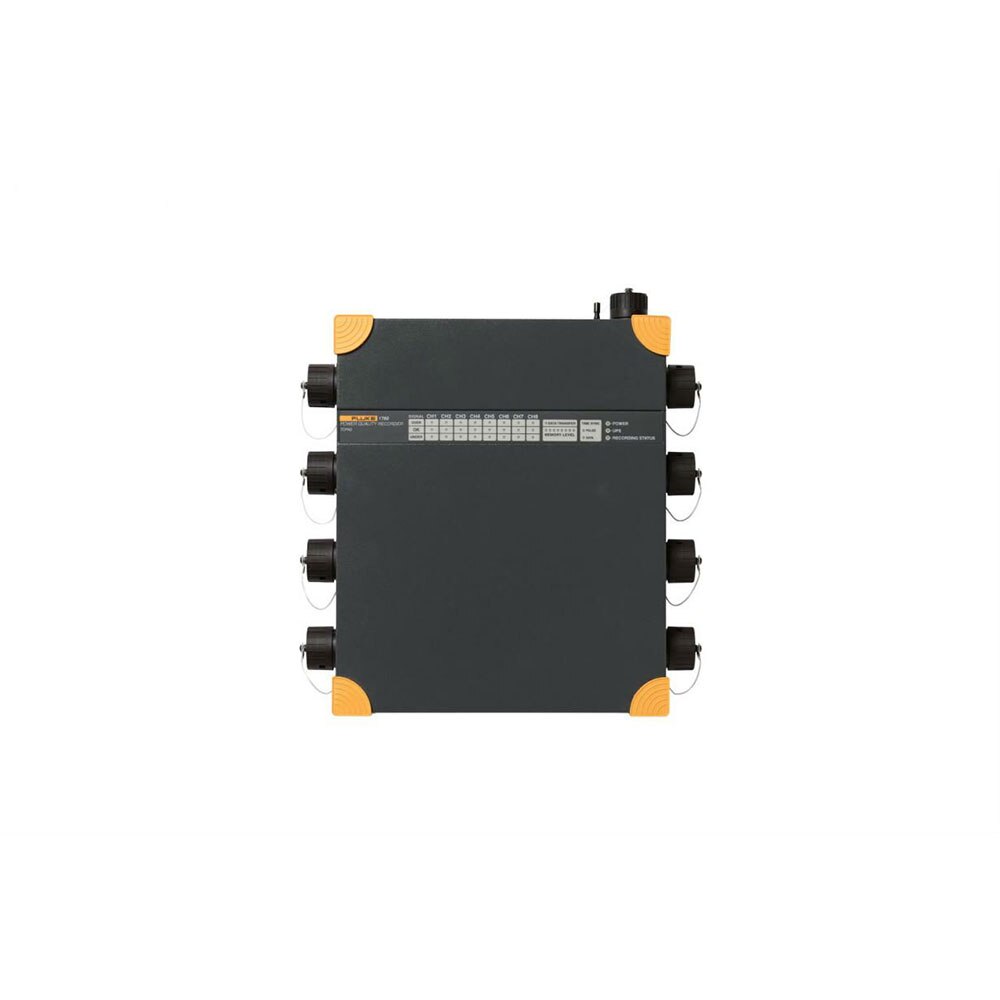

Fluke 1760TR Basic Topas Three-Phase Power Quality Recorder
Description
Description
Fluke 2637629 Description
The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds, algorithms, and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters; the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports.
Fluke 2637629 Includes
- (1) Power Quality Recorder W/Trans - Topas,W/O V Or I Probes
Fluke 2637629 Features
- Fully Class-A compliant: conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
- GPS time synchronization: correlate data with events or datasets from other instruments with precision
- Flexible and fully configurable thresholds and scale factors: allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances
- 10 MHz, 6000 Vpk waveform capture: get a detailed picture of even the shortest event
- 2 GB data memory: enables detailed, simultaneous recording of numerous power parameters for long periods of time
- Comprehensive software included: provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
- Plug and play: allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
- Power quality statistics according to EN50160
Fluke 2637629 Specifications
| Unit Weight (KG) | 9.28 |
| Unit Height (CM) | 39.5 |
| Unit Length (CM) | 59.5 |
| Unit Width (CM) | 39.8 |
