Fluke | SKU:
80PK-8

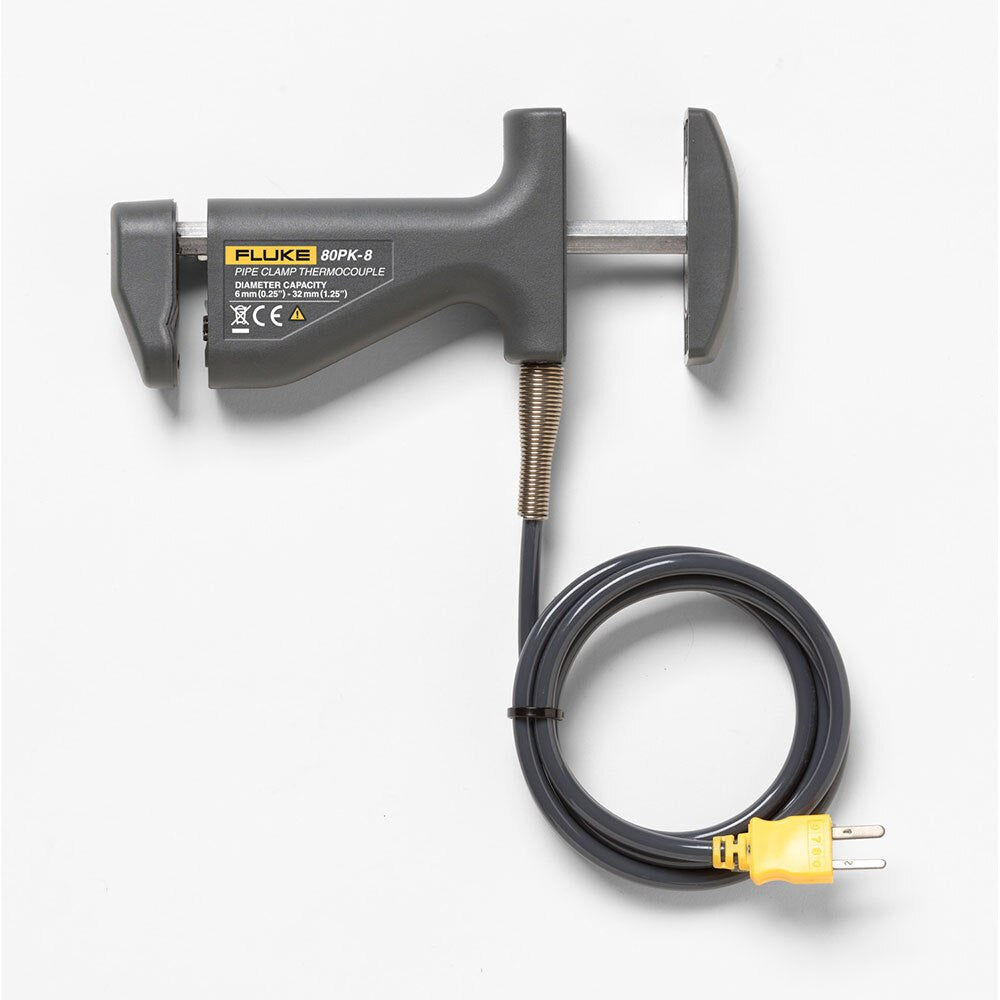

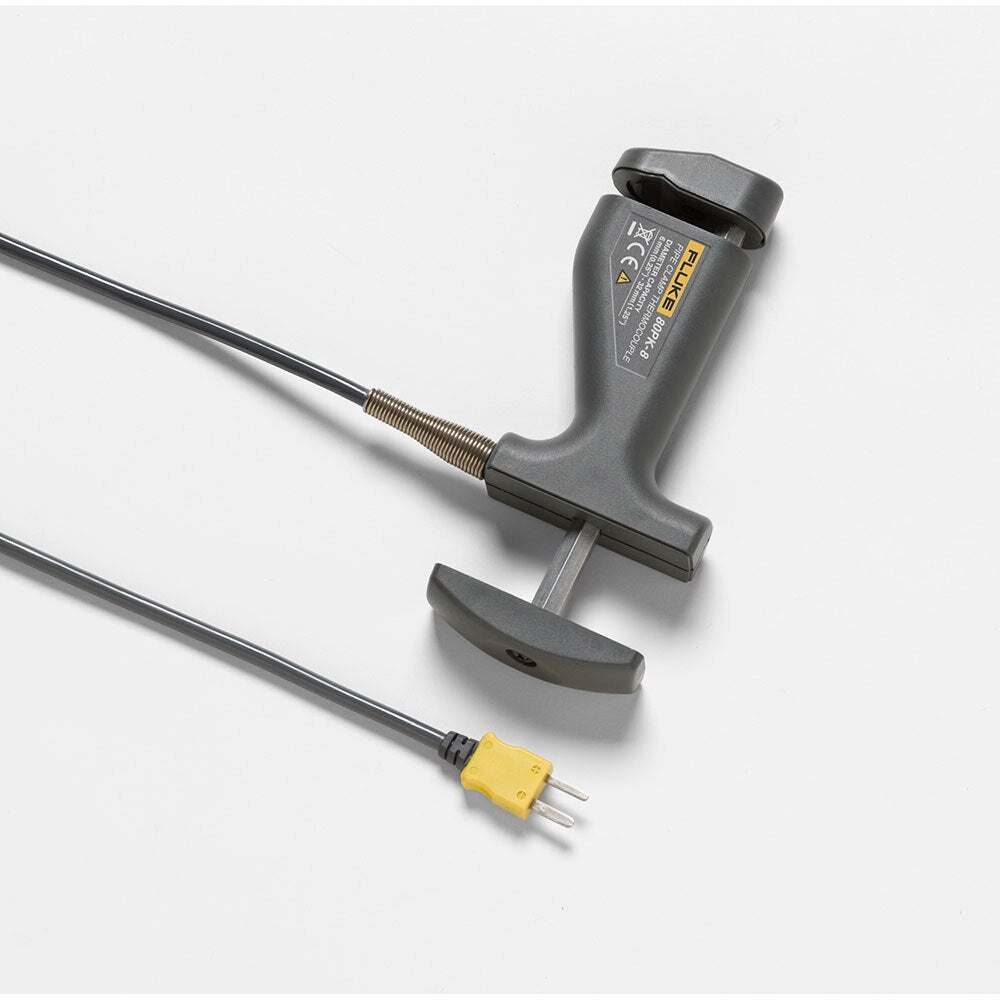

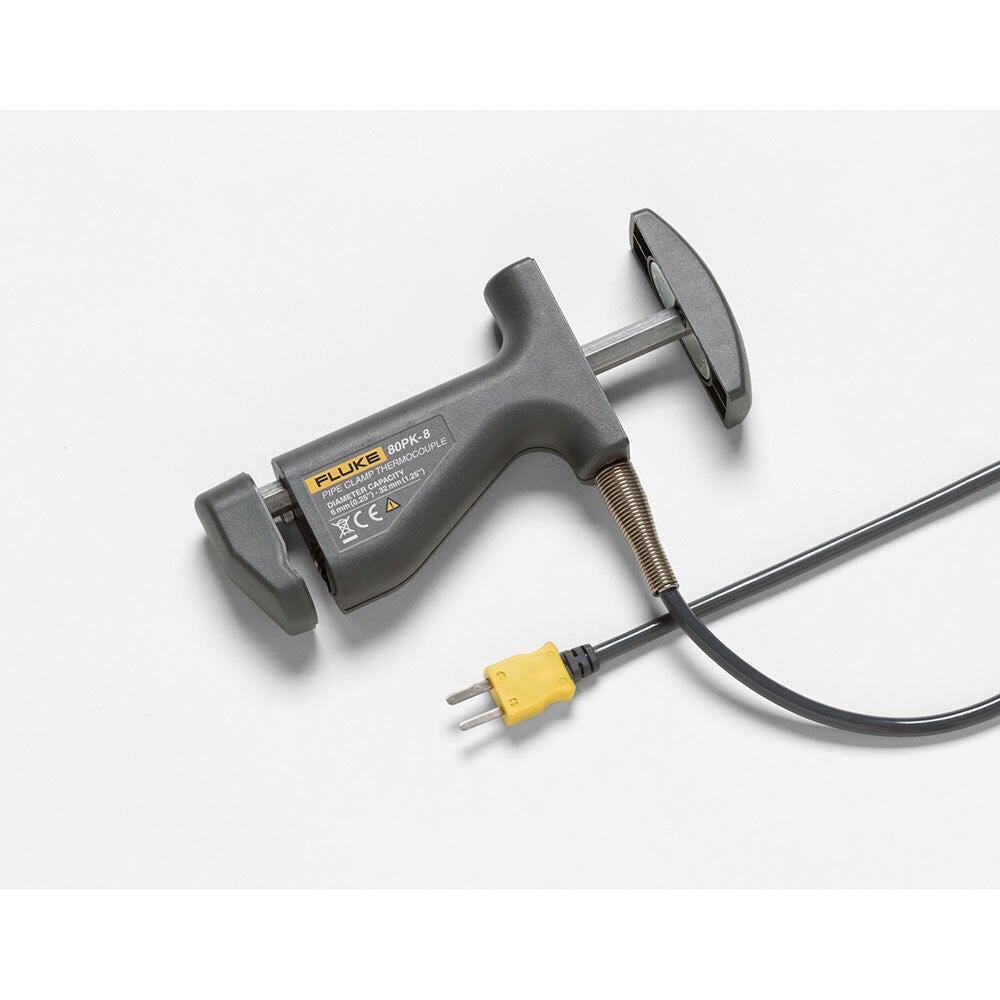

Fluke 200360 80PK-8 Type-K Pipe Clamp Temperature Probe
Free Shipping
$209.99
$239.99
Unit price
/
Unavailable
Description
Description
Fluke 200360 Description
The Fluke 80PK-8 Pipe Clamp Temperature Probe uses Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces. The 80PK-8 Type K Thermocouple Pipe Clamp Temperature Probe is designed to reliably measure the temperature of pipes ¼-inch (6 mm) to 1 3/8-inch (35 mm) in diameter, at temperatures between -29 °C and 149 °C (-20 °F and 300 °F), while retaining a long service life.
Fluke 200360 Includes
- (1) Type-K, Pipe Clamp Thermocouple Probe
Fluke 200360 Features
- Type-K thermocouple for fast temperature and superheat measurements of pipe surfaces
- Durable ribbon sensor
Fluke 200360 Specifications
| Unit Weight (KG) | 0.2 |
| Unit Height (CM) | 4 |
| Unit Length (CM) | 30.2 |
| Unit Width (CM) | 15.1 |
| Measurement range | -29 to 149 °C (-20 °F to 300 °F) for pipe diameters from 6.4 to 34.9 mm |
| Repeatability | ± 0.56 °C (±1 °F) |
| Output | @ 25 °C (77 °F) = 1.00 mV (Reference junction at 0 °C) |
| Seebeck coefficient | @ 25 °C (77 °F) = 40.50 μV / °C |
| Measurement time (time constant) | 0.5 seconds (5 time constants = 1 complete step change, i.e. 2.5 seconds) |
| Maximum voltage rating | 24 V ac rms, or 60 V dc |
