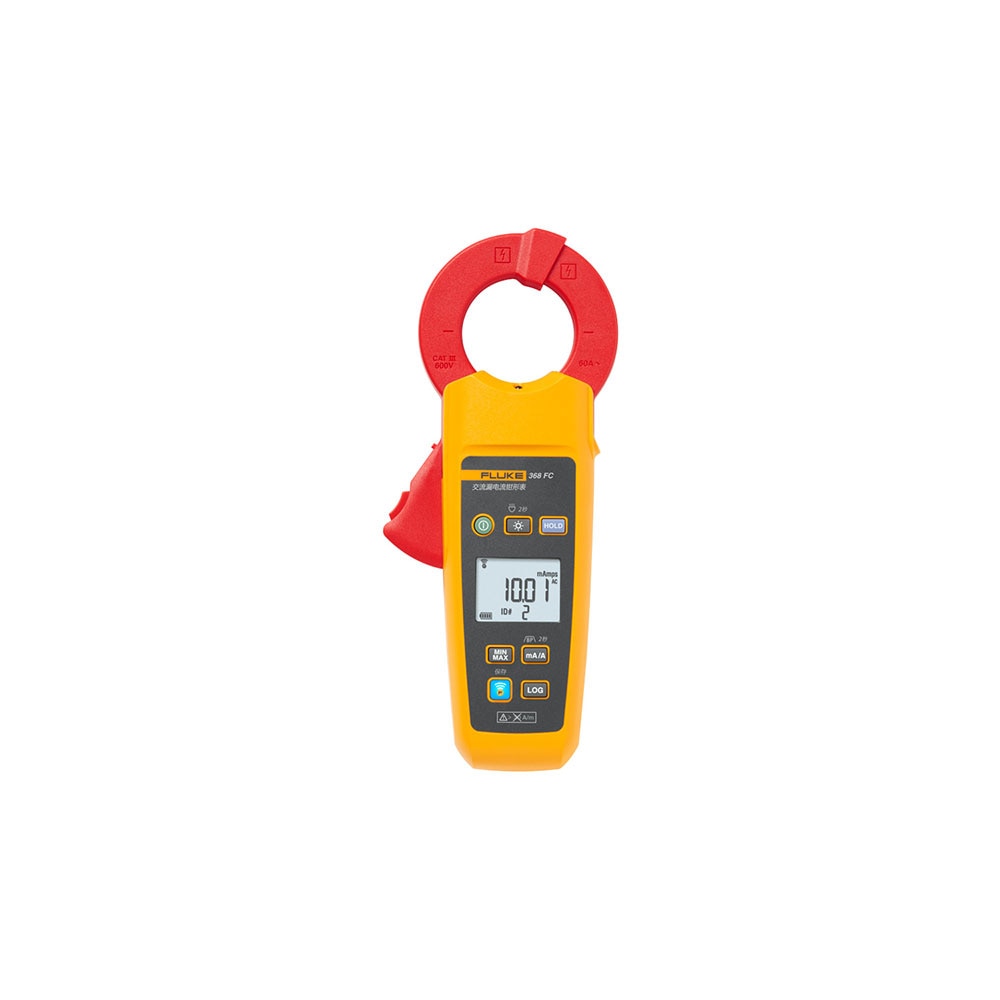

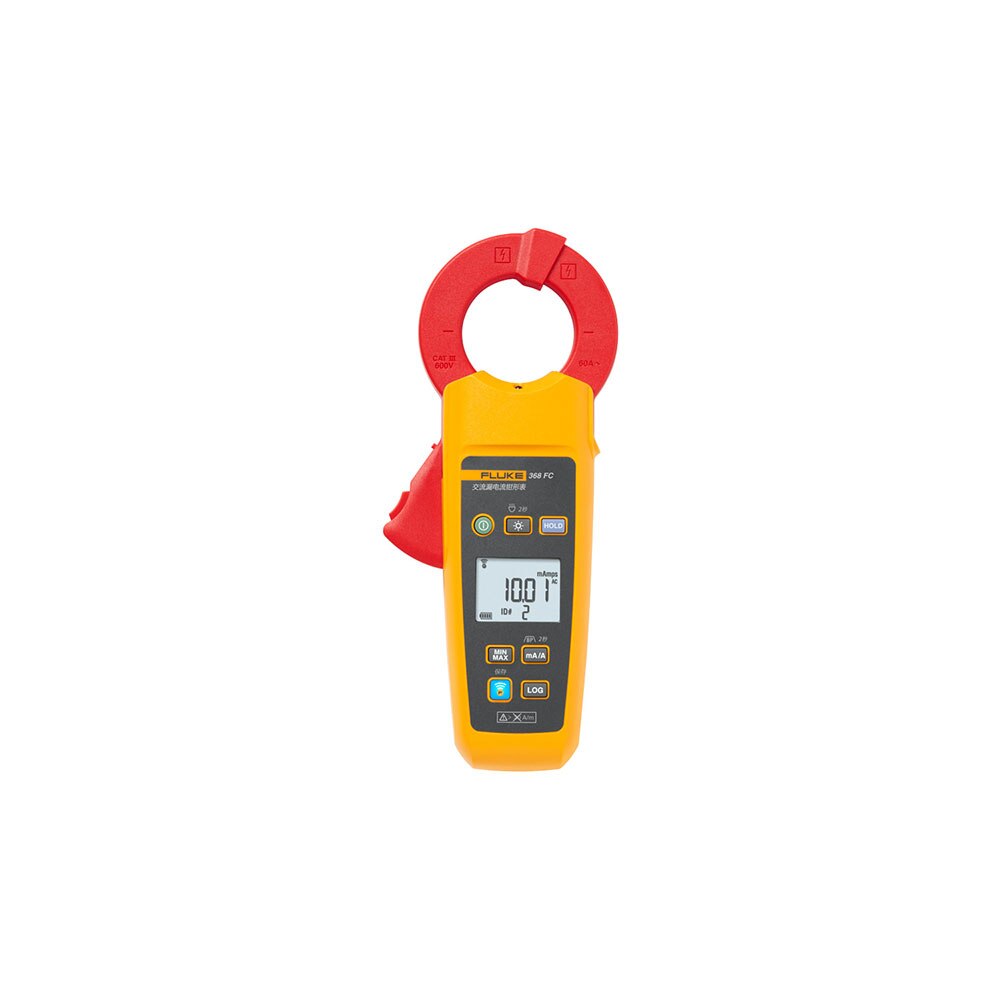

Fluke 368 FC Leakage Current Clamp Meter
Description
Description
Fluke 4709907 Description

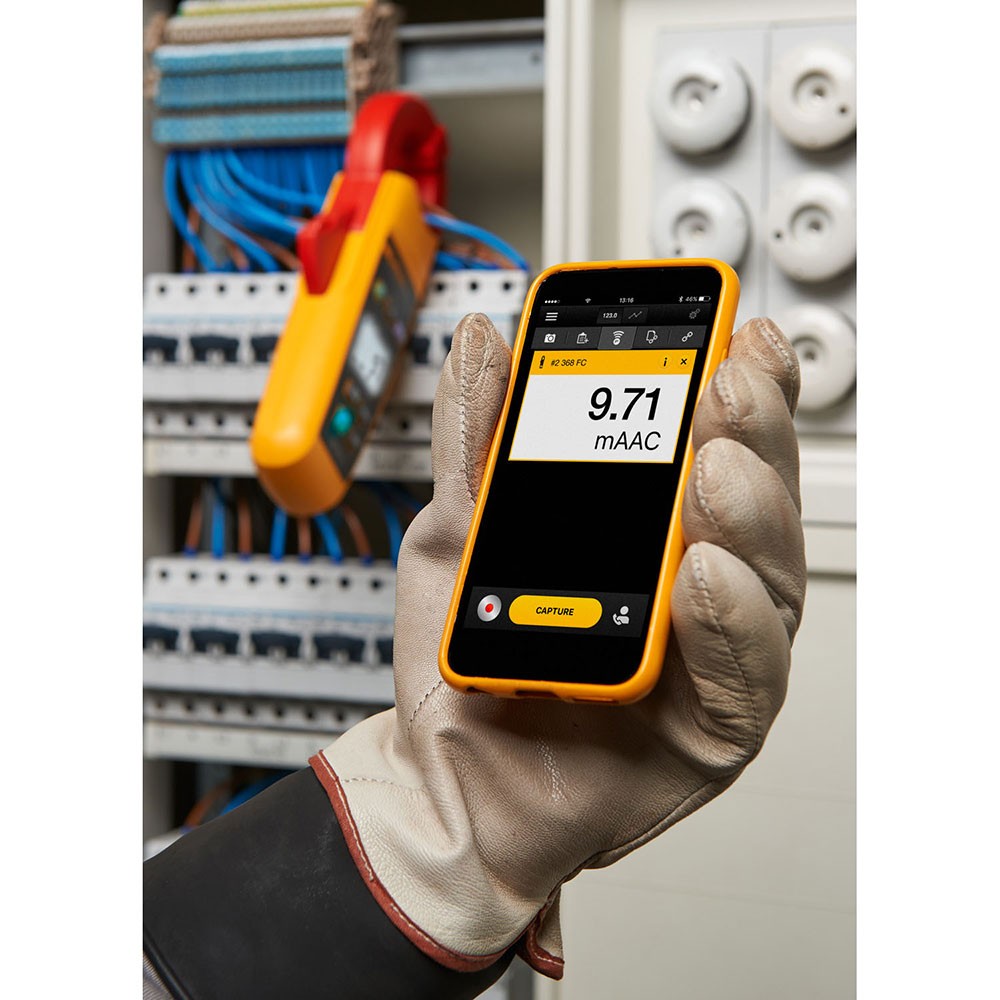

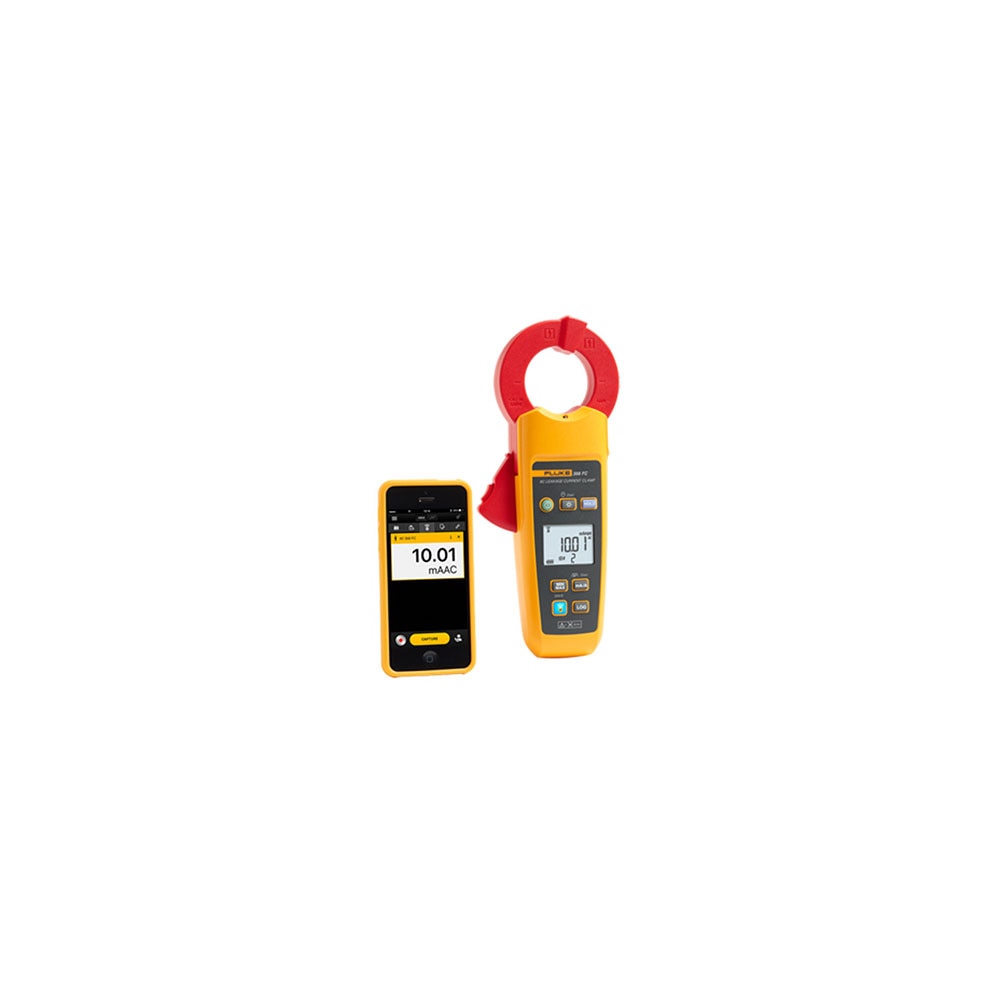

The Fluke 368 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line. The Fluke 368 FC has a large 40 mm diameter jaw for work with large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference. The 368 FC also offers wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools — the 368 FC allows you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.

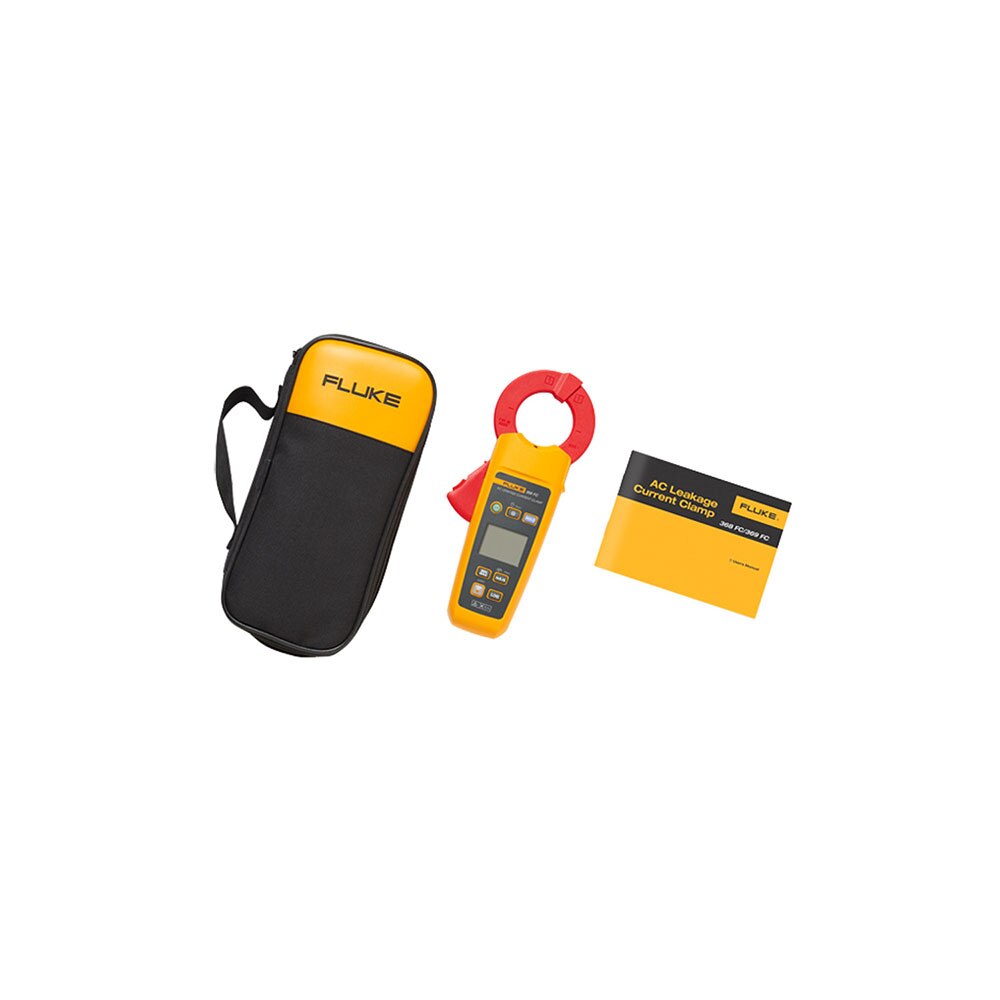

Fluke 4709907 Includes
- (1) Leakage Clamp Meter
- (1) Soft case
- (1) Safety manual
- (2) AA Batteries
Fluke 4709907 Features
- True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms

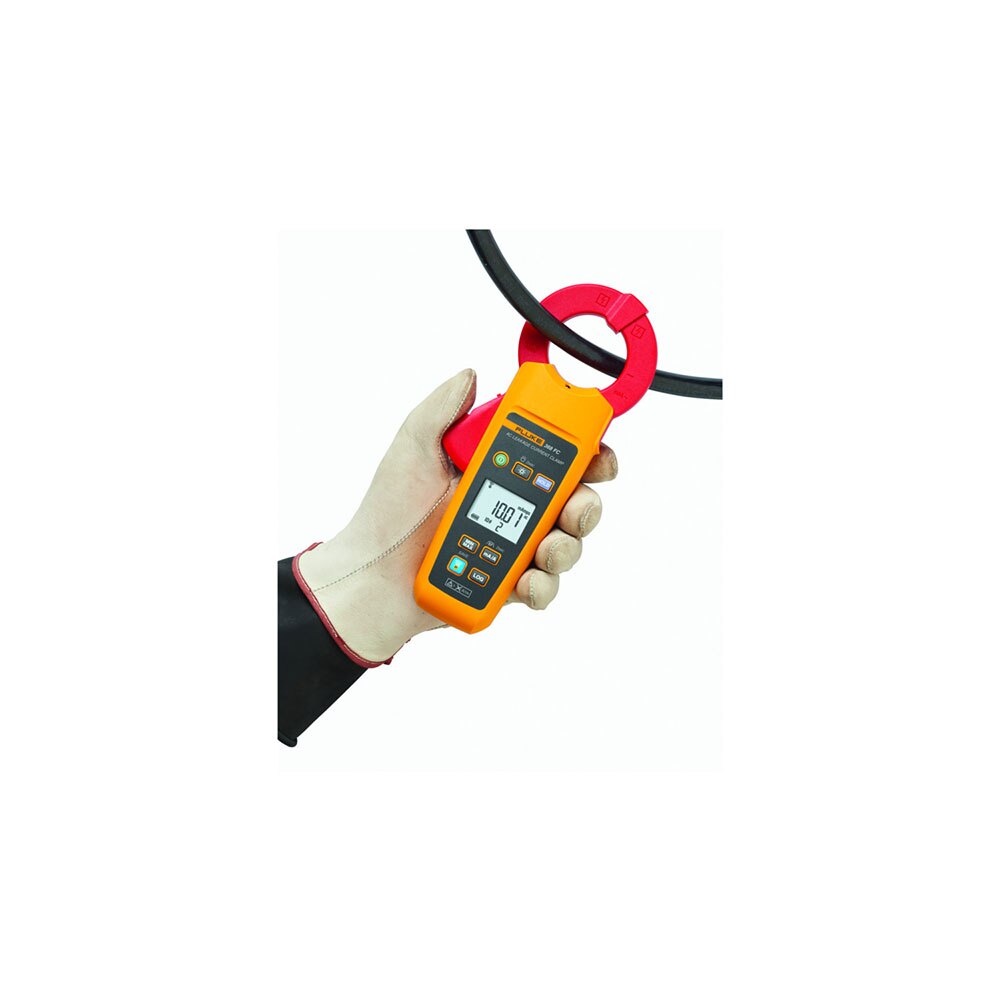

- 40 mm jaw opening
- Highest resolution of 1 μA, measure up to 60 A
- Selectable filter function removes unwanted noise
- Max/Min/Average readings and hold function
- Forward-facing LED worklight for use in dark wiring cabinets
- Backlit display; auto backlight off and auto power off for extended battery life
- CAT III 600V safety rating
- Internal Memory Logging: up to 65,000 measurement points
Fluke 4709907 Specifications
| AC ampere range | 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A |
| Range selection | mA A |
| Range/Resolution | 3 mA[1]/0.001 mA; 30 mA/0.01 mA; 300 mA/0.1 mA; 3 A/0.001 A; 30 A/0.01 A; 60 A/0.1 A |
| Accuracy | 3 mA - 30 A / 60 A, 1 % + 5 digits / 2 % + 5 digits |
| Frequency | 40 Hz to 1 kHz |
| Crest Factor | 3 |
| Display (LCD) | Digital readout |
| Display refresh rate | 4 times/sec |
| Maximum conductor diameter | 40 mm |
| General safety | IEC 61010-1 |
| Measurement safety | IEC 61010-2-032 |
