Fluke | SKU:
377 FC

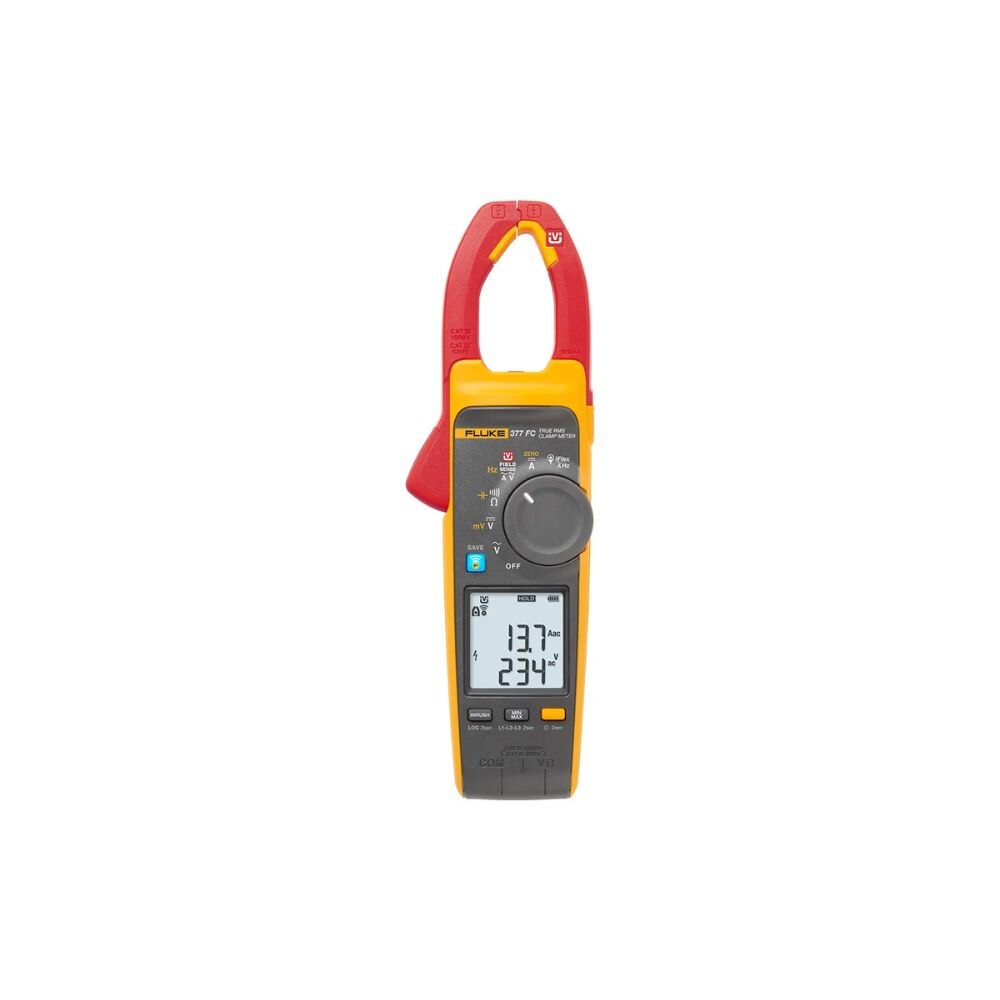

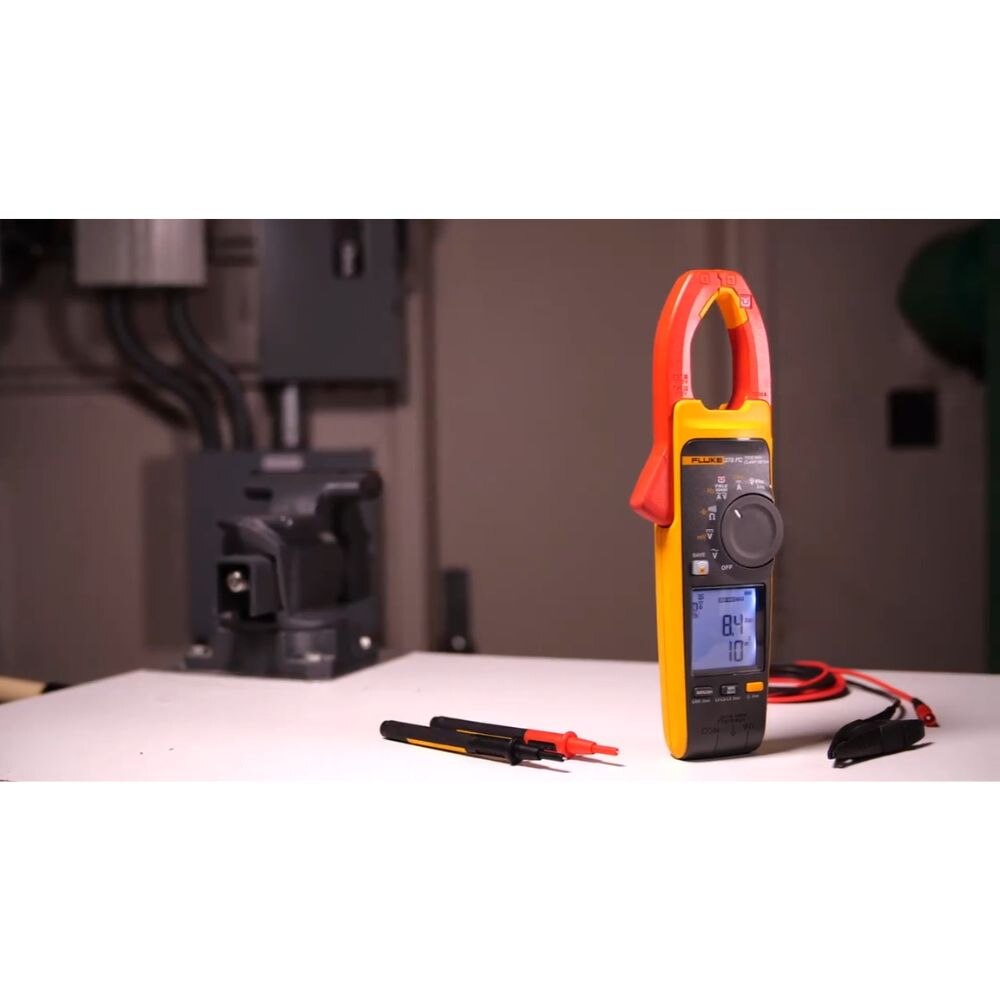

Fluke 377 FC 1000A Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex
Free Shipping
$775.30
Unit price
/
Unavailable
Description
Description

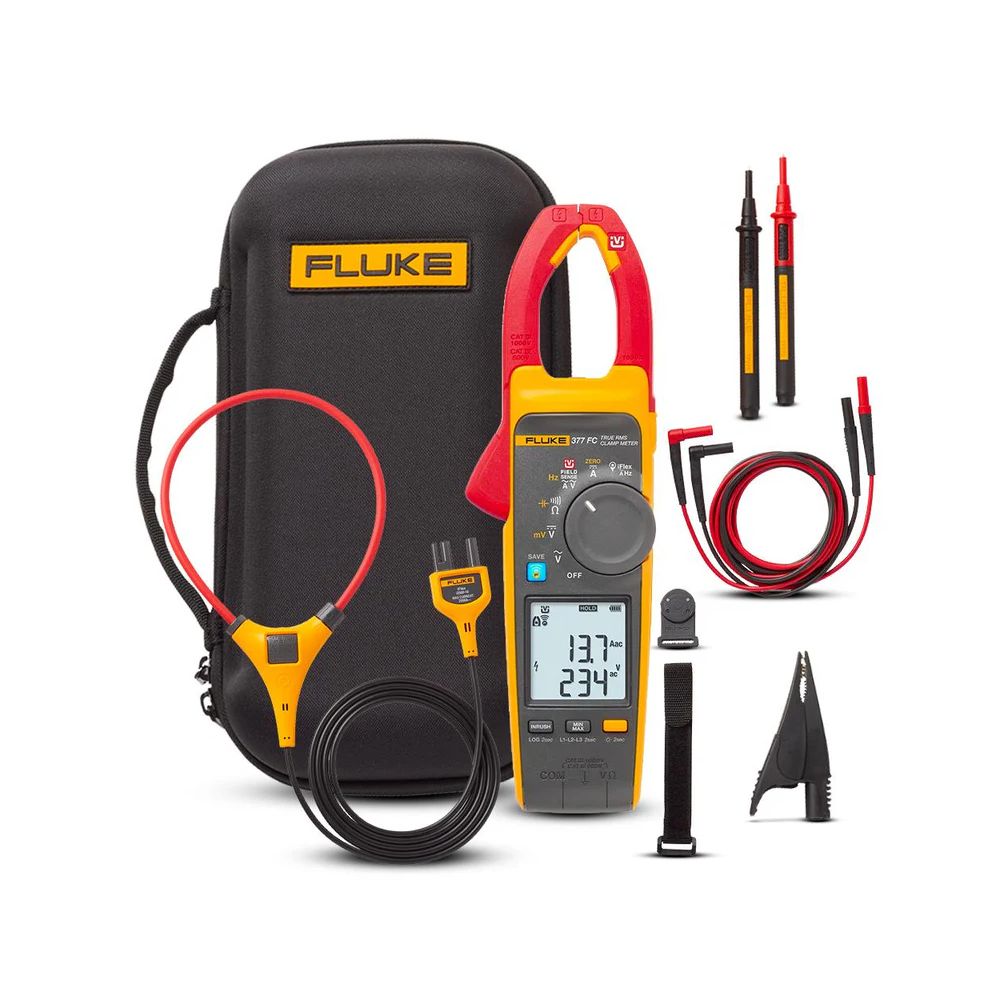

INCLUDES:
• (1) Clamp Meter
• (1) Flexible Probe
• (1) Test Leads
• (1) TwistGuard Test Probes
• (1) Black Grounding Clip
• (1) ToolPak Magnetic Meter Hanger
• (1) Premium Carrying Case
• (1) Quick Reference Guide
FEATURES:
• Measure voltage and current with your clamp jaw
• Faster, safer testing all without touching a live wire using FieldSense technology
• Complete three-phase voltage and current tests in three quick steps
• Complete 3-phase voltage and current tests in three easy steps
• Full set of phase-to-ground and phase-to-phase values calculated
• Displayed on your smart phone and saved to the cloud via Fluke Connect software
• Phase rotation calculated and shown on the Fluke Connect software
• The display turns green when a stable FieldSense measurement is detected
• Visual Continuity provides a bright green screen for easy detection of continuity in noisy work areas
• The magnetic hanging kit, with 9" (23 cm) hanging strap, lets you hang your clamp wherever you need: to a steel cabinet door; around a pipe; on a nail or screw head
SPECIFICATIONS:
• Current AC - Jaw Range: 999.9 A
• Current AC - Jaw Resolution: 0.1 A
• Current AC - Jaw Accuracy: 2% ±5 Digits (10 to 100 Hz); 2.5% ±5 Digits (100 to 500 Hz)
• Current AC - Jaw Crest Factor (50/60 Hz): 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. >2
• Current AC - Flexible Current Probe Range: 2500 A
• Current AC - Flexible Current Probe Resolution: 1 A (?2500 A) 0.1 A (?999.9 A)
• Current AC - Flexible Current Probe Accuracy: 3% ±5 Digits (5 to 500 Hz)
• Current DC Range: 999.9 A
• Current DC Resolution: 0.1 A
• Current DC Accuracy: 2% ±5 digits
• Voltage AC - FieldSense Range: 1000 V
• Voltage AC - FieldSense Resolution: 1 V (?1000 V)
• Voltage AC - FieldSense Accuracy: ?4/0 AWG - 3% ±5 Digits (45 to 66 Hz); ?4/0 AWG - 5% ±5 Digits (45 to 66 Hz)
• Voltage AC - Test Leads Range: 600.0 V, 1000 V
• Voltage AC - Test Leads Resolution: 0.1 V (?600.0 V); 1 V (?1000 V)
• Voltage AC - Test Leads Accuracy: 1% ±5 digits (20 to 500 Hz)
• Voltage DC Range: 600 V, 1000 V
• Voltage DC Resolution: 0.1 V (?600 V); 1 V (?1000 V)
• Voltage DC Accuracy: 1% ± 5 Digits
• Voltage mV DC Range: 500 mV
• Voltage mV DC Resolution: 0.1 mV
• Voltage mV DC Accuracy: 1% ±5 digits
• Amps Frequency Jaw Range: 5 to 500 Hz
• Amps Frequency Jaw Resolution: 0.1 Hz

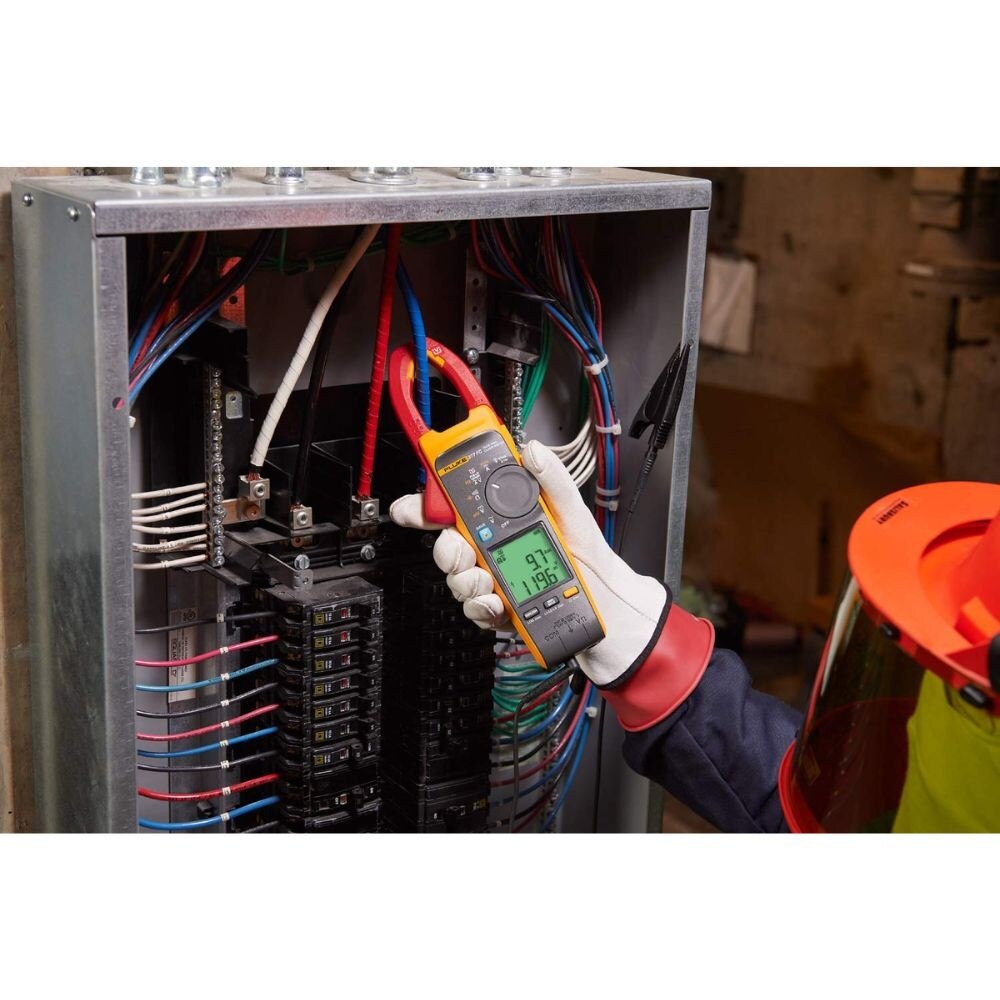

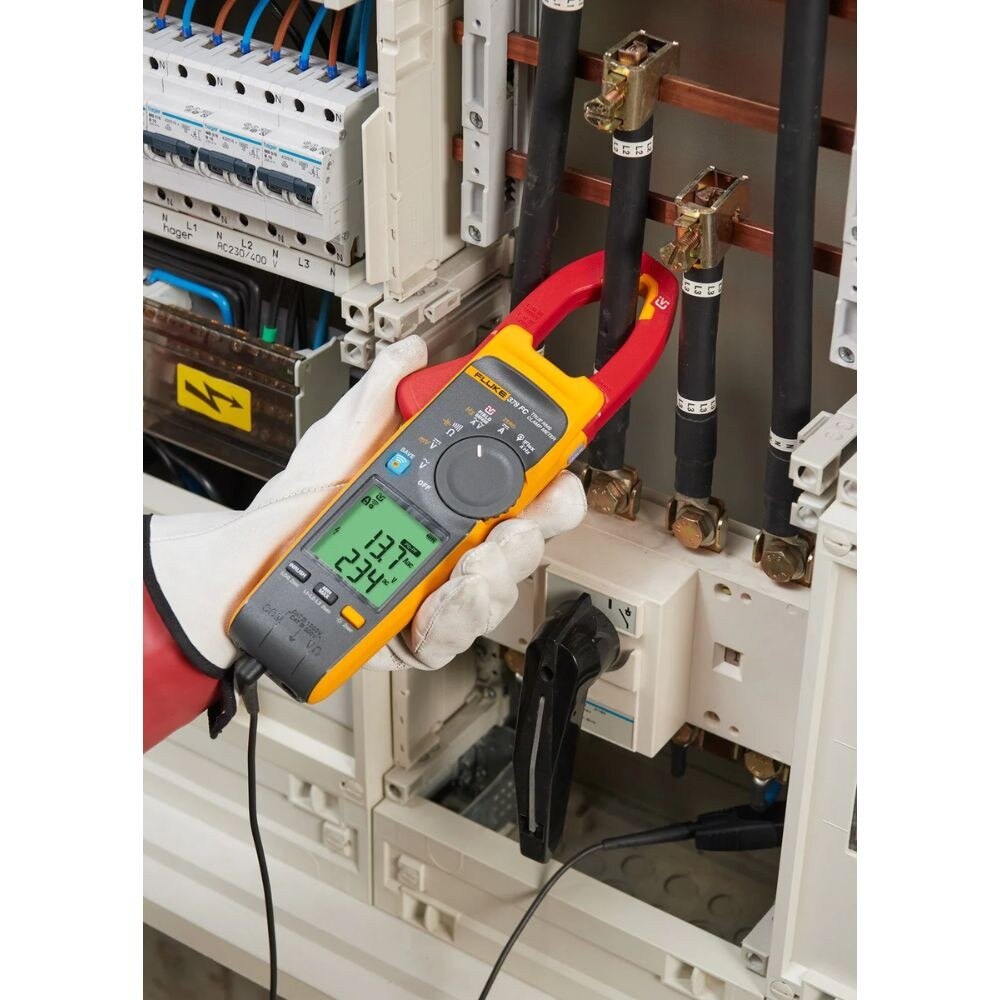

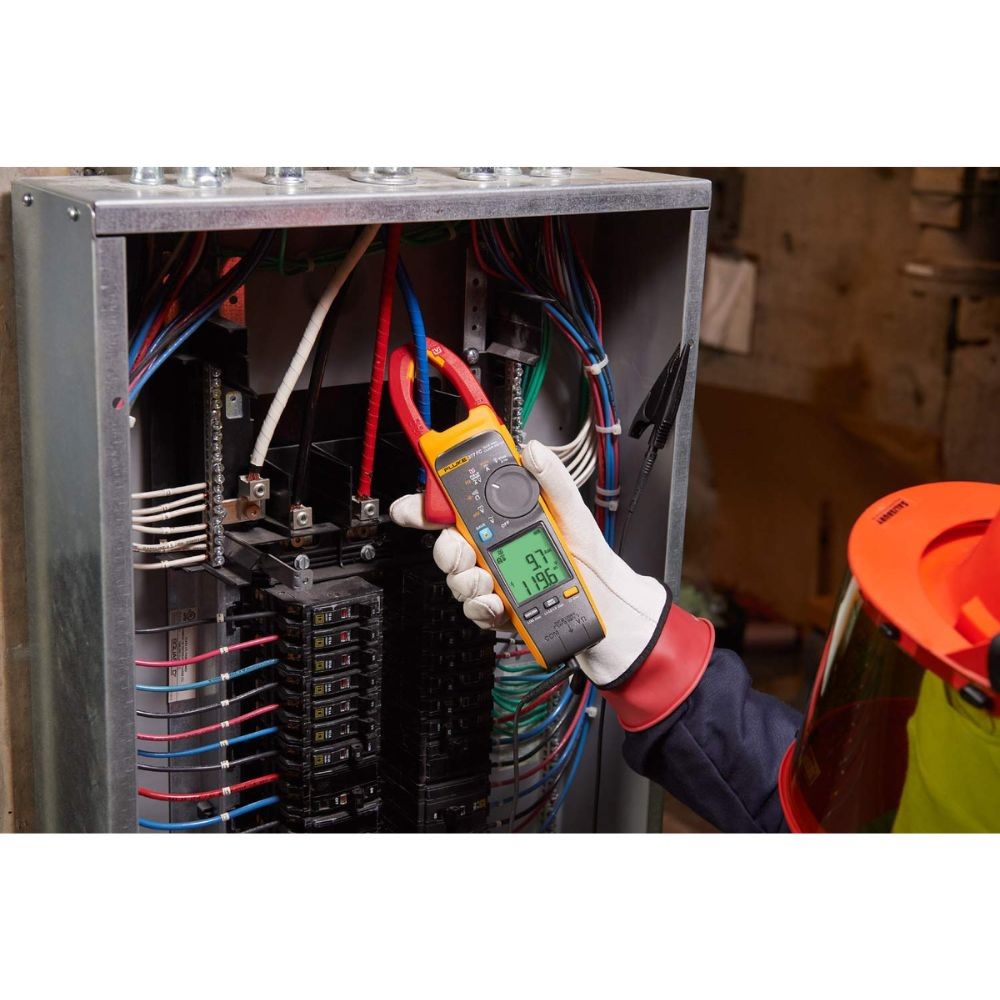

The Fluke 377 FC and 378 FC true-rms clamp meters use FieldSense technology to make testing faster and safer, all without touching a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
• (1) Clamp Meter
• (1) Flexible Probe
• (1) Test Leads
• (1) TwistGuard Test Probes
• (1) Black Grounding Clip
• (1) ToolPak Magnetic Meter Hanger
• (1) Premium Carrying Case
• (1) Quick Reference Guide
FEATURES:
• Measure voltage and current with your clamp jaw
• Faster, safer testing all without touching a live wire using FieldSense technology
• Complete three-phase voltage and current tests in three quick steps
• Complete 3-phase voltage and current tests in three easy steps
• Full set of phase-to-ground and phase-to-phase values calculated
• Displayed on your smart phone and saved to the cloud via Fluke Connect software
• Phase rotation calculated and shown on the Fluke Connect software
• The display turns green when a stable FieldSense measurement is detected
• Visual Continuity provides a bright green screen for easy detection of continuity in noisy work areas
• The magnetic hanging kit, with 9" (23 cm) hanging strap, lets you hang your clamp wherever you need: to a steel cabinet door; around a pipe; on a nail or screw head
SPECIFICATIONS:
• Current AC - Jaw Range: 999.9 A
• Current AC - Jaw Resolution: 0.1 A
• Current AC - Jaw Accuracy: 2% ±5 Digits (10 to 100 Hz); 2.5% ±5 Digits (100 to 500 Hz)
• Current AC - Jaw Crest Factor (50/60 Hz): 3 at 500 A; 2.5 at 600 A; 1.42 at 1000 A; Add 2% for C.F. >2
• Current AC - Flexible Current Probe Range: 2500 A
• Current AC - Flexible Current Probe Resolution: 1 A (?2500 A) 0.1 A (?999.9 A)
• Current AC - Flexible Current Probe Accuracy: 3% ±5 Digits (5 to 500 Hz)
• Current DC Range: 999.9 A
• Current DC Resolution: 0.1 A
• Current DC Accuracy: 2% ±5 digits
• Voltage AC - FieldSense Range: 1000 V
• Voltage AC - FieldSense Resolution: 1 V (?1000 V)
• Voltage AC - FieldSense Accuracy: ?4/0 AWG - 3% ±5 Digits (45 to 66 Hz); ?4/0 AWG - 5% ±5 Digits (45 to 66 Hz)
• Voltage AC - Test Leads Range: 600.0 V, 1000 V
• Voltage AC - Test Leads Resolution: 0.1 V (?600.0 V); 1 V (?1000 V)
• Voltage AC - Test Leads Accuracy: 1% ±5 digits (20 to 500 Hz)
• Voltage DC Range: 600 V, 1000 V
• Voltage DC Resolution: 0.1 V (?600 V); 1 V (?1000 V)
• Voltage DC Accuracy: 1% ± 5 Digits
• Voltage mV DC Range: 500 mV
• Voltage mV DC Resolution: 0.1 mV
• Voltage mV DC Accuracy: 1% ±5 digits
• Amps Frequency Jaw Range: 5 to 500 Hz
• Amps Frequency Jaw Resolution: 0.1 Hz
The Fluke 377 FC and 378 FC true-rms clamp meters use FieldSense technology to make testing faster and safer, all without touching a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
