Fluke  |  SKU: 5160004  |  Barcode: 095969946261

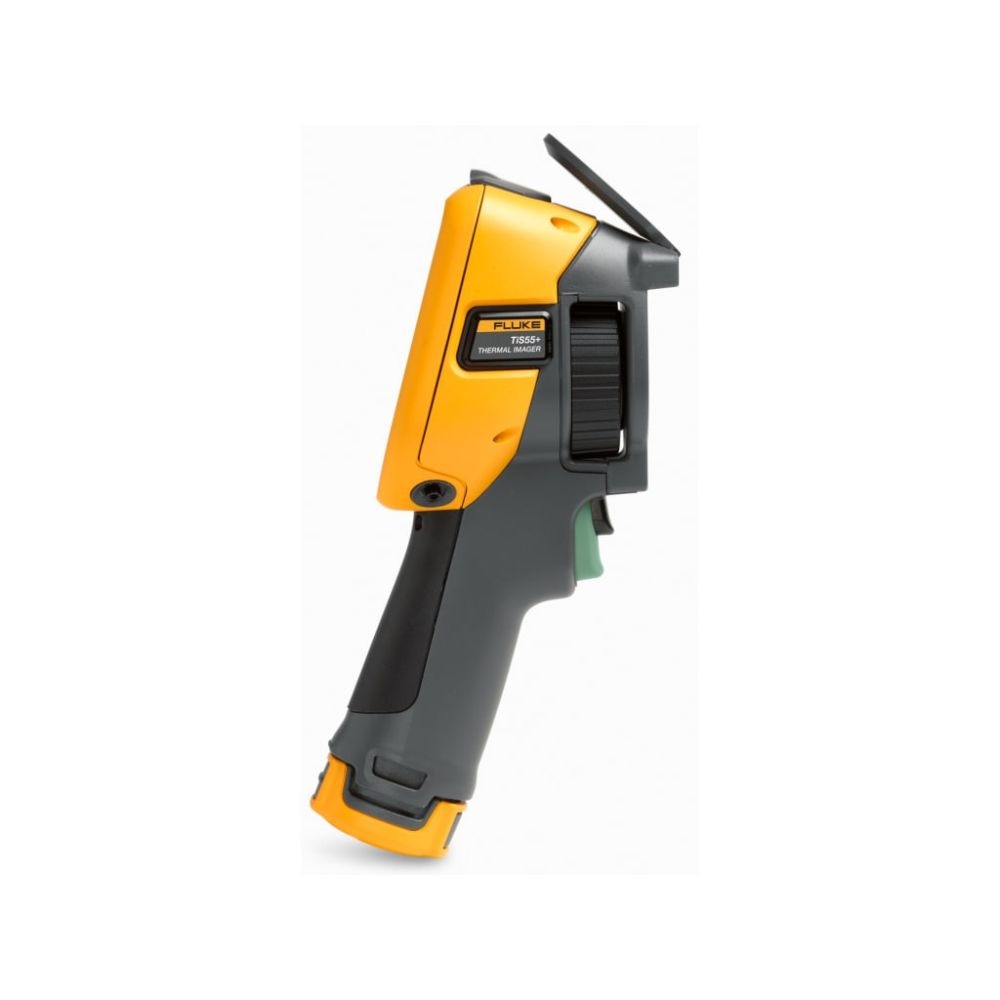

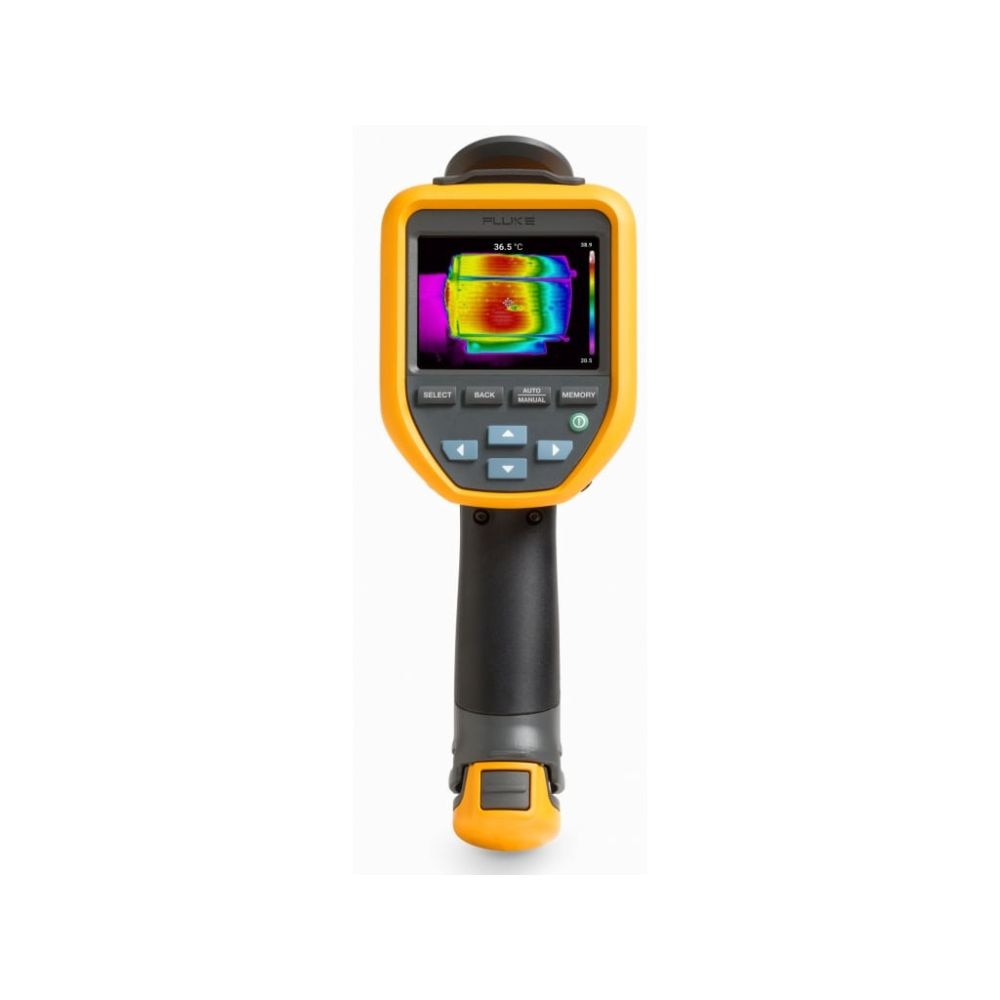

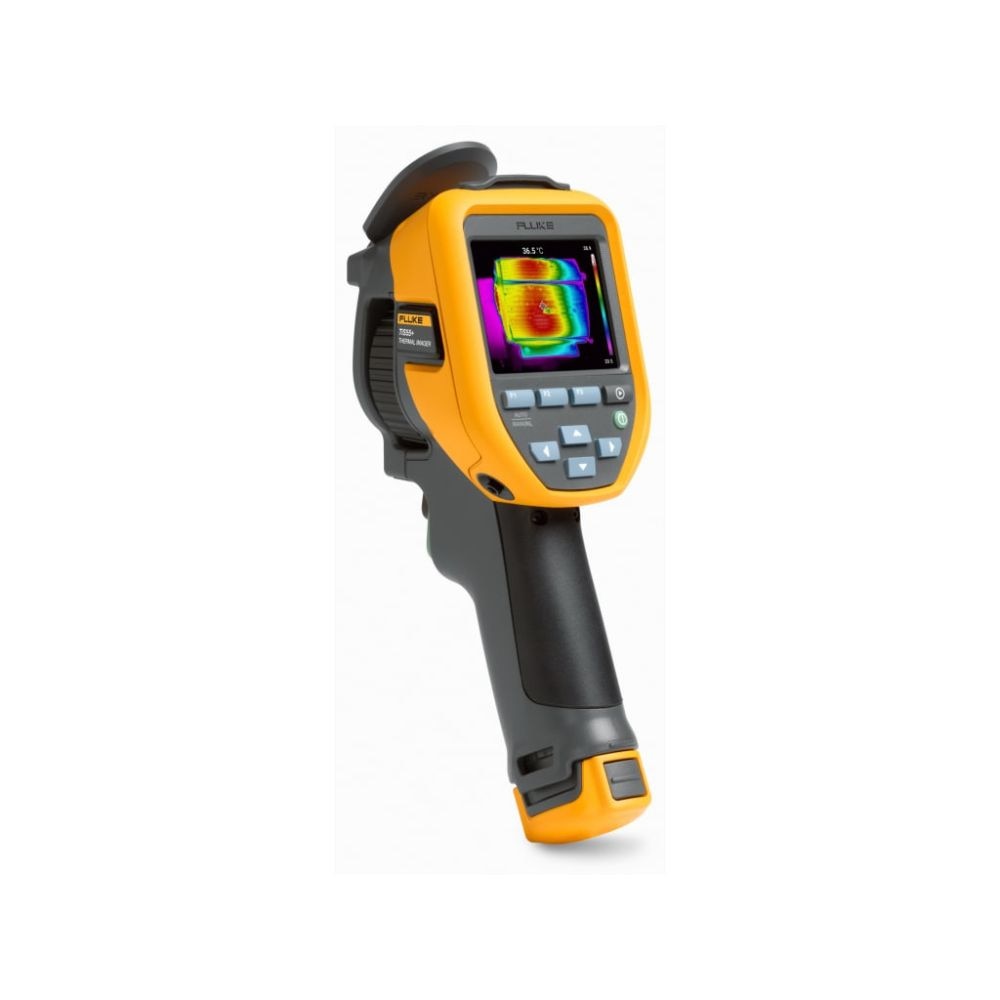

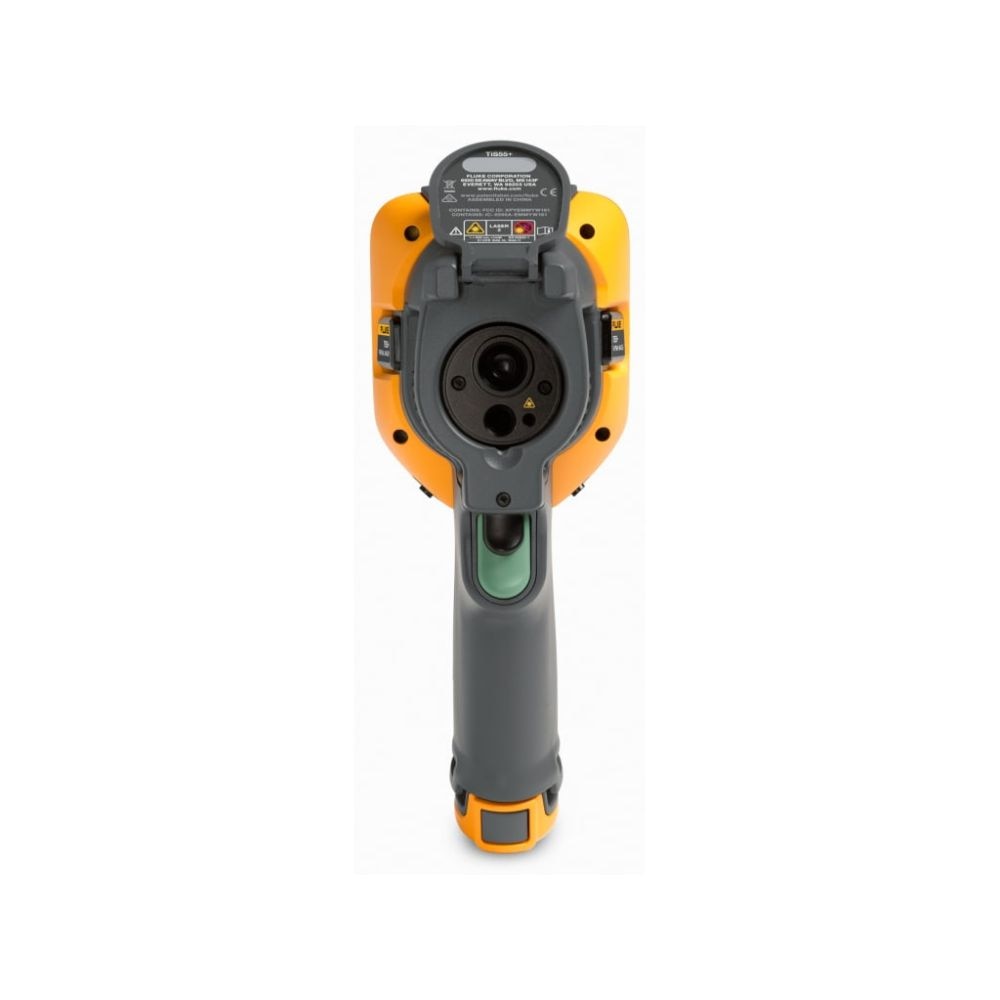

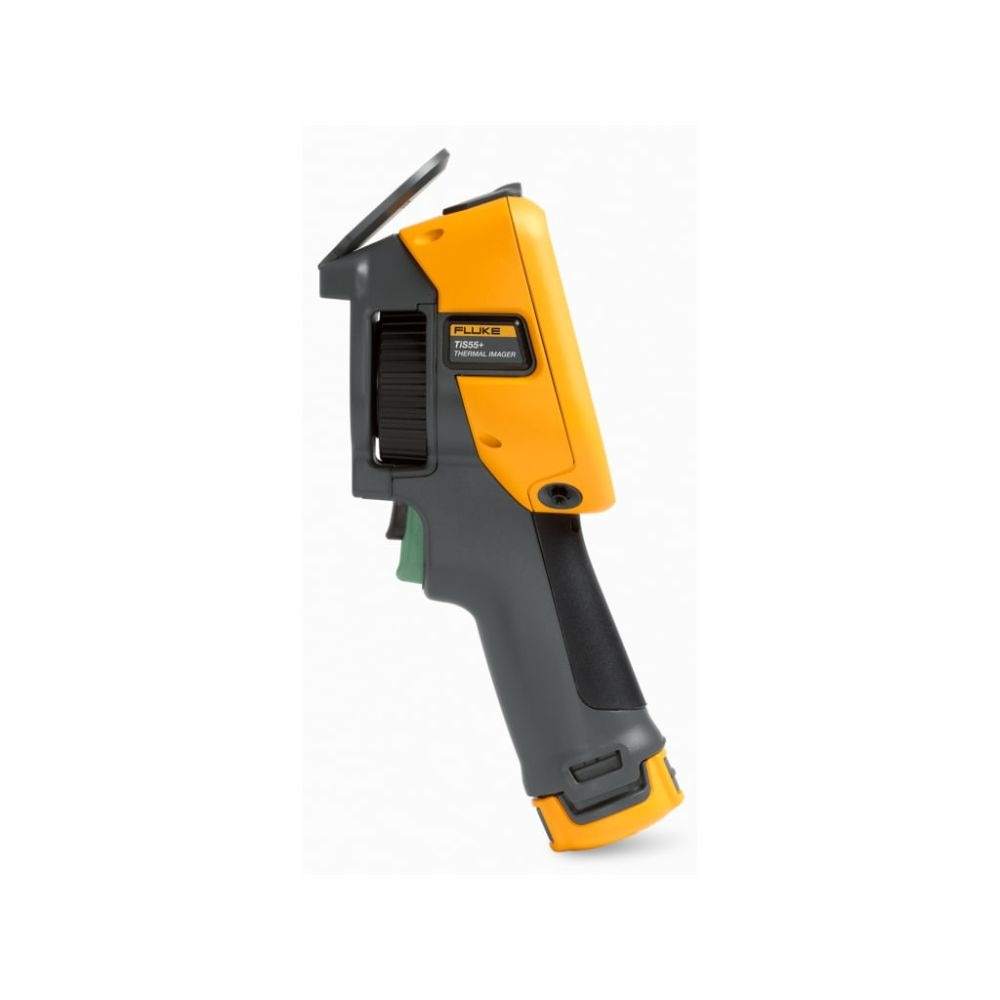

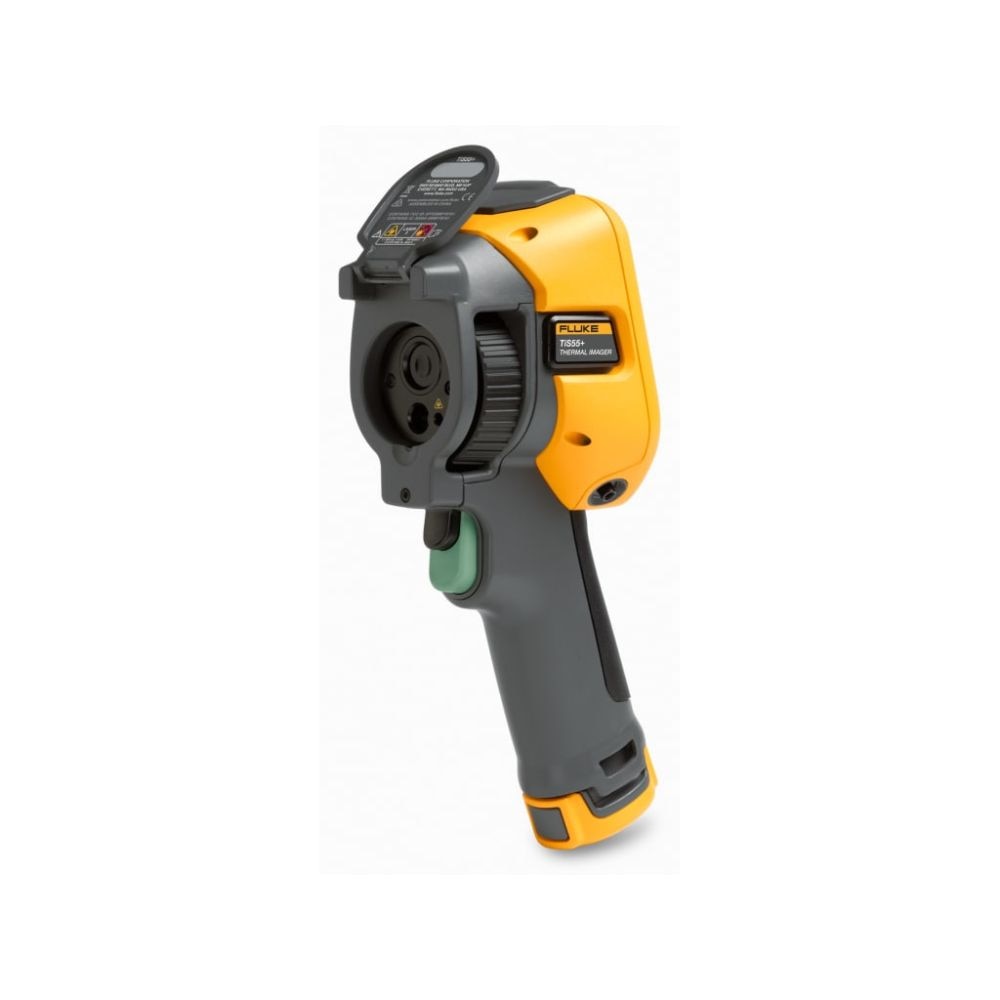

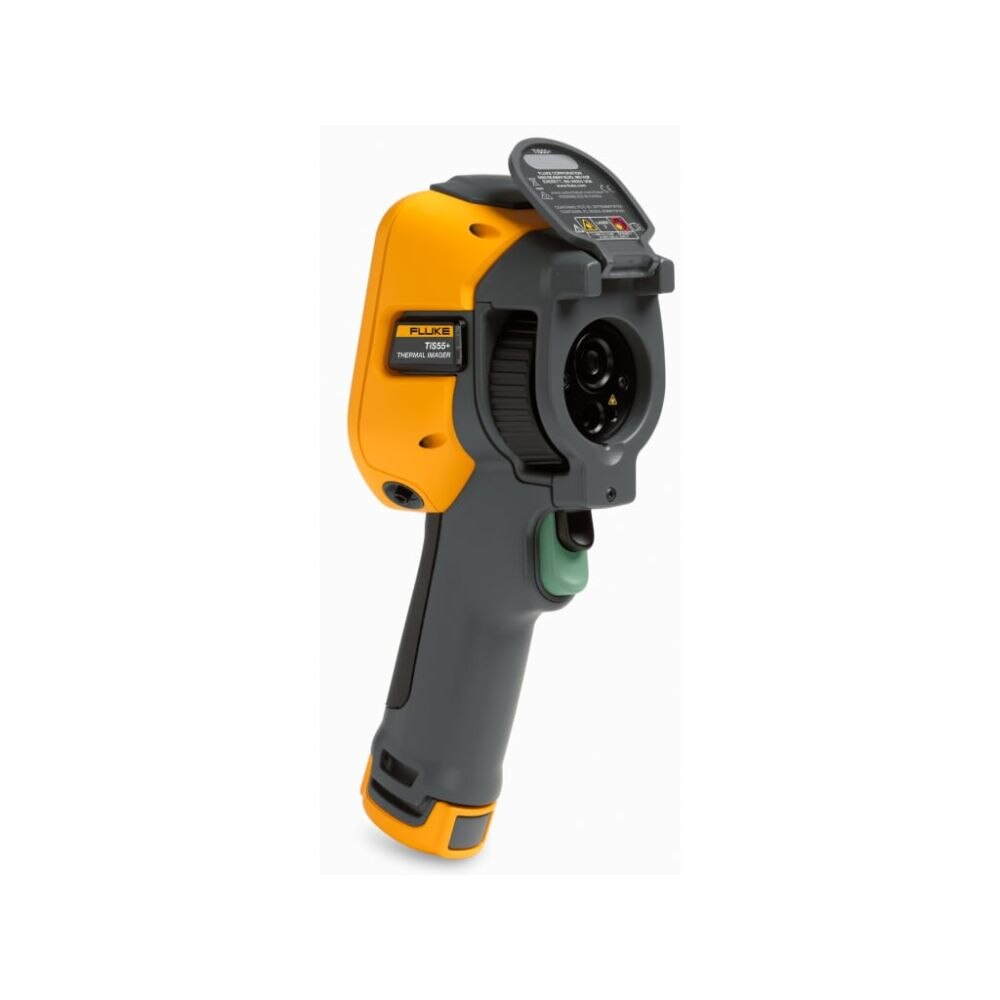

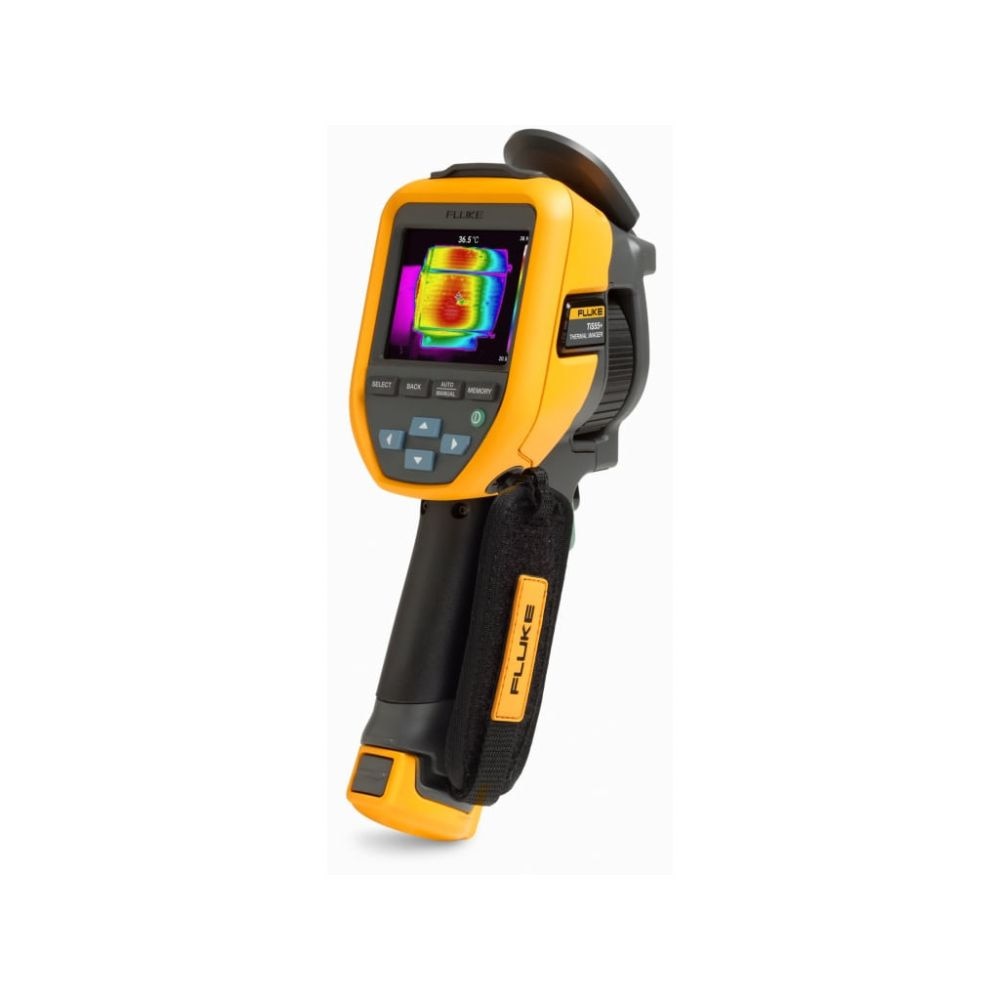

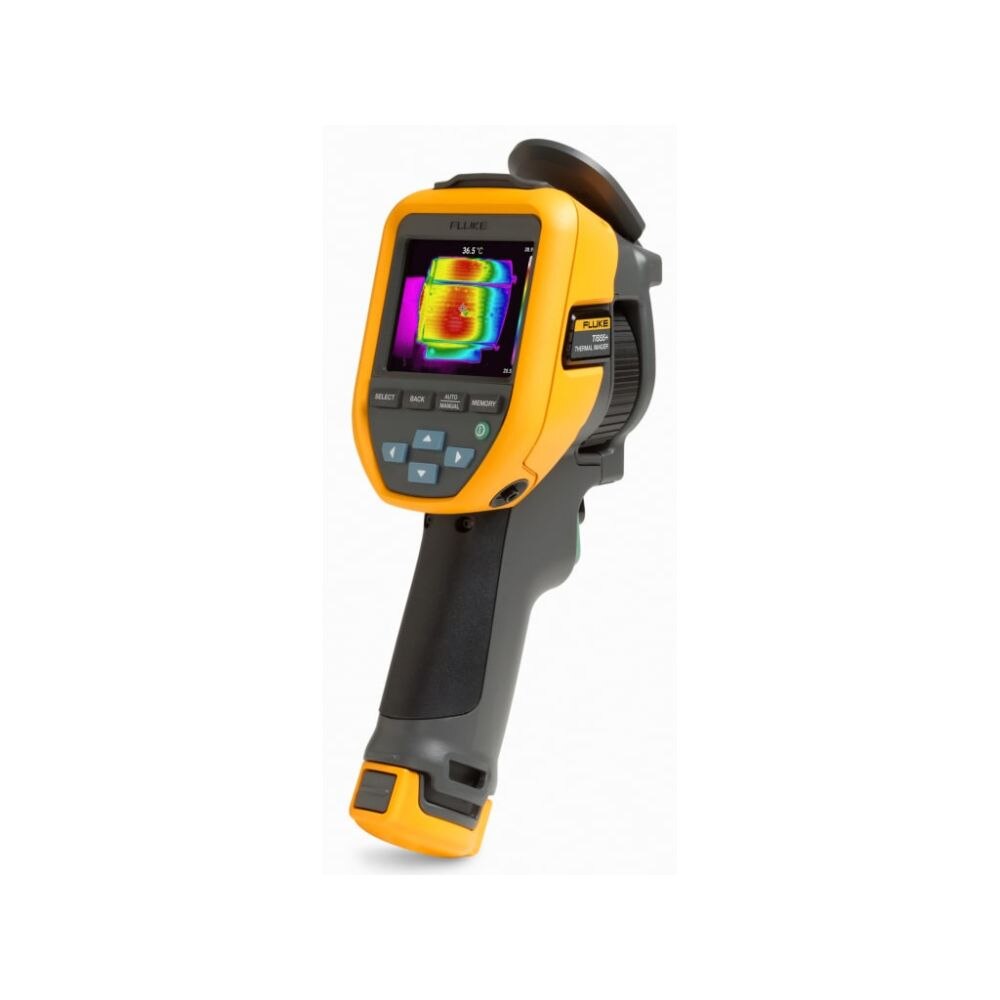

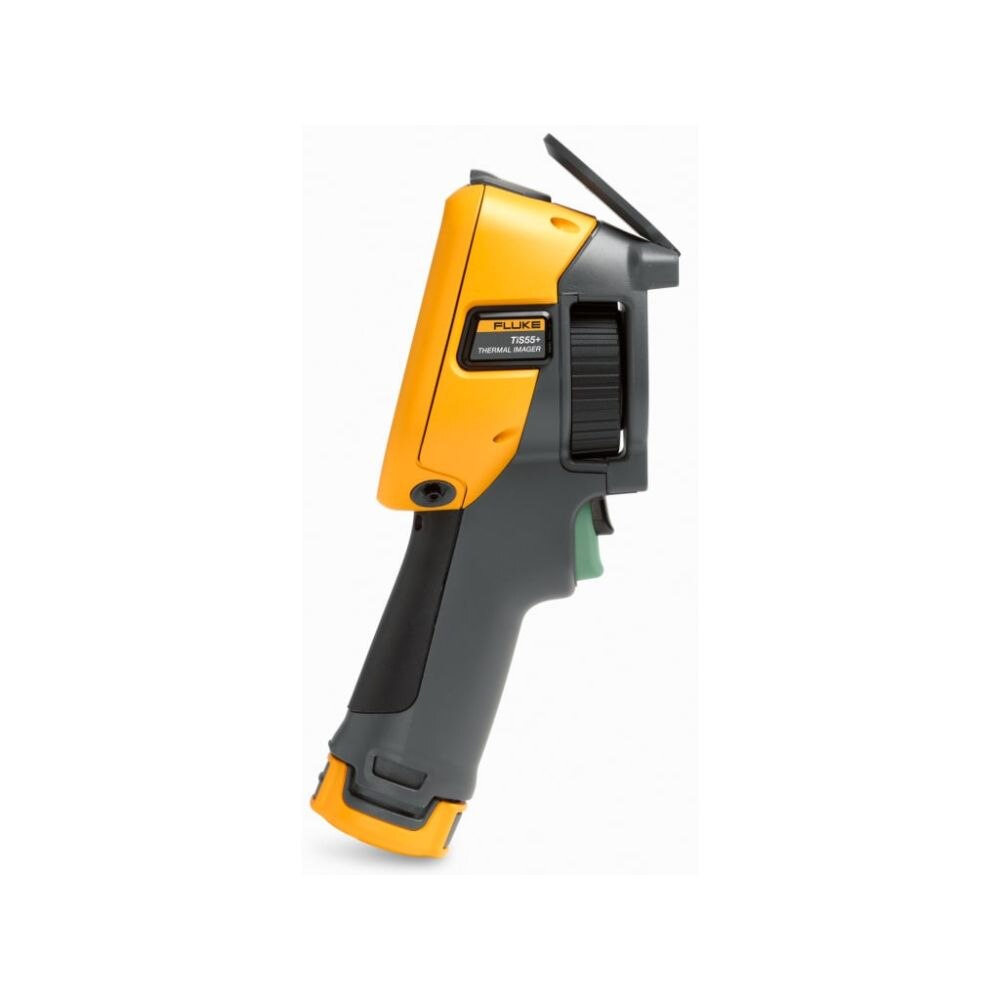

Fluke 5160004 FLK-TIS55+ 27HZ - Thermal Imager; FT1; 27 HZ

Free Shipping
$4,139.99

Description

Fluke 5160004 Description

With the Fluke TiS55+ 27 Hz, 256 x 192, Thermal Imaging Camera with Fluke Connect Compatibility, -20 °C to 550 °C users are well on their way to take a proactive maintenance (PM) program, and successfully turning it into reality. To get started, users need features that make it easy to set up image organization and inspection routines.

Fluke 5160004 Includes

  • (1) Infrared Camera (TiS55+)
  • (1) AC Power Supply (Including Universal AC Adapters)
  • (1) Rugged Lithium Ion Smart Battery
  • (1) USB Cable
  • (1) 4 GB Micro SD Card
  • (1) Rugged Hard Carrying Case with Soft Transport Bag and Adjustable Hand Strap

Fluke 5160004 Features

  • 256 x 192 infrared resolution
  • Asset Tagging
  • Touchscreen IR Fusion™
  • Manual and fixed focus
  • Measure up to 550 °C
  • Engineered to withstand 2 meter drop

Fluke 5160004 Specifications

Voice Annotation Record up to 60 Seconds per Thermal Image and Identify Exactly What is Seen in Real Time
IR-PhotoNotes Take Photos of Asset Numbers and Other Identifiers and Use as Reference When Looking at Thermal Images on Computers
Asset Tagging Sort thermal Images by Asset; Scan QR Code on Assets, then Begin Capturing Thermal Images; Images will Automatically be Sorted by Asset; Simply Connect Camera to Computer
Infrared Resolution 256 x 192 (49,152 pixels)
IFOV 1.91 mRad
Field of View 28° x 20°
Minimum Focus Distance 0.5 m
Focus system Manual Focus and 1 Meter Focus Marker
Wireless Connectivity Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi and LAN (where available)
Fluke Connect App Compatible Yes, Connect Camera to Smartphone, and Images Taken Automatically Upload to Fluke Connect App for Saving and Sharing (not available in every country)
Fluke Connect Assets Optional Software Yes, Assign Images to Assets and Create Work Orders; Essily Compare Measurement Types in One Location
Asset Tagging Scan QR CCde to Automatically Organize and File Thermal Images with Fluke Connect™
IR-Fusion Technology AutoBlend Continuous 0 % to 100 %; Adds Context of Visible Details to Infrared Images
Picture-In-Picture (PIP) Yes
Display 3.5 in. (8.9 cm landscape) Touchscreen 640 x 480 LCD

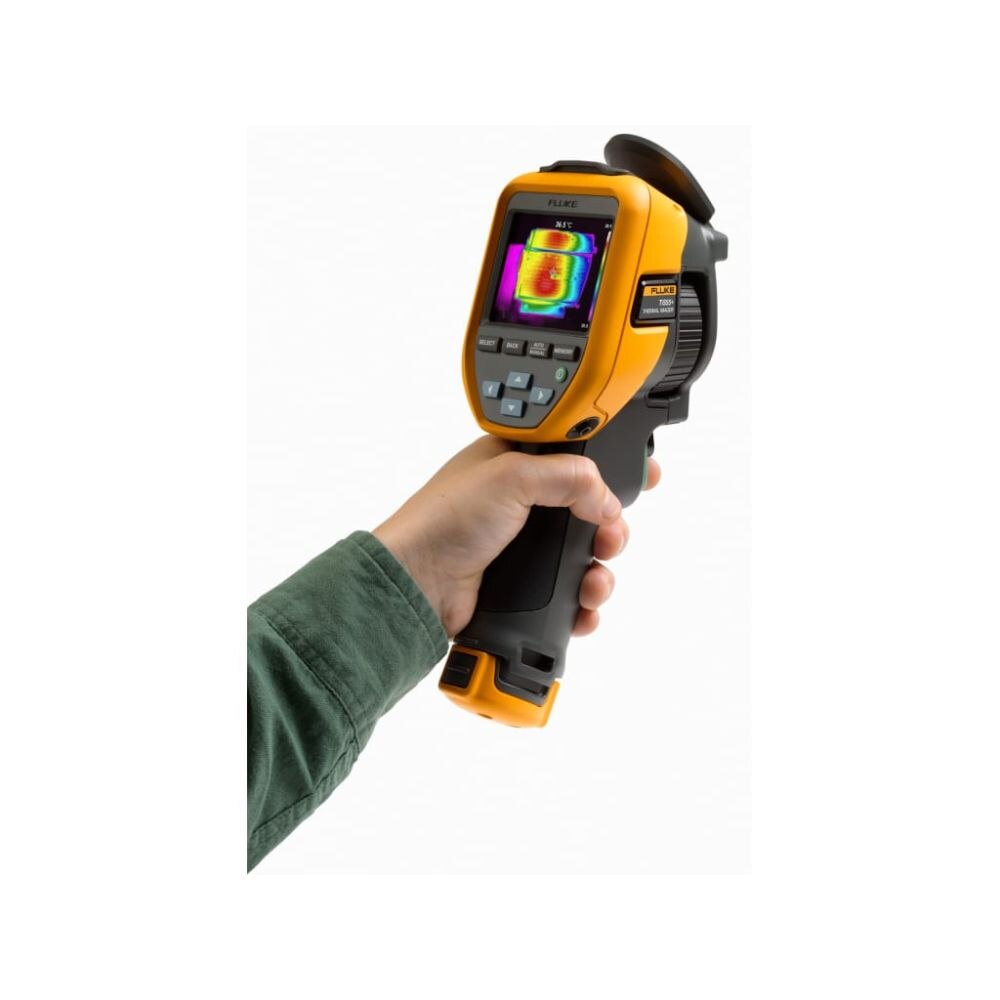

Ergonomic Design Designed for One-Handed Use
Thermal Sensitivity 40 mk
Level and Span Smooth Auto and Manual Scaling
Fast Auto-Rescale in Manual Mode Yes
Frame Rate 27 Hz
Internal Memory ~500 Images
External Memory ?4 GB SD Card (>1000 images)
Image File Formats Non-Radiometric BMP or JPEG or Fully-Radiometric is2
Export File Formats with Fluke Connect Software is3, is2, BMP, GIF, JPEG, PNG, TIFF
Batteries (field-replaceable, rechargeable) Lithium-Ion Rechargeable Battery
Temperature Range (not calibrated below -10 °C) -20 °C to 550 °C (not calibrated below -10 °C)
