Fluke 5218288 FLK-IRR1-SOL - Solar Irrandiance Meter w/ Temp Probe, Carry Case
Description
Description
Fluke 5218288 Description

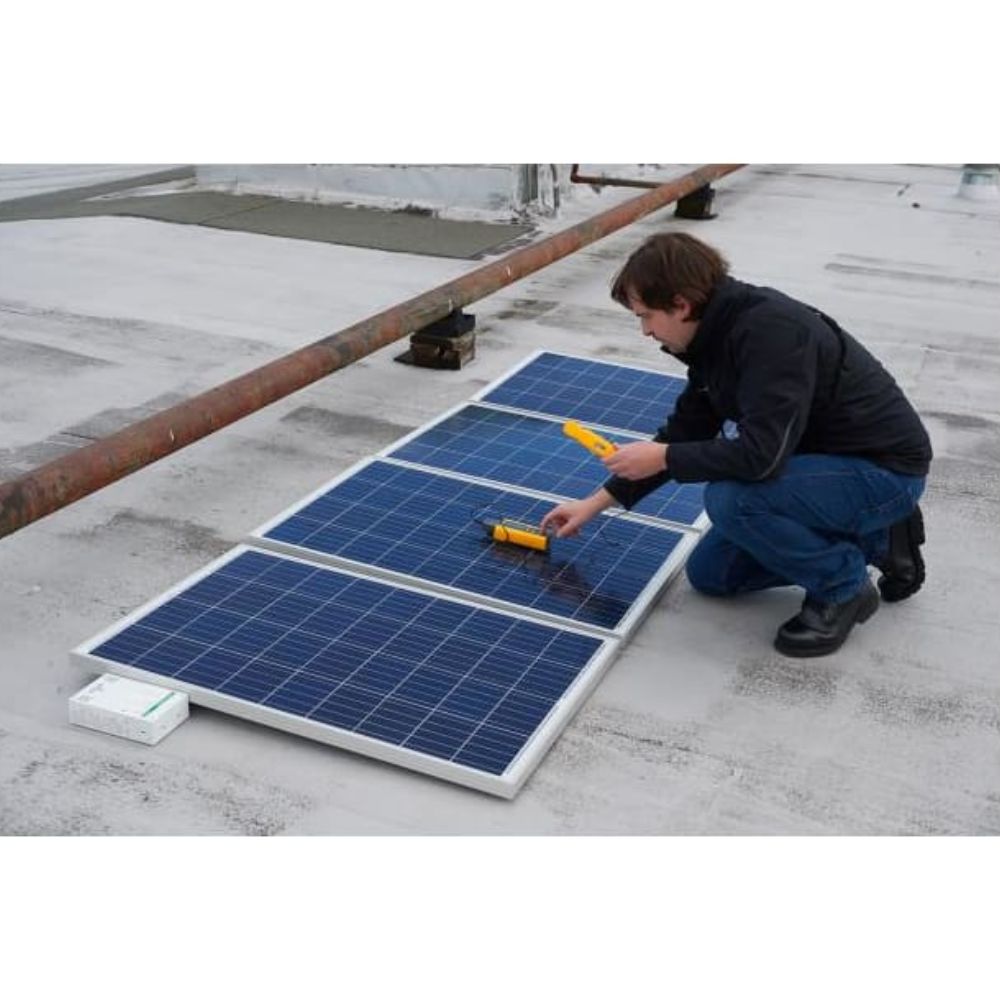

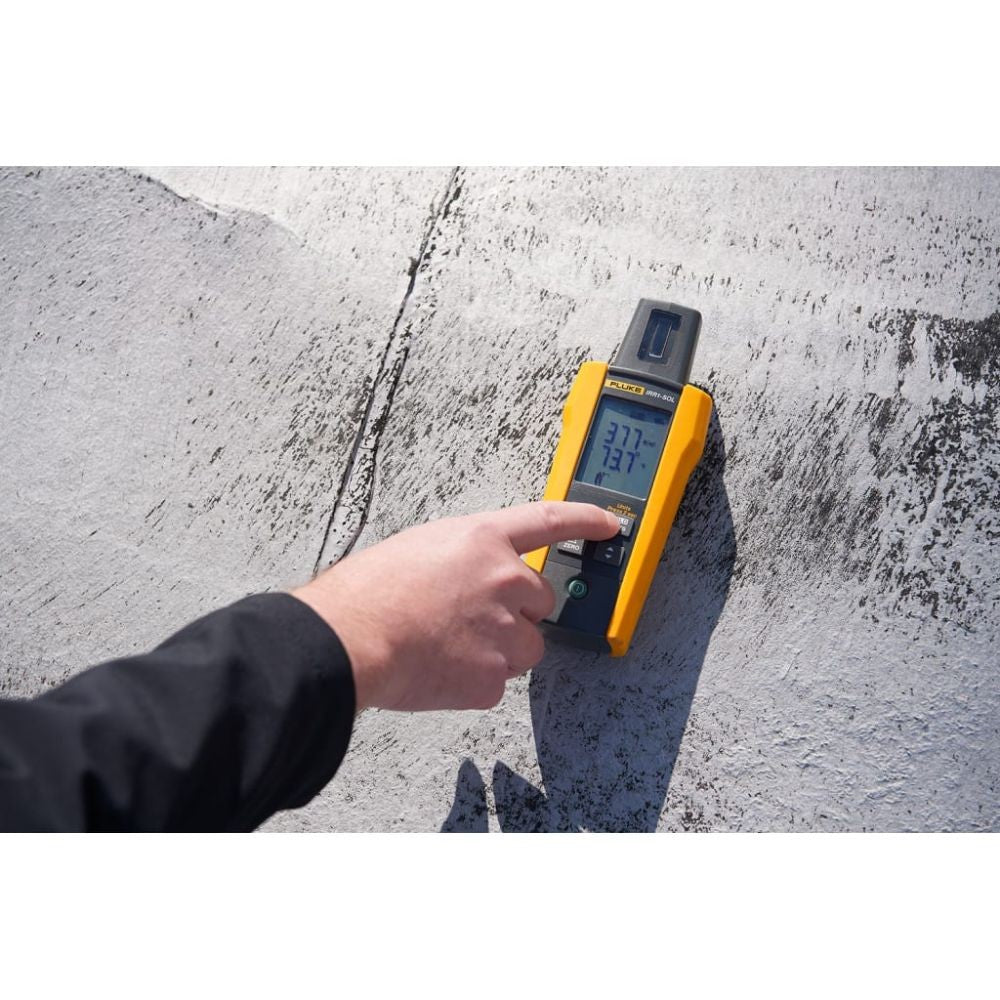

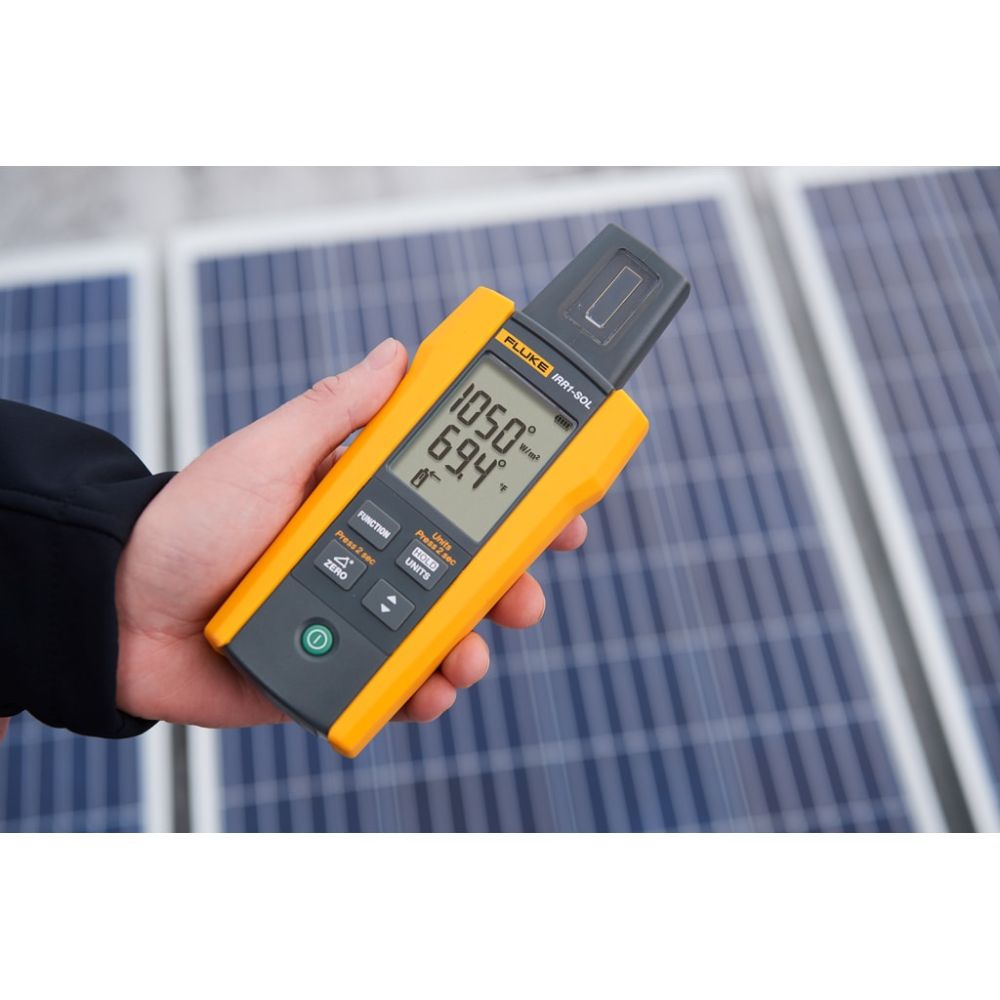

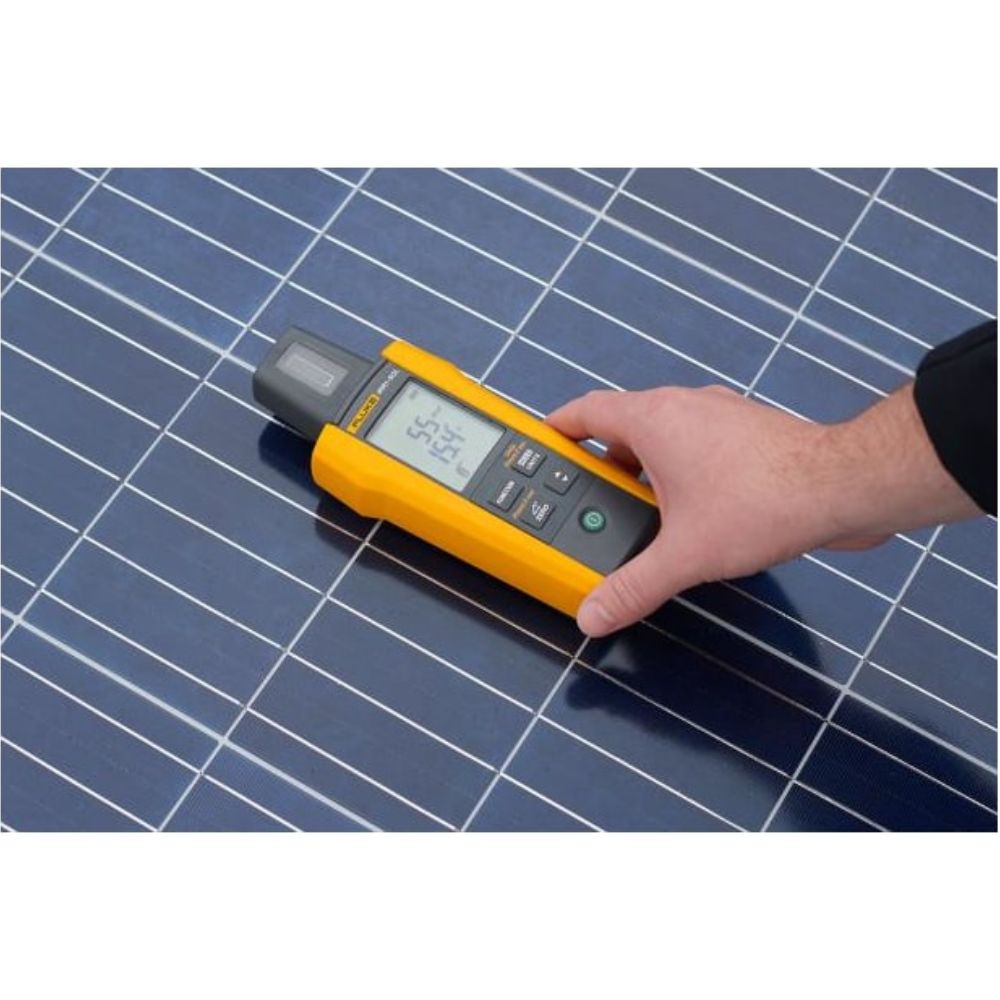

The Fluke IRR1-SOL Irradiance Meter has been designed from the ground up to simplify the installation, commissioning and troubleshooting of photovoltaic arrays, measuring irradiance, temperature, inclination and direction of the solar array in a single handheld tool. With a rugged, compact design, a protective carrying case and an easy-to-read, high-contrast LCD screen to read measurements in direct sunlight, the IRR1-SOL can go where you go. The simple user interface, instantaneous solar irradiation measurements and built-in temperature sensor make it easy to meet the IEC 61446 and IEC 62446 requirements for testing, documenting and maintaining photovoltaic systems. Additionally, the integrated compass and inclination sensor allow you to quickly measure and document roof and site orientation, pitch and panel tilt while surveying, installing or adjusting an installation. Whether working on a roof-mounted system or on a large field installation, the IRR1-SOL is the single-handed solution that every solar installer and technician needs in their tool bag.

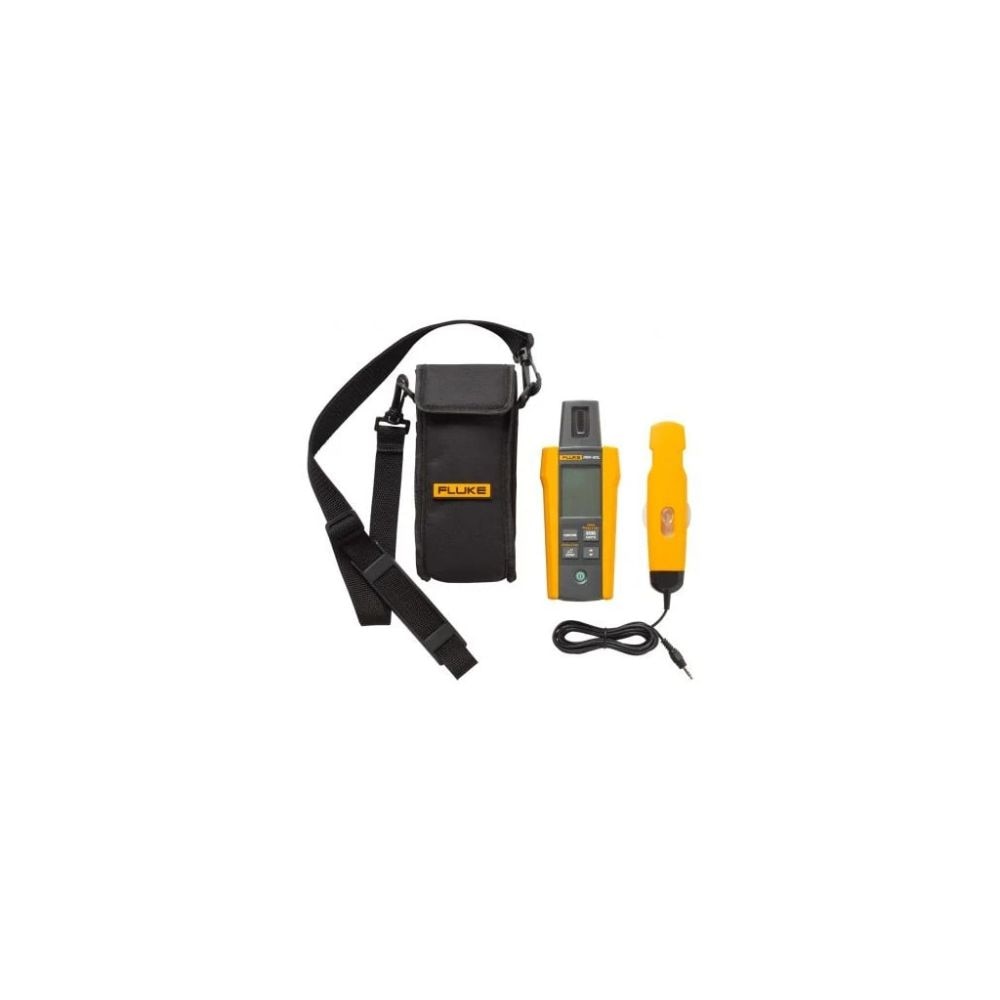

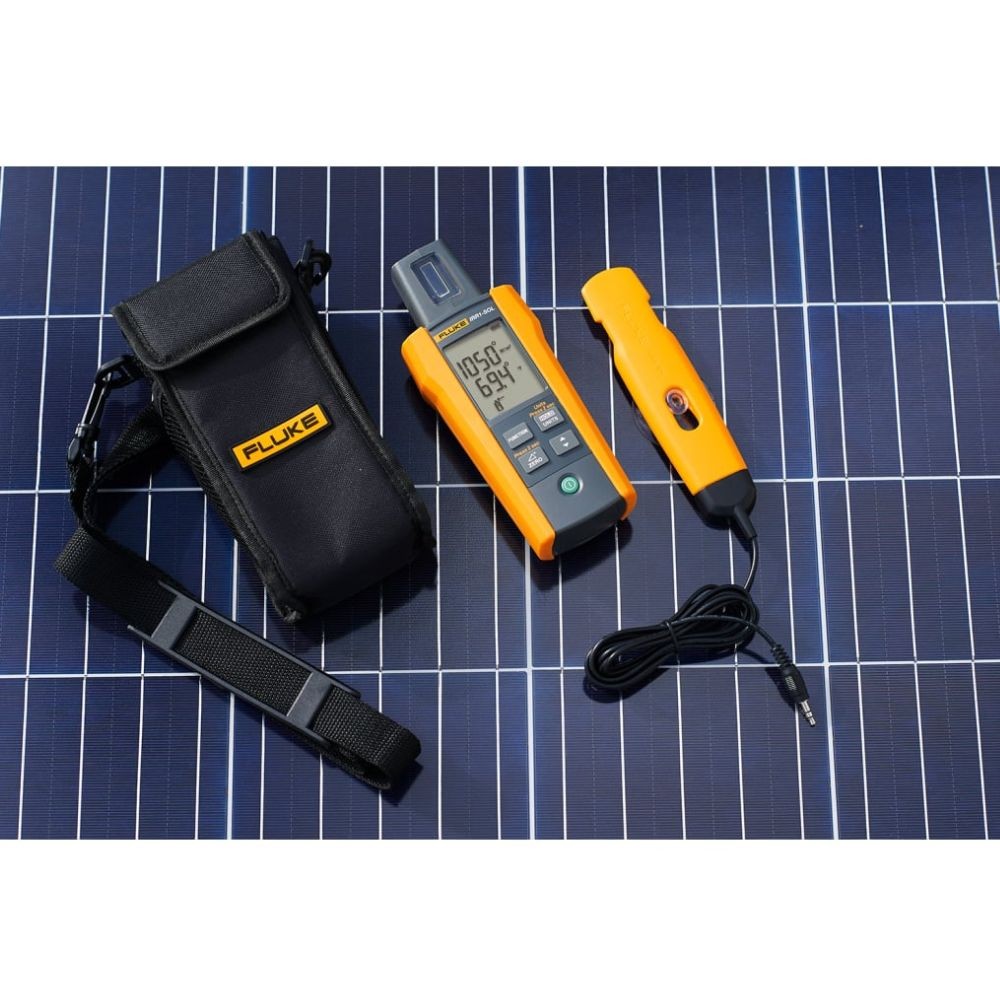

Fluke 5218288 Includes
- (1) Solar Irradiance Meter

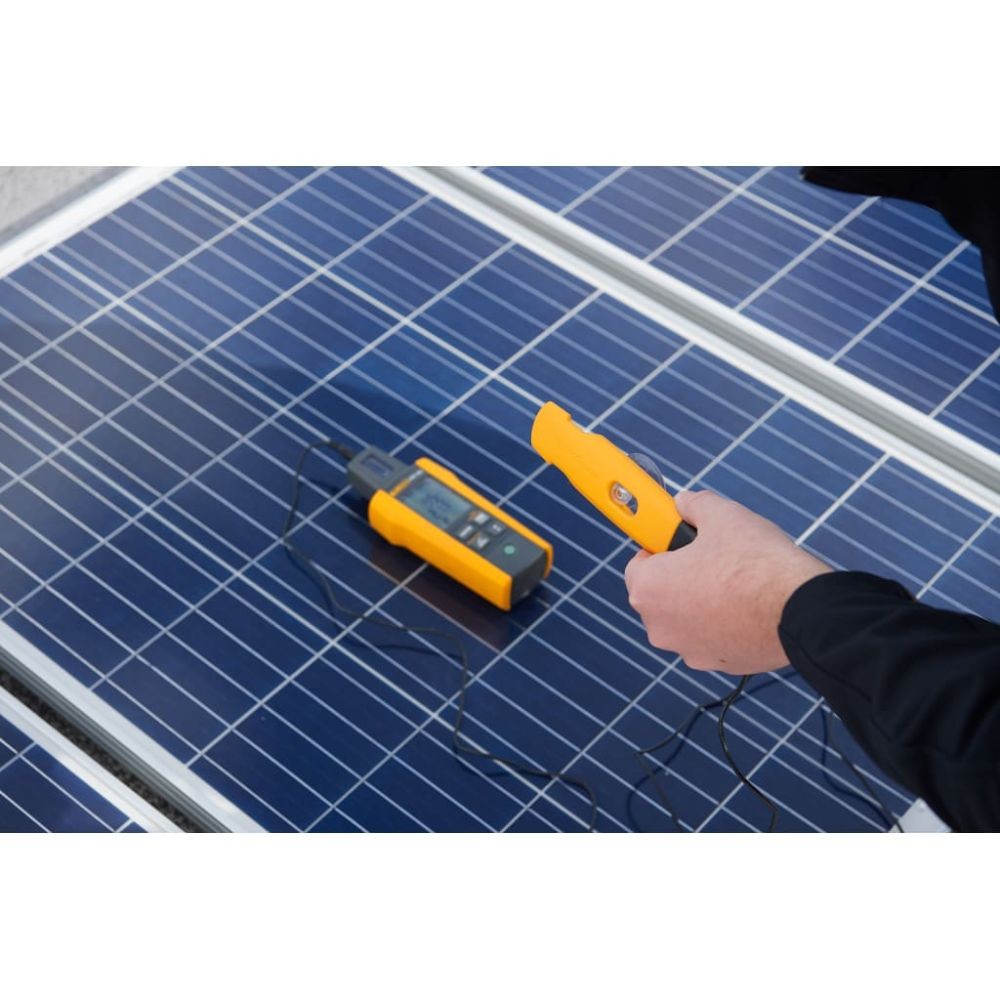

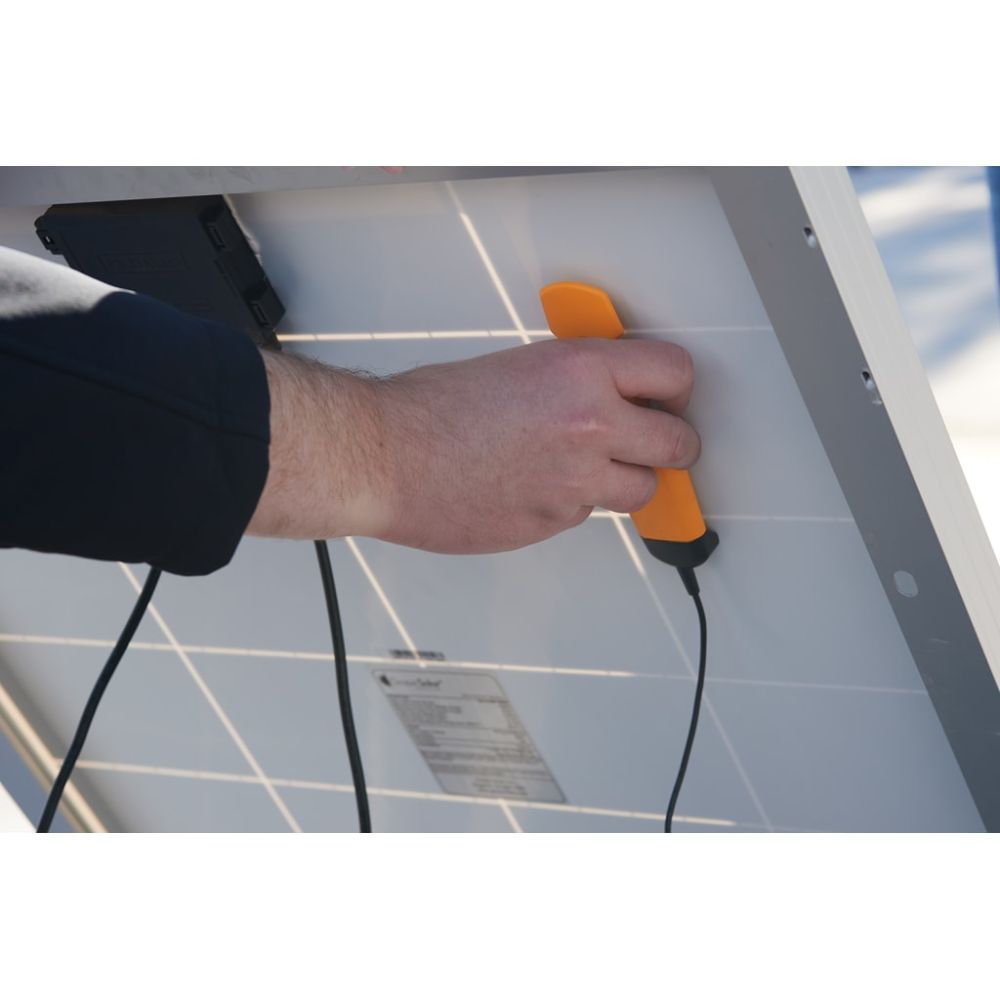

- (1) External Temperature Probe with Suction Cup
- (1) Carrying Case with Sholder Strap
- (4) AA Batteries
- (1) User Manual
Fluke 5218288 Features

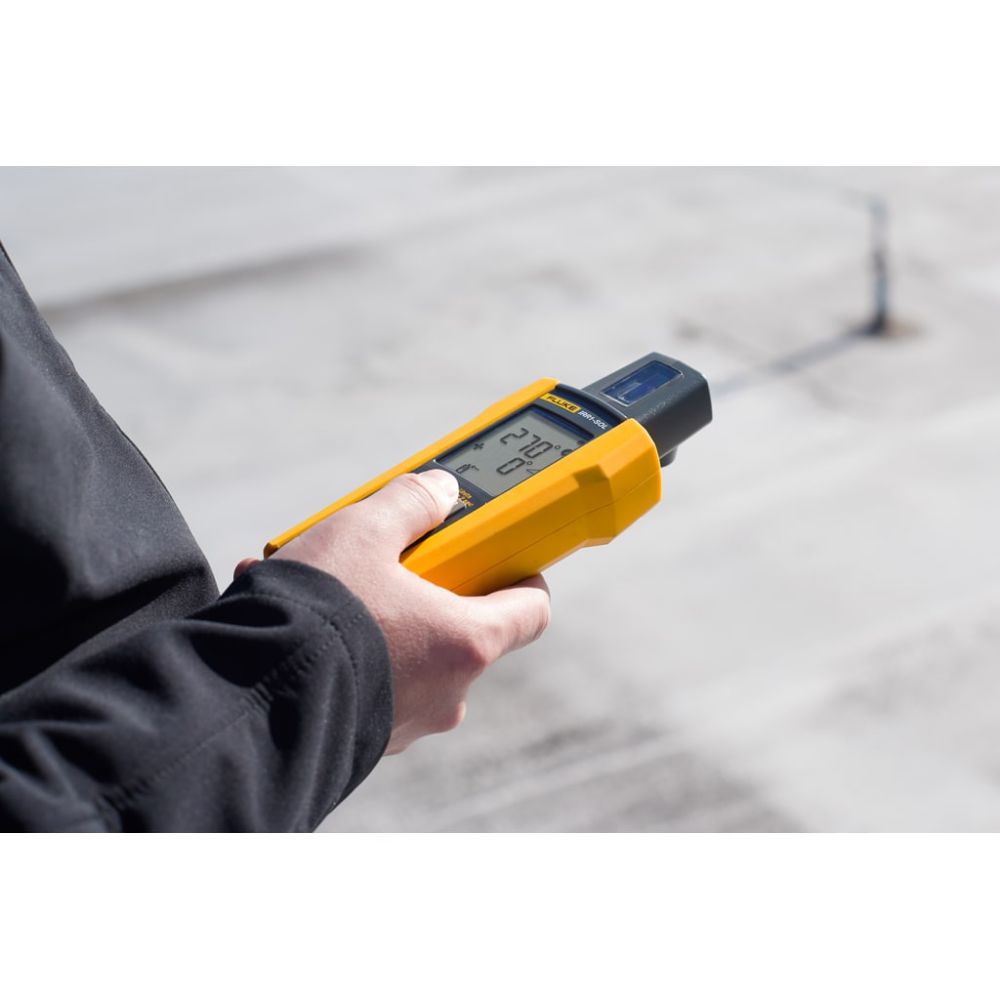

- Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
- Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard

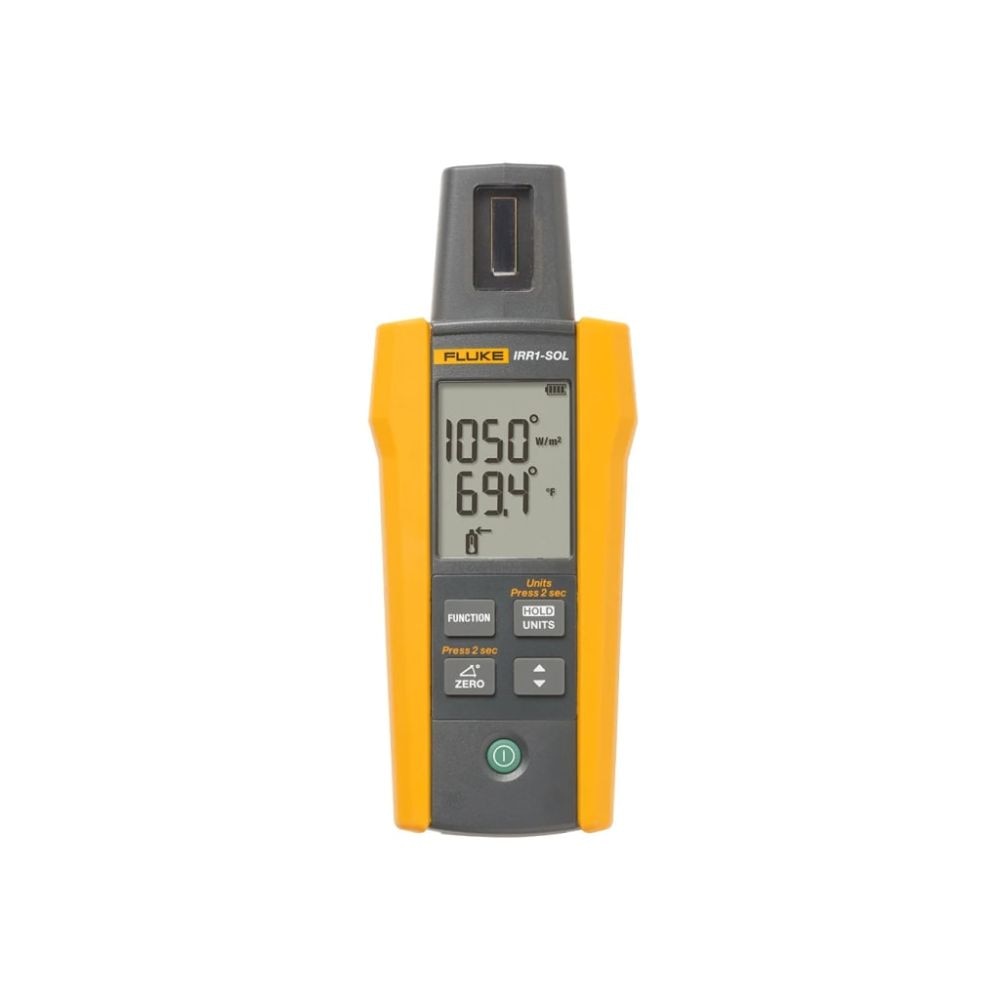

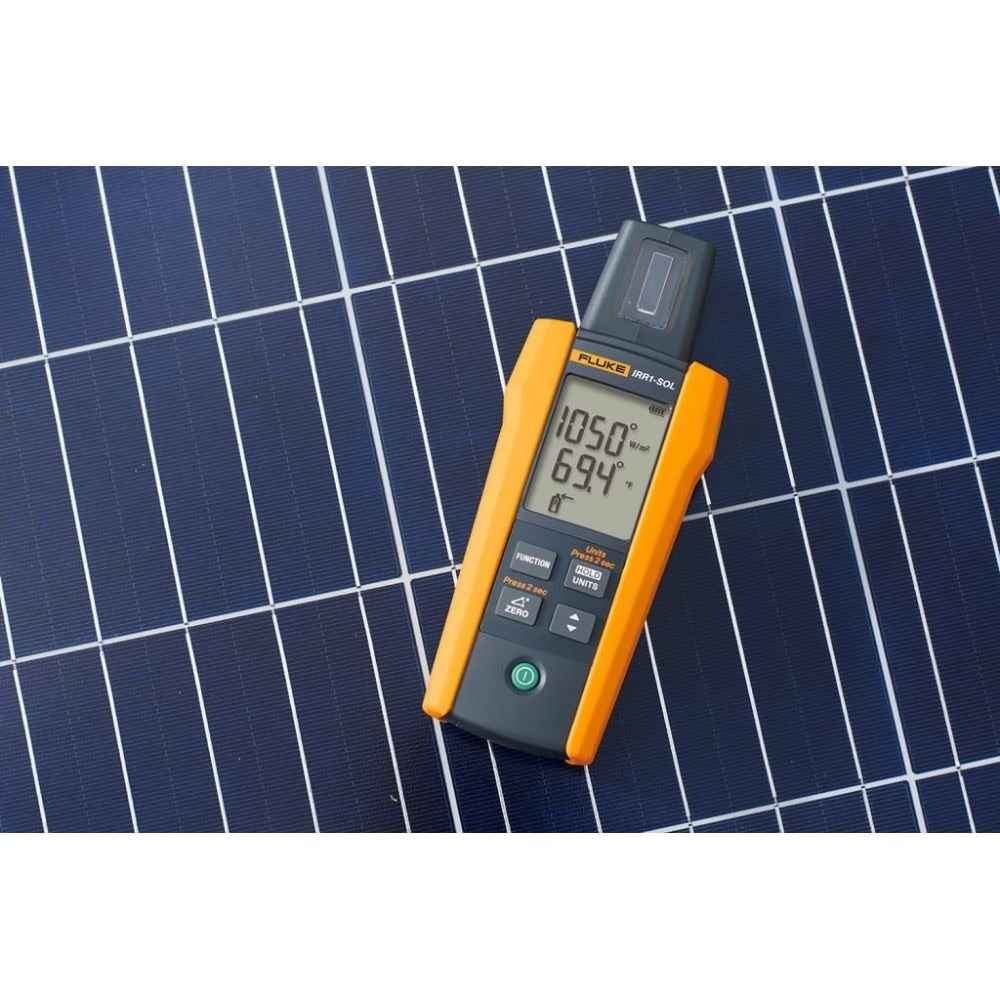

- High contrast LCD with large numbers for easy readability in direct sunlight
- Includes convenient carry case with shoulder strap
Fluke 5218288 Specifications
| Irradiance Measuring Range | 0 to 1400 W/m² |
| Resolution | 1 W/m² |
| Measuring Accuracy | ± (5 % + 5 Digit) |
| Temperature Measuring Range (°C) | -22 °F to 212 °F (-30 °C to 100 °C) |
| Resolution | 0.2 °F (0.1 °C) / 1 °F @>100 °F |
| Measuring Accuracy | ±2 °F (±1 °C) @ 14 °F to 167 °F (-10 °C to 75 °C); ±4 °F (±2 °C) @ -22 °F to 14 °F (-30 °C to -10 °C); and 167 °F to 212 °F (75 °C to 100 °C) |

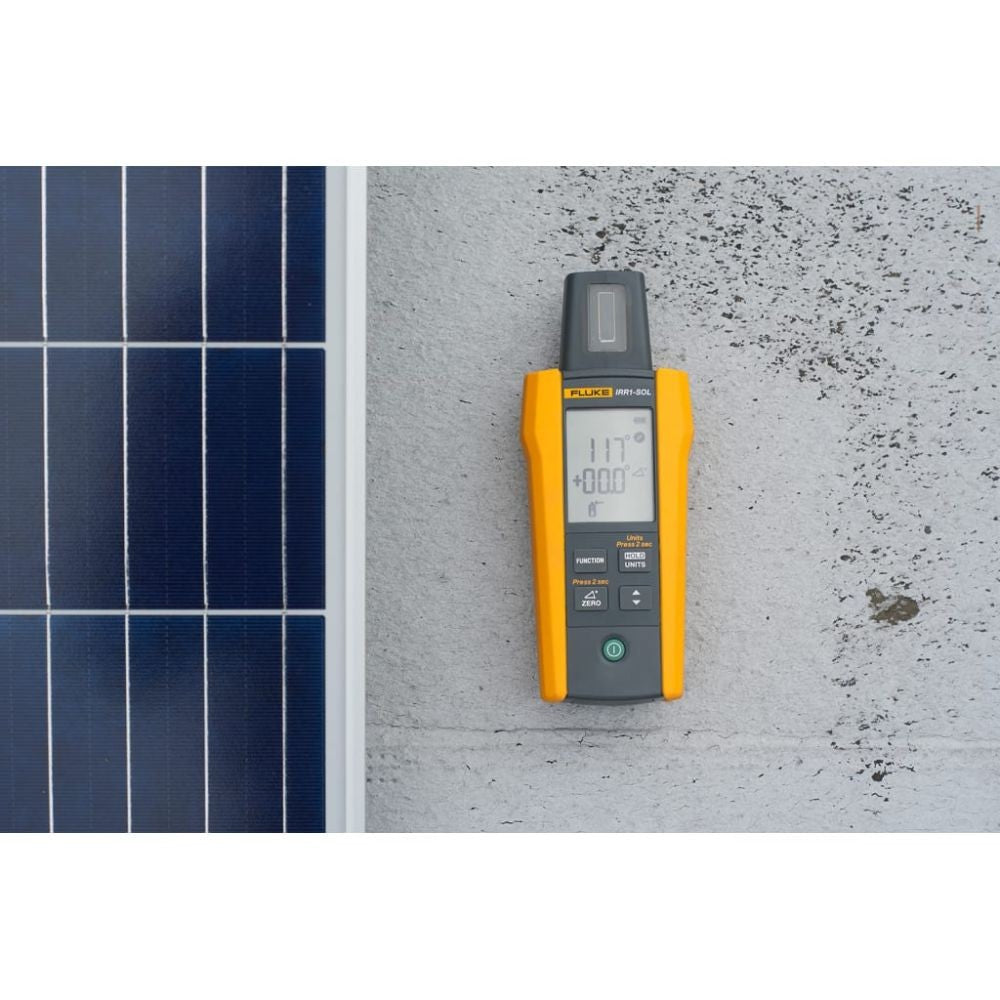

| Inclination Angle Measuring Range | -90° to +90° |
| Resolution | 0.1° |
| Measuring Accuracy | ± 1.5°@ -50° to +50°, ±2.5° @ -85° to -50° and +50° to +85°; ±3.5° @ -90° to -85° and +85° to +90° |
| Compass Measuring Range | 0° to 360° |
| Resolution | 1° |
| Measuring Accuracy | ± 7° |
| Operating Temperature IRR1-SOL | -20 °C to 50 °C (humidity |
| Operating Temperature 80PR-IRR | -30 °C to 100 °C |
| Storage Temperature | -30 °C to 60 °C (humidity |
| Altitude | 0 m to Max. 2000 m |
| IP Protection | IP40 |
| Batteries | 4 AA Alkaline Batteries |
| Battery Life (typical) | 50 Hours (> 9000 readings) |
| Auto Power Off | 30 Minutes |
