Fluke  |  SKU: 5258803  |  Barcode: 195112015018

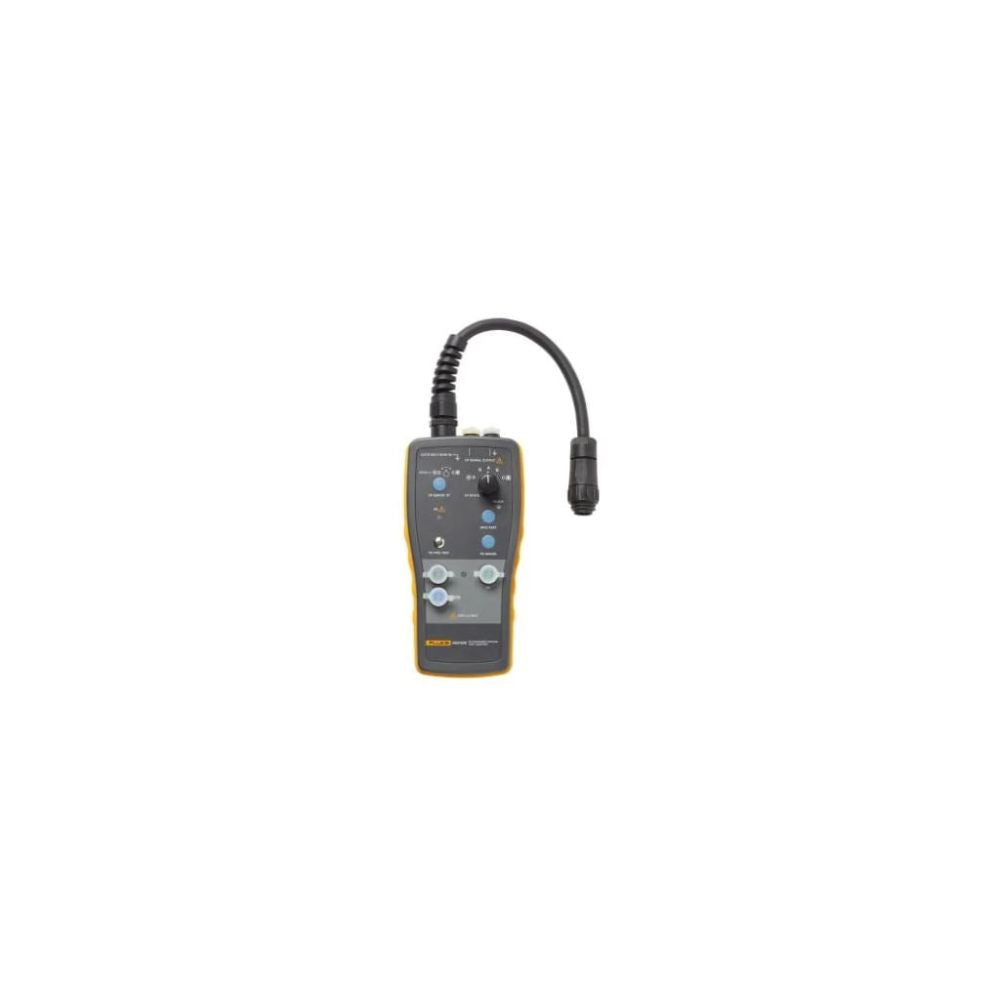

Fluke 5258803 FLK-FEV100/Basic - Test Adapter Electric Vehicle Charging Station

Free Shipping
$579.99

Description

Fluke 5258803 Description

Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging stations (EVSEs) with the Fluke FEV100. This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests in combination with appropriate test instruments such as a digital multimeter or oscilloscope. Use the FEV100 to verify an EVSE is working properly after install and during periodic maintenance or troubleshoot an EVSE if it is not delivering the appropriate charge.

Fluke 5258803 Includes

  • (1) Test Adapter for Electric Vehicle Charging Stations
  • (1) Type 1 Connector/Cable

Fluke 5258803 Features

  • Check protective earth for correct wiring and functioning with the PE pre-test feature.
  • Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
  • Test charging states of EVSE with CP state simulation.
  • Verify charging voltage and maximum available current using a multimeter.
  • SAE J1772 compliant to North American standards.

Fluke 5258803 Specifications

Input Voltage UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10 % Voltage Fluctuations From Nominal 2
EV Connector (EVC-13) SAE J1772 Socket, 16 A (type 1, 5P single-phase)
Internal Power Consumption 2 W Max
Operating Temperature -4 °F to 104 °F (-20 °C to 40 °C)
Storage Temperature -4 °F to 122 °F (-20 °C to 50 °C)
Operating Humidity Range 10% to 85% Relative Humidity Non-Condensing
Storage Relative Humidity 0% to 85% Non-Condensing
Operating Altitude 6561' (2000 m) Max
Safety Standards IEC 61010-1, Pollution Degree 2; IEC 61010-2-030
Measurement Category CAT II 250 V
IP Protection Class IP54
