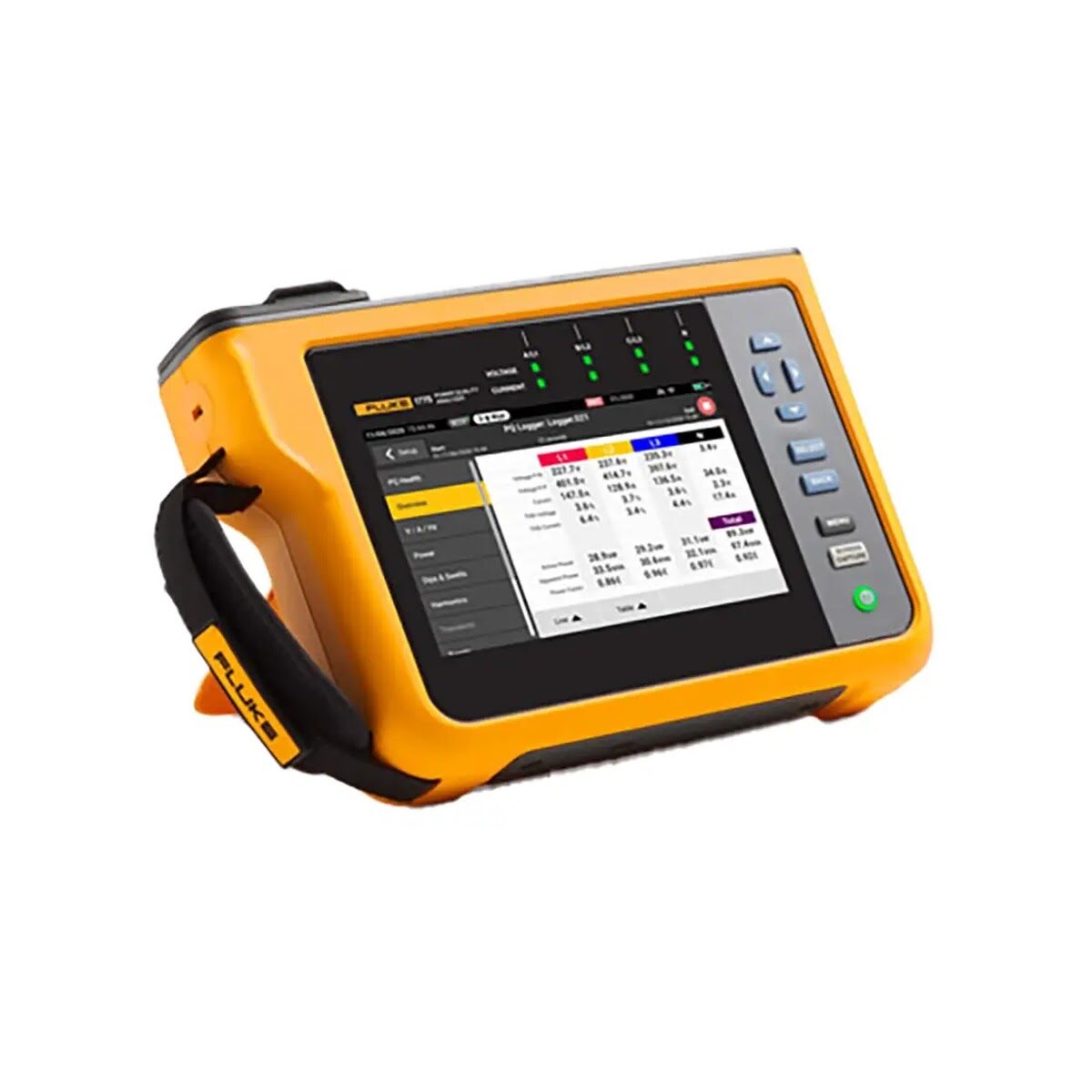

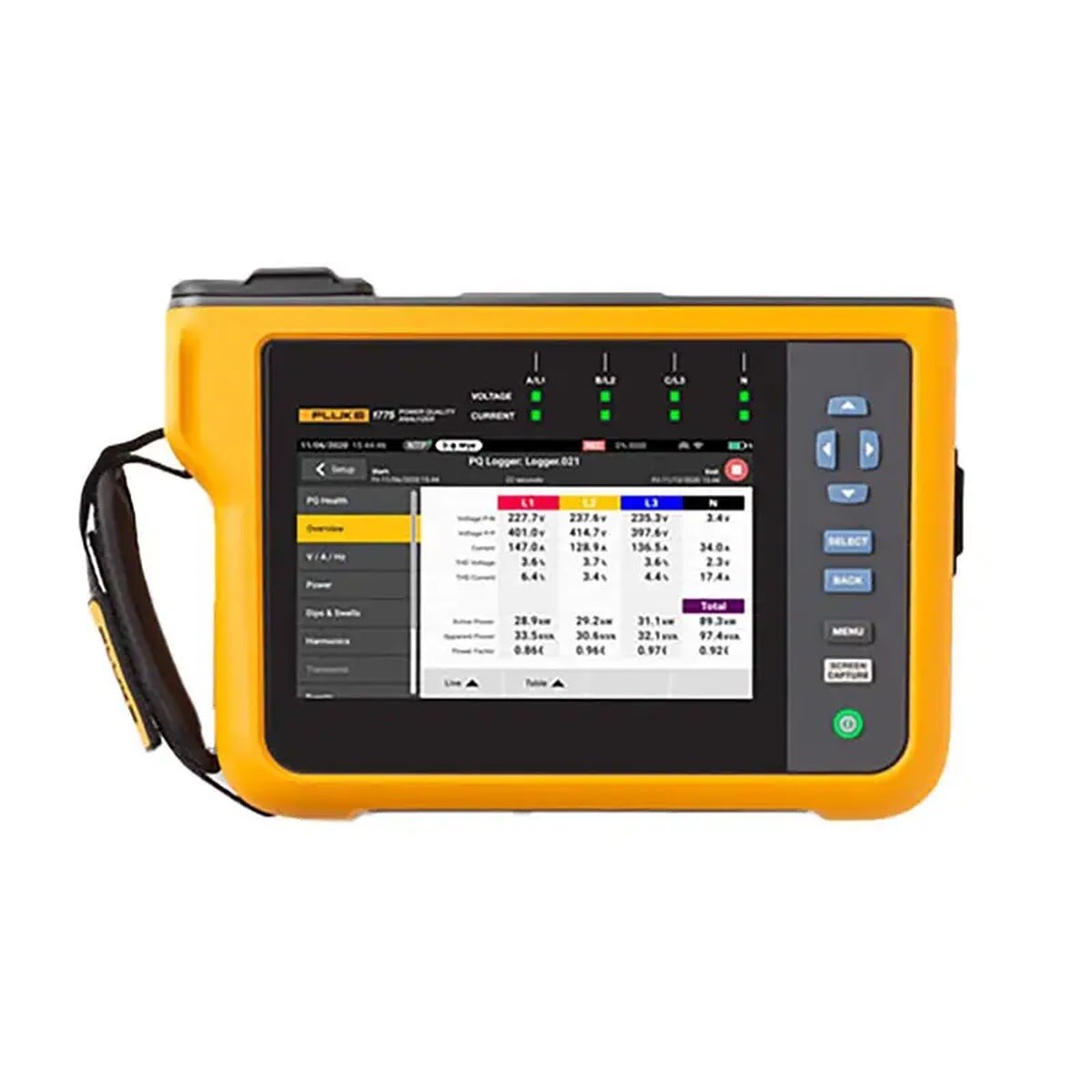

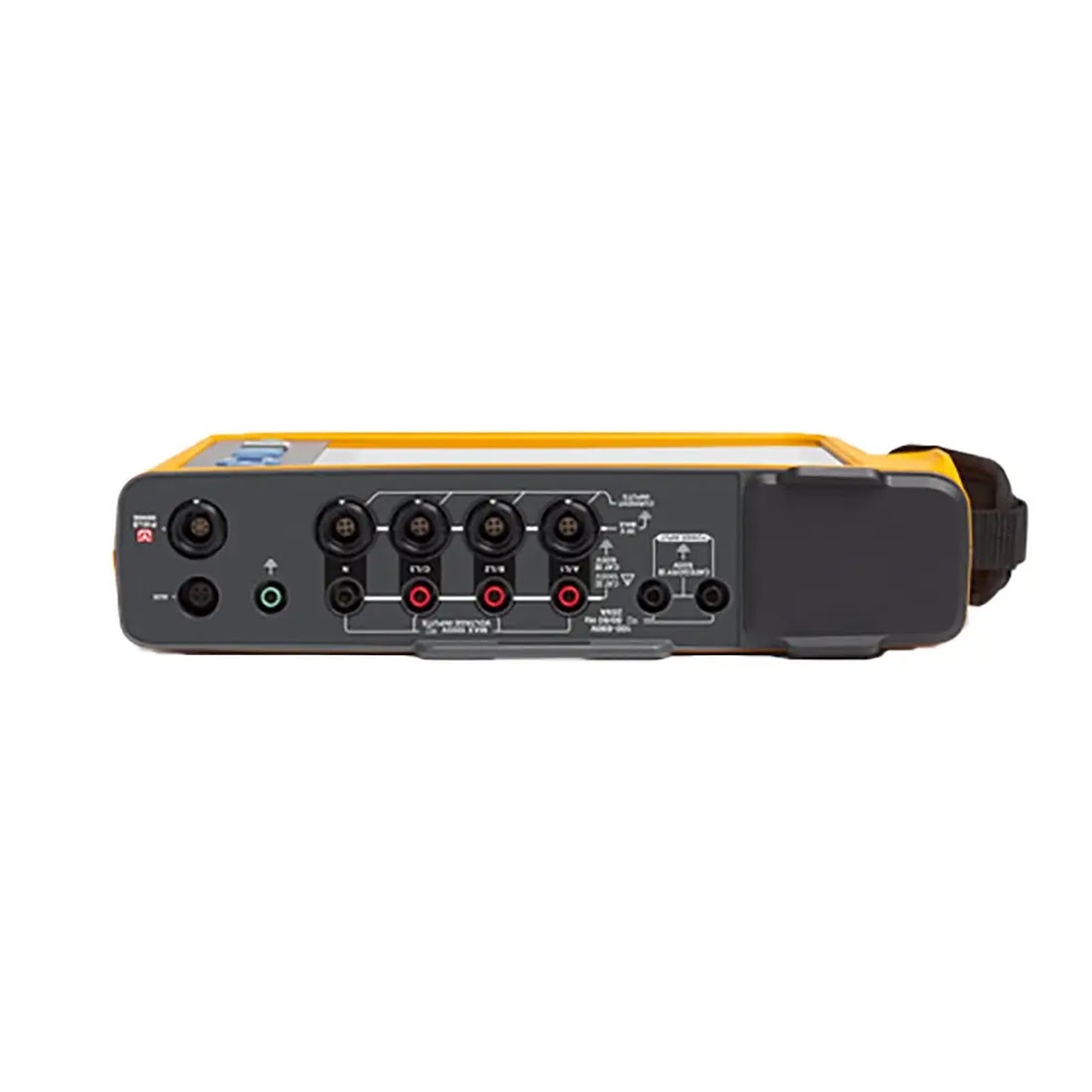

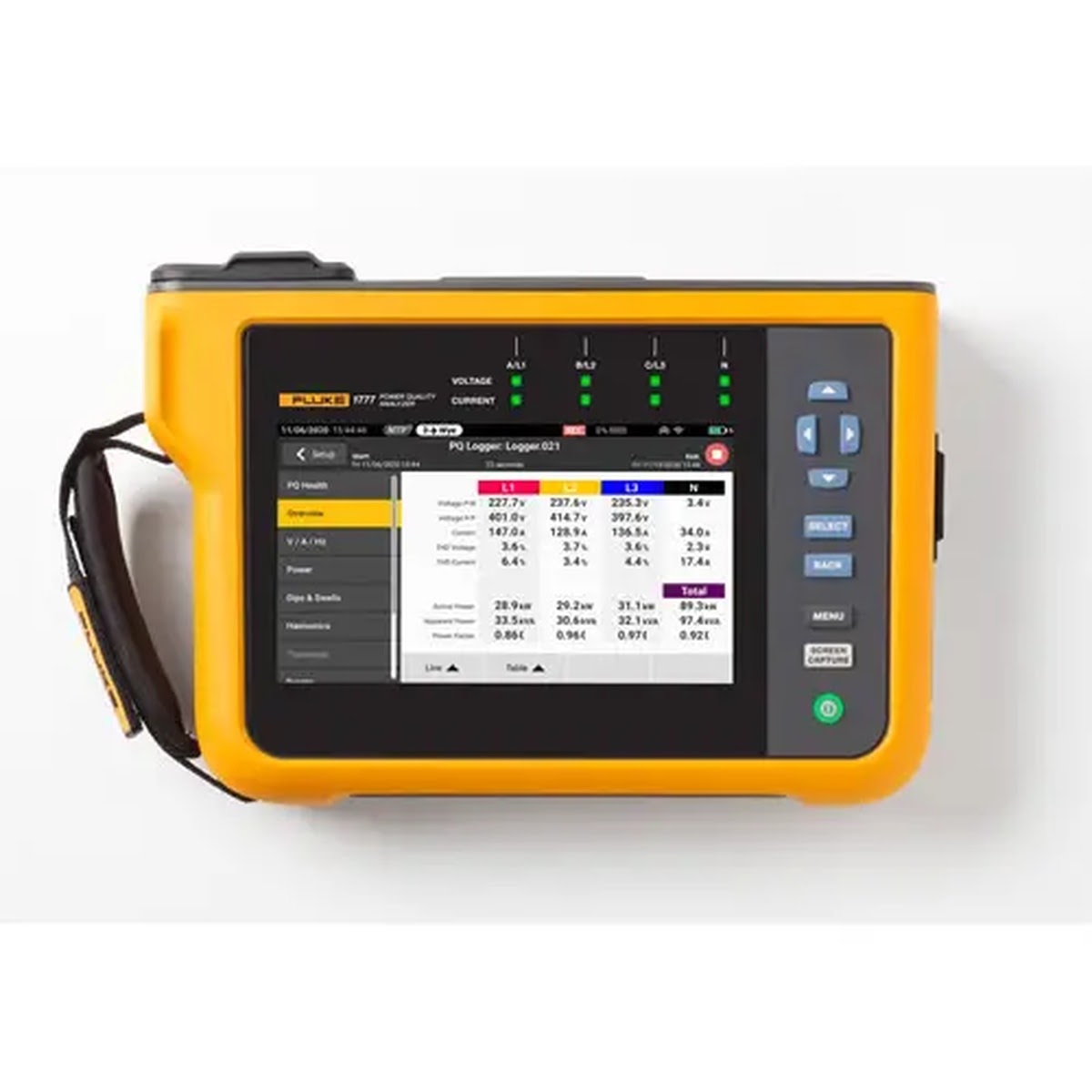

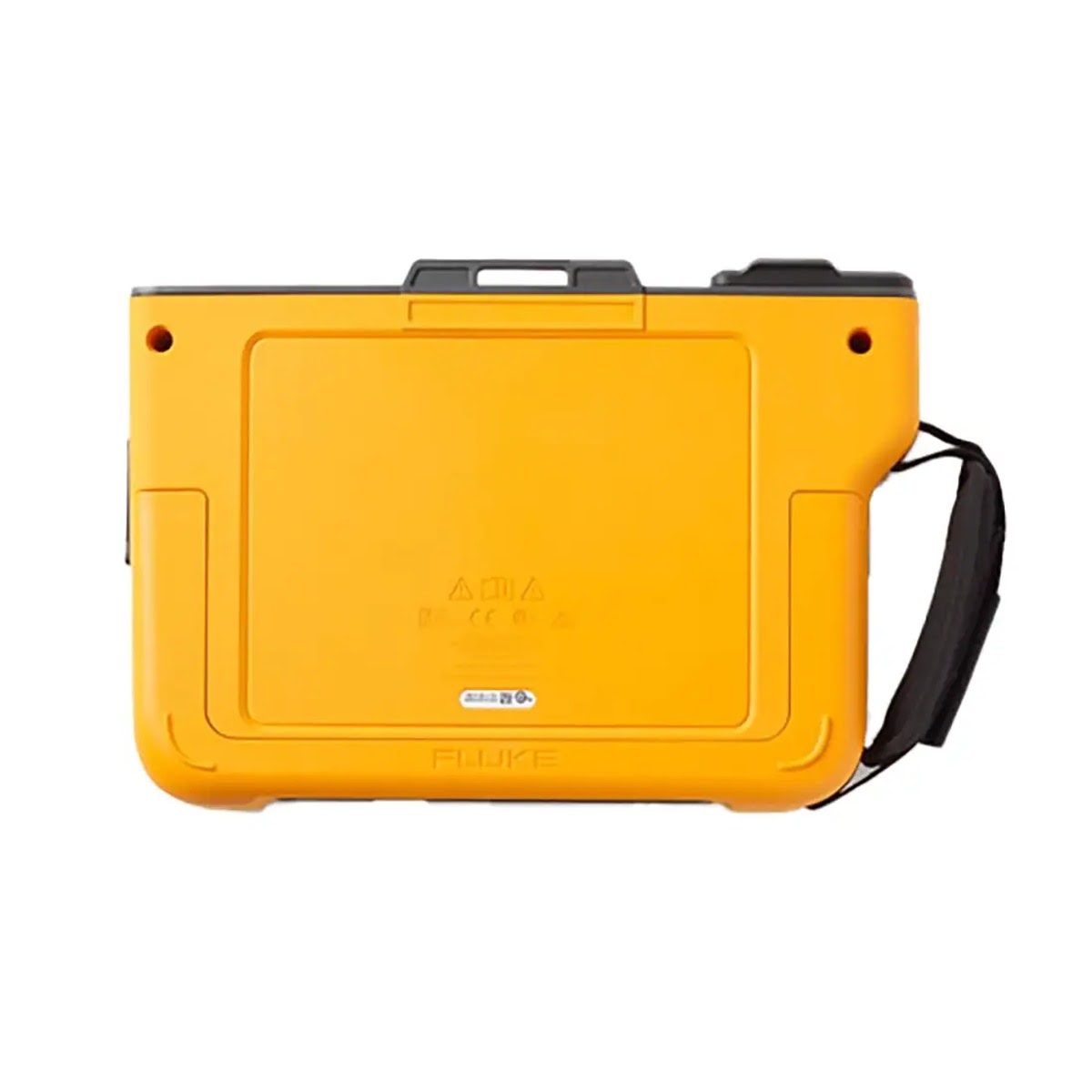

Fluke 5272784 FLUKE-1775/BASIC Three-Phase Power Quality Analyzer Basic Kit with Soft Carrying Case (No Probes)

Data centers can do everything, but they need to maintain safety to run effectively. Power quality issues like voltage sags, harmonics, and load imbalances are silent killers. They damage switchgear, reduce UPS capacity, and take down servers before a single alarm trips. The Fluke 1770 Series gives data center contractors the tools to find these problems fast, document everything, and hand off clean results from commissioning through operations.

Catch Power Problems Before They Cause Downtime

The 1775 and 1777 models capture high-speed voltage transients up to 8 kV. These fast spikes damage servers, PDUs, and UPS systems without ever tripping a breaker. The 1777 samples at 20 MHz to capture the fastest nanosecond transients in full detail. The 1775 samples at 1 MHz for microsecond transients. The 1773 handles energy surveys and harmonic checks. All three models catch dips, swells, and power interruptions the moment they happen.

Get 500+ Power Quality Parameters Automatically

In a data center, you don't have time to create a study from scratch on every job. The 1770 Series captures more than 500 power quality parameters automatically and walks you through setup step by step. It checks your connections and corrects mistakes so you do not have to go back for a second trip. The large touchscreen shows live data the second you hook up, and it works with gloves on.

Power It From the Circuit, Not the Wall

Crowded electrical rooms and tight commissioning schedules don't leave room for trying to find outlets that reach. The 1770 Series powers directly from the circuit you're measuring. No extension cords. No hassles. A 75-minute backup battery keeps things running when you move between panels or disconnect from the circuit.

Find Where Energy Is Being Wasted

Data center energy demand keeps climbing. All three models support energy surveys and load profiling so you can measure power consumption, spot inefficiencies, and document findings. The 1775 and 1777 also include the Energy Loss Calculator, which uses Fluke's patented calculation to break down losses from heat in cables, reactive power, unbalanced loads, harmonics, and neutral losses. It puts a dollar figure on each source of waste so you know what to fix first.

Accurate Report Results

Data center contractors work across commissioning handovers, operator teams, and compliance audits. Too many tools means inconsistent reports and data that don't trace back cleanly. The 1770 Series connects via Wi-Fi, wired Ethernet, or USB so you can pull data without packing up the instrument. An optional LTE module is available for cellular connectivity. The included Energy Analyze Plus software builds reports automatically. One-touch reporting creates documents that meet standards like EN 50160 and IEEE 519. GPS syncing keeps your data time-stamped across multiple measurement sessions so results are consistent and audit-ready from day one.

Built for High-Risk Electrical Environments

The 1770 Series is rated CAT IV 600 V / CAT III 1000 V. That means it can be used at the service entrance or anywhere downstream in a data center, from the incoming power supply through transformers, UPS banks, and PDUs. It is built for the most demanding measurement environments and backed by a 2-year warranty.
