Fluke | SKU:
5302512
Fluke 5302512 FLK-PTI120 9HZ - 400C 120X90 Thermal Imager; BY2; 9 HZ; 400C
Free Shipping
$1,089.99
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Fluke 5302512 Description

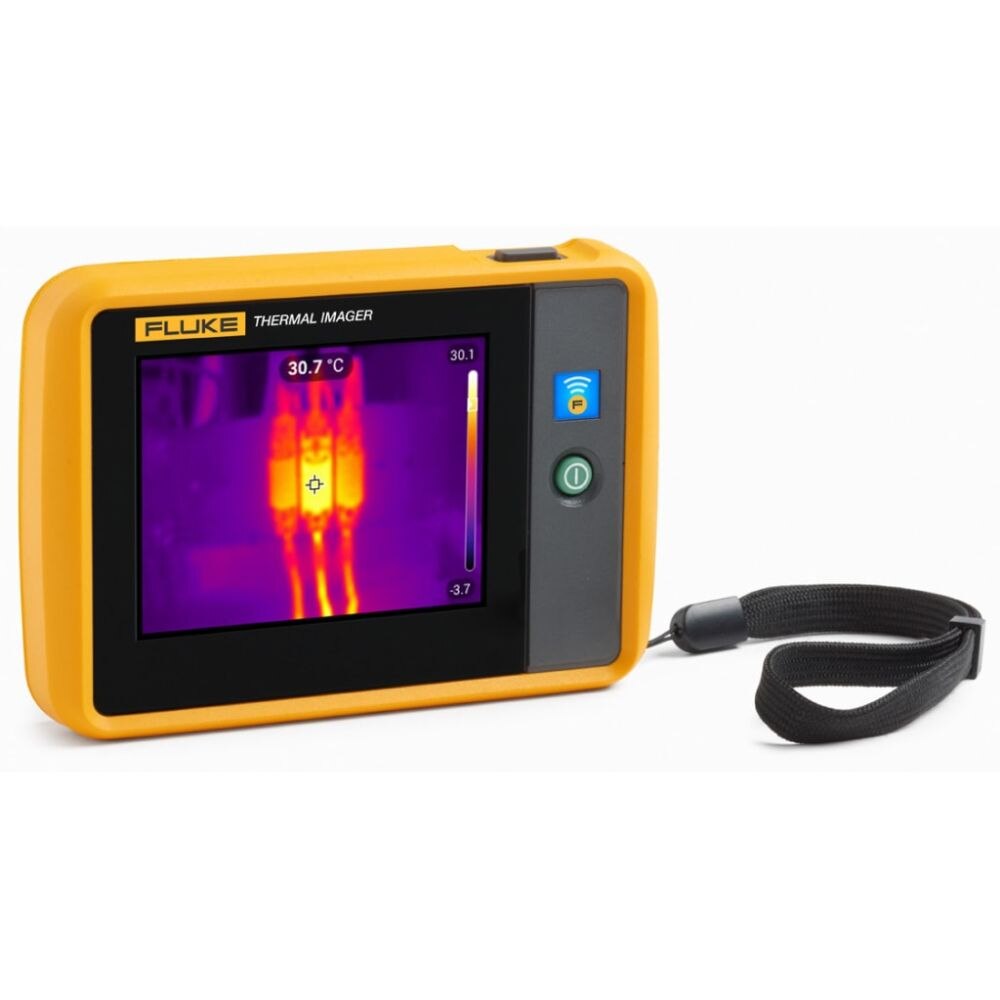

The Fluke PTi120 9 Hz, 120 x 90, Pocket Thermal Imager with WiFi and Fluke Connect Compatibility, -4 °F to 752 °F puts the power to minimize downtime in everyone's hands. As the first line of defense for easy troubleshooting, the PTi120 empowers users to stop fighting fires on the job, and start preventing them.

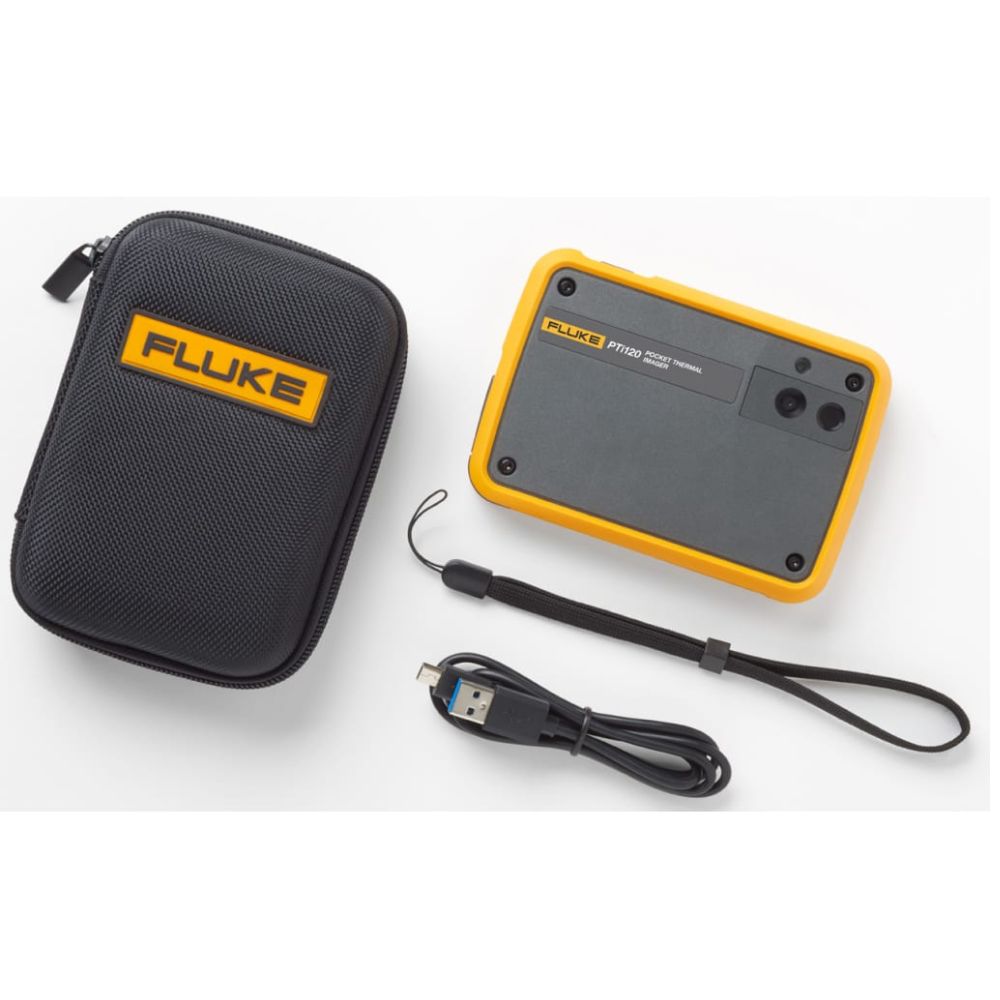

Fluke 5302512 Includes
- (1) 9 Hz, 120 x 90, Pocket Thermal Imager with WiFi and Fluke Connect Compatibility, -4 °F to 752 °F (PTi120)
- (1) USB Cable (Charging/Data Transfer)
- (1) Soft Transport Bag
- (1) Adjustable Lanyard
Fluke 5302512 Features
- Automatically organize and file thermal images with Fluke Connect Asset Tagging
- Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
- 3.5” LCD touchscreen display for easy troubleshooting
- -20 °C to +400 °C and -20 °C to 150 °C temperature measurement range models
- Six color palettes
- Can withstand drop up to 1 meter
- IP 54 enclosure rating
- Subject to Export Control
Fluke 5302512 Specifications
| Infrared Resolution | 120 x 90 (10,800 pixels) |
| IFOV (spatial resolution) | 7.6 mRad, D |
| Field of View | 50°H x 38°V |
| Minimum Focus Distance | 50cm |
| Focus System | Fixed Focus |
| Display | 3.5" Touchscreen |
| Display Resolution | 320 x 240 LCD |
| Thermal Sensitivity(NETD) | 60mK |
| Frame Rate | 9 Hz |
| Data Transfer | Mini USB |
| Wireless Connectivity | Yes |
| Memory | >2GB Internal Flash Memory |
| Battery | Internal Rechargeable Lithium Ion Battery |
| Battery Charging Time | 1.5 Hours Approx. |
| Temperature Measurement | -20° to 400° |
| Safety | IEC 61010-1 |
| Electromagnetic Capability | EN 61326-1, CISPR 11 |
