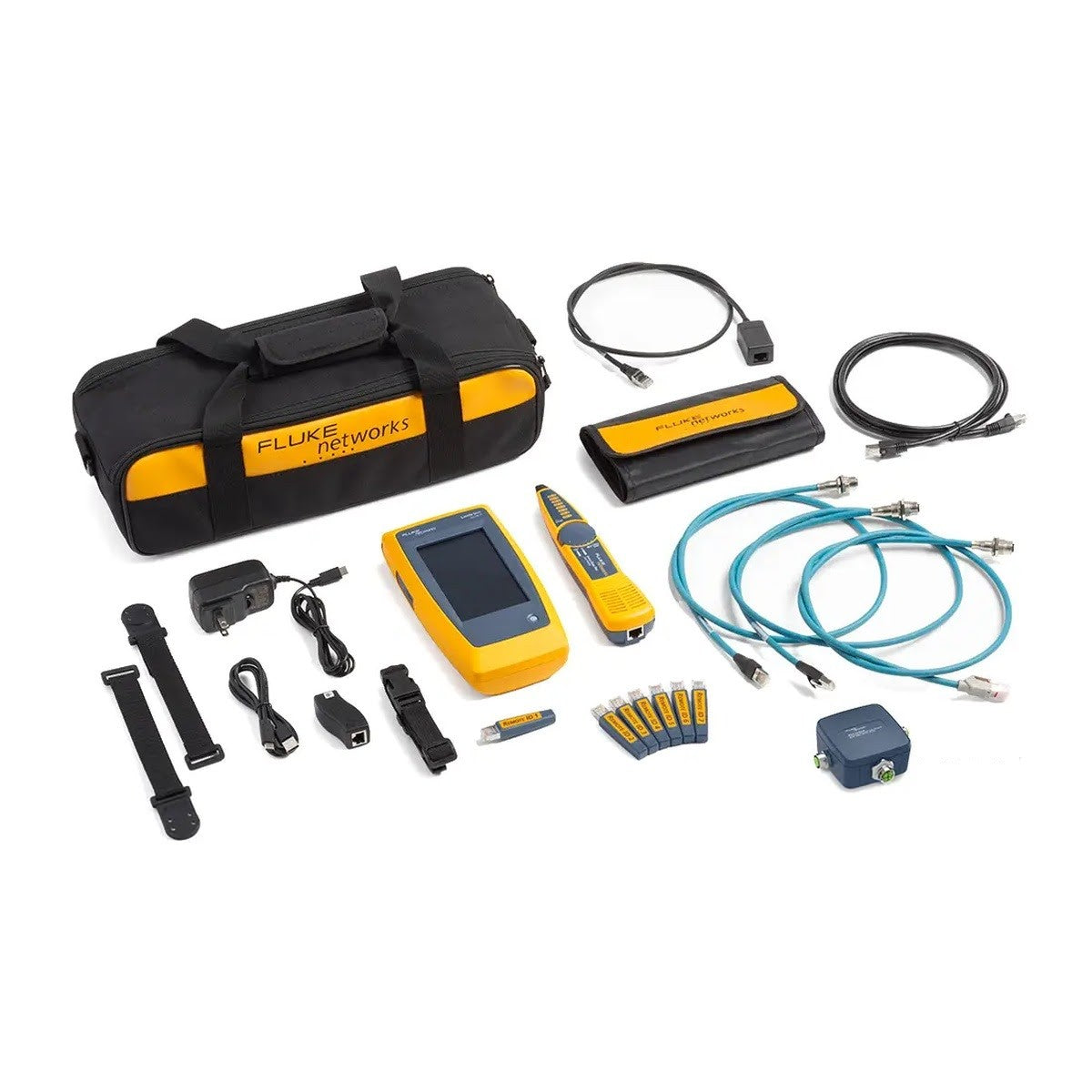

Fluke 6006124 LIQ-DUO-IE-KIT LinkIQ Duo Industrial Ethernet Wi-Fi Tester Kit with Probe (1 Kit)

When downtime isn't an option, every cable and network connection has to be right. Data centers run more devices, higher speeds, and denser infrastructure than almost any other environment. A bad cable, a misconfigured switch port, a PoE supply that isn't consistently delivering what it promises, can take down a rack or slow an entire floor down, or worse. Too many contractors show up with too many tools that produce too many different reports with mixed and confusing data. The LinkIQ Duo fixes that with one single tester.

Verify Cable Performance Up to 10 Gb/s

Data centers are built on cabling infrastructure that has to perform for years. When you commission a new rack or troubleshoot a live one, you need to know whether the cable can carry the load and not just whether it passes a basic wire map. The LinkIQ Duo qualifies copper cable from 10 Mb/s all the way to 10 Gb/s using frequency-based measurements tied to IEEE standards. It measures cable lengths up to 1,000 feet and gives you the distance to any fault, whether it's an open, a short, or an unterminated end. If a cable fails, the screen shows exactly which parameter caused it and by how much. The included remote ID delivers a full wire map to catch reversed pairs, crossed pairs, and split pairs before they cause problems downstream.

Test PoE Under Heavy Load Conditions

Data centers are full of devices that depend on Power over Ethernet — IP cameras, access control systems, wireless access points, and management switches. These devices fail when the switch does not deliver what it advertises. The LinkIQ Duo places a real load on the connection and measures actual voltage and wattage delivered, not just what the switch claims. It verifies PoE class 0 through 8, including up to 90 W for high-demand equipment. The tester is Ethernet Alliance certified to IEEE 802.3 standards, so the results hold up on any documentation you hand over.

Find Network Problems Easily

During commissioning, every switch port needs to be verified — right speed, right VLAN, right configuration. The LinkIQ Duo talks to the connected switch using LLDP and CDP to pull back the switch name, IP address, port number, VLAN assignment, and advertised data rates. You see all of this from the far end of the cable. If a patch cord is plugged into the wrong port or assigned to the wrong VLAN, you find it right there without making a trip back to the IDF or MDF. The IP ping test checks connectivity to any gateway or DNS server on the network and shows average response time across four pings. One trip. Full picture.

Wi-Fi 6E Analysis Built In

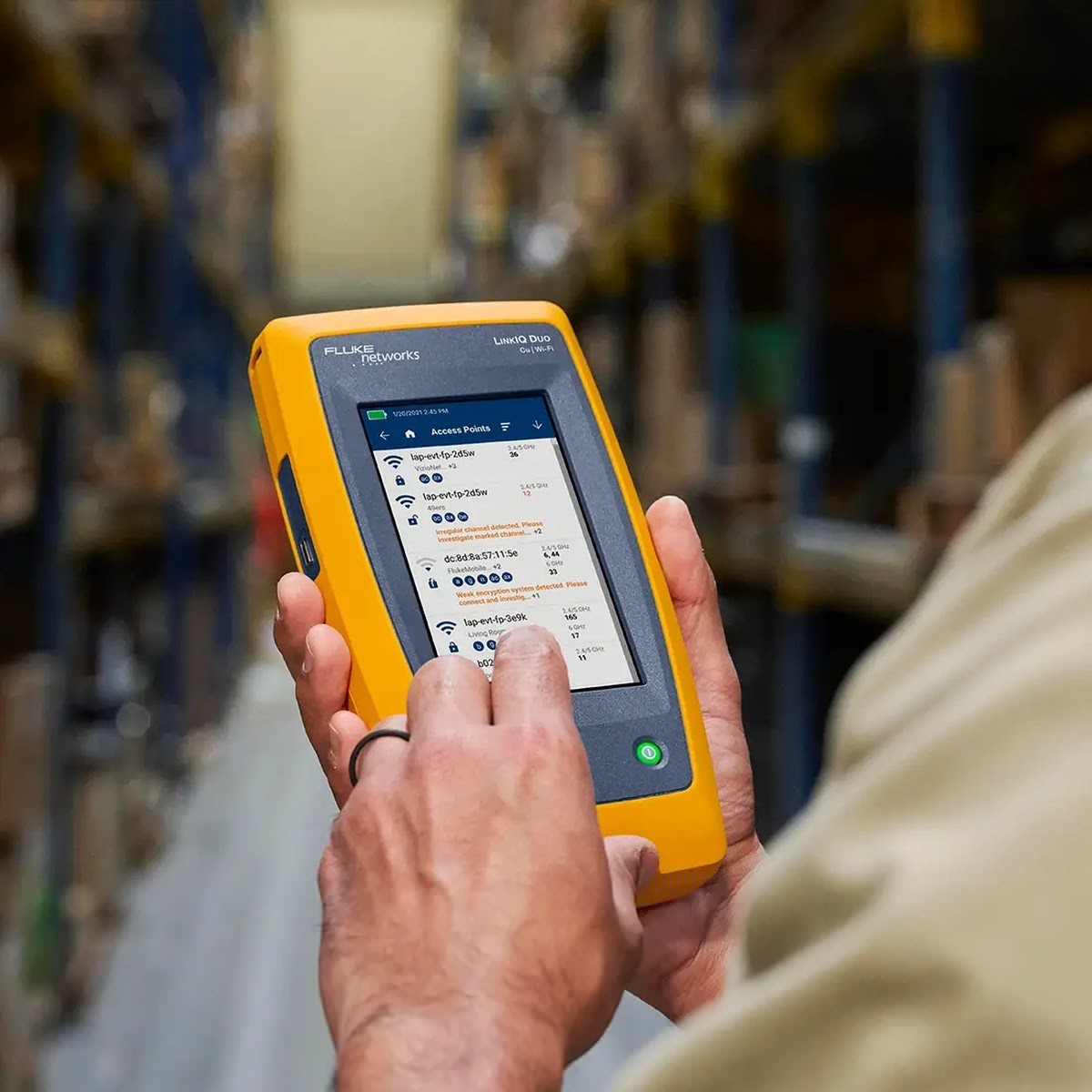

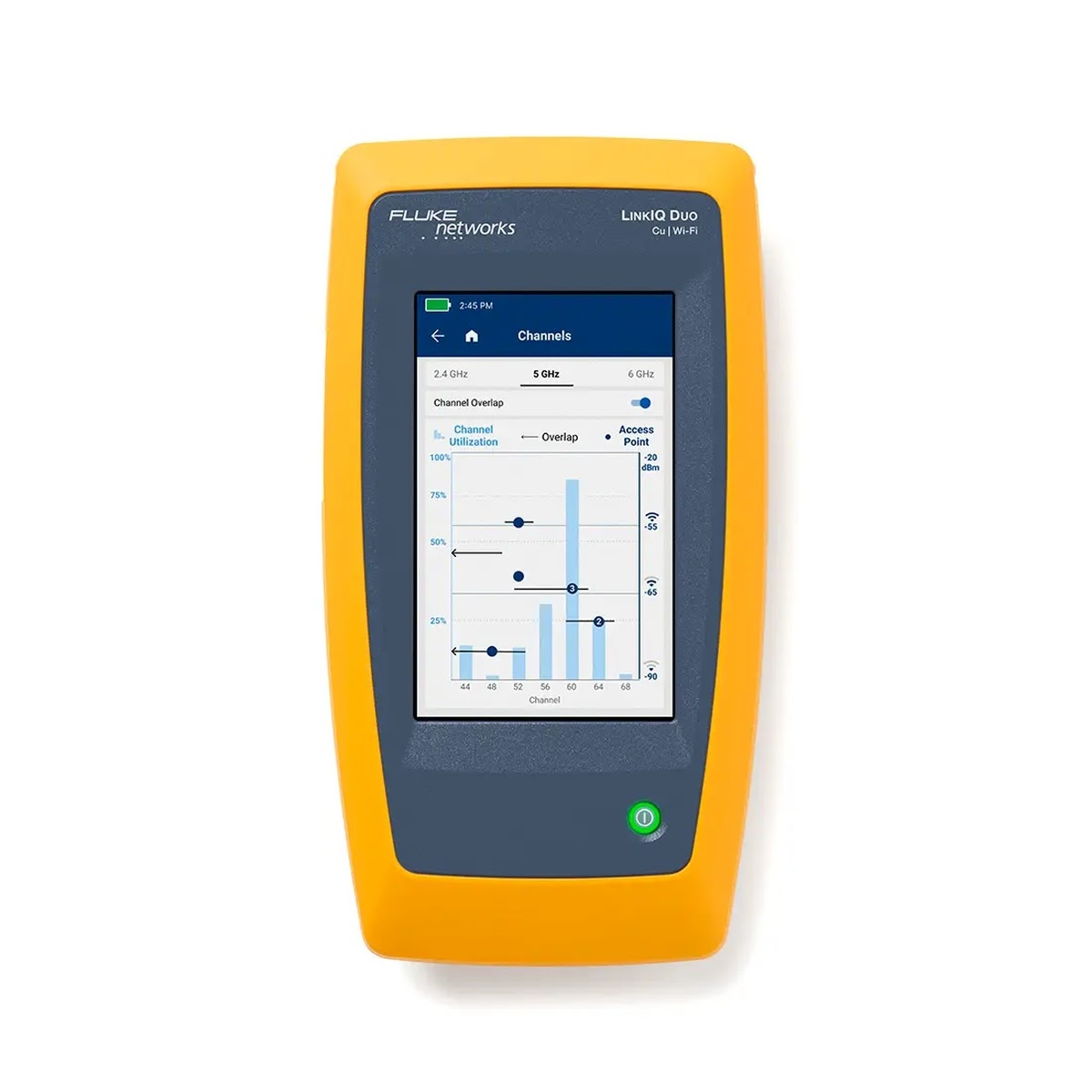

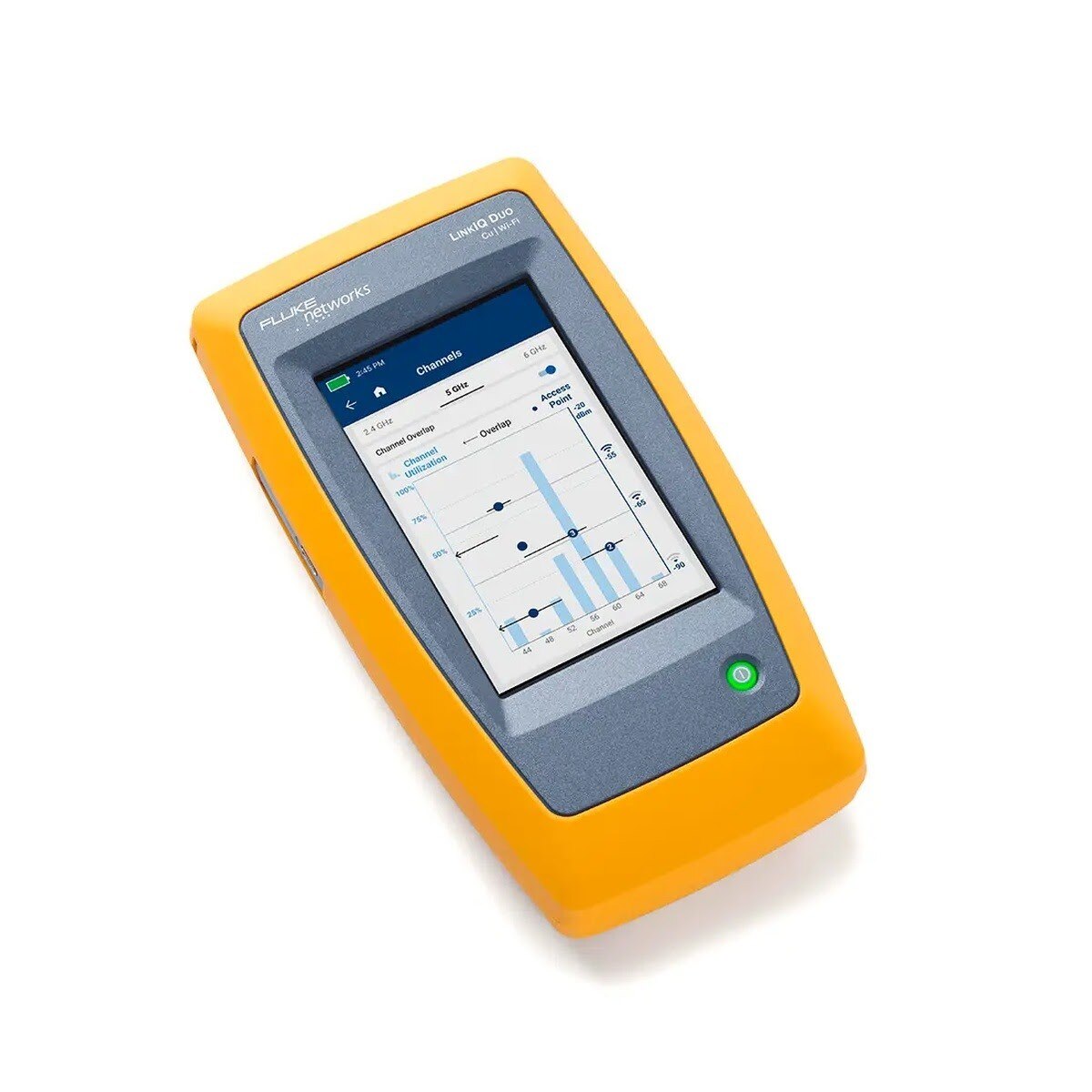

Data center facilities run dense wireless networks for management systems, monitoring tools, and technician access. Channel conflicts, overlapping access points, and weak security settings cause interference and connectivity problems that are hard to trace without the right tool. The LinkIQ Duo scans all three frequency bands — 2.4 GHz, 5 GHz, and 6 GHz — and lets you view the environment by networks, channels, or access points. It flags illegal channels for your region, non-recommended channels, overlapping access points, and weak security settings automatically. No separate Wi-Fi analyzer needed.

Audit-Ready Documentation From the First Test

Data center contractors hand off to operators who need to trust what was installed. Fragmented reports from different tools create gaps in the record and make audits harder. The LinkIQ Duo stores up to 1,000 test results with descriptive names that auto-increment as you go, so naming stays consistent from the first cable to the last. Connect via USB-C to export everything to LinkWare PC, where you can generate PDF reports, manage test data, and track results across projects. One tool. One report format. Consistent documentation every time, from commissioning through final handover.

Built for the Job Site. Ready in One Tap.

Data center contractors move fast across crowded electrical rooms and tight commissioning schedules. The LinkIQ Duo has a large gesture-based color touchscreen with sliders and a full keyboard. The battery lasts 8 hours on a typical day and recharges via a standard USB-C port. The unit is built to handle a 1-meter drop. The Autotest feature detects whether you are testing the cable or the network based on what is plugged in, so you are testing with a single tap instead of navigating menus.

Commissioning New Racks

Verify every cable end-to-end before the rack goes live. Confirm PoE delivery to every powered device. Check switch port VLAN and speed configuration from the outlet. Document all results with auto-incrementing names ready for handover.

Network Upgrades and Speed Migrations

Before upgrading switches to 10G or beyond, confirm the existing cabling can support it. The LinkIQ Duo tests cable performance at every speed tier from 10 Mb/s to 10 Gb/s and tells you exactly which cables need to be replaced or re-terminated.

PoE Device Installations

IP cameras, access control readers, wireless APs, and VoIP devices all rely on PoE. Load-test every circuit to confirm the switch is delivering the right power before devices are mounted or locked in place.

Troubleshooting Live Infrastructure

When a connection drops or slows in production, use the LinkIQ Duo to isolate the problem from the outlet without disrupting other ports. Pull switch diagnostics, run a cable test, and check PoE delivery without touching the switch or taking down the link.

Wi-Fi and Wireless Management Networks

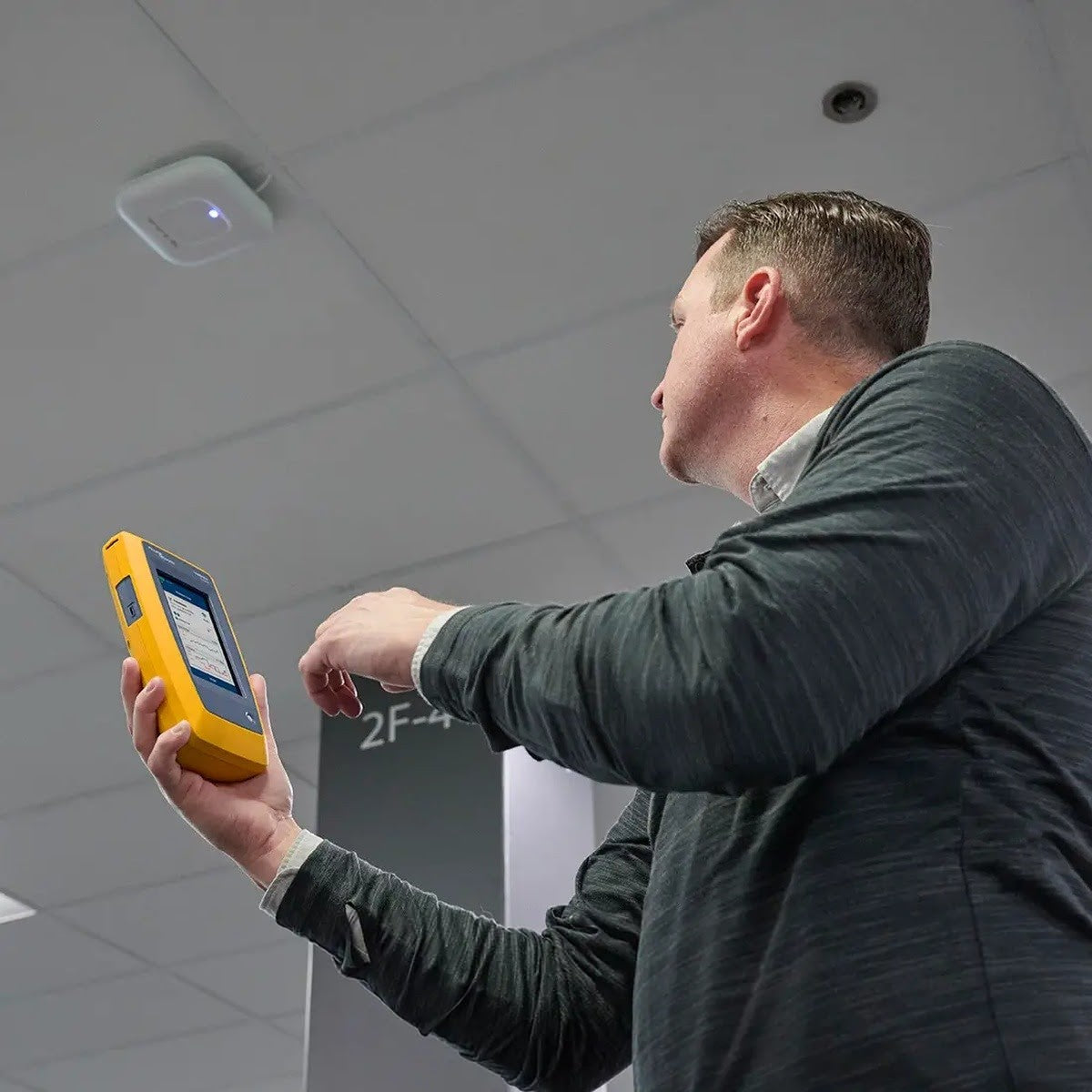

Dense AP deployments in data center facilities create interference and channel conflicts. Scan the wireless environment at commissioning and during service calls to confirm coverage, flag configuration errors, and document access point placement.
