Fluke 6021723 Description
The Fluke GFL-1500 Solar Ground Fault Locator helps technicians quickly identify and trace active ground faults in solar PV systems up to 1500 V. Using non-contact signal tracing with a transmitter, receiver, and signal tracing clamp, it streamlines troubleshooting, reduces downtime, and improves safety in high-voltage solar maintenance applications.

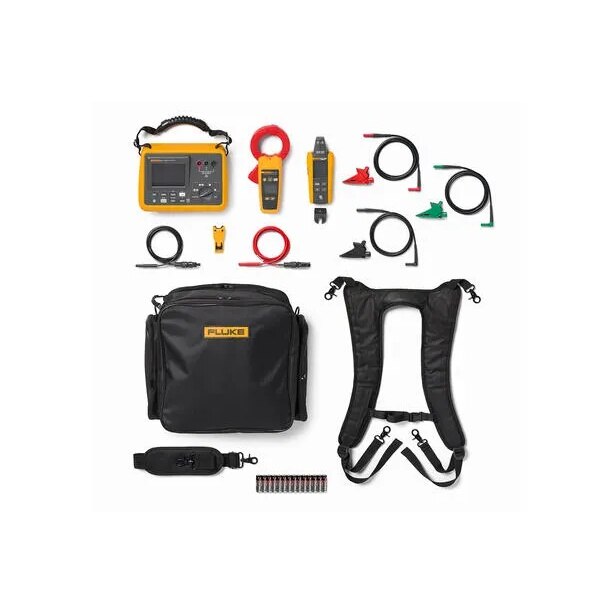

Fluke 6021723 Includes
- (1) GFL-1500 Solar Ground Fault Locator System
- (1) GFL-1500 Transmitter
- (1) GFL-1500 Receiver
- (1) GFL-1500 Signal Tracing Clamp
- (2) TLPV1 MC4 to 4 mm Test Leads
- (3) TL324 4 mm to 4 mm Test Leads
- (3) AC385 Alligator Clips
- (1) MC4 Unlocking Tool
- (1) Soft Carrying Case
- (1) Backpack Style Shoulder Strap
- (14) AA Alkaline Batteries
Fluke 6021723 Features

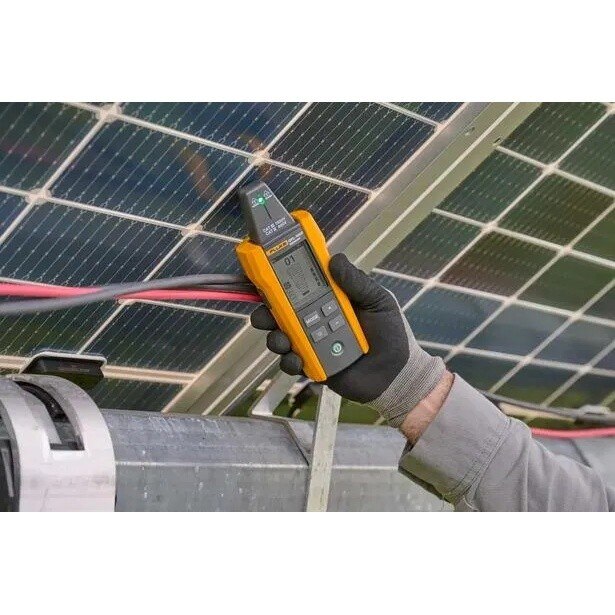

- Non-contact signal tracing helps identify and locate active ground faults in solar PV systems
- Designed for troubleshooting solar PV systems up to 1500 V
- Combines analyze, fault tracing, open circuit, and mapping functions in one system
- Audio and visual feedback helps technicians follow the fault path accurately
- Transmitter and receiver are rated CAT III 1500 V DC and CAT IV 600 V AC

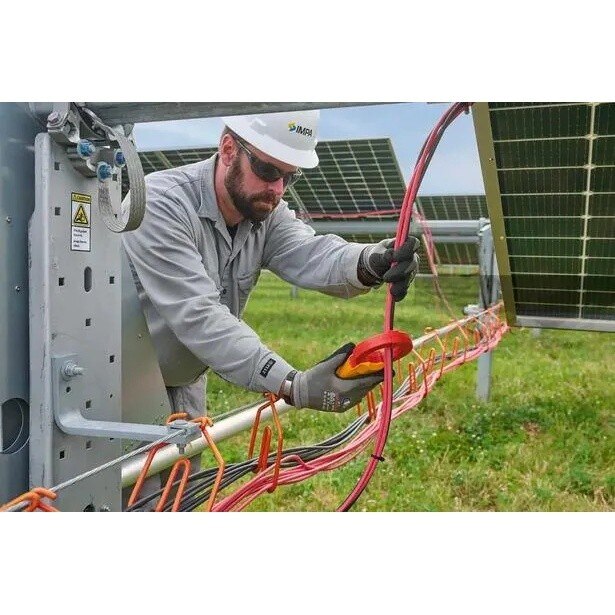

- Signal tracing clamp is rated for use on insulated conductors up to 1500 V
- Reduces troubleshooting time, downtime, and exposure to electrical hazards
- Three-piece system supports faster and more confident field diagnostics
Fluke 6021723 Specifications
| Application | Non-contact ground fault detection in solar PV systems up to 1500 V; analyze, fault tracing, open circuit, mapping |

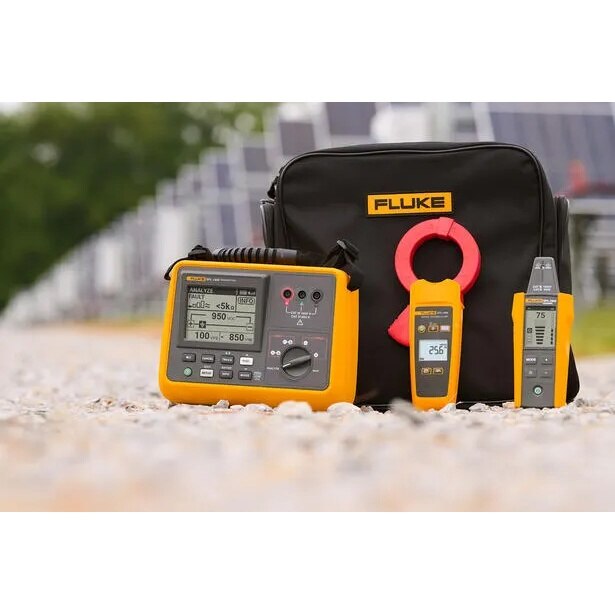

| System Components | Transmitter, receiver, signal tracing clamp |
| Safety Rating | Transmitter and receiver: CAT III 1500 V DC / CAT IV 600 V AC |
| Clamp Rating | Rated for use on insulated conductors up to 1500 V |
| Battery Type | AA alkaline |
| Batteries Included | 14 |
| Low Battery Indication | Yes |
| Operating Altitude | 0 to 3 000 m (9 843 ft) |
| Storage Altitude | 0 to 12 000 m (39 371 ft) |
| Drop Test | 1 m (3.28 ft) |
| Product Length (in) | 17.25 |
| Product Width (in) | 8.5 |
| Product Height (in) | 14 |
| Product Weight (lb) | 10.8 |
| Warranty | 3 Year |
| Country of Origin | Serbia |
| RoHS Compliant | Yes |
| CE Marked | Yes |
| CSA Certified | Yes |
| Packaging Type | Carton Box |
