Fluke 6022112 Description
The Fluke 393 FC Solar Clamp Meter kit combines a CAT III 1500 V DC true RMS clamp meter, an irradiance meter, and MC4 test leads to support commissioning, troubleshooting, and maintenance of PV systems. Use it to measure DC current and voltage across solar arrays and combiner boxes while also capturing irradiance (W/m2), module temperature, tilt, and orientation for performance and standards based evaluation.

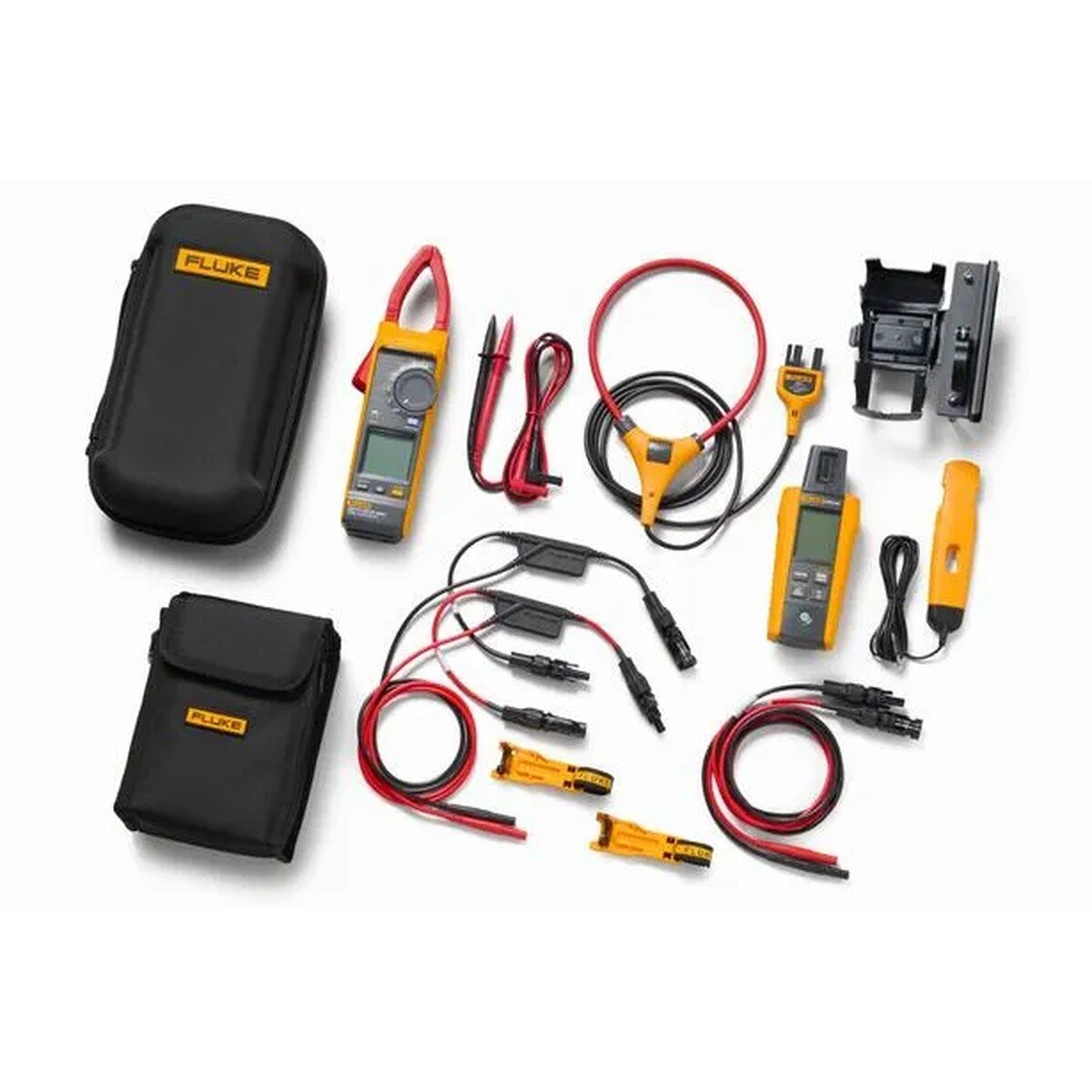

Fluke 6022112 Includes
- (1) FLK-393FC-IRR-TLPV Bundle
- (1) Fluke 393 FC Solar Clamp Meter
- (1) Irr2-BT Irradiance Meter
- (1) TLPV1 MC4 to 4 mm Test Lead Set
- (1) TLPV2 Solar Power Clamp Set
- (6) AA Batteries
Fluke 6022112 Features
- Professional PV diagnostic kit combining electrical and environmental measurements
- CAT III 1500 V DC rated clamp meter for high voltage solar applications
- True RMS measurements for accurate current and voltage readings
- Irradiance meter measures solar irradiance (W/m2) and module temperature
- Captures tilt and orientation data to assess PV system performance and compliance
- TLPV leads with Staubli MC4 connectors enable fast, secure PV connections without adapters
- Supports commissioning, inspection, troubleshooting, and maintenance workflows
Fluke 6022112 Specifications
| Safety Rating | CAT III 1500 V DC |
| Warranty | 3 Year |
| Battery Type | AA (LR6) |
| Batteries Included | 6 |
| Country of Origin | China |
| RoHS | Meets |
| ECCN | 3A992 |
| HTS Code | 9030310000 |
| GTIN | 00195112130551 |
| Packaging Type | Carton Box |
| Product Length | 15.5 in |
| Product Width | 13.5 in |
| Product Height | 10.5 in |
| Shipping Weight | 8.38 lb |
