Fluke | SKU:
6053076
Fluke 6053076 Industrial Acoustic Imager With SB140 Sound Beacon 40KHZ
Free Shipping
$20,188.06
Unit price
/
Unavailable
Description
Description
Fluke 6053076 Description

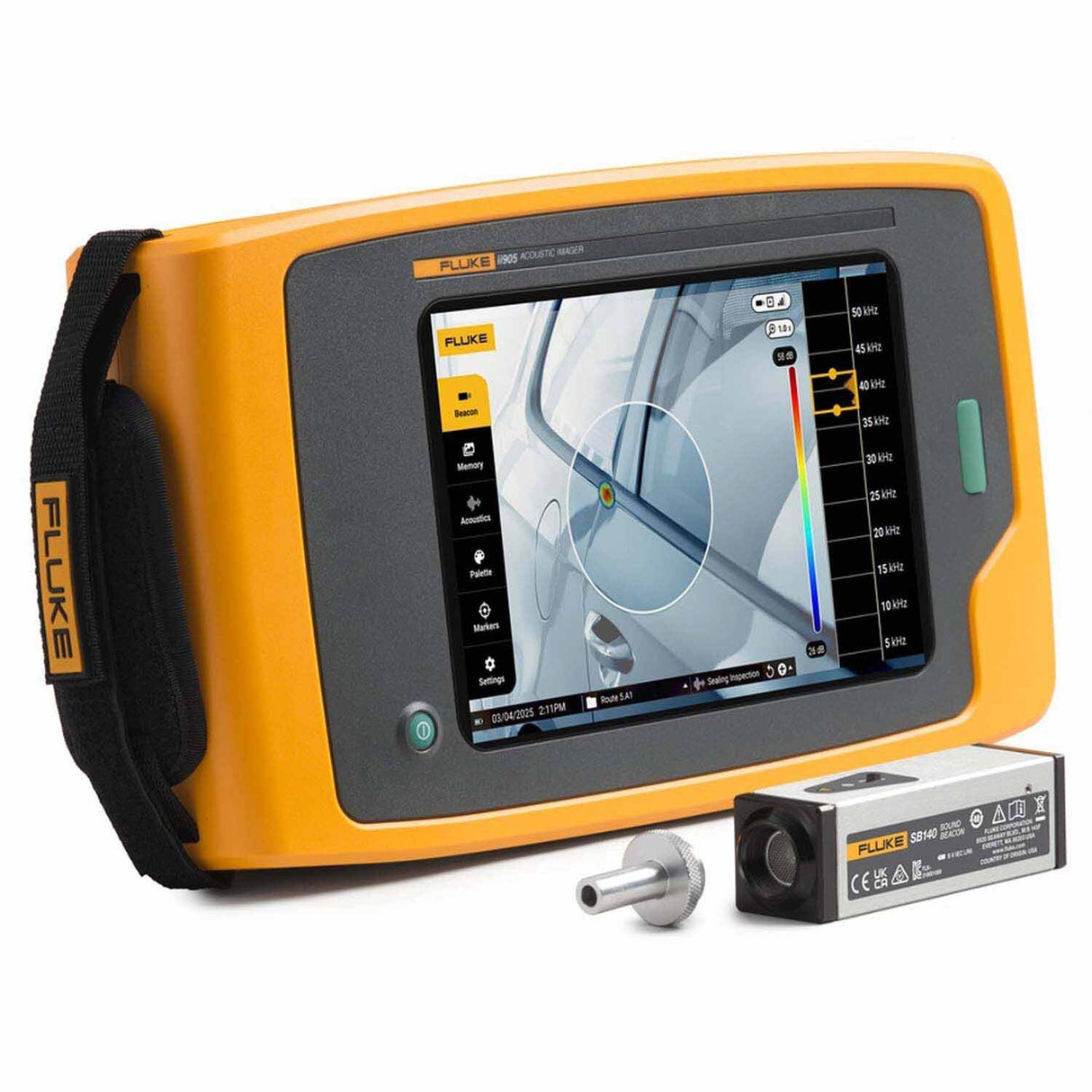

The Fluke Industrial Acoustic Imager with SB140 Sound Beacon is a precision tool for detecting leaks using ultrasound technology, featuring a 7" LCD touchscreen and advanced imaging capabilities.
Fluke 6053076 Includes
- (1) ii905 Main Body

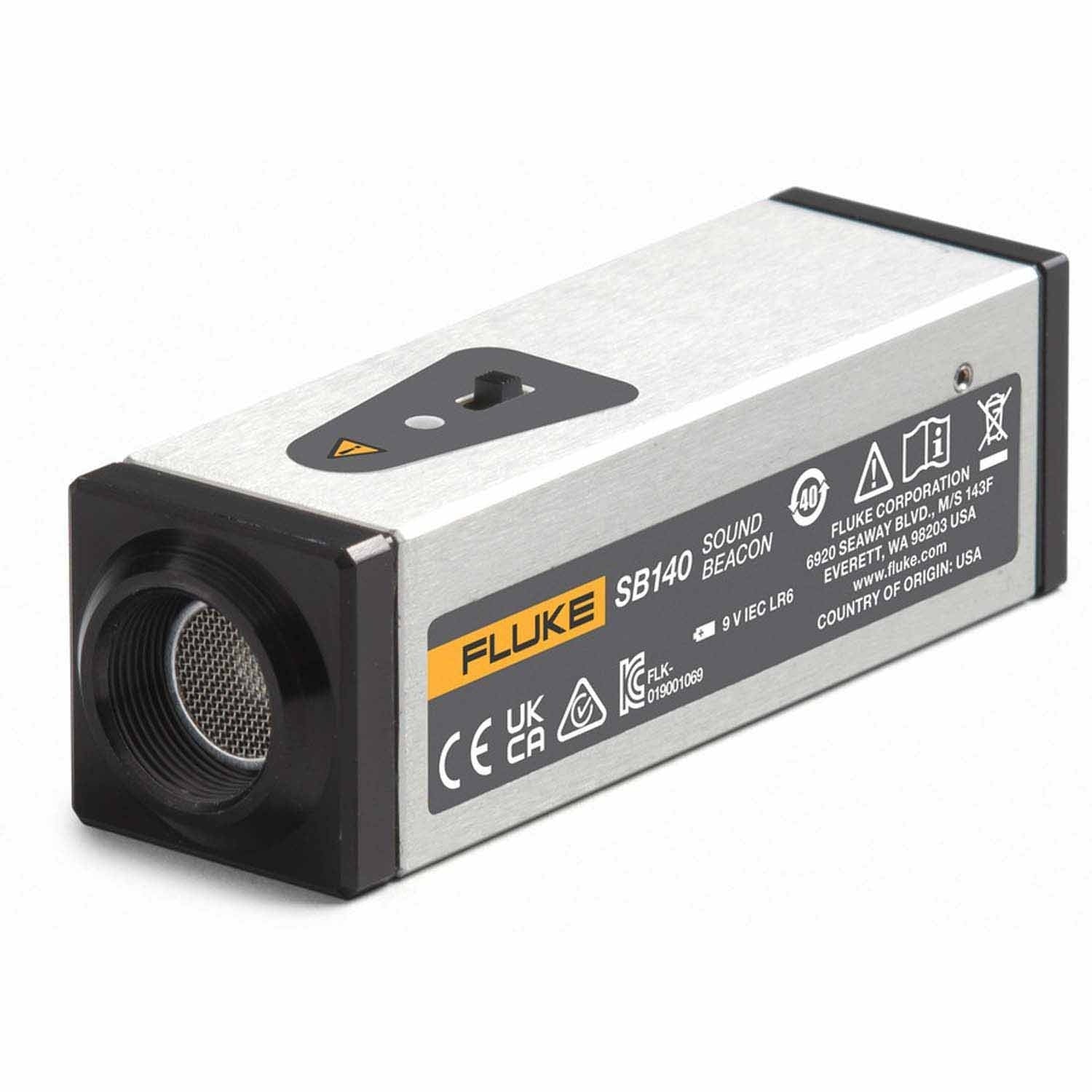

- (1) SB140 Sound Beacon
- (1) Hand Strap
- (2) Sensor Array Cover
- (1) Sensor Array
- (1) Neckstrap
- (1) USB-C Cable
- (1) BP291 Battery
- (1) Battery Charger
- (1) EDBC290
- (1) Soft Case
- (1) Accessory 1 inch probe
- (1) Instruction Sheet
- (1) Warranty Card
Fluke 6053076 Features

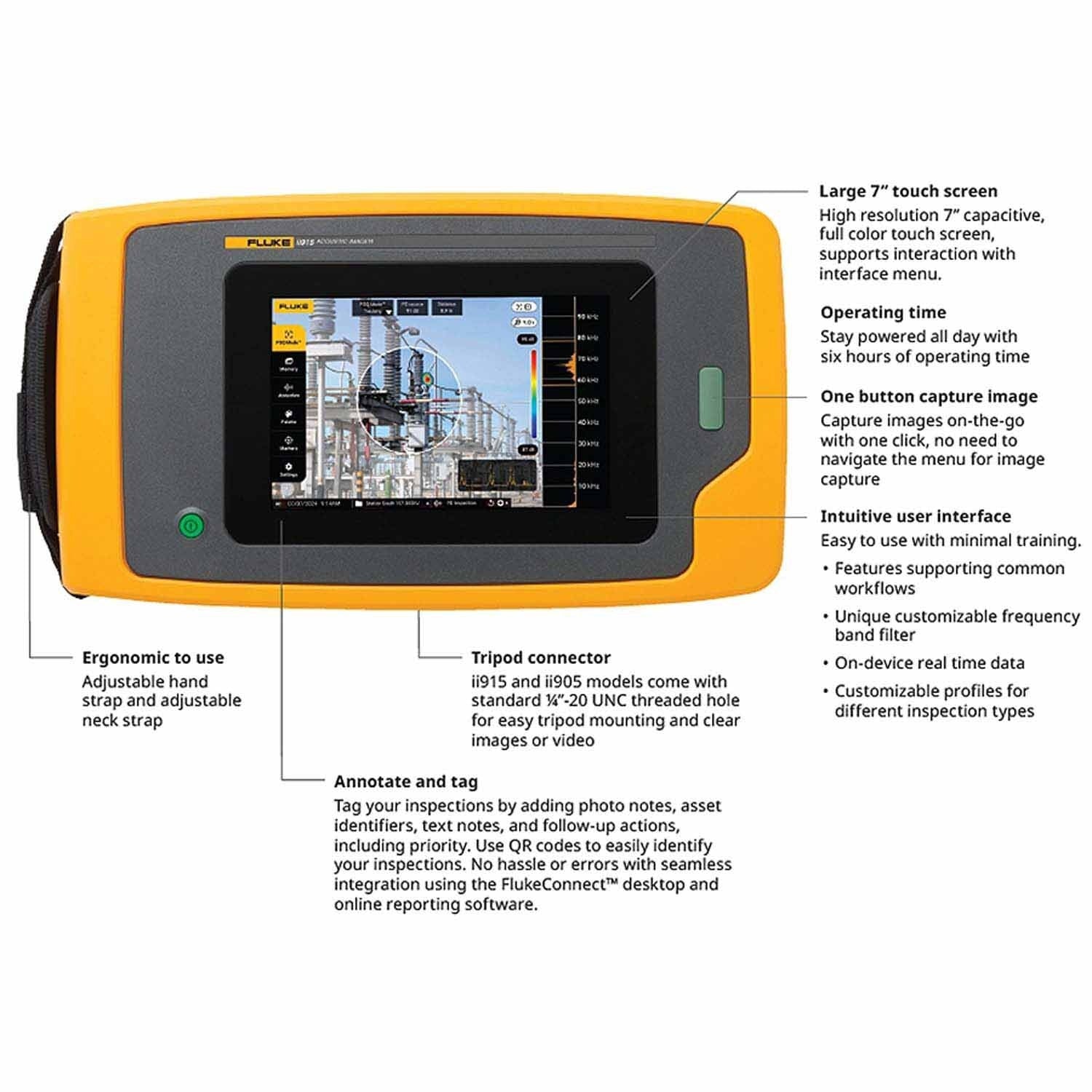

- High resolution 7" capacitive touchscreen
- Sound frequency 40 kHz +/- 1.5 kHz
- WiFi and USB-C connectivity
- Leak size scale, leak rate, and leak cost estimation

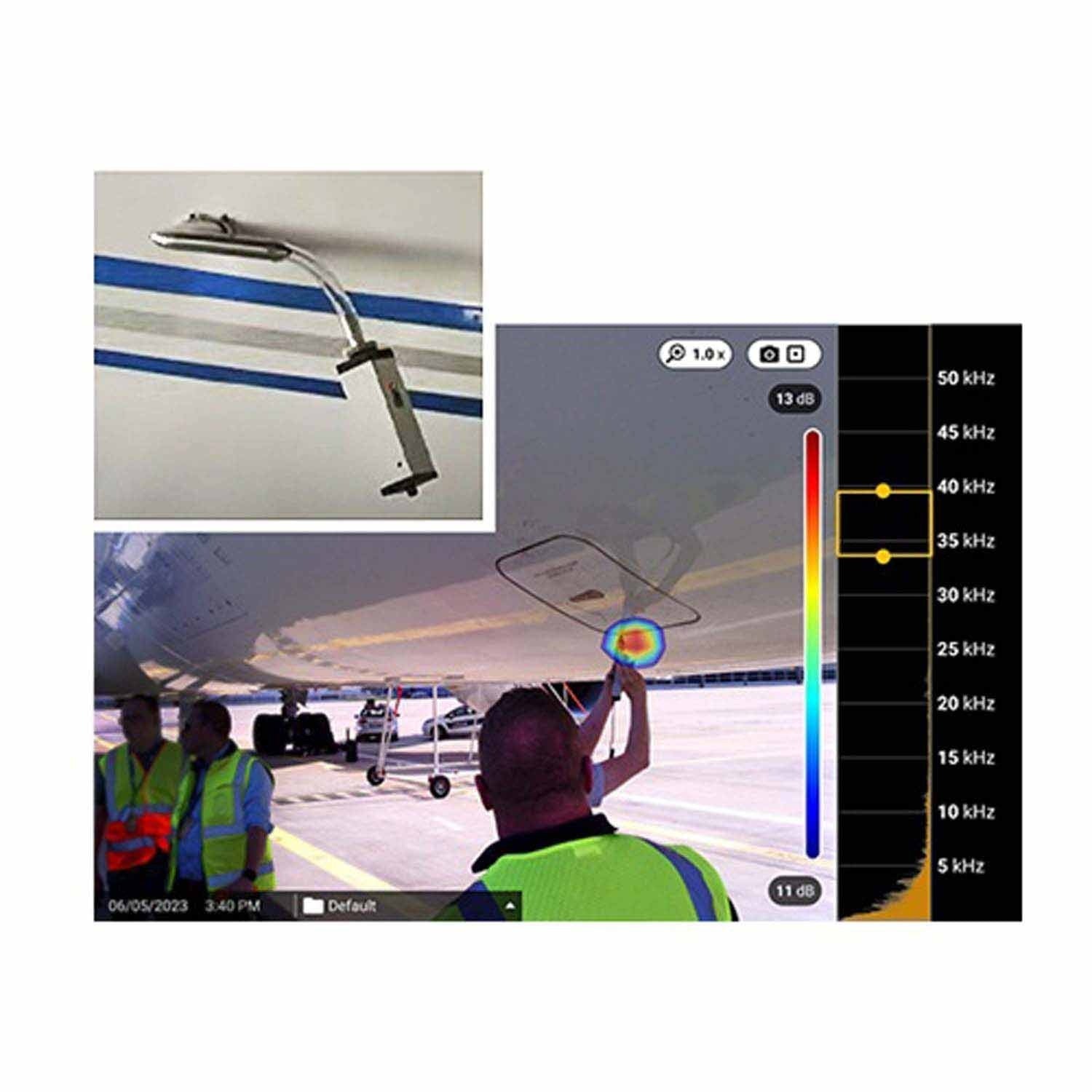

- Blended visual and SoundMap image and video formats
- Up to 5 minutes video recording
- 32 GB memory/storage capacity
- Ergonomic design with adjustable hand strap and neck strap
- Battery life > 300 hours
- Operating temperature range -10 to 45°C
- Ingress protection (IP) IEC 60529: IP40
- Housing made of extruded aluminum
Fluke 6053076 Specifications
| Resolution: | 5.0 megapixel |
| Display Type: | 7" LCD |
| Frequency Range: | 2 to 65 kHz |
| Operating Temperature Range: | -10 to 45°C |
| Field-of-View (FoV): | 63±5 Degrees |
| Nominal Frame Rate: | 25 FPS |
| Zoom: | 3x digital zoom |
| Memory/Storage Capacity: | 32 GB |
| Image Format: | Blended visual and SoundMap .JPG or .PNG |
| Video Format: | Blended visual and SoundMap .MP4 |
| Save Video: | Up to 5 minutes |
| Interface: | USB-C, WiFi |
| Operation Distance: | Up to 70 meters (230 feet) Depending on ambient conditions |
