Fluke | SKU:
6053095
Fluke 6053095 II915 Industrial Acoustic Imager With SB140 Sound Beacon 40KHZ
Free Shipping
$24,883.18
Unit price
/
Unavailable
Description
Description
Fluke 6053095 Description

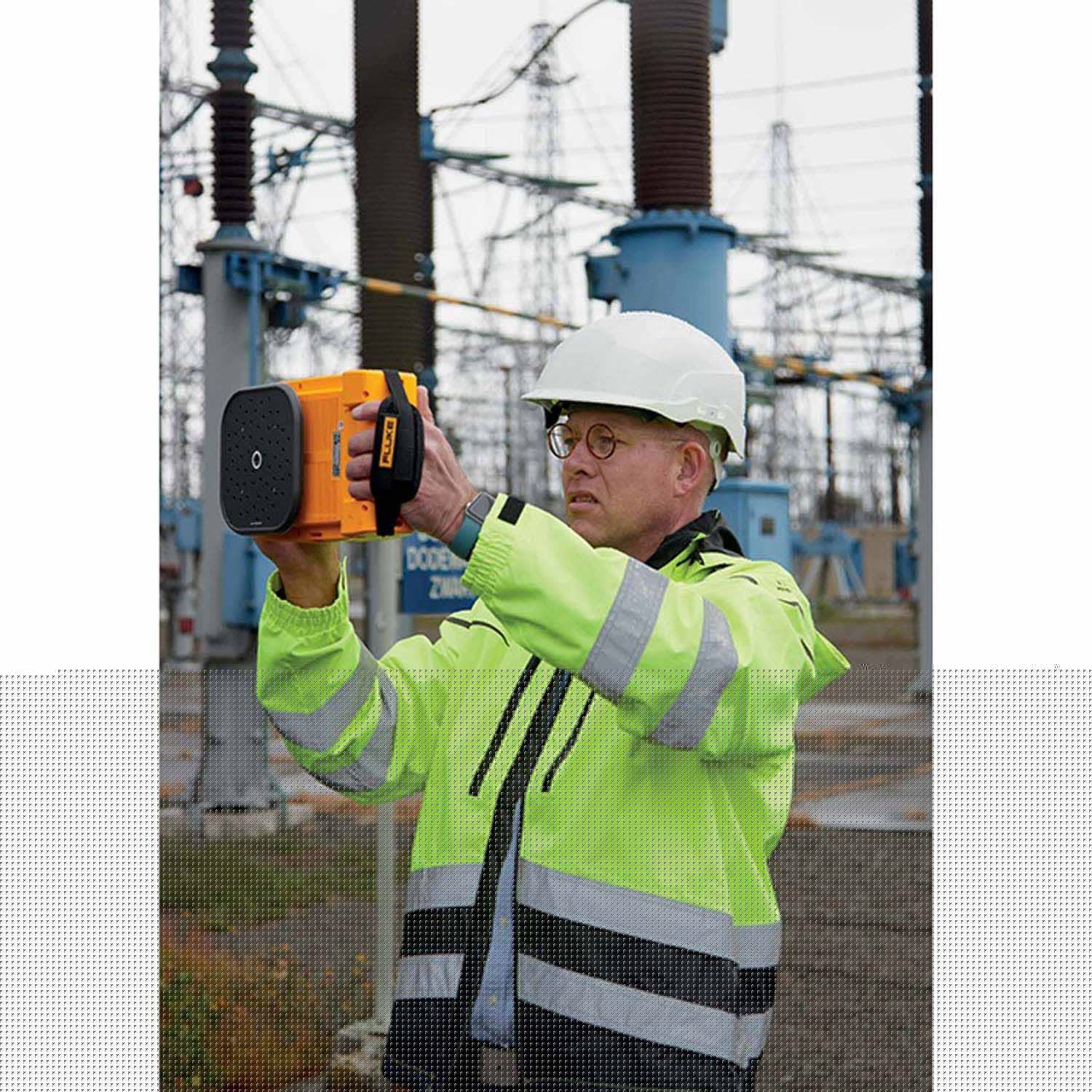

The Fluke Industrial Acoustic Imager with SB140 Sound Beacon is a precision tool designed for detecting leaks and tightness in various applications. It features advanced acoustic imaging technology and a 40kHz sound beacon for accurate visualization.

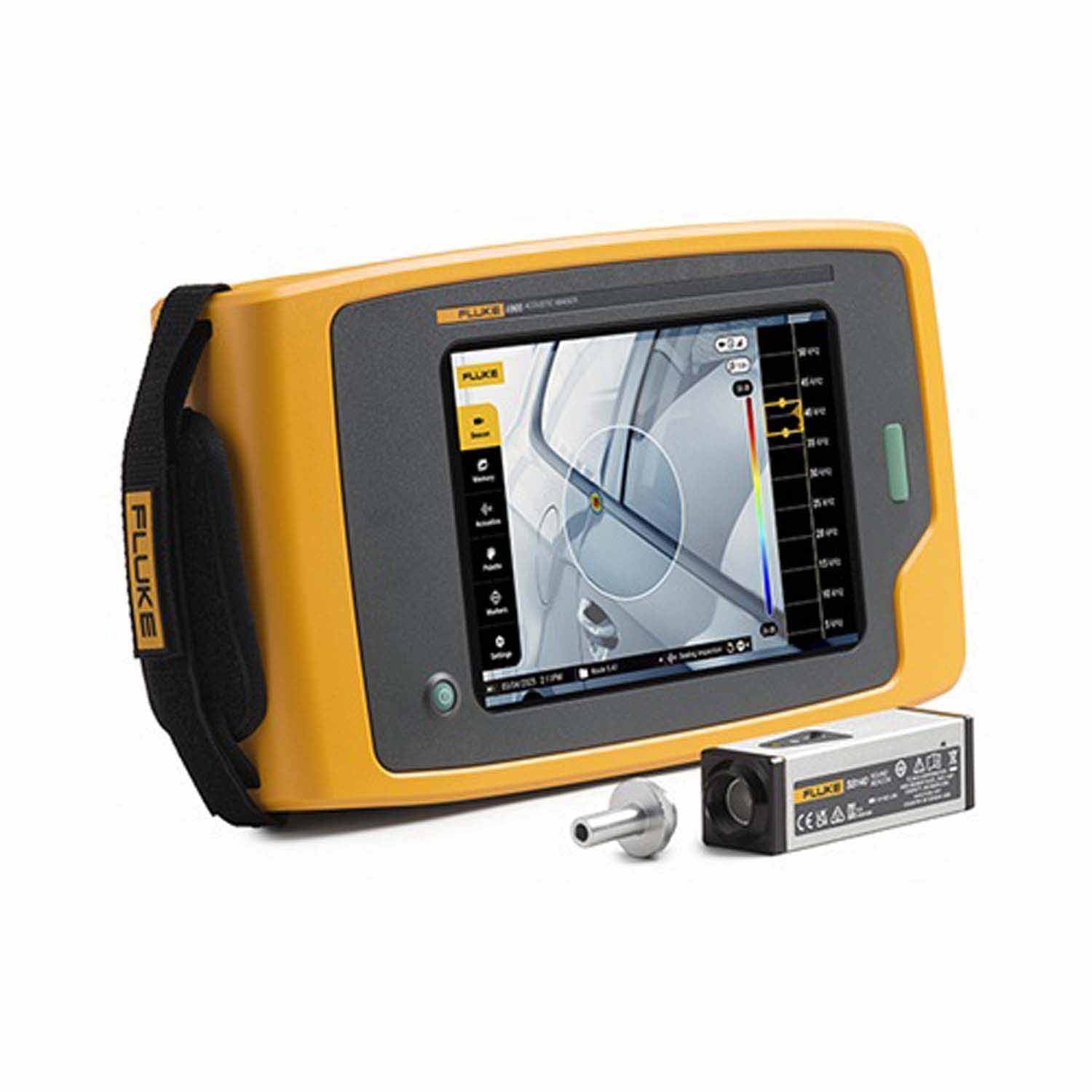

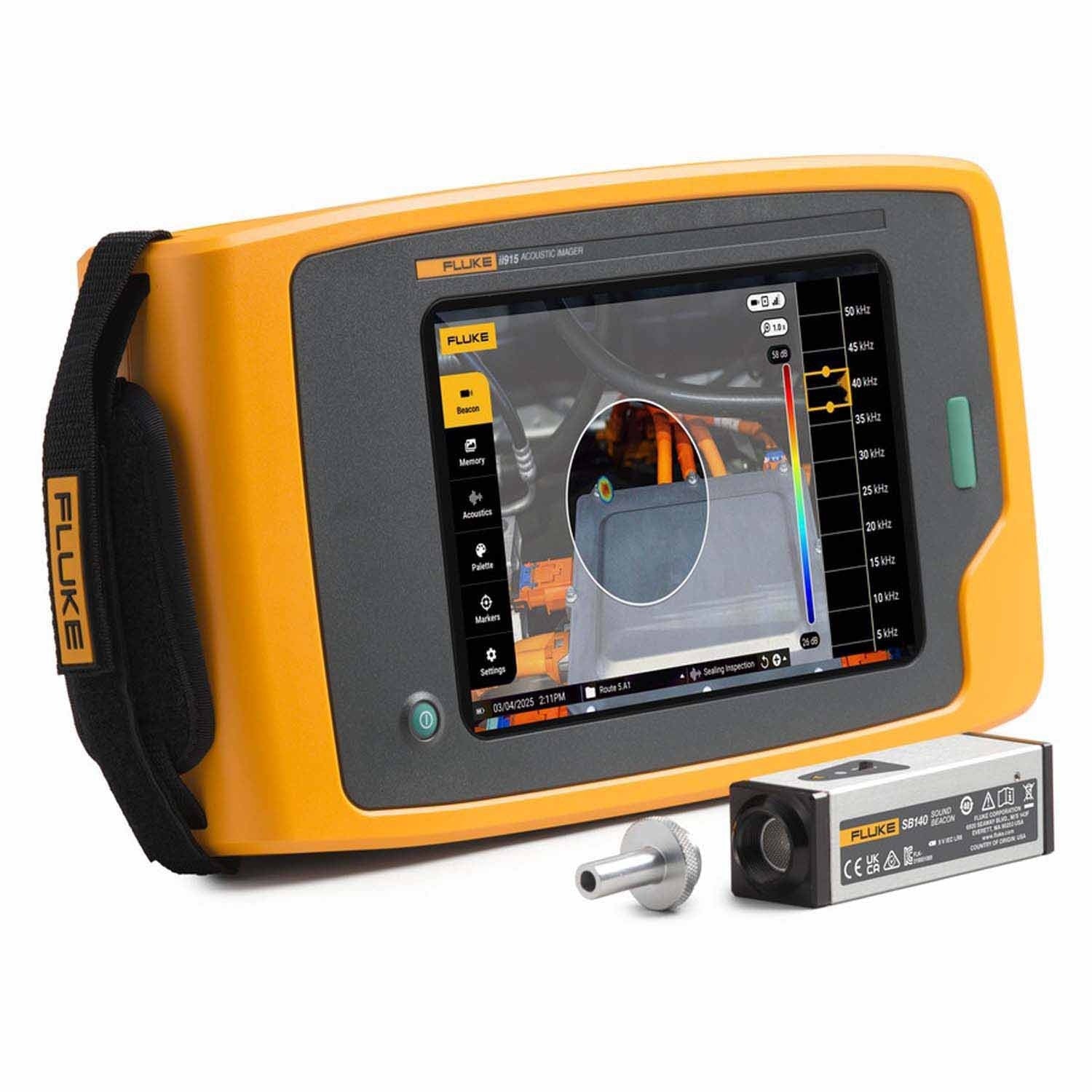

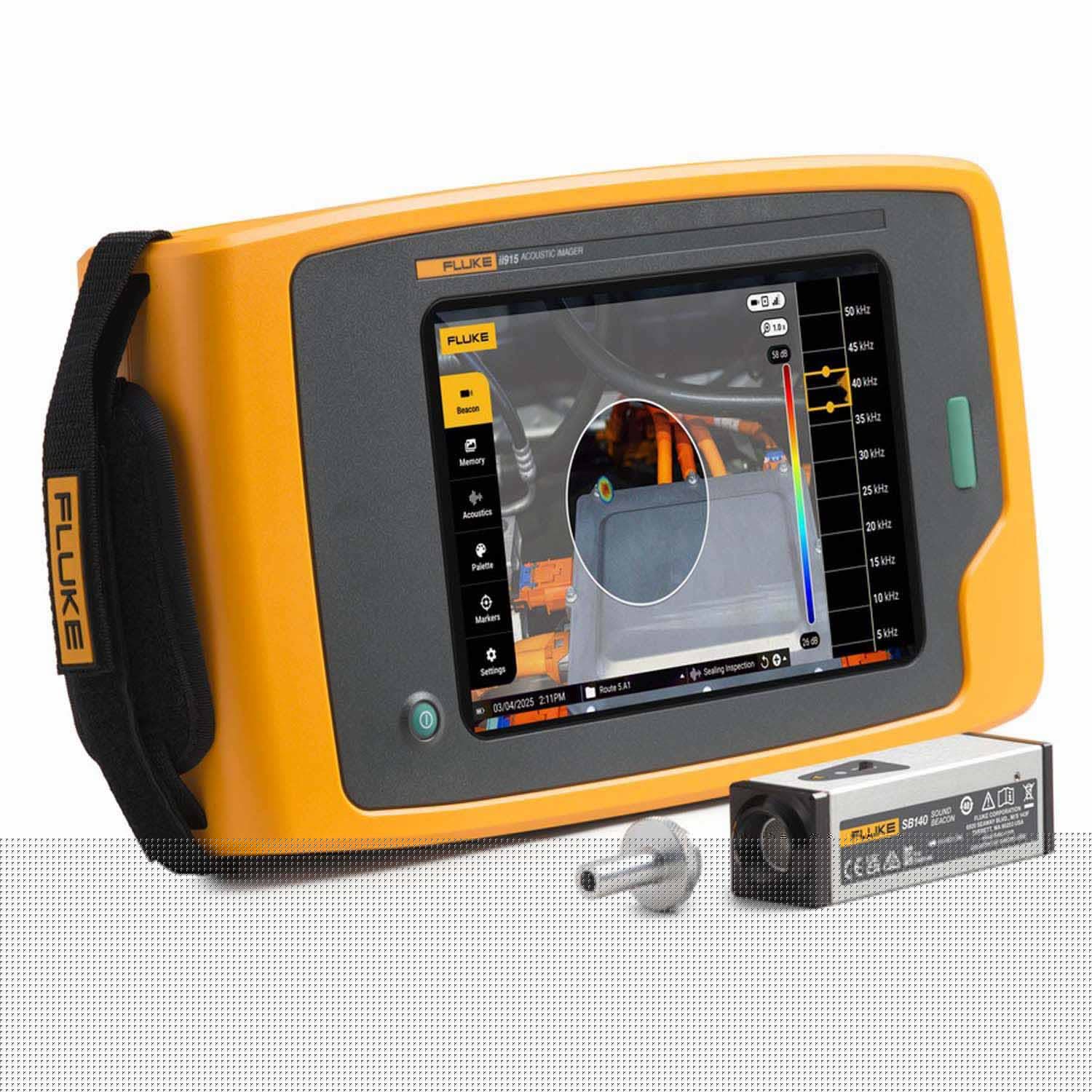

Fluke 6053095 Includes
- (1) ii915 Main Body

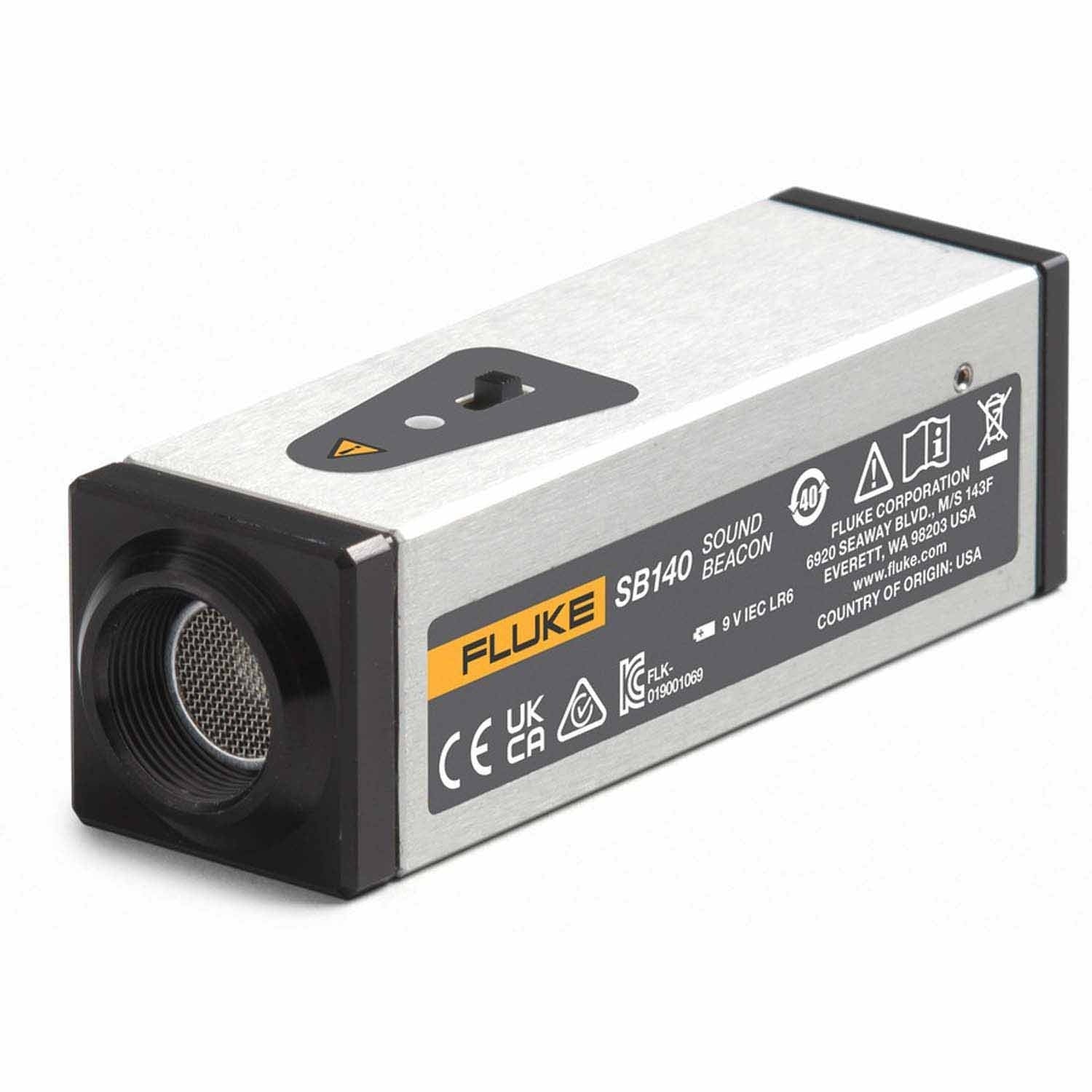

- (1) SB140 Sound Beacon
- (1) Hand Strap
- (2) Sensor Array Cover

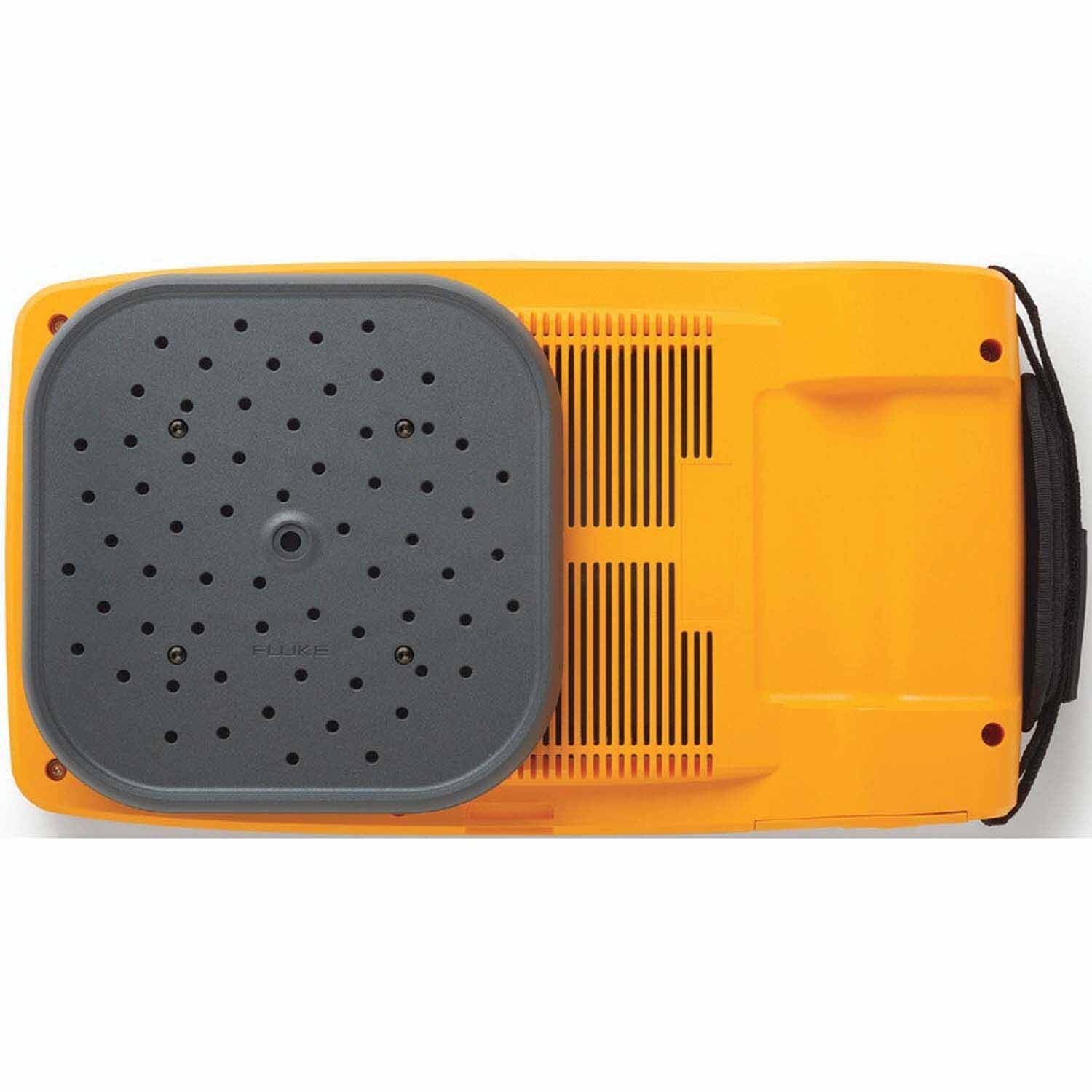

- (1) Sensor Array
- (1) Neckstrap
- (1) USB-C Cable
- (1) BP291 Battery
- (1) Battery Charger
- (1) EDBC290
- (1) Soft Case
- (1) Accessory 1 inch probe
- (1) Instruction Sheet
- (1) Warranty Card
Fluke 6053095 Features

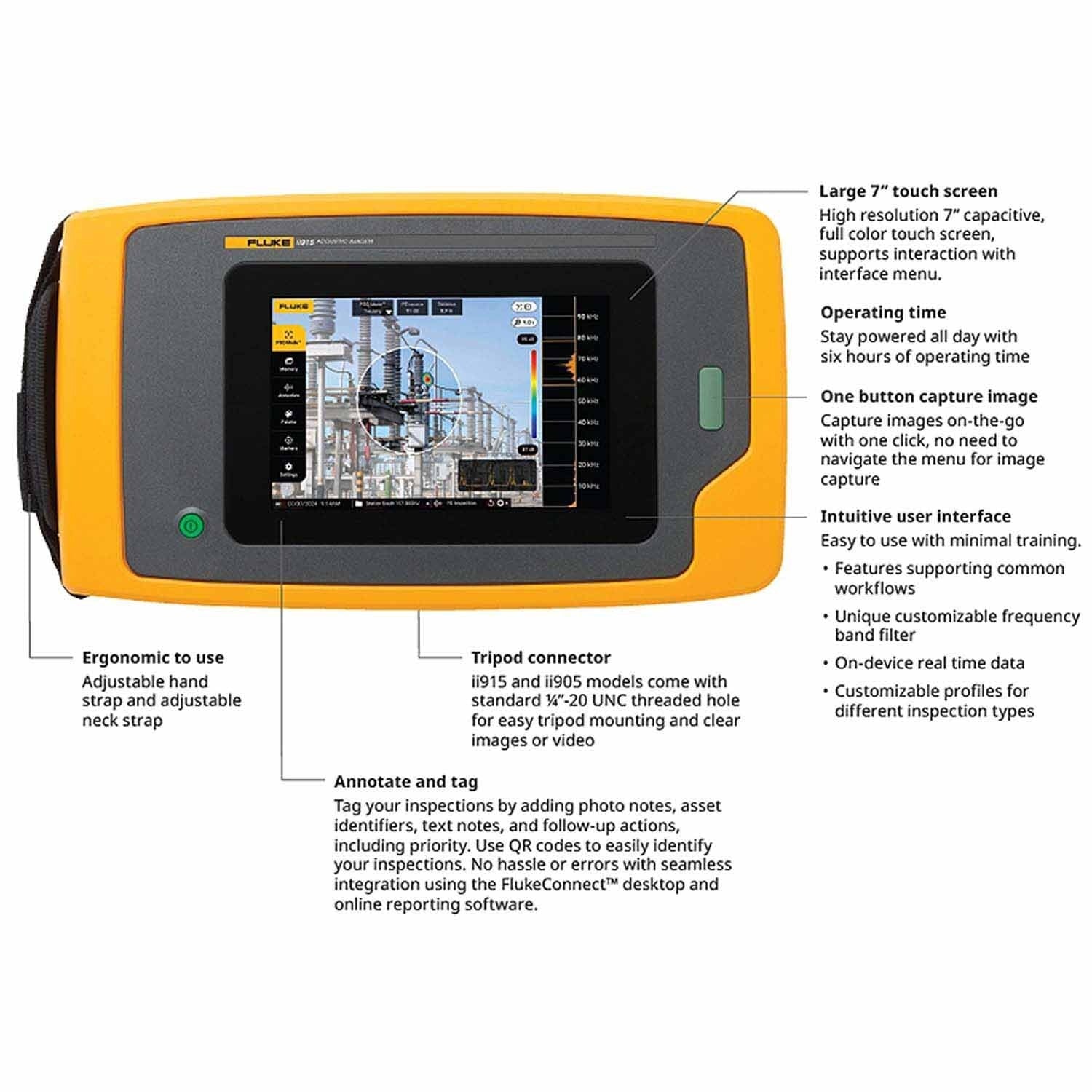

- High resolution 7" capacitive touch screen
- Operating temperature range: -10 to 45°C
- Frequency range: 2 to 100 kHz
- WiFi and USB-C connectivity
- Memory/storage capacity: 32 GB

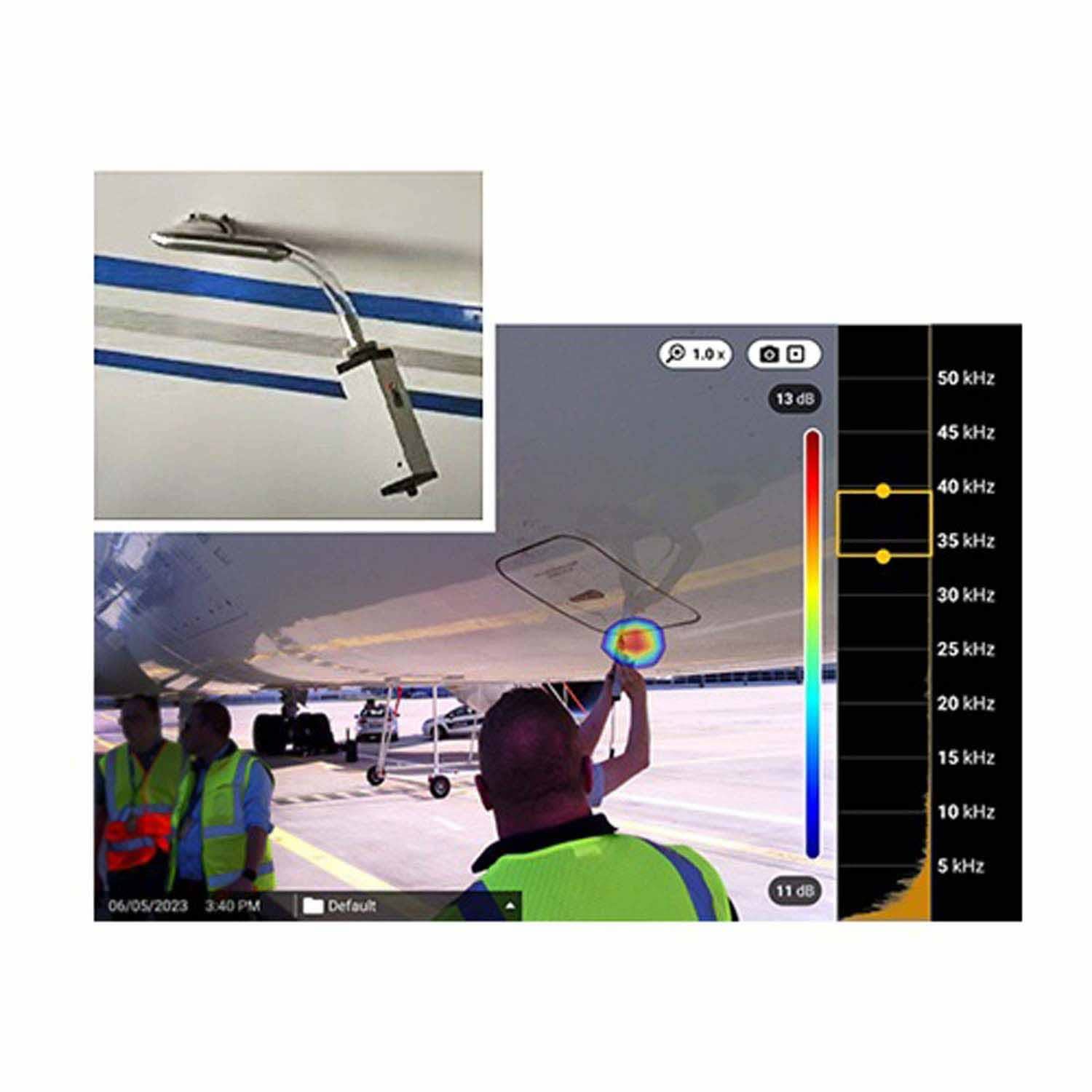

- Blended visual and SoundMap image format (.JPG or .PNG)
- Blended visual and SoundMap video format (.MP4)
- Save video up to 5 minutes
- Leak size scale, leak rate, and leak cost estimation
- Partial discharge visualization mode
- Efficient scanning of large areas
- Customizable profiles for different inspection types
- On-device real-time data
- Adjustable hand strap and neck strap
- Tripod connector for easy mounting
- Six hours of operating time
Fluke 6053095 Specifications
| Display Type: | 7" LCD |
| Resolution: | 1280 x 800 |
| Frequency Range: | 2 to 100 kHz |
| Operating Temperature Range: | -10 to 45°C |
| Memory/Storage Capacity: | 32 GB |
| Interface: | USB-C, WiFi |
| Field-of-View (FoV): | 63±5 Degrees |
| Nominal Frame Rate: | 25 FPS |
| Zoom: | 3x digital zoom |
| Touchscreen: | Capacitive |
| Image Format: | Blended visual and SoundMap .JPG or .PNG |
| Video Format: | Blended visual and SoundMap .MP4 |
| Operation Distance: | Up to 120 meters (393 feet) |
