Fluke | SKU:
6053146
Fluke 6053146 II915/SB140 With 1 Year Of Premium Care Standard
Free Shipping
$29,054.98
Unit price
/
Unavailable
Description
Description
Fluke 6053146 Description

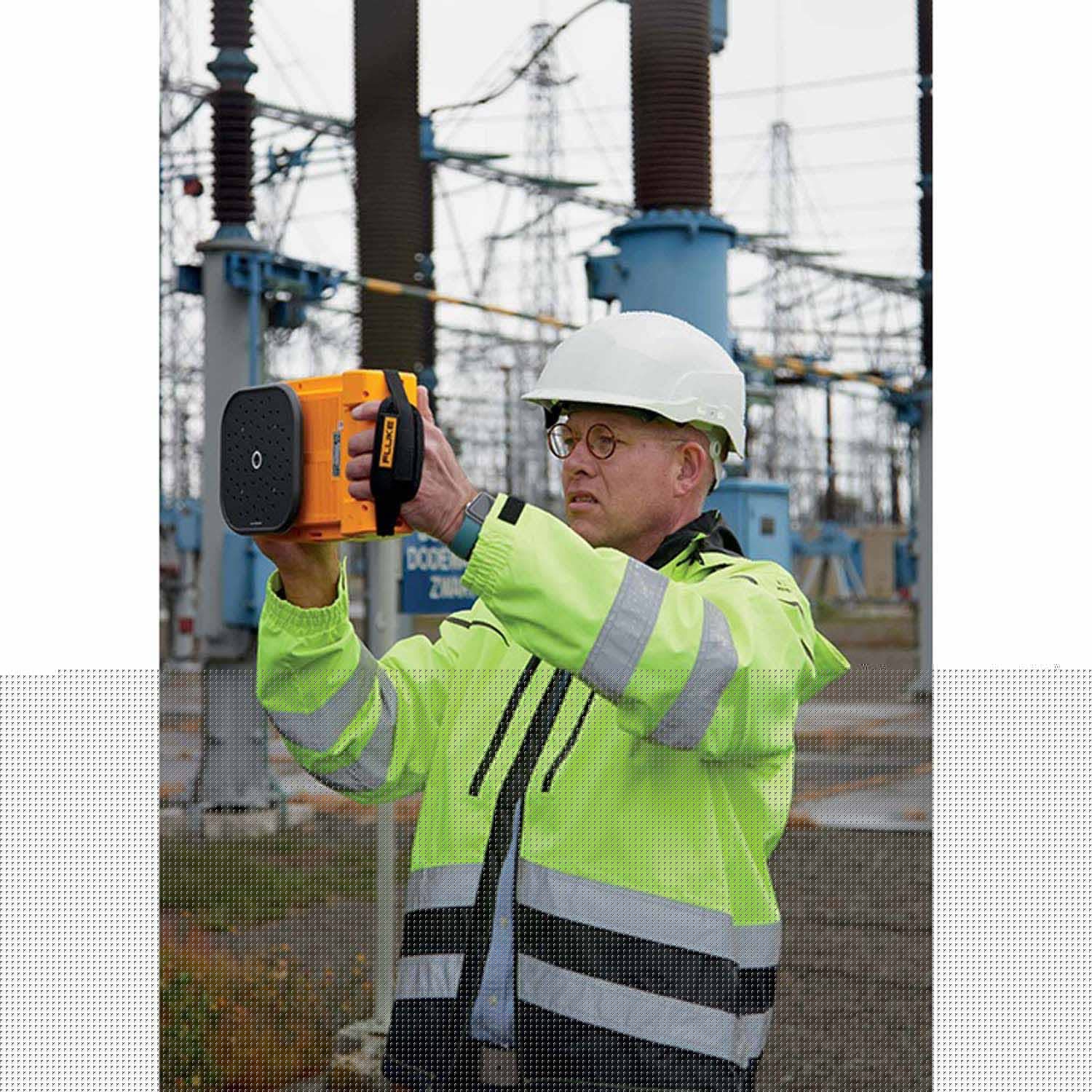

The Fluke FLK-II915/SB140/FPC Acoustic Imager is a high-performance tool designed for detecting leaks and partial discharge with precision. It features a 7" capacitive touchscreen, WiFi connectivity, and a robust design for industrial applications.

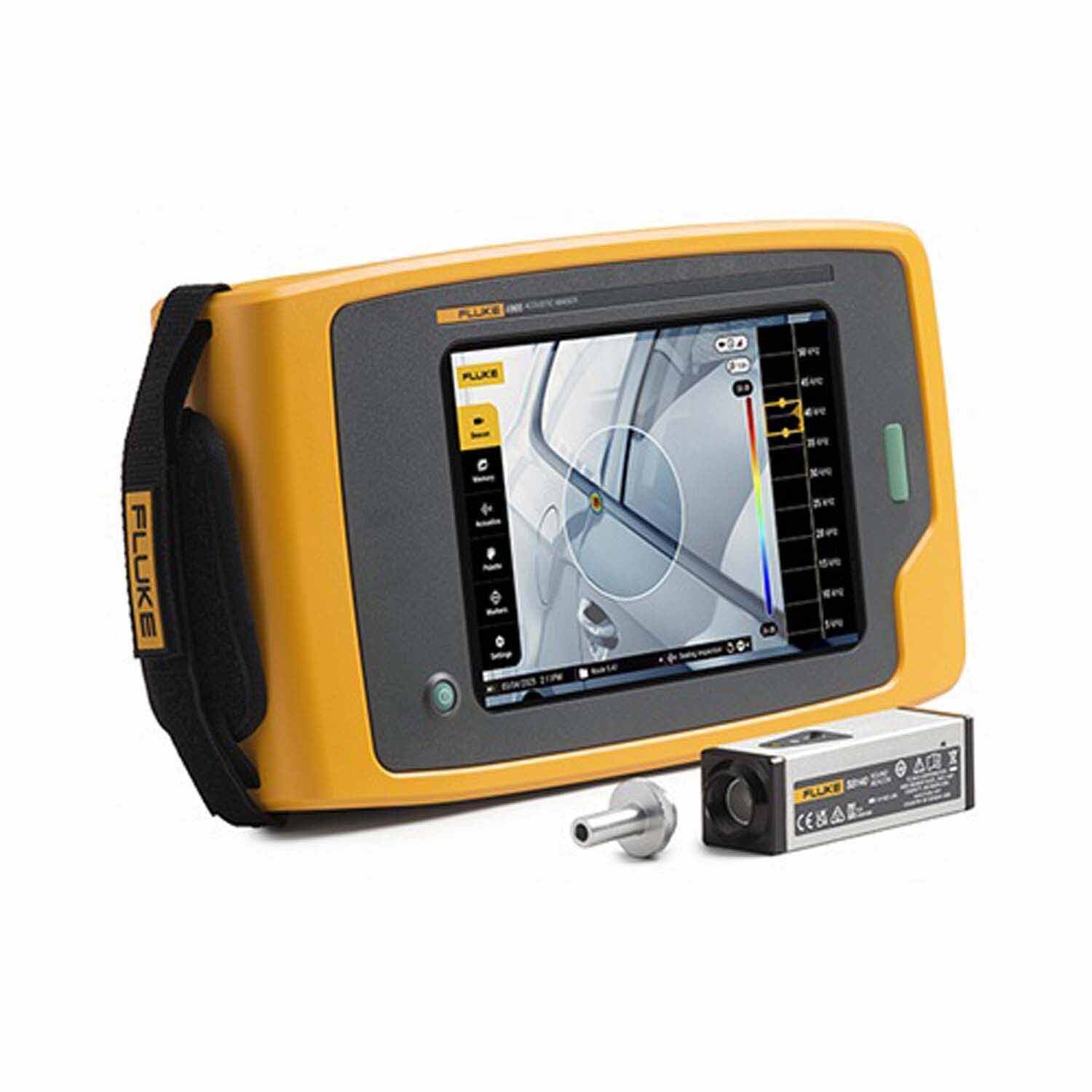

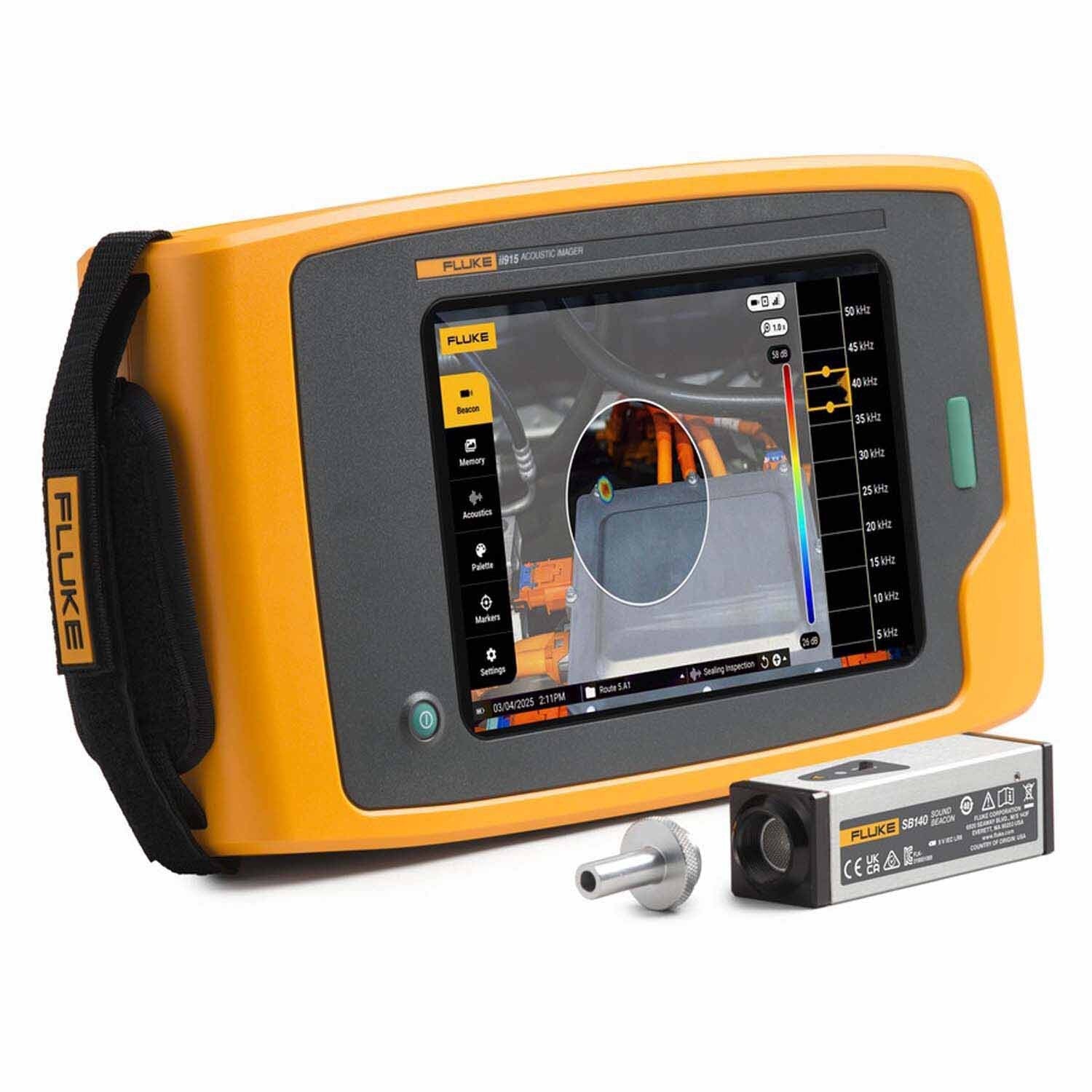

Fluke 6053146 Includes
- (1) ii915 Main Body
- (1) Hand Strap
- (2) Sensor Array Cover

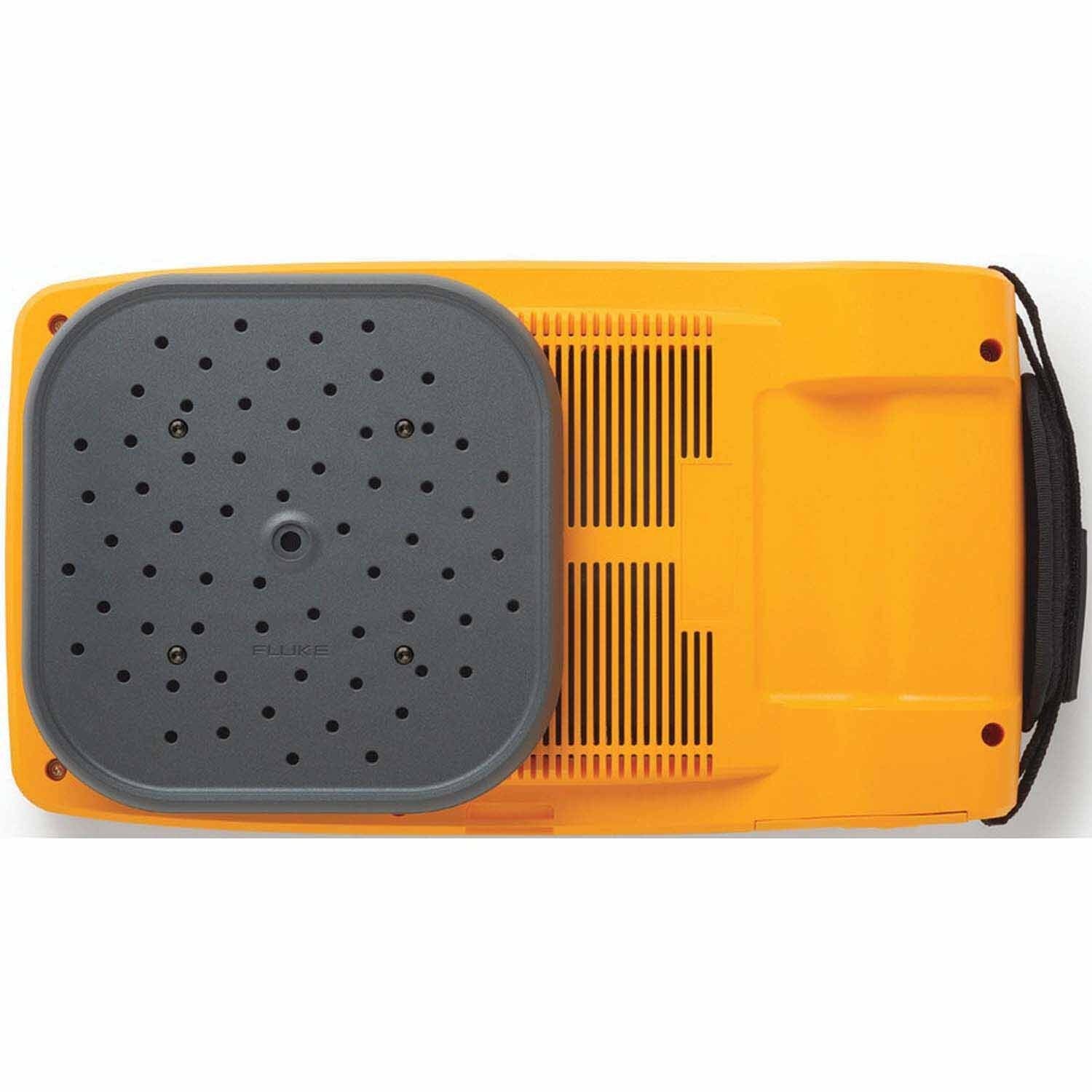

- (1) Sensor Array
- (1) Neckstrap
- (1) USB-C Cable
- (1) BP291 Battery
- (1) Battery Charger
- (1) EDBC290

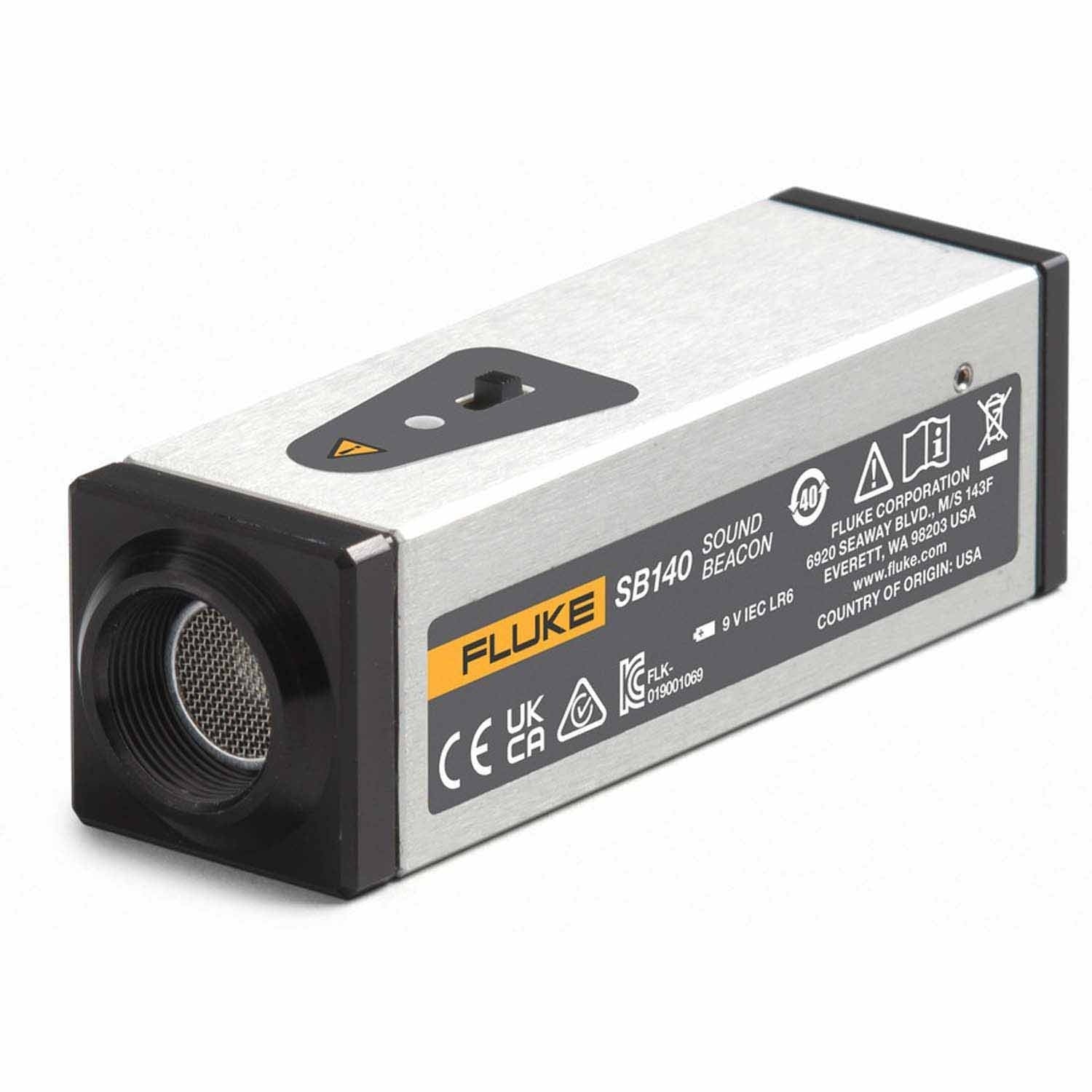

- (1) SB140 Sound Beacon
- (1) 9V Battery
- (1) Soft Case
- (1) Accessory 1 inch probe
- (1) Instruction Sheet
- (1) Warranty Card
Fluke 6053146 Features

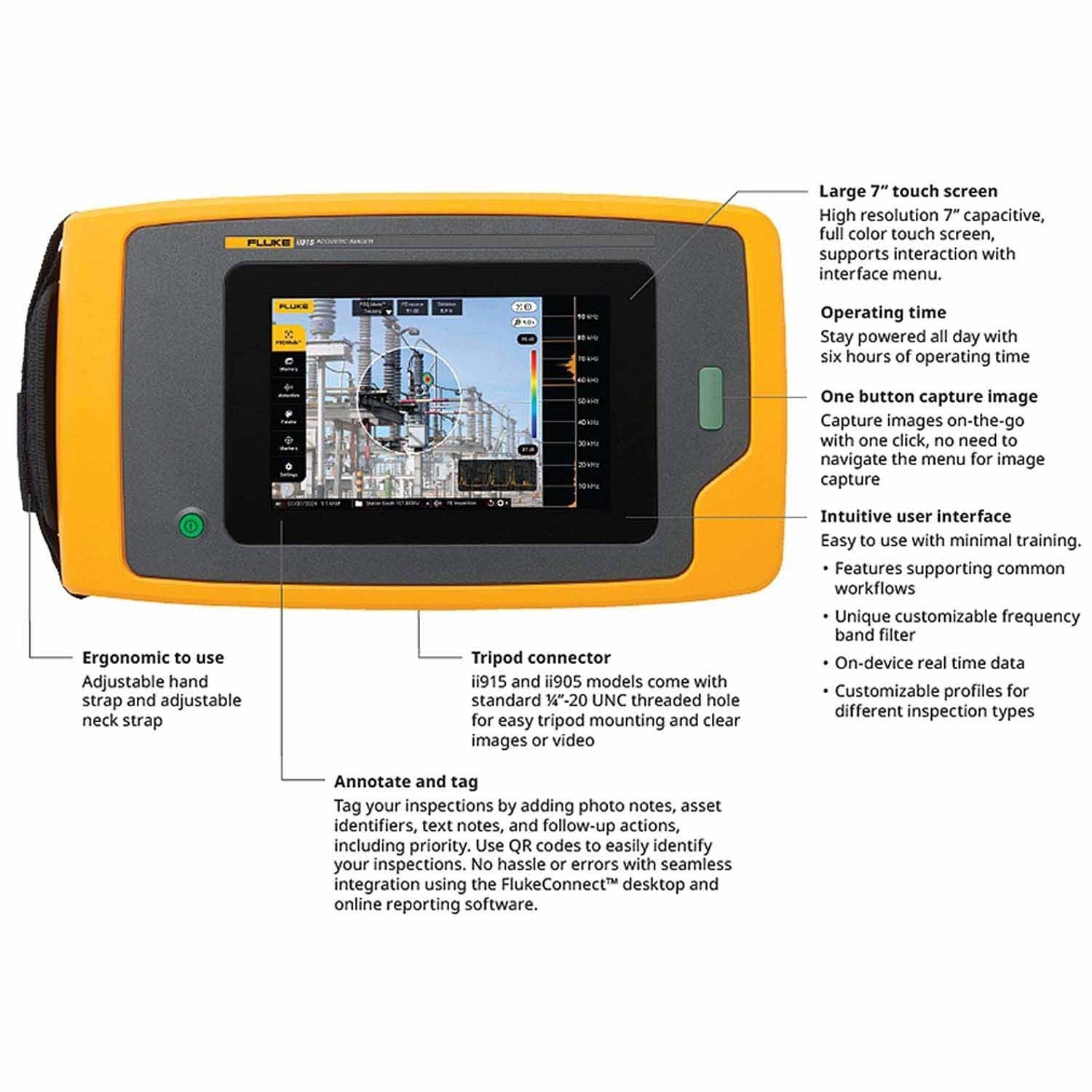

- High resolution 7" capacitive touchscreen
- WiFi and USB-C connectivity
- Operating temperature range: -10 to 45°C
- Field-of-view (FoV): 63° ± 5°
- Nominal frame rate: 25 FPS
- 3x digital zoom
- Memory/storage capacity: 32 GB
- Blended visual and SoundMap image format (.JPG or .PNG)
- Blended visual and SoundMap video format (.MP4)

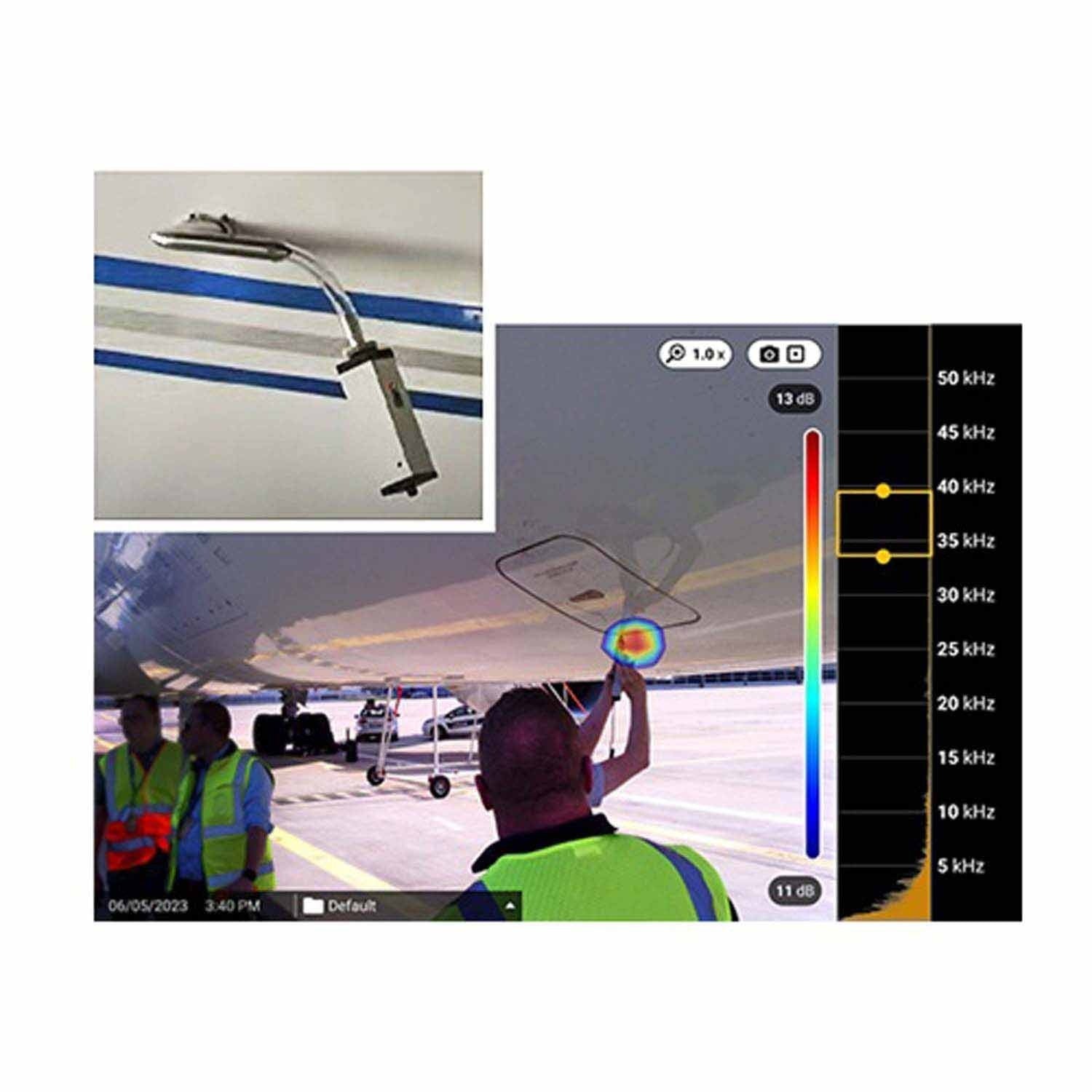

- Leak size scale, leak rate, and leak cost estimation

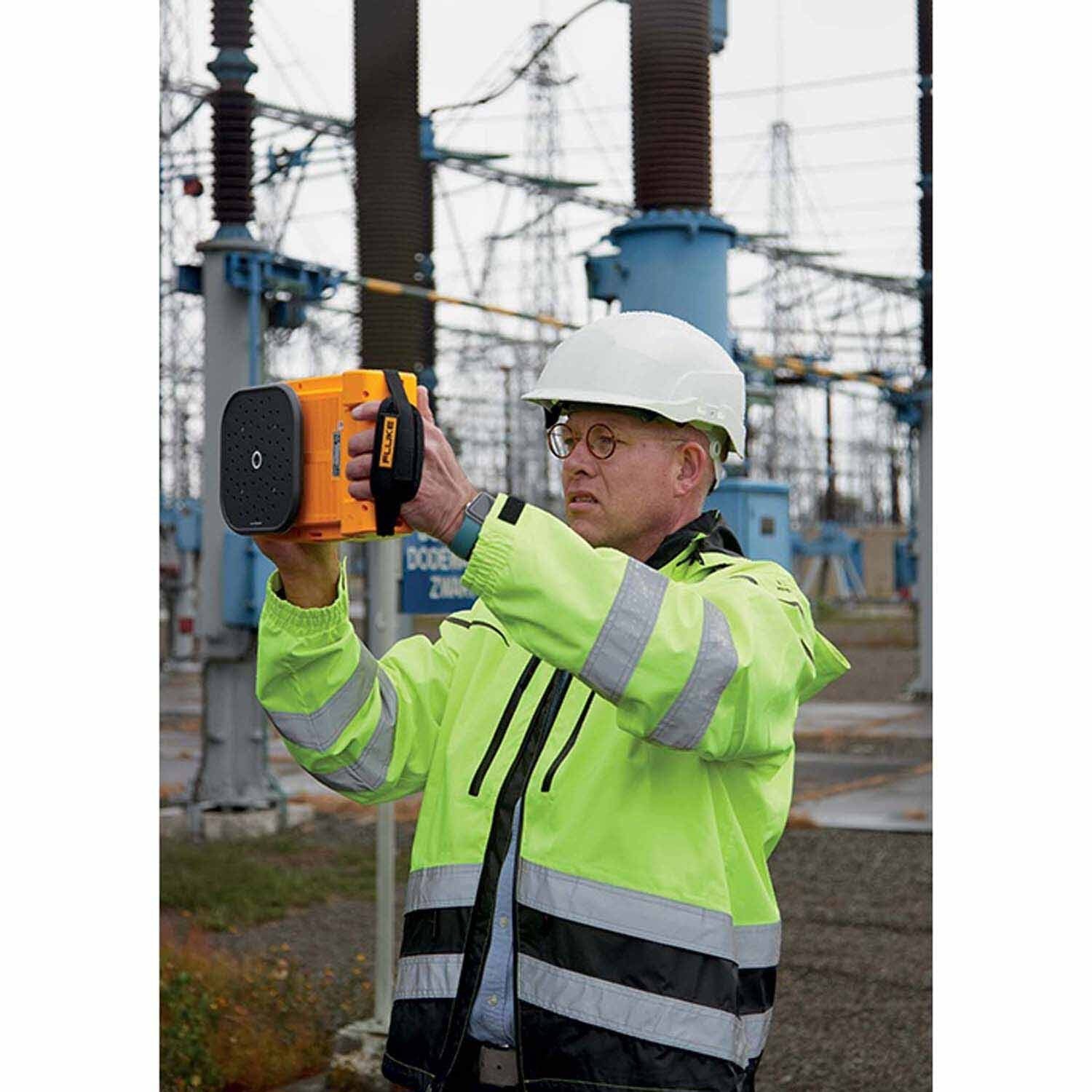

- Partial discharge visualization mode
- Efficient scanning of large areas
- On-device real-time data
- Adjustable hand strap and neck strap
- Ingress protection (IP40)
- Battery life > 300 hours
- Power supply: 9-volt alkaline (included)
Fluke 6053146 Specifications
| Display Type: | 7" LCD |
| Resolution: | 1280 x 800 |
| Frequency Range: | 2 to 100 kHz |
| Interface: | USB-C, WiFi |
| Operating Temperature Range: | -10 to 45°C |
| Field-of-View (FoV): | 63° ± 5° |
| Nominal Frame Rate: | 25 FPS |
| Zoom: | 3x digital zoom |
| Touchscreen: | Capacitive |
| Memory/Storage Capacity: | 32 GB |
| Image Format: | Blended visual and SoundMap .JPG or .PNG |
| Video Format: | Blended visual and SoundMap .MP4 |
| Save Video: | Up to 5 minutes |
| Operation Distance: | Up to 120 meters (393 feet) |
| Battery Life: | > 300 hours |
| Power Supply: | 9-volt alkaline (included) |
| Ingress Protection (IP): | IEC 60529: IP40 |
