Fluke 6074031 Description

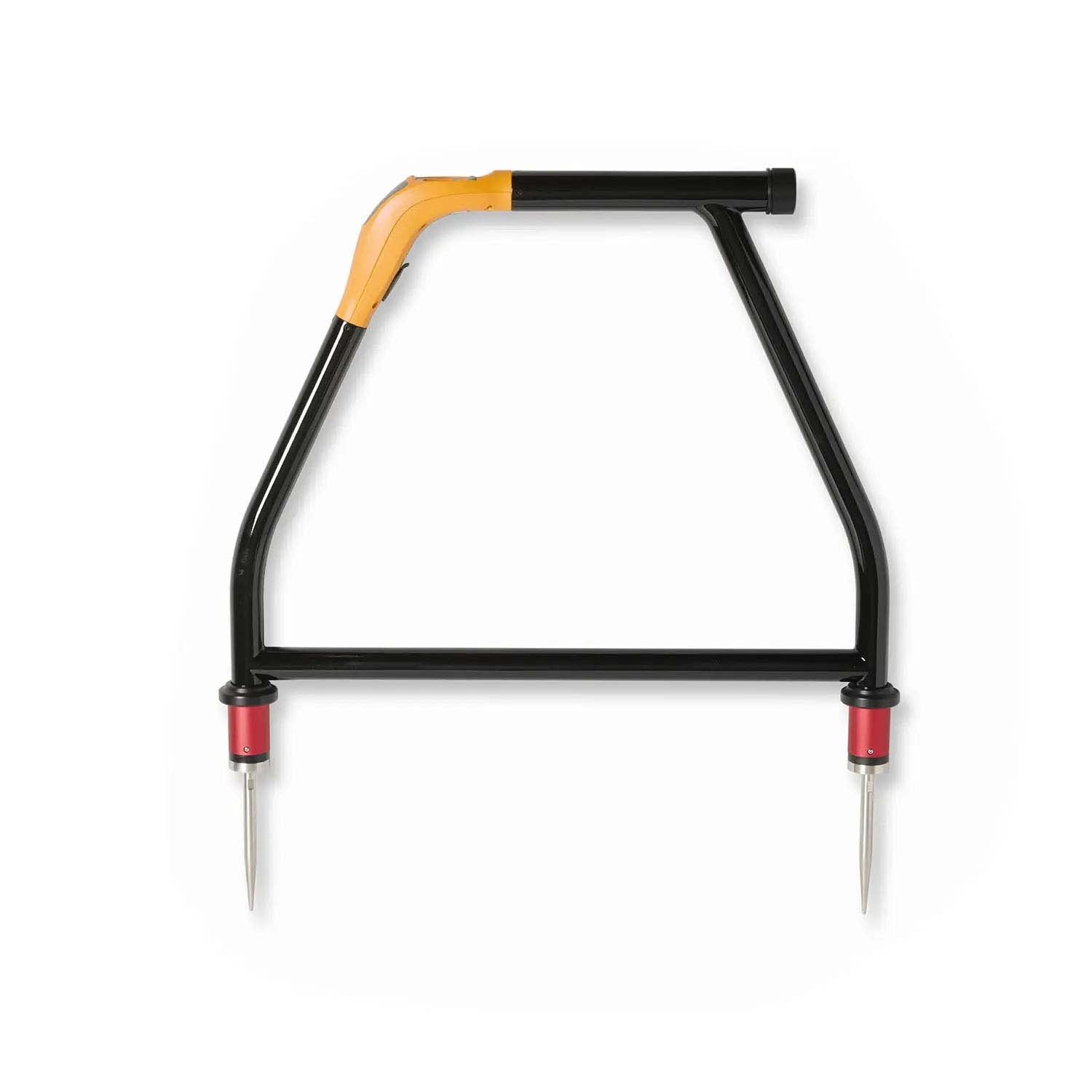

The Fluke SmartTrace AF2082 A-Frame Ground Fault Locator helps technicians quickly pinpoint cable sheath faults, insulation breakdowns, and coating defects in buried conductive lines. Designed for use with the SmartTrace 2082 transmitter, it traces fault currents directly to the point of failure to reduce guesswork and excavation. A bright backlit display with directional guidance, numeric signal strength indication, and audible cues supports fast, accurate fault detection in the field. Built with IP54-rated protection and a rugged housing, it is well-suited for utility, industrial, and telecommunications applications.
Fluke 6074031 Includes
- (1) AF2082 A-Frame Cable Ground Fault Locator
Fluke 6074031 Features
- Pinpoints underground cable faults including insulation failures, sheath faults, and coating defects
- Works with the SmartTrace 2082 transmitter to trace fault currents on energized or de-energized circuits
- Directional arrows, numeric signal strength, and audible cues guide you to the fault location
- Rugged IP54-rated housing with backlit display for outdoor field use
- Approximately 60 hours battery life for extended field operation
- Max locate depth: 20 ft (6 m)
- Max detection range: up to 100 ft depending on conditions
Fluke 6074031 Specifications
| Product Type | Underground Utilities Locator |
| Series | SmartTrace 2082 Series |
| Application | Cable Sheath Fault Detection, Pipeline Coating Integrity Testing, Underground Fault Pinpointing, Utility Maintenance And Repair |
| Display | LCD with auto backlight |
| Special Feature | IP54 rating |
| IP Rating | IP54 |
| Battery Life | Approximately 60 hours |
| Power Supply | 6 AA (IEC LR6) |
| Battery Type | Alkaline |
| Max Locate Depth | 20 feet (6 m) |
| Max Detection Range | Up to 100 feet depending on conditions |
| Operating Temperature | -20 DegreeC to 50 DegreeC (-4 DegreeF to 122 DegreeF) |
| Storage Temperature | -40 DegreeC to 60 DegreeC (-40 DegreeF to 140 DegreeF) |
| Humidity (Non-Condensing) | 0-90% (5-30 DegreeC), 0-75% (30-40 DegreeC), 0-45% (40-50 DegreeC) |
| Altitude | Less than or equal to 2000 m (Less than or equal to 6561 ft) |
| Safety Standard | IEC 61010 |
| CAT Rating | CAT IV 600 V |
| Each Length | 3.94 |
| Each Width | 27.17 |
| Each Height | 27.17 |
| Each Shipping Weight | 12.13 |
| Warranty | 2 Year |
| Country of Origin | China |
