Fluke 6074049 Description

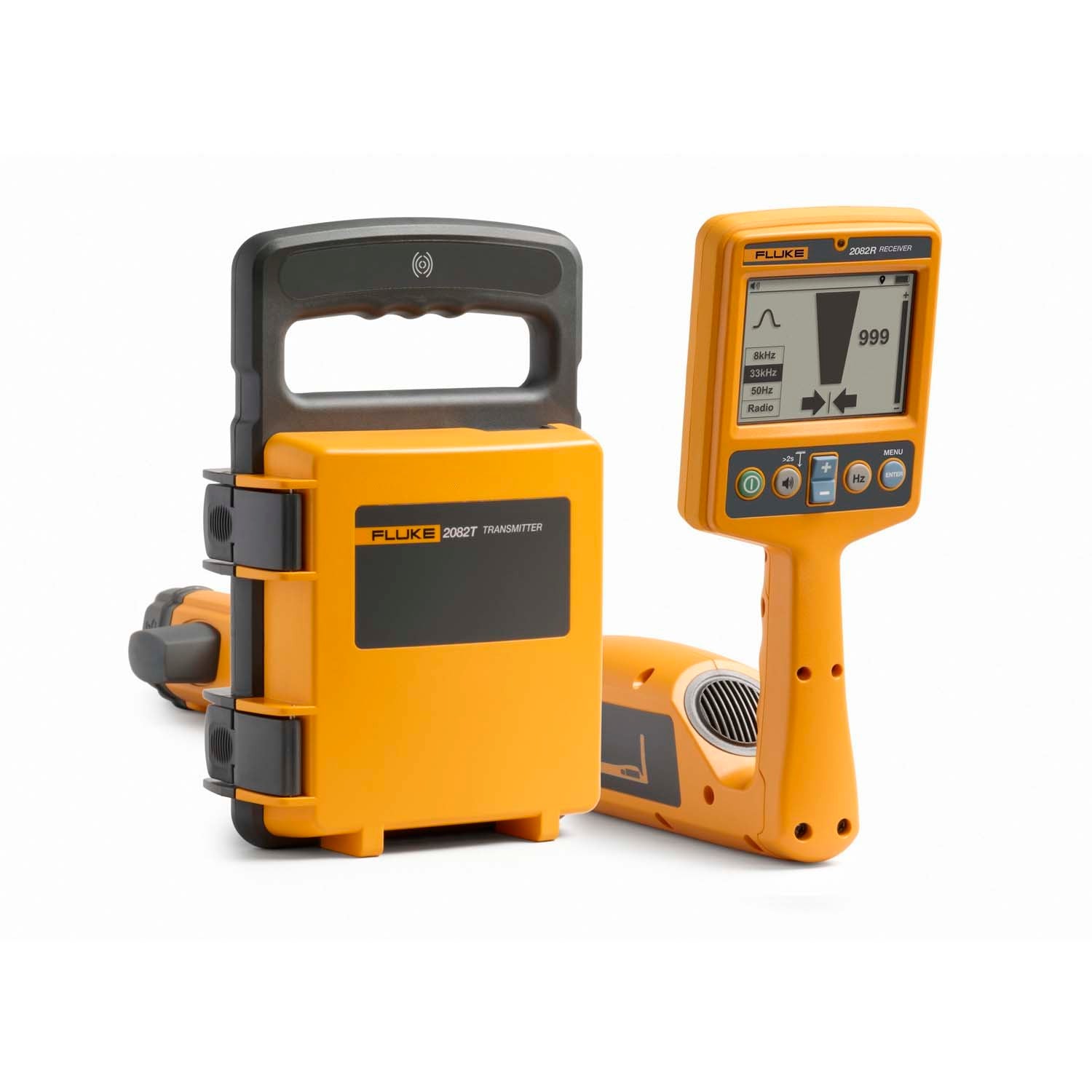

The Fluke SmartTrace 2082 Core Underground Utility Locator Kit enables technicians to quickly and accurately locate and trace buried electrical lines, communication cables, and other underground utilities. Built for demanding field environments, the 2082 combines rugged durability with fast, intuitive operation and a high-contrast grayscale display for clear visibility in any condition. Its CAT IV 600 V-rated transmitter delivers industry-leading electrical safety when working around energized systems, while multiple tracing modes and depth measurement up to 20 ft provide flexibility across a range of applications. Designed for reliability and ease of use, the SmartTrace 2082 helps crews prevent costly strikes, verify buried assets, and maintain safe, efficient operations.
Fluke 6074049 Includes
- (1) 2082R Receiver
- (1) 2028T Transmitter
- (1) TL2082 Test Leads Kit
- (1) FP-UAT-600 Fuse 2-Pack
- (1) FLG2082 Flags, 8-Color, 100-Pack
- (1) C2082 Carrying Case
- (6) AA Batteries (IEC LR6)
- (8) D Batteries (IEC LR20)
Fluke 6074049 Features
- Accurately locate, trace, and document buried electrical lines, communications cables, and other underground utilities
- Grayscale display and fast, intuitive user interface for clear readings in field conditions
- 33 kHz transmitter frequency ideal for most locating applications
- Receiver supports Induction and Direct Test Leads connection modes
- CAT IV 600 V rated transmitter for work around energized systems
- Depth measurement up to 20 ft (6 m)
- Maximum detection range up to 100 ft depending on conditions
- Rugged IP54 rated design (non-operating)
- Automatic circuit and connection testing
- Signal quality monitoring and auto-frequency optimization
Fluke 6074049 Specifications
| Product Type | Underground Utilities Locator |
| Series | SmartTrace 2082 Series |
| Safety Standard | IEC 61010 |
| Safety Rating | CAT IV 600 V |
| Maximum Voltage | 600 V |
| Transmitter Frequency | 33 kHz |
| Max Locate Depth | 20 feet (6 m) |
| Max Detection Range | Up to 100 feet depending on conditions |
| Ingress Protection | IP54 (non-operating) |
| Operating Temperature | -20 DegreeC to 50 DegreeC (-4 DegreeF to 122 DegreeF) |
| Storage Temperature | -40 DegreeC to 60 DegreeC (-40 DegreeF to 140 DegreeF) |
| Altitude | Less than or equal to 2000 m (Less than or equal to 6561 ft) |
| Humidity (Non-Condensing) | 0 to 90% (5 to 30 DegreeC), 0 to 75% (30 to 40 DegreeC), 0 to 45% (40 to 50 DegreeC) |
| Receiver Power Supply | 6 AA (IEC LR6) |
| Transmitter Power Supply | 8 x D cells (IEC LR20) |
| Warranty | 2 Year |
| Country of Origin | China |
| Package Length | 11.02 |
| Package Width | 15.75 |
| Package Height | 15.75 |
| Each Shipping Weight | 31.53 |
