Fluke SC2082 Description

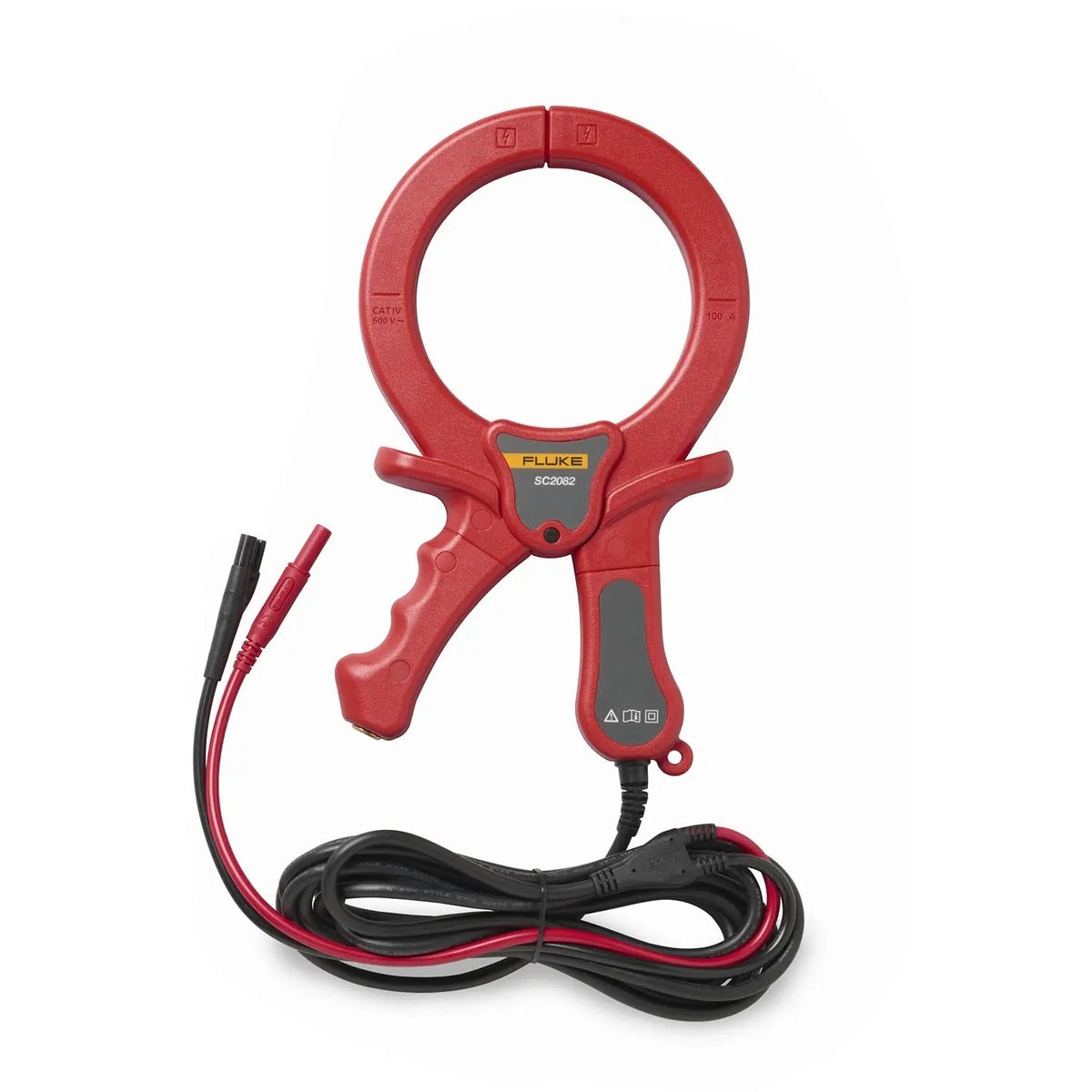

The Fluke SC2082 Signal Clamp provides a safe, efficient way to apply a locate signal to a cable when direct electrical contact is not possible or is unsafe. It enables a SmartTrace 2082 series transmitter to induce a signal through insulation into wires or pipes for improved locating and tracing performance.
Fluke SC2082 Includes
- (1) SC2082 Signal Clamp
- (1) Safety Information
Fluke SC2082 Features
- Efficient and safe method for applying a locate signal to a cable
- Enables the transmitter to induce signal through insulation into wires or pipes
- Designed for situations where cable access is not possible or safe for direct contact
- Works on low impedance closed circuits only
- For use with Fluke SmartTrace 2082 Series Underground Utility Locator
- CAT IV 600 V rated (IEC 61010-2-032)
- Supports improved signal accuracy and isolation when tracing specific utility lines
Fluke SC2082 Specifications
| Series | SmartTrace 2082 Series |
| Accessory Type | Signal Clamp |
| Safety Rating | CAT IV 600 V, 100 A |
| Safety Standard | IEC 61010-2-032 |
| Output Voltage Level | 23 V RMS at 8 kHz; 30 V RMS at 33 kHz |
| Operating Temperature | -20 C to 50 C (-4 F to 122 F), <=90% RH |
| Ingress Protection | IP54 (non-operating) |
| Warranty | 1 Year |
| Country of Origin | China |
| UPC | 195112140765 |
| Catalog Number | 6074054 |
| Product Length (in) | 7.09 |
| Product Width (in) | 14.17 |
| Product Height (in) | 14.17 |
| Product Weight (lb) | 2.43 |
