Fluke 6074077 Description

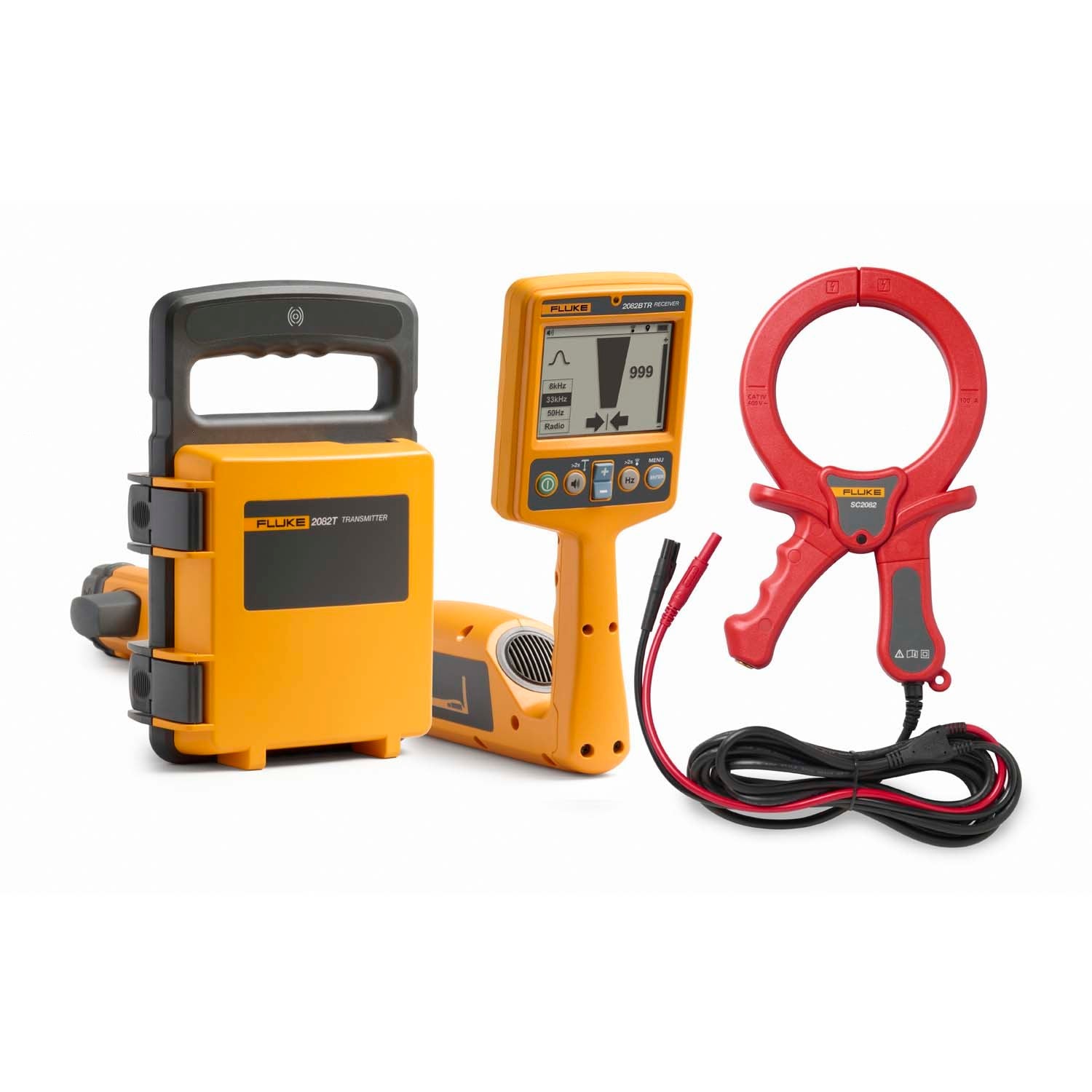

The Fluke SmartTrace 2082 Premium Underground Utility Locator kit enables technicians to safely and accurately locate, trace, and document underground electrical lines, communications cables, and other buried utilities. Featuring a CAT IV 600 V-rated transmitter, the SmartTrace 2082 provides protection for work around energized circuits. Integrated Bluetooth connectivity and PointMan mapping allow real-time geolocation and digital documentation directly from the field. Built for visibility and speed with a high-contrast grayscale display and intuitive controls, the SmartTrace 2082 delivers reliable performance in any environment, helping crews locate utilities faster, avoid costly strikes, and improve job-site efficiency.
Fluke 6074077 Includes
- (1) 2082BTR Receiver with Bluetooth
- (1) 2028T Transmitter
- (1) C2082 Carrying Case
- (1) TL2082 Test Lead Kit
- (2) Replacement Fuses
- (100) Marking Flags (8-Color Assortment)
- (6) AA Batteries (IEC LR6)
- (8) D Batteries (IEC LR20)
- (1) SC2082 Signal Clamp
- (1) AF2082 A-Frame
- (1) MH2082 Marker Holder
Fluke 6074077 Features
- Accurately locate, trace, and document buried electrical lines, communications cables, and other underground utilities to reduce costly strikes
- Built-in Bluetooth connectivity supports PointMan field mapping and documentation
- CAT IV 600 V rated transmitter designed for work around energized circuits
- Grayscale display and intuitive user interface for clear readings and faster operation
- Signal clamp enables signal transmission when direct electrical connection is not possible
- A-Frame accessory supports pinpoint fault location and conductor break detection
- Automatic circuit and connection testing for improved confidence during locating
- Signal quality monitoring and auto-frequency optimization help maintain trace performance
- Depth measurement up to 20 ft (6 m) with detection range up to 100 ft depending on conditions
- IP54 ingress protection rating (non-operating) for rugged field use
Fluke 6074077 Specifications
| Product Type | Underground Utilities Locator |
| Series | SmartTrace 2082 Series |
| Safety Rating | CAT IV 600 V |
| Maximum Voltage | 600 V |
| Ingress Protection | IP54 (non-operating) |
| Maximum Locate Depth | 20 ft (6 m) |
| Maximum Detection Range | Up to 100 ft depending on conditions |
| Transmitter Frequency | 33 kHz |
| Wireless Frequency Range | 2400 MHz to 2483.5 MHz (Receiver) |
| Wireless Output Power | <100 mW (Receiver) |
| Operating Temperature | -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F) |
| Storage Temperature | -40 Degree C to 60 Degree C (-40 Degree F to 140 Degree F) |
| Humidity (Non-Condensing) | 0 to 90% (5 to 30 Degree C), 0 to 75% (30 to 40 Degree C), 0 to 45% (40 to 50 Degree C) |
| Altitude | Less than or equal to 2000 m (Less than or equal to 6561 ft) |
| Safety Standard | IEC 61010 |
| Fuse Protection | 0.5 A, 1000 V, IR 30 kA, Phi 6.3 x 32 mm, Fast |
| Power Supply (Receiver) | 6 AA (IEC LR6) |
| Power Supply (Transmitter) | 8 D Cells (IEC LR20) |
| Power Supply (A-Frame) | 6 AA (IEC LR6) |
| Battery Chemistry | Alkaline |
| GIS Compatibility | Esri, Trimble, and other major GIS systems |
| Country of Origin | China |
| Warranty | 2 Year |
