Description
Description
Fluke 6153371 Description
The Fluke Journeyman Diagnostic Kit combines the 17B+ digital multimeter and 302+ clamp meter to help advancing electricians and HVAC technicians perform more complete electrical troubleshooting. It supports high accuracy AC/DC analysis, fast current checks, and temperature diagnostics with the included K-type thermocouple for evaluating overall system health.

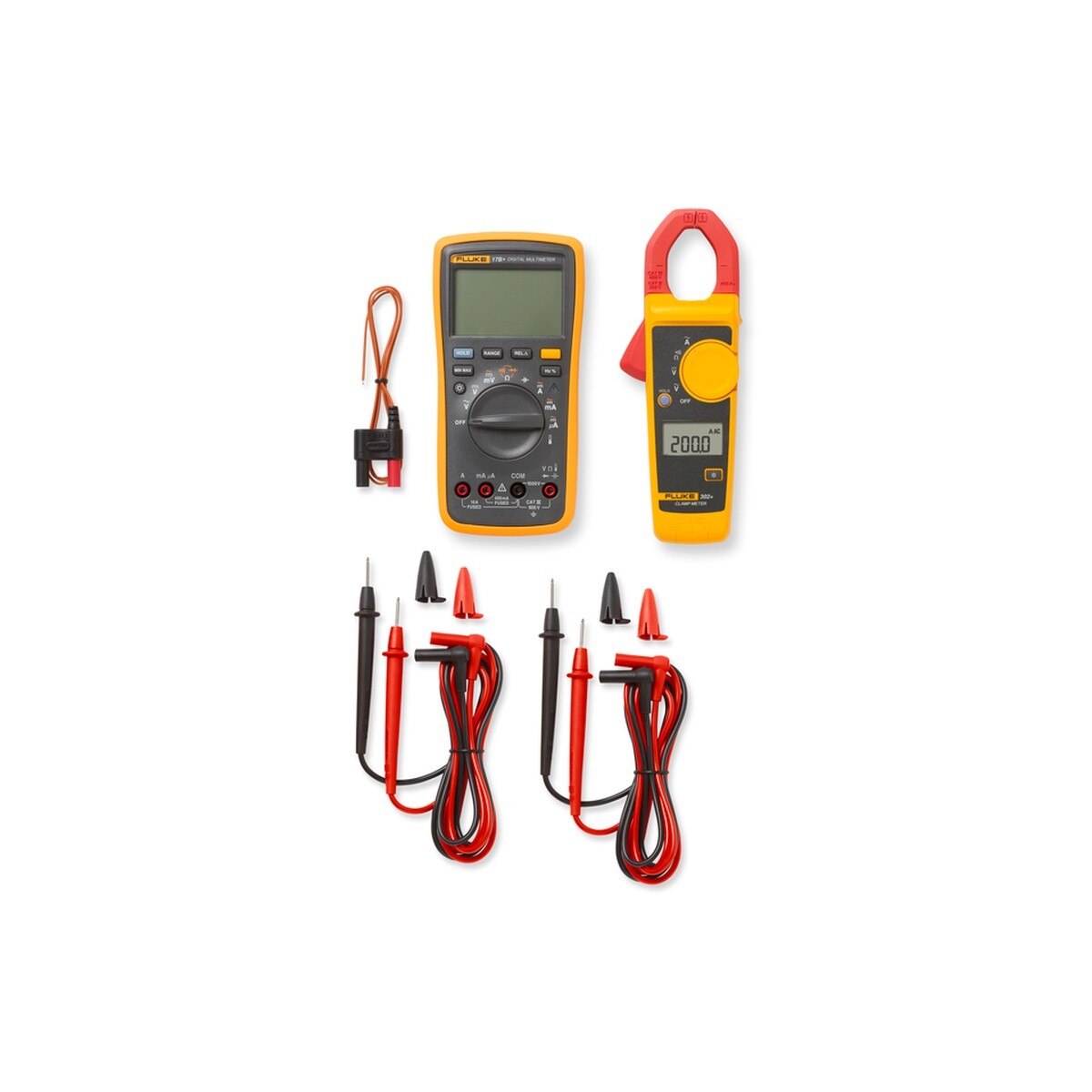

Fluke 6153371 Includes
- (1) Journeyman Diagnostic Kit
- (1) 17B+ Digital Multimeter
- (1) 302+ Clamp Meter
- (1) K-Type Thermocouple
- (2) Test Lead Sets
- (2) AAA Batteries
Fluke 6153371 Features
- Combines the Fluke 17B+ digital multimeter and 302+ clamp meter for advanced electrical diagnostics

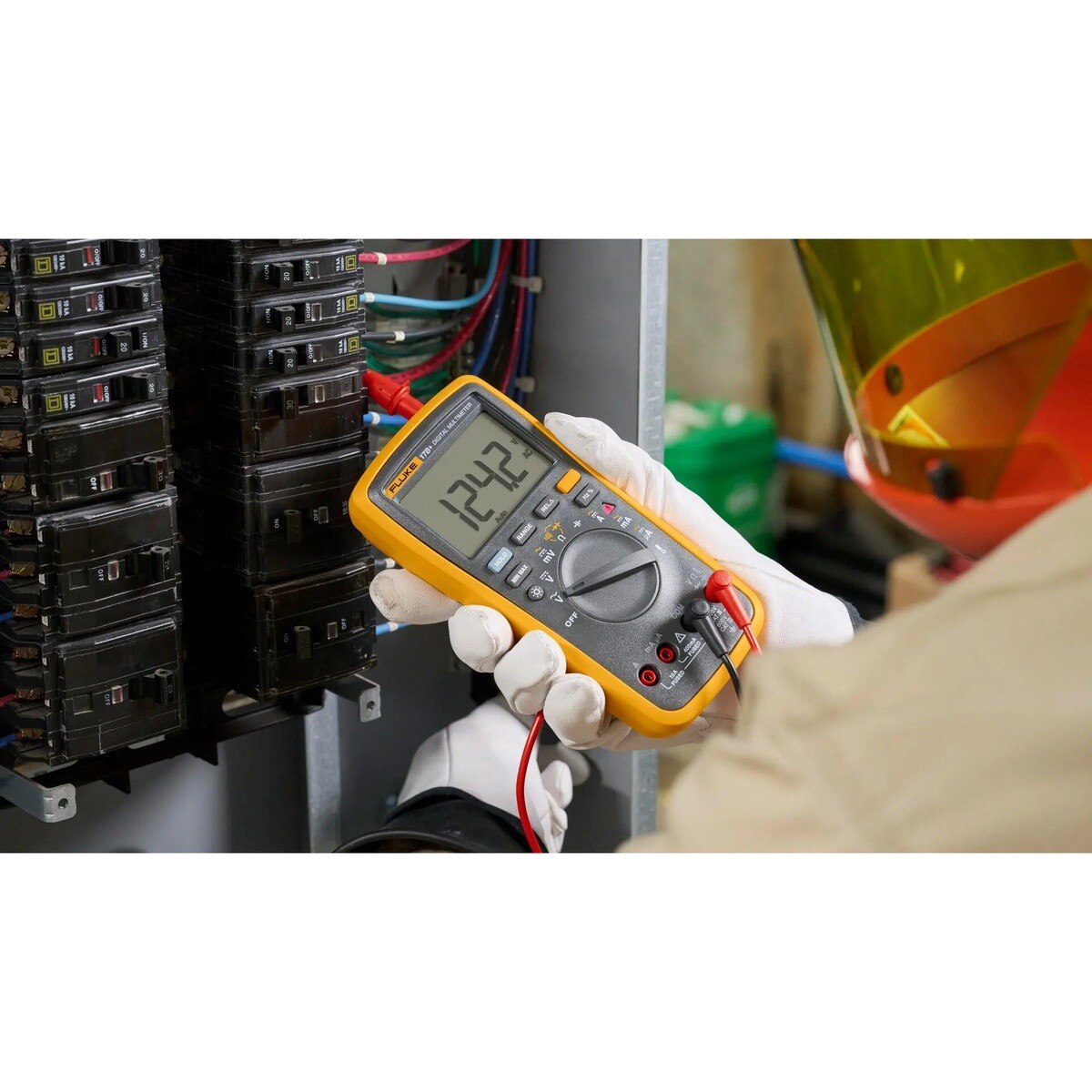

- 17B+ supports voltage and current measurement up to 1000 V and 10 A
- Measures resistance, frequency, and capacitance for broader troubleshooting capability

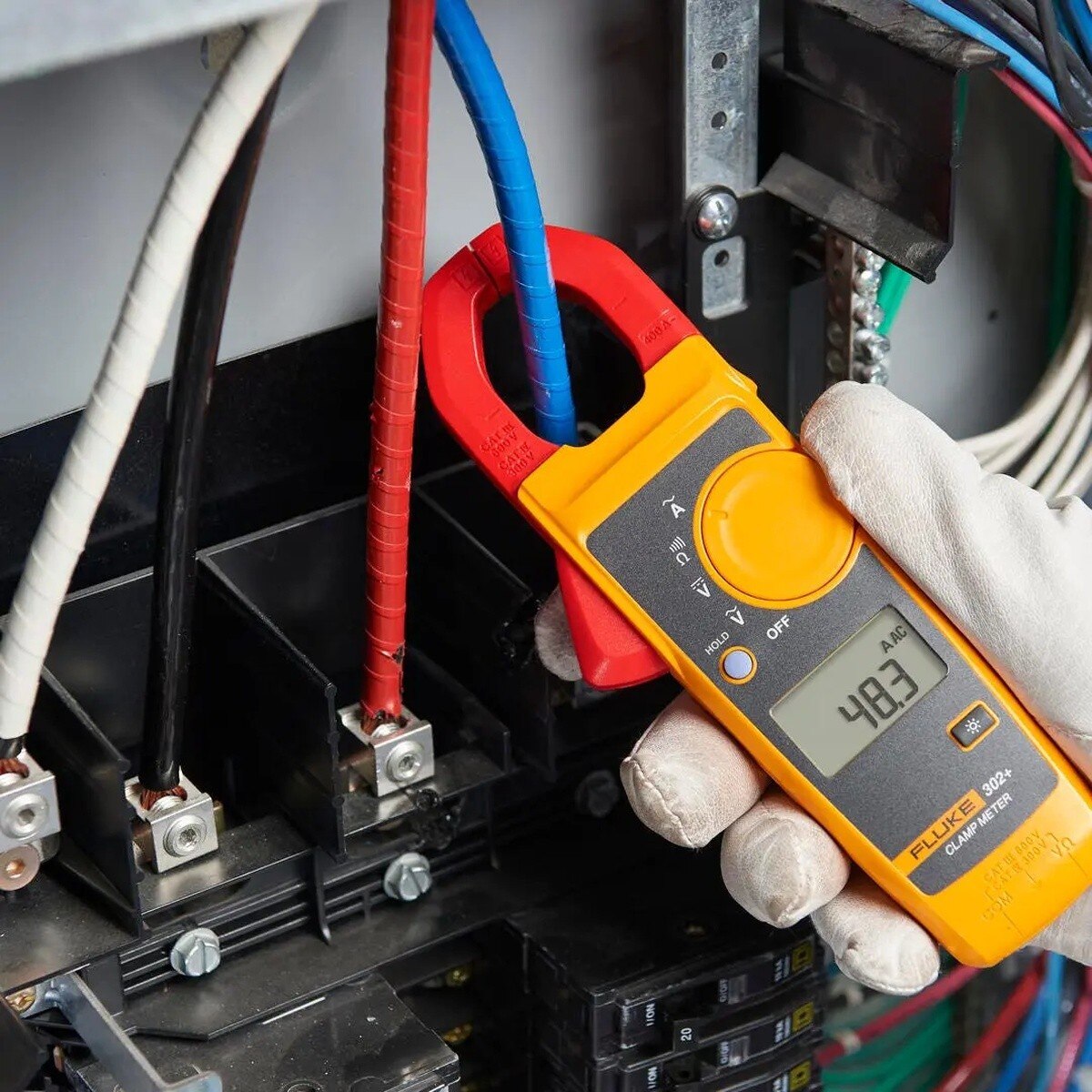

- 302+ clamp meter measures AC current up to 400 A with 1.8% accuracy
- 30 mm jaw helps check running current, phase balance, and overload conditions
- Included K-type thermocouple supports temperature diagnostics on motors and HVAC components
- Relative mode helps zero a baseline for voltage and temperature comparisons
- Expanded functions support commissioning and verification across relays, control boards, and power supplies
Fluke 6153371 Specifications
| Product Type | Diagnostic Kit |
| Included Meters | 17B+ Digital Multimeter and 302+ Clamp Meter |
| Voltage Measurement | Up to 1000 V |
| Current Measurement | Up to 10 A |
| Clamp Current Range | Up to 400 A AC |
| Clamp Accuracy | 1.8% |
| Jaw Opening | 30 mm |
| Resistance Measurement | 4000 Ohm; 40 Megaohm |
| Capacitance Measurement | 1000 uF |
| Safety Rating | CAT III 600 V |
| Temperature Measurement | K-Type Thermocouple Included |
| Battery Type | AAA |
| Battery IEC Designator | LR03 |
| Battery Quantity | 2 |
| Battery Chemistry | Zn-MnO2 Alkaline |
| Warranty | 2 Year |
| Country of Origin | Malaysia |
| Packaging Type | Plastic Blister |
Toolup Part # :
880496
