Fluke 700PTP-1 Pneumatic Test Pump, -13 TO 600 PSI
Description
Description
Fluke 2811774 Description
The Fluke 700PTP-1 features an integral pressure adjustment vernier which varies the pressurized volume by 2.0 cc over approximately eleven turns of the vernier knob. The pressure variation achievable with the vernier will depend on the nominal pressure and total pressurized volume, but with a minimum volume and maximum pressure, the vernier provided 360 - 20 psi adjustment range. With a minimum volume and no pressure applied, the vernier can also be used to provide a 0 to 70" H2O range. Larger volumes will provide a smaller range of adjustment, but greater resolution. The length of the stroke can be adjusted to limit the maximum output pressure. Maximum output pressure is adjustable from 2.5 psi to 600 psi.

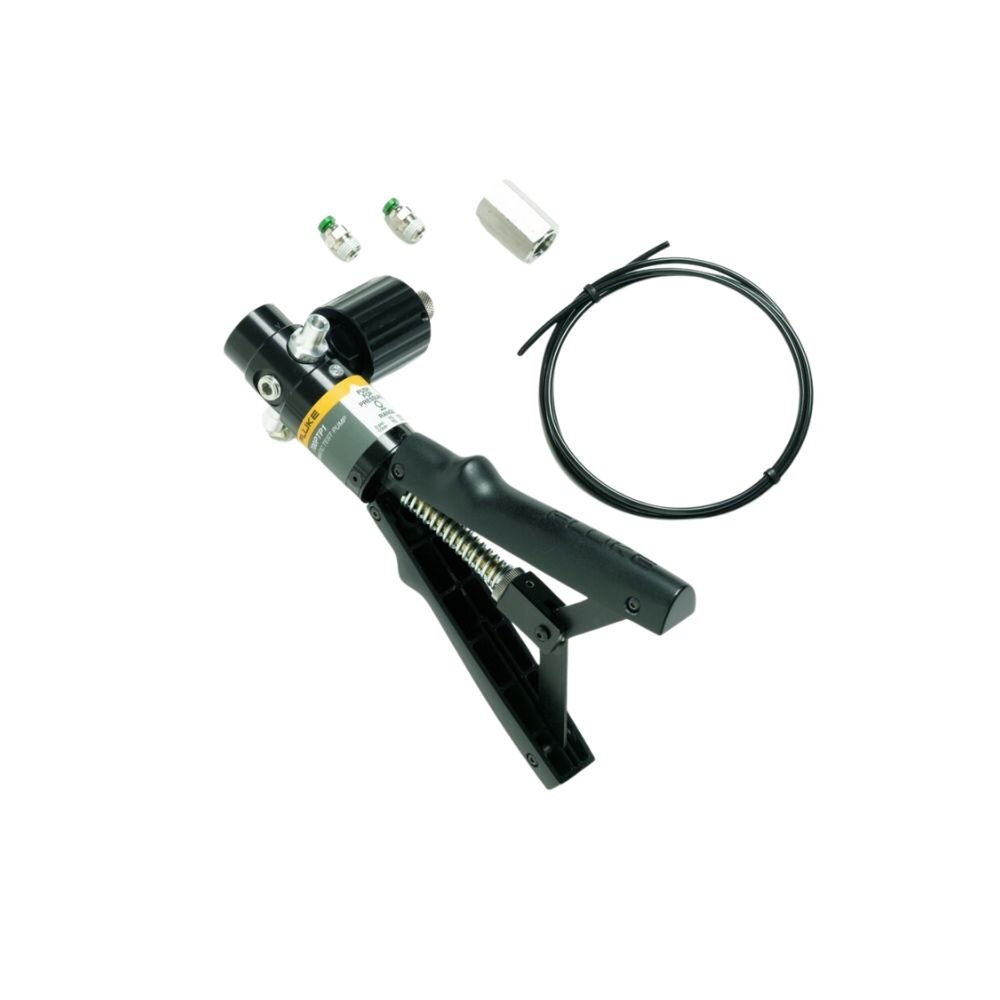

Fluke 2811774 Includes
- (1) Fluke 700PTP-1 Pneumatic Test Pump
- (1) 1/4 in NPT male to 1/4 in BSP female
- (1) 1 meter of hose
- (2) 1/8 in NPT male quick connects
- (1) 1/8 NPT female to 1/4 in BSP female
- (1) Seal Kit
- (1) Instruction sheet
Fluke 2811774 Features
- Pump can be easily cleaned without disassembly
- The vernier can be used as a stand-alone low pressure calibration source
- Two pressure ports allowing simultaneous connection:
- ¼ - NPT female fitting for the reference gauge or pressure module
- ¼" NPT female fitting for the unit under test
- Adjustable stroke length can be set to limit the pressure per stroke
- 1st Pressure Port - 3/8-BSP (ISO228) female parallel thread fitting for the reference gauge or pressure module
- 2nd Pressure Port - 1/8-BSP (ISO228) female parallel thread fitting for the unit under test
Fluke 2811774 Specifications
| Material | Wetted materials |
| Size (L x W x D) | length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm) |
