Fluke 709 Precision Current Loop Calibrator, .01% Accuracy
Description
Description
Fluke 4234350 Description

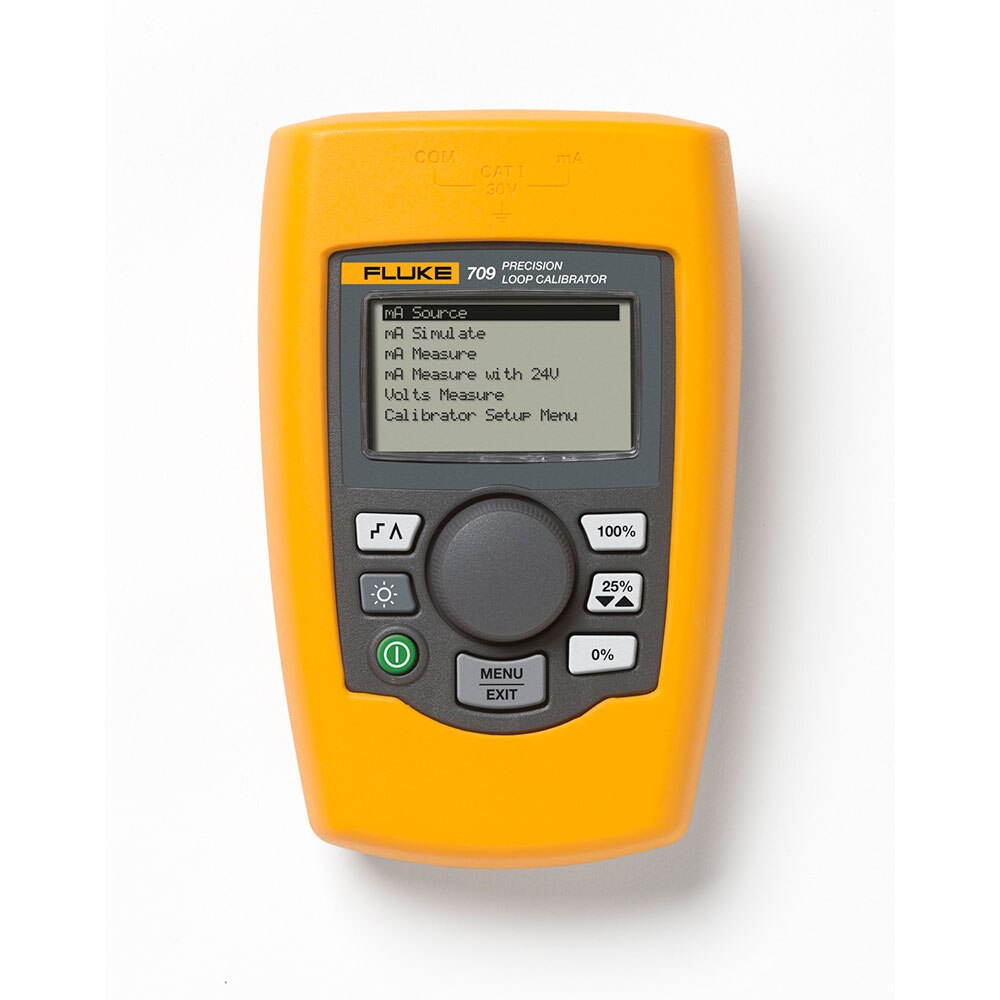

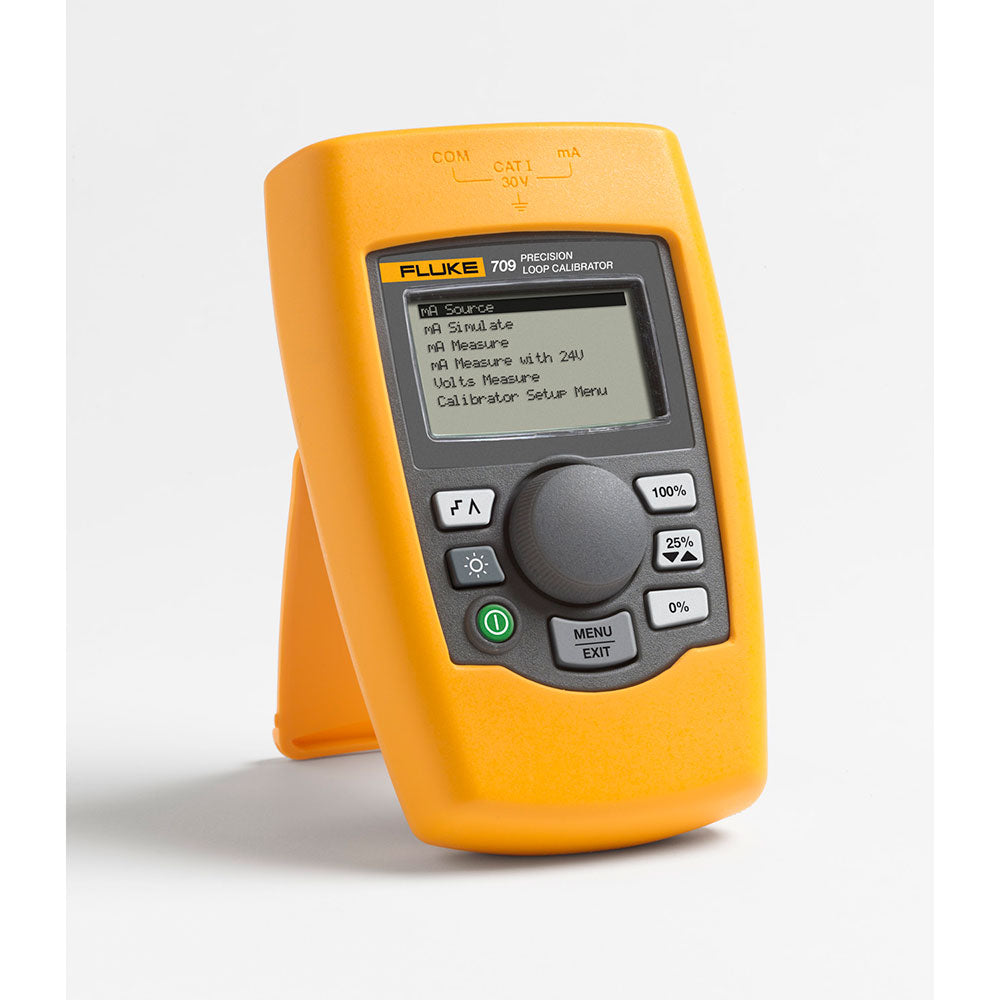

Fluke 709 Precision mA Loop Calibrator. The Fluke 709 mA loop calibrator is designed to reduce the time it takes to measure or source voltage or current and power up a loop and still produce high-quality results. The Fluke 709 is built around a user friendly interface with a quick-set rotary encoder knob and best in class accuracy at 0.01% of reading. It features a protective holster that fits easily in a technician's hand and a large backlit display that is easy to read, even in dark, cramped work areas. So it's a great choice anywhere you need a compact, rich featured precision loop calibrator.

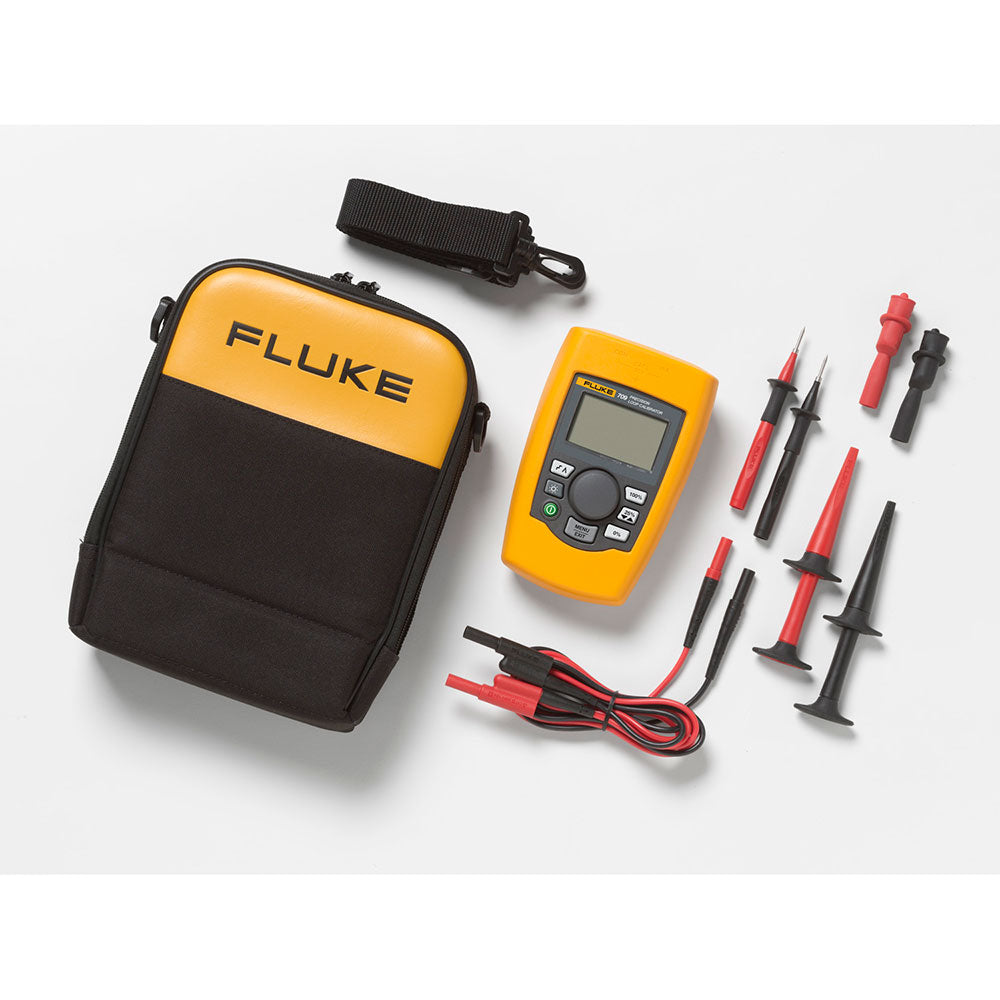

Fluke 4234350 Includes
- (1) Loop Calibrator
- (1) Test Lead Set (TL-75-4201)
- (1) Alligator Clip Sets (AC72-1)
- (1) AAA Batteries
- (1) Soft Carrying Case
- (1) Quick Reference Guide
- (1) User Manual
Fluke 4234350 Features
- Best-in-class accuracy at 0.01 % reading
- Small rugged design operates on (6) standard AAA batteries
- Intuitive user interface with quick-set knob for fast setup, easy use
- Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
- Built in selectable 250 Ω resistor for HART communications
- Simple two wire connection for all measurements
- Auto shutdown to conserve Battery life (adjustable up to 30 minutes)
- Variable step and ramp time in seconds
- Adjustable span selection (0 - 20 mA or 4 to 20 mA)
- Valve test (source and simulate defined mA values with % keys
Fluke 4234350 Specifications
| Unit Weight (KG) | 1.058 |
| Unit Height (CM) | 9 |
| Unit Length (CM) | 25.5 |
| Unit Width (CM) | 20 |
