Fluke | SKU:
4353252

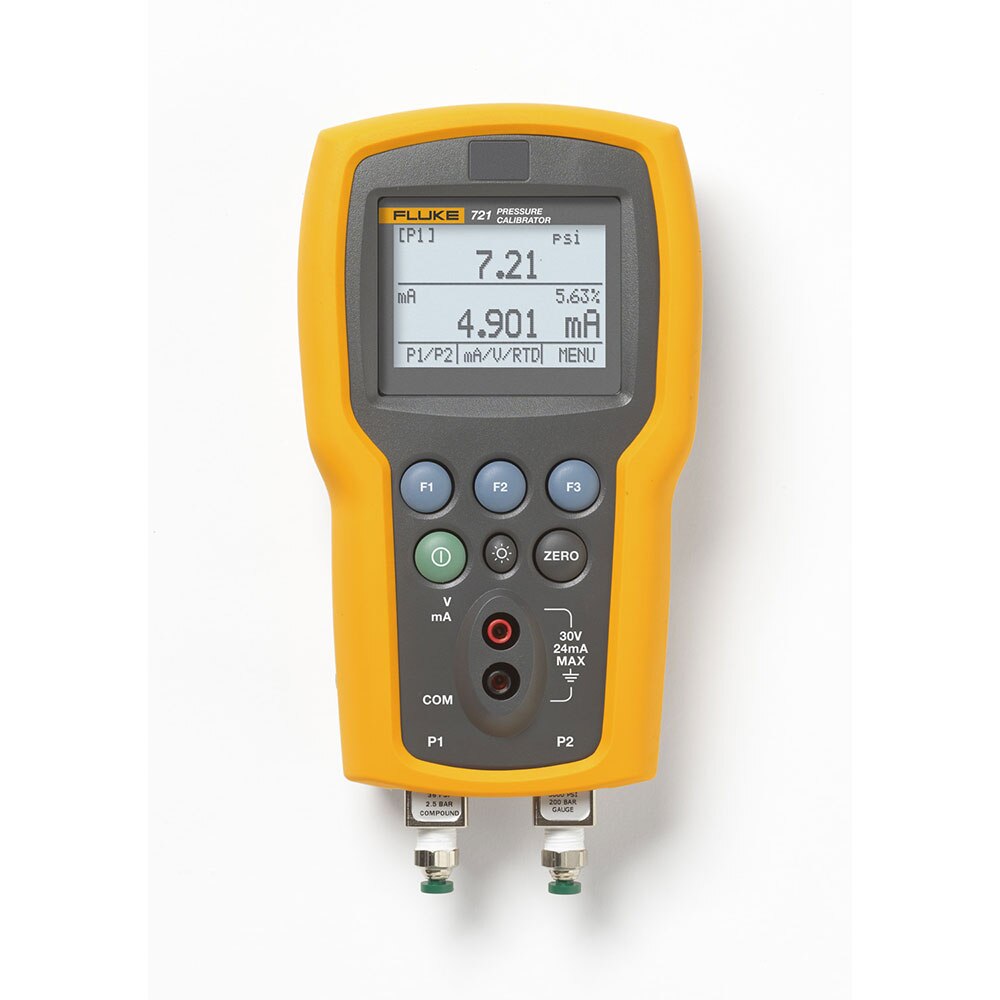

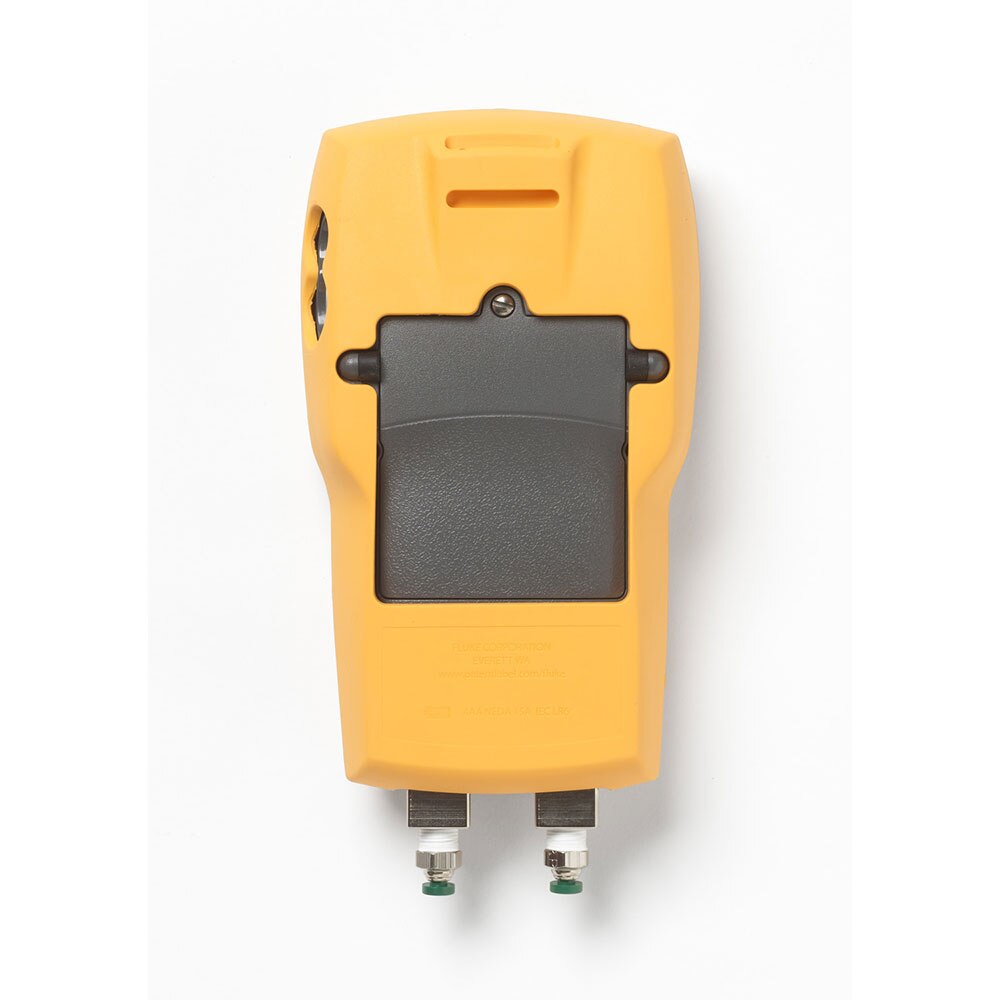

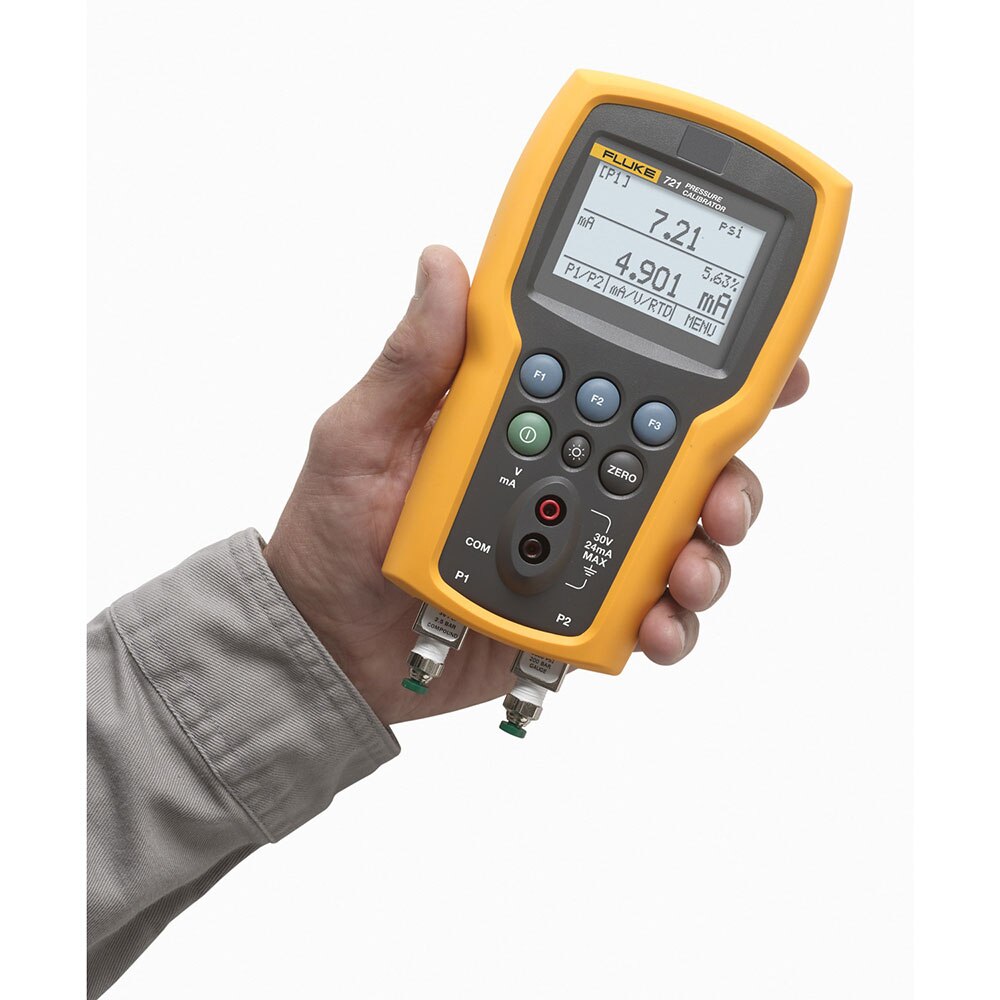

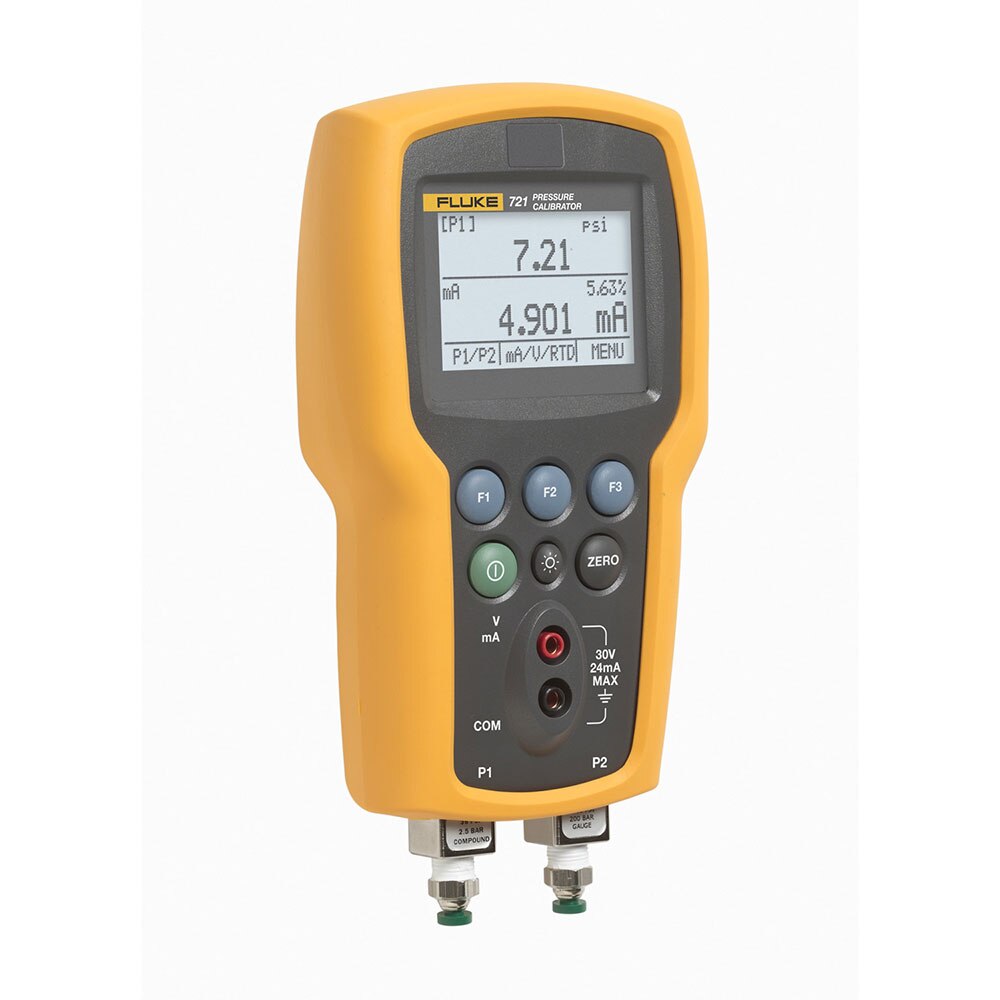

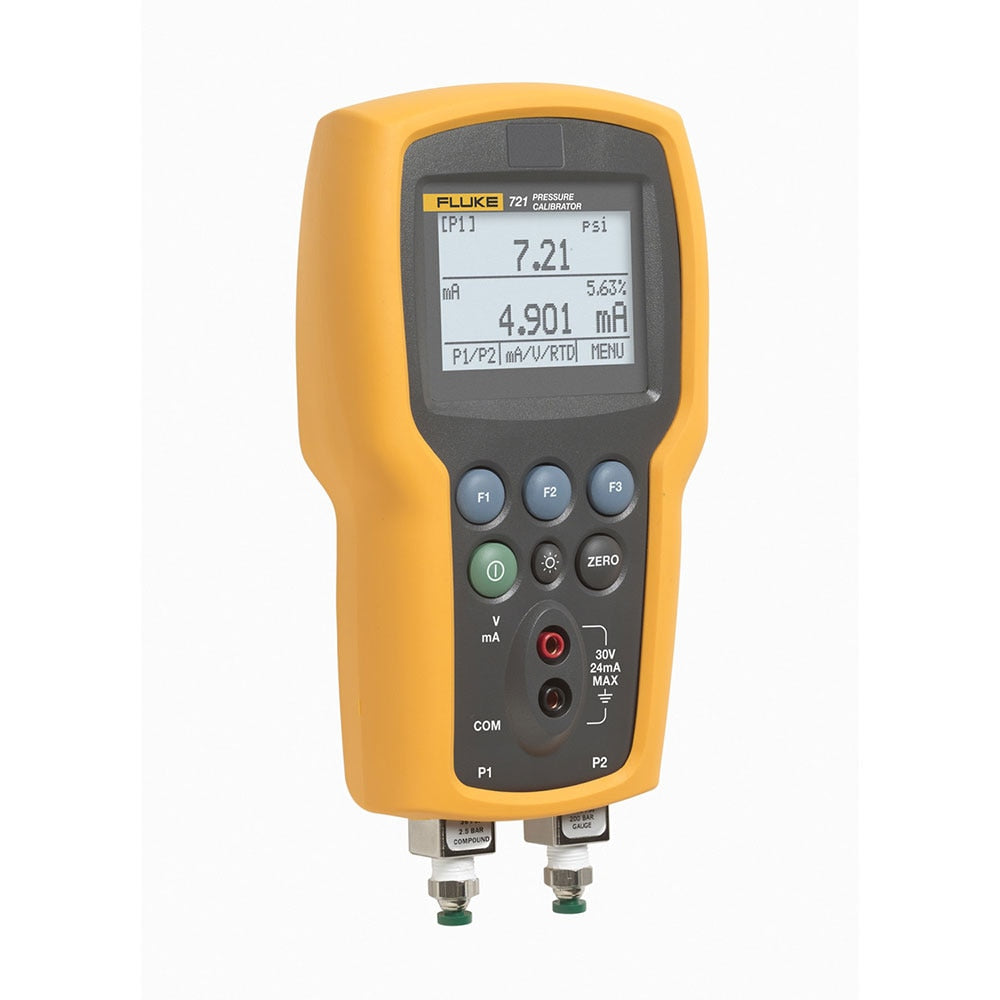

Fluke 721-3601 Dual Sensor Pressure Calibrator, 36 Psig, 100 Psig
Free Shipping
$3,487.99
Unit price
/
Unavailable
Description
Description
Fluke 4353252 Includes
- (1) Fluke 721 Series Dual Sensor Precision Pressure Calibrator
- (1) Soft case
- (4) AA batteries
- (1) Traceable calibration certificate
- (1) Test leads
- (1) User manual
Fluke 4353252 Features
- Ideal for gas flow calibration (custody transfer) applications
- Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
- Pt100 RTD input for temperature measurement, (probe optional)
- Internal 24 V loop power supply can power a transmitter under test
- Measure up to 30 V dc, check 24 V loop power supplies
- Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
- Large backlit graphic display can display up to three inputs simultaneously
- Store five instrument setups for recall and use
Fluke 4353252 Specifications
| Weight | 1.02 lbs (0.46 Kg) |
| Dimension | 7.9" L x 4.3" W x 2.3" H (201 x 109 x 58 mm) |
| Display | Backlit LCD display |
| Operating Temperature | 14 °F to 113 °F (-10 °C to 45 °C) |
| Storage Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Operating Altitude | 6,562 ft. (2,000 m) |
| IP Rating | IP40 wire/screw protected |
| Warm-up Time | Maximum 5 minutes |
| EMI/RFI Conformance | EN50082-1 and EN55022 |
| Connectors/Ports | 1/8" NPT (pressure); RTD probe (RTD) |
| Instrument Setup Recall | Last used on power-up |
| Internal Pump Pressure | Up to 5,000 psig |
| External AIR Pressure | Up to 5,000 psig |
| Current (mA) | Up to 24 mA |
| Voltage (V) | Up to 30 VDCPressure calibration and temperature measurement for custody transfer applications. The Fluke 721 Precision Pressure Calibrator with dual isolated pressure sensors is the ideal tool for gas custody transfer applications allowing you to take simultaneous static and differential pressure measurements with a single tool. And it can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then adding any of seven high pressure ranges |
