Fluke | SKU:
FLUKE-772

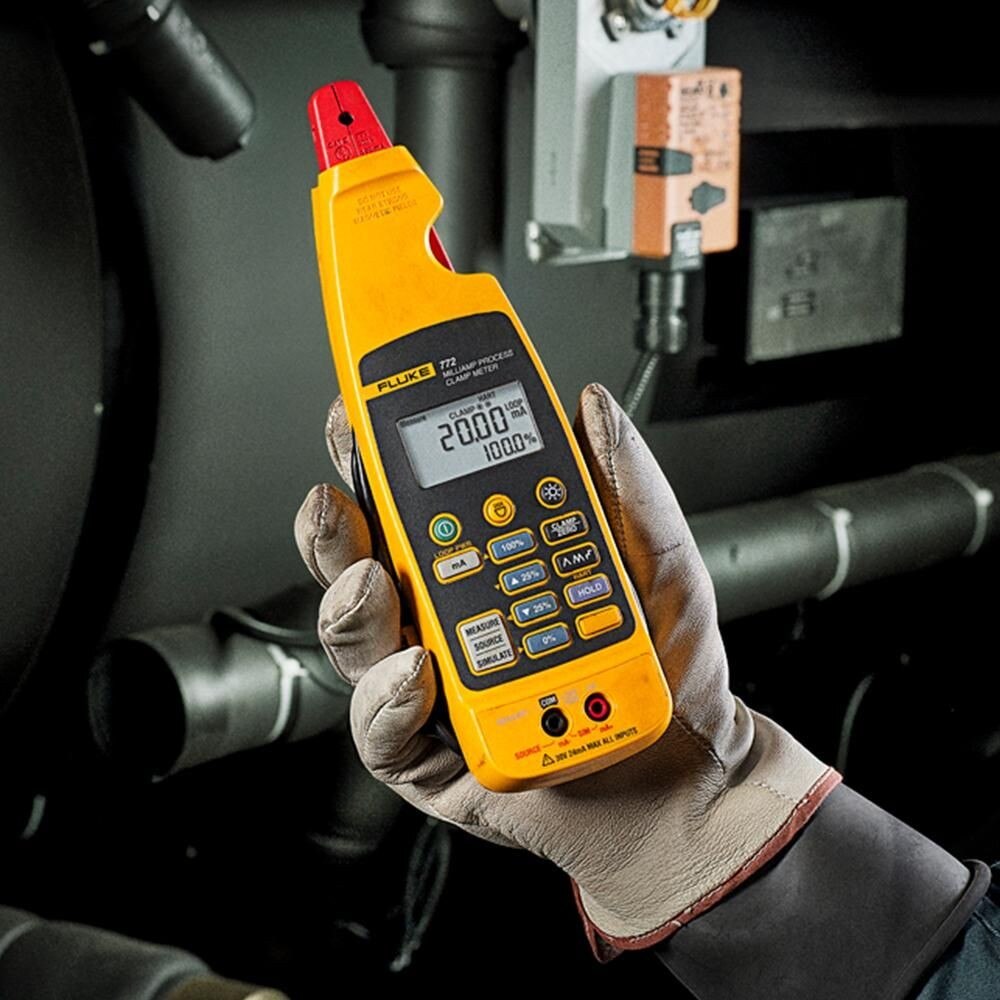

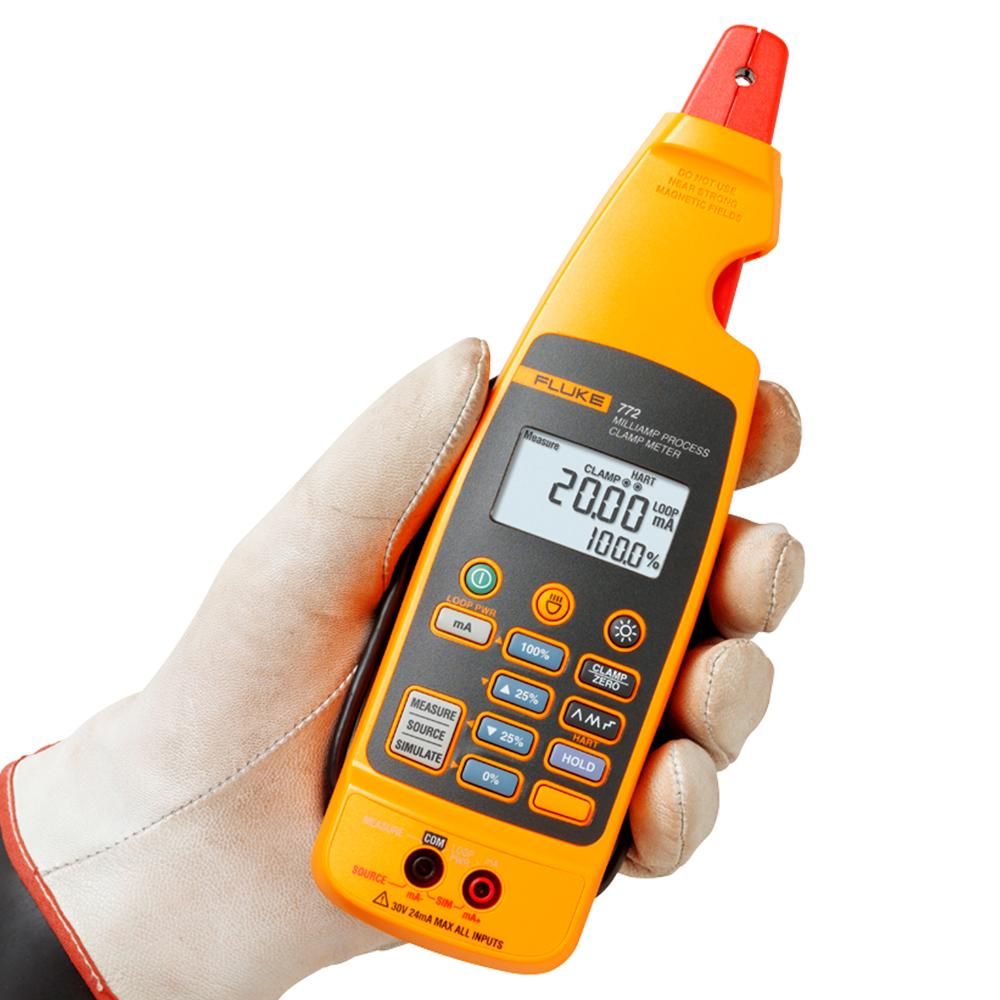

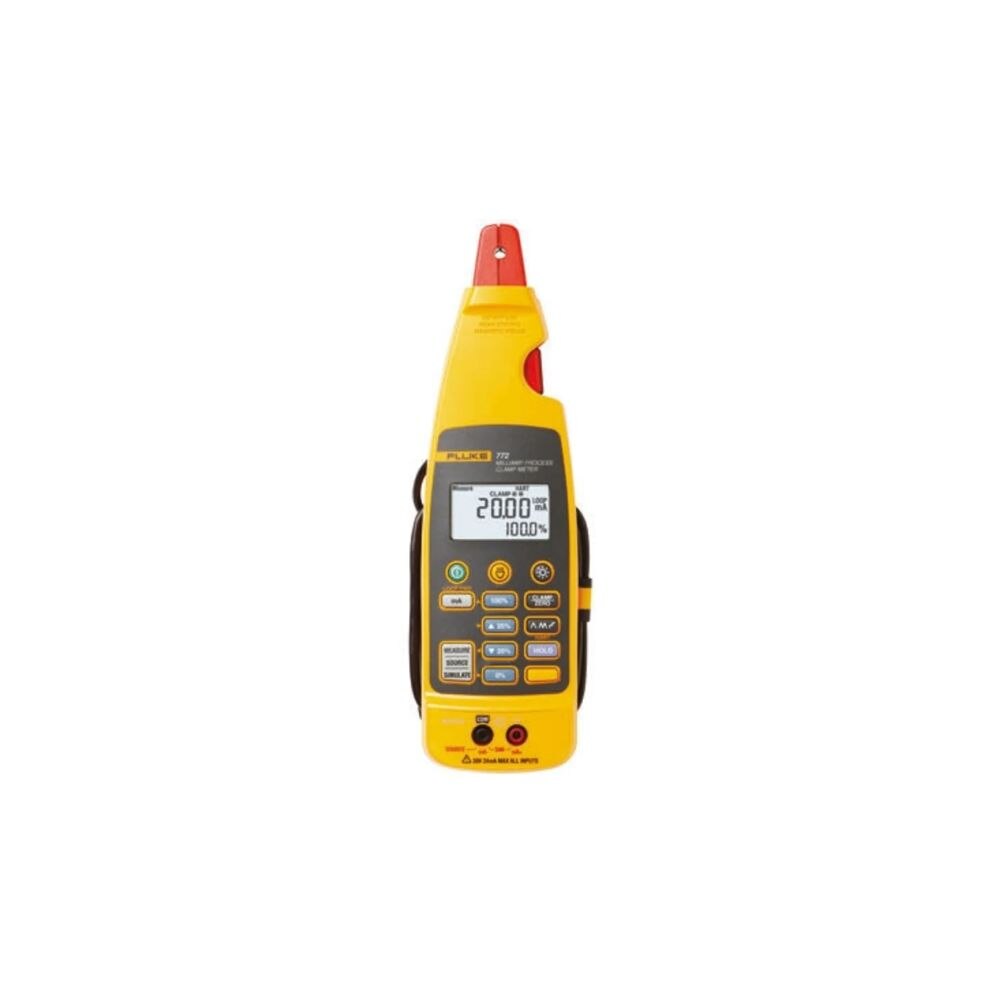

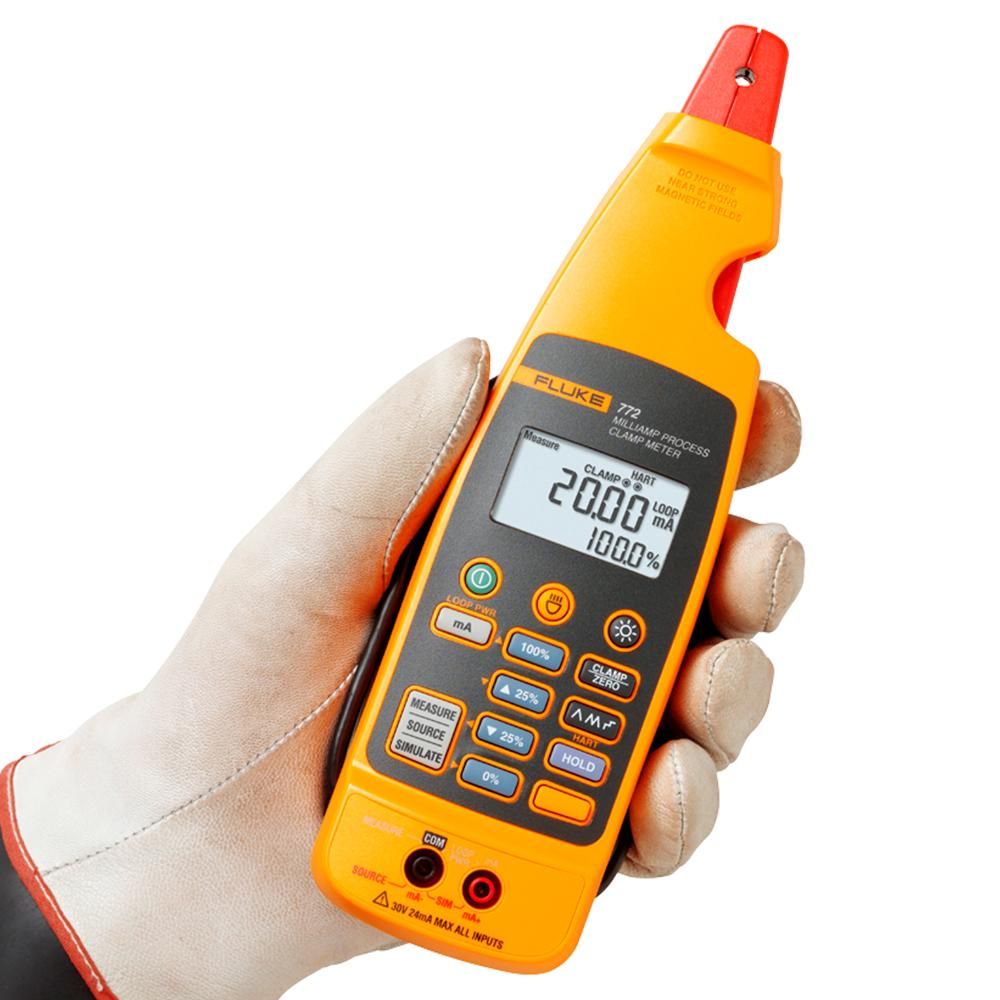

Fluke 772 Milliamp Process Clamp Meter, Dual Backlit Display
Free Shipping
$1,554.46
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Fluke 3362352 Description
Fluke 772 Milliamp Clamp Meter measures, sources, and simulates 4-20 mA signals for testing control system I/O or IPs. The Fluke 772 adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.

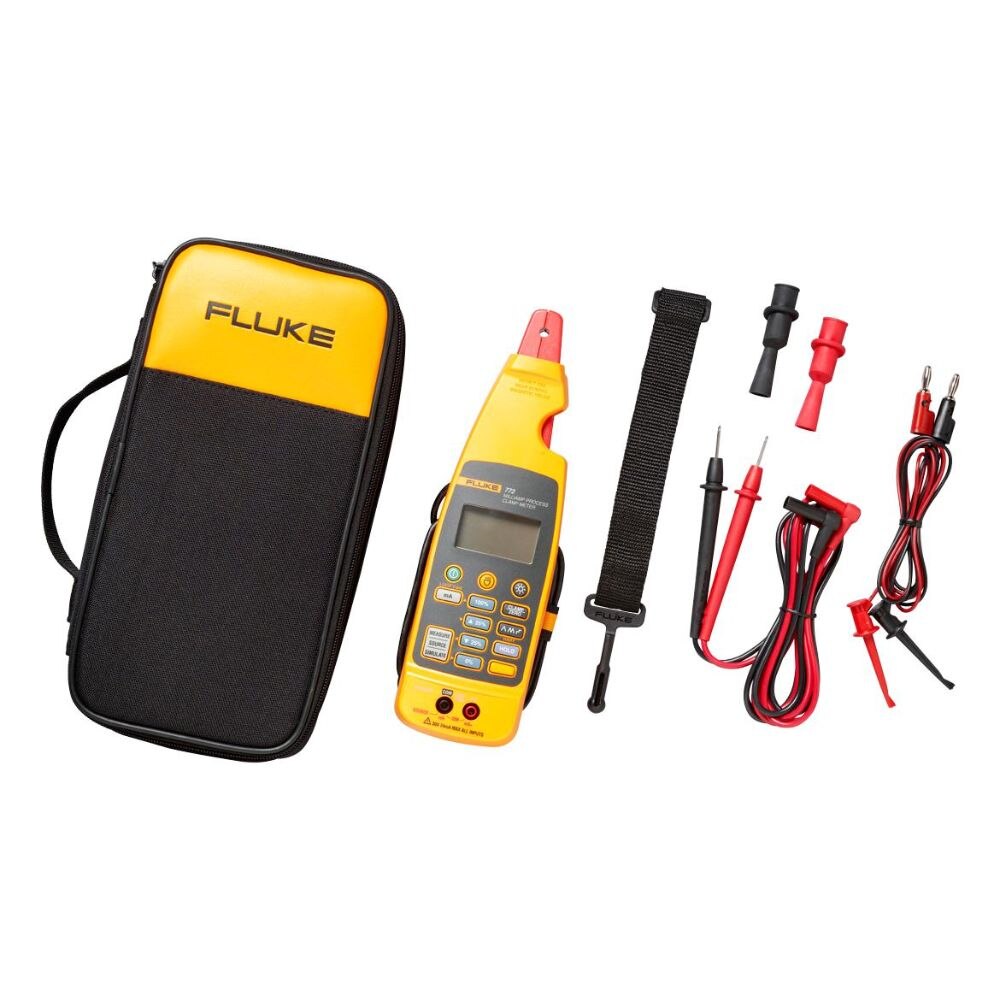

Fluke 3362352 Includes
- (1) Milliamp Process Clamp Meter
- (4) AA Batteries
- (1) Soft Carrying Case
Fluke 3362352 Features
- Best in class 0.2 % accuracy
- 0.01 mA resolution and sensitivity
- Measure 4 to 20 mA signals without ”breaking the loop”
- Dual backlit display with both mA measurement and percent of 4 to 20 mA span
- Measurement Spotlight illuminates hard to see wires in dark enclosures
- Detachable clamp with extension cable for measurements in tight locations
- Measure 10 - 50 mA signals in older control systems using the 99.9 mA range
- Automatically change the 4 to 20 mA output for remote testing
- Power saving features, auto-off, backlight timeout extend Battery life
- Hold function captures and displays changing measurements
Fluke 3362352 Specifications
| Unit Weight (KG) | 1.1 |
| Unit Height (CM) | 7.3 |
| Unit Length (CM) | 31.7 |
| Unit Width (CM) | 14.9 |
