Fluke 787B ProcessMeter, 1000V
Description
Description
Fluke 4777186 Description
The Fluke 787B ProcessMeter™ doubles troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87 DMM, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications. With Fluke Connect® mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere*.

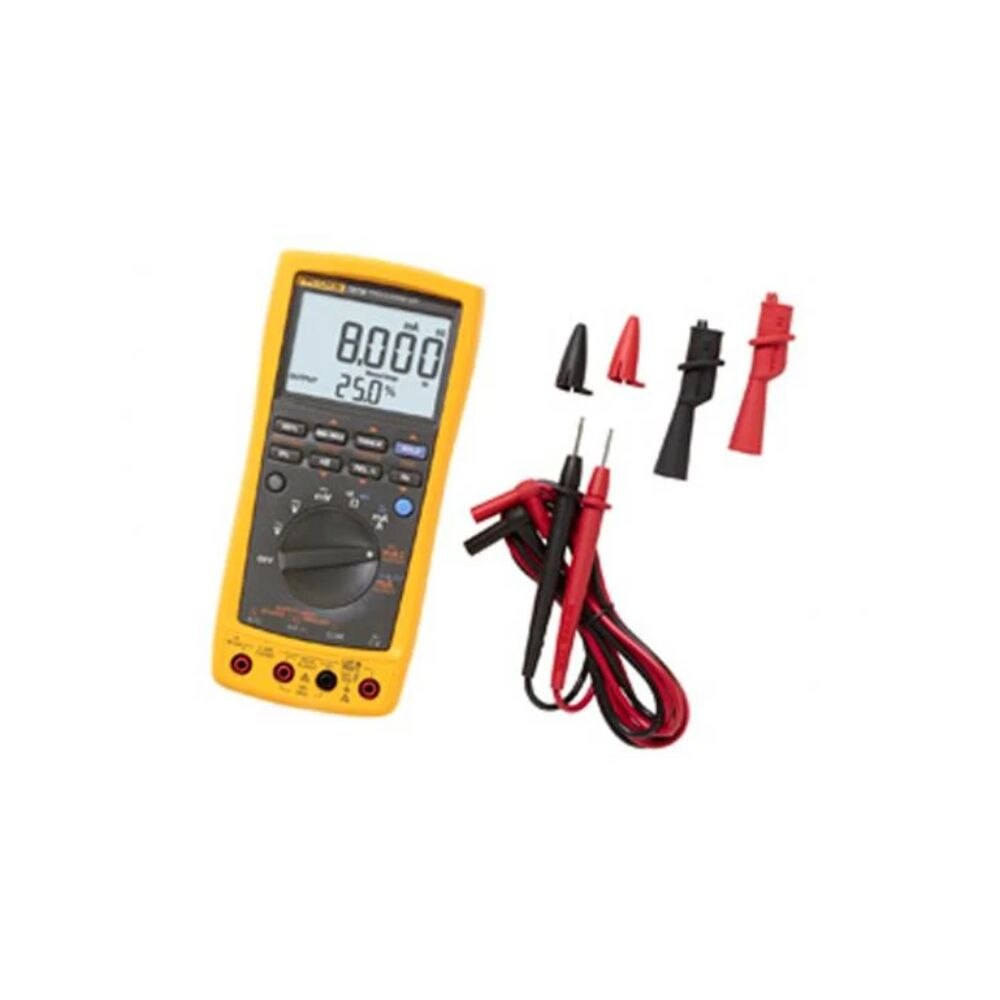

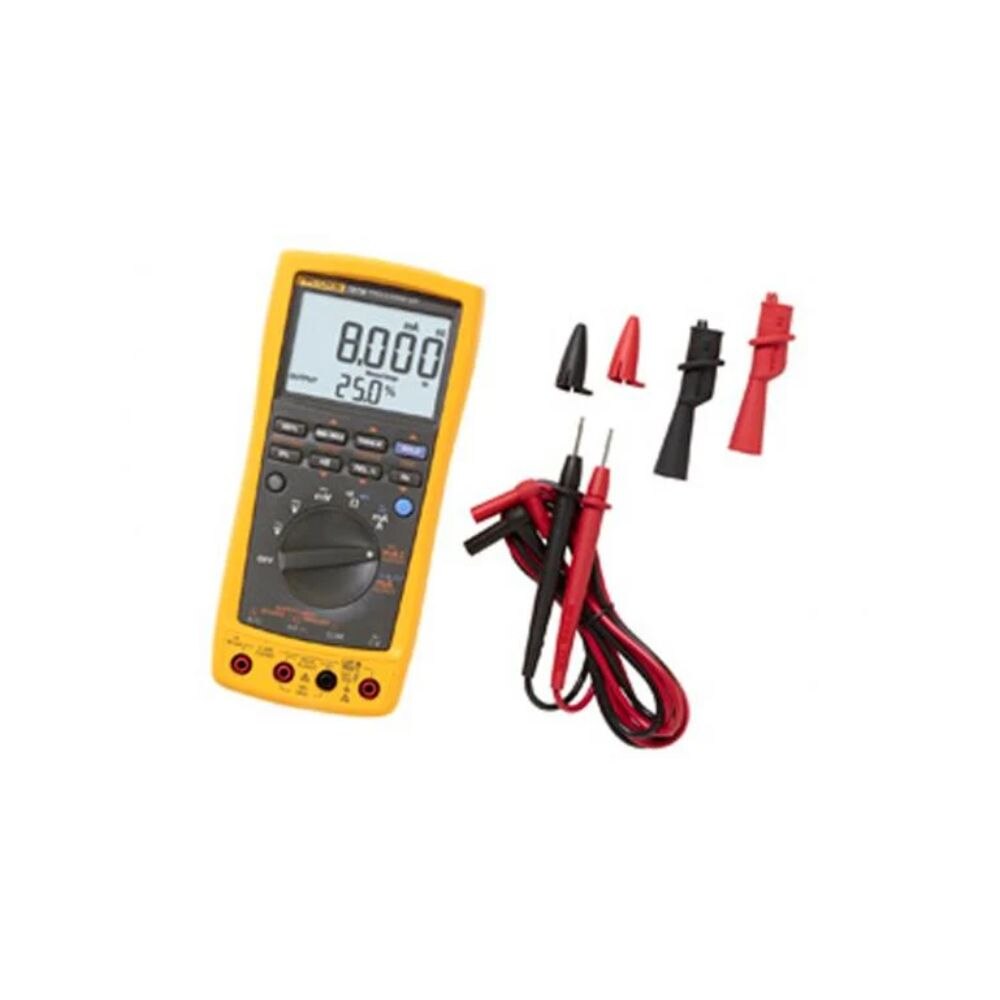

Fluke 4777186 Includes
- (1) TL71 Premium test lead set
- (1) AC72 Alligator clips
- (4) AA alkaline batteries
- (1) Quick reference guide
Fluke 4777186 Features
- 20 mA dc current source/measure/simulate
- Simultaneous mA and % of scale readout
- DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
- Fluke Connect® compatibility for wireless data logging (with IR3000FC module*)
- Precision 1000 V, 440 mA true-rms digital multimeter
- Frequency measurement to 20 kHz
- Min/Max/Average/Hold/Relative modes
- Diode test and continuity beeper
- Manual step (100%, 25%, Coarse, Fine) plus Auto Step and Auto Ramp
- Externally accessible battery for easy battery changes
Fluke 4777186 Specifications
| Maximum voltage applied between any jack and earth ground | 1000 V RMS |
| Storage temperature | -40 °C to 60 °C |
| Operating temperature | -20 °C to 55 °C |
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures 28 °C) |
| Relative humidity | 95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C |
| Vibration | Random, 2 g, 5-500 Hz |
| Shock | 1 meter drop test |
| Safety | IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V |
| Dimensions H x W x L | 1.97" x 3.94" x 8.00" |
| Battery | Four AA alkaline batteries |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 12 mA) |
| Warranty | Three years |
