Fluke | SKU:
80I-110S
Fluke 80I-110S Scopemeter AC/DC Current Clamp
Free Shipping
$1,061.99
Unit price
/
Unavailable
Description
Description
Fluke 114519 Description

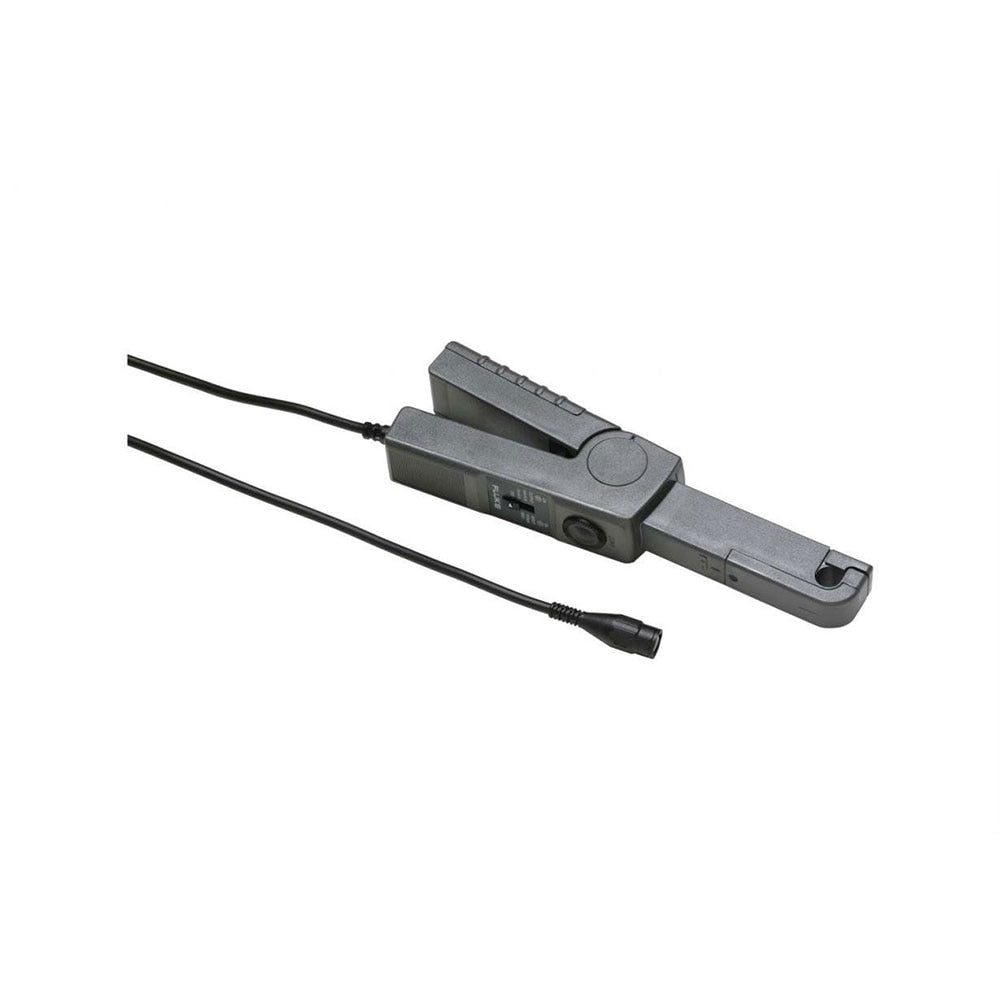

The Fluke 80I-110s is a clamp-on AC/DC Current Probe that reproduces current waveforms found in commercial and industrial power distribution systems. The Probe performance is optimized for accurate reproduction of currents at line frequency and up to the 50th harmonic waveform. The 80i-110s is also compatible with any instrument capable of millivolt measurements.
Fluke 114519 Includes
- (1) AC/DC Current Probe, Scopemeter
Fluke 114519 Features
- Compatible with any Fluke ScopeMeter test tool, power harmonics analyzer, oscilloscope, multimeter
- Compitable with other voltage measurement device with BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter
- Designed to provide you with safe, high accuracy measurements for a wide range of applications
- Specially designed built-in safety features such as the 600 V RMS rating at the input jaws, output cable and BNC connector enhance work safety in industrial and commercial power distribution systems
- The probe is shielded for high noise immunity, to prevent unwanted noise when troubleshooting around noise generating devices like adjustable speed motor drives and ignition systems
Fluke 114519 Specifications
| Unit Weight (KG) | 0.46 |
| Unit Height (CM) | 6.6 |
| Unit Length (CM) | 24.6 |
| Unit Width (CM) | 16.1 |
| Basic accuracy (DC to 1 kHz) | 100 mV/A setting |
| Output Signal | 10 A range |
| Working voltage | 600 V AC rms |
| Maximum conductor size | 11.8 mm (.46 in.) diameter |
| Safety rating | IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600 V |
| AC current range | 0.1A to 70A AC switchable |
| DC current range | 0.1A to 100A DC switchable |
