Fluke 532424 Description

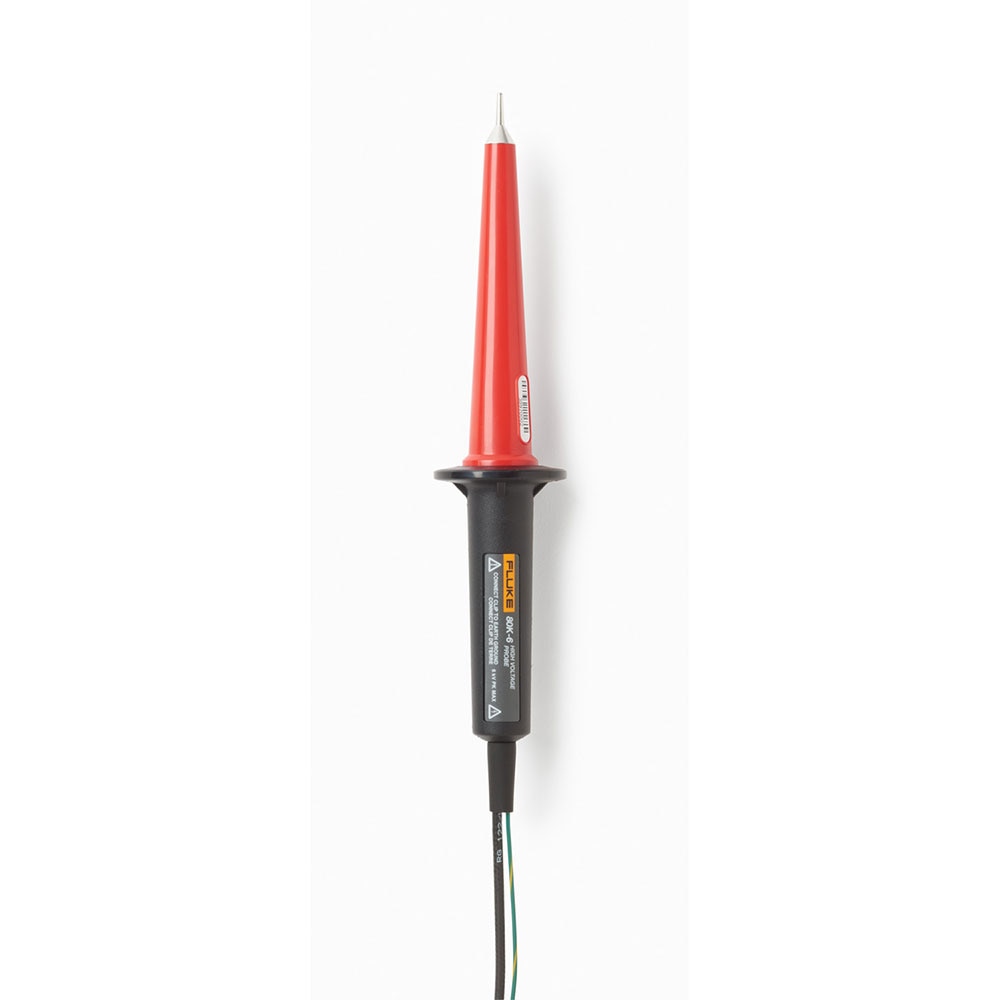

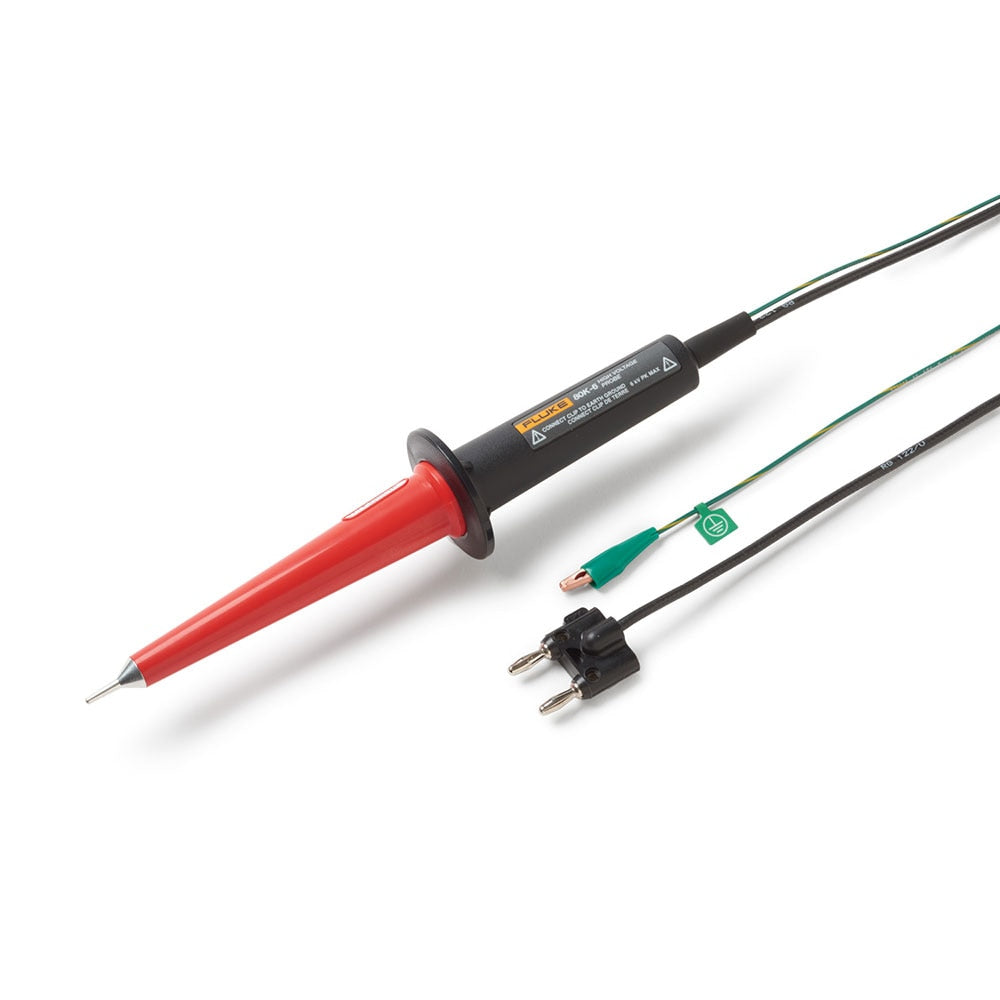

The 80K-6 is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 6000 volts peak AC or DC Overvoltage Category I. This means the probe can only be used to make measurements on energy limited circuits within.
Fluke 532424 Includes
- (1) High Voltage Probe
Fluke 532424 Features
- A high voltage probe that allows a multimeter to measure up to 6,000V. Intended for low energy applications only
- A special plastic body houses the divider and provides the user with isolation and protection from the voltage being measured.
Fluke 532424 Specifications
| Unit Weight (KG) | 0.24 |
| Unit Height (CM) | 6.5 |
| Unit Length (CM) | 36.5 |
| Unit Width (CM) | 14.5 |
| Voltage range | 0 - 6 kV, dc or peak ac |
| Accuracy---DC to 500 Hz | ±1%; 500 Hz to 1 kHz |
| Storage temperature | -20 - 60°C; Operating temperature |
| Temperature Coefficient | 100 ppm/C |
| Relative humidity | 20 - 80% |
| Altitude | 2000 m |
| Shock and Vibration---Shock | 1 m drop; Vibration |
