Fluke | SKU:
80T-150UA

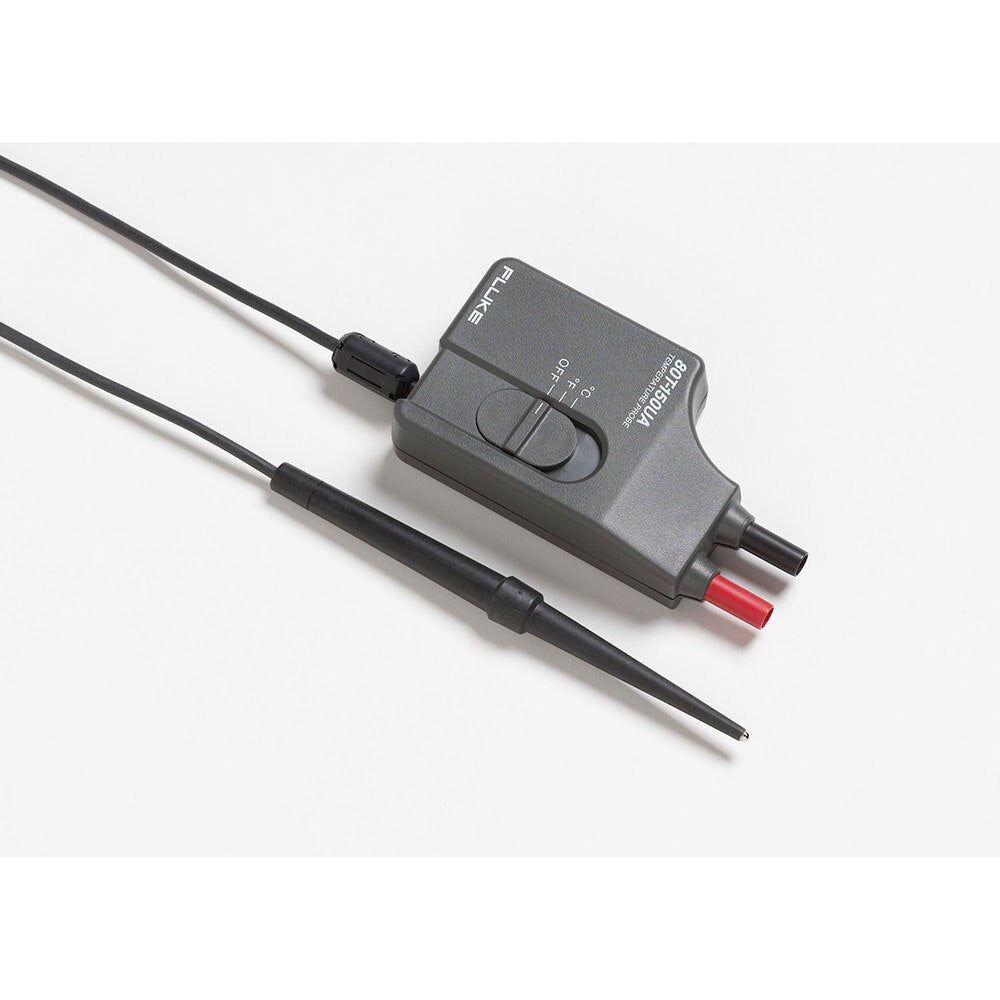

Fluke 80T-150UA Universal Temperature Probe
Free Shipping
$319.99
$379.99
Unit price
/
Unavailable
Description
Description
Fluke 3190456 Description
The Model 80T-150UA Universal Temperature Probe is a self-contained temperature-to-voltage converter. The probe is designed to provide a direct temperature reading when it is connected to any high impedance DMM that is capable of 1 mV resolution and at least a 300-count full scale readout capability. Output is 1 mV per degree (Celsius or Fahrenheit). Two switch-selected temperature output scalings are provided: -50 to +150 °C or -58 to +302 °F. The probe will stand off 60 V DC or 30 V AC RMS (42.4 V peak).
Fluke 3190456 Includes
- (1) Probe,Temperature
Fluke 3190456 Features
- Compatible with Fluke DMM
- High accuracy, fast reading for low voltage (below 24 V AC, 60 V DC) applications
- Measurement range: -50 - 150°C (-58 to +302 °F)
- RF Field: The 80T-150UA product is unspecified in envIRonments with EMC fields greater than 100 mV/meter. ESD performance is specified as Criteria B per EN61326.
Fluke 3190456 Specifications
| Unit Weight (KG) | 0.27 |
| Unit Height (CM) | 4.5 |
| Unit Length (CM) | 34.5 |
| Unit Width (CM) | 14.5 |
| Sensitivity (80T-150UA output) | 1 mV dc / °C or °F |
| Voltage standoff | 60 V dc or 30 V ac rms (42.4 V peak) |
| Settling time | 9.5 seconds to settle within 2° for a 50° change |
| Ambient operating range for temperature module | 0 - +50 °C (+32 to +122 °F) |
| Storage temperature | -40 - +70 °C (-40 - +160 °F) |
| Humidity | 0 % to 90 % (0 °C to +35 °C), non-condensing 0 % to 70 % (+35 °C to +50 °C) |
