Fluke 4550041 Description
Identifying the running speed of rotating equipment can be difficult, but the Fluke 820-2 LED Stroboscope simplifies the process allowing you to perform stop motion diagnostics without actually stopping, or making contact, with the machine you are working on. Whether you are trying to diagnose parasitic oscillations, slippage, or unwanted distortions, the 820-2 LED Stroboscope is the ideal front line troubleshooting, process or product research and development tool.

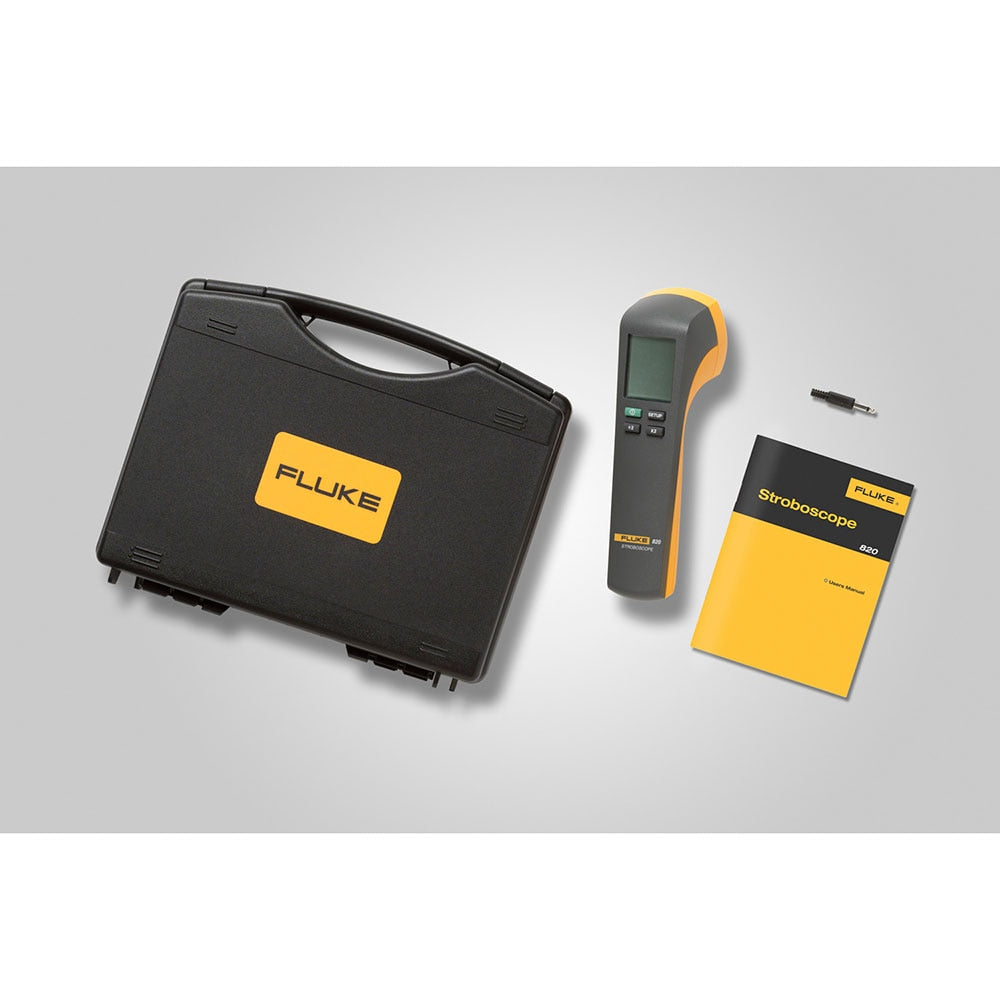

Fluke 4550041 Includes

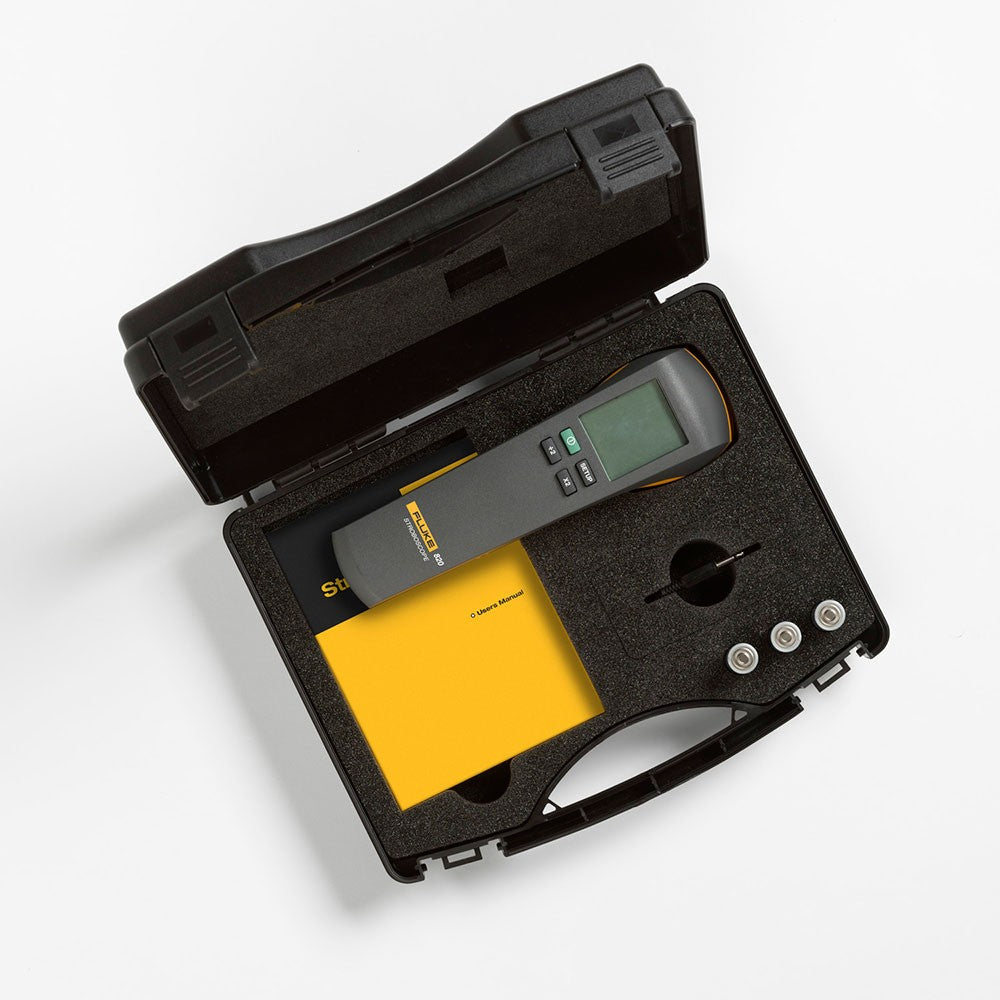

- (1) Protective case
- (1) External trigger connector
Fluke 4550041 Features
- Rugged, compact, easy to use stroboscope for checking the rotating speed of machinery without physical contact or the need for reflective tape

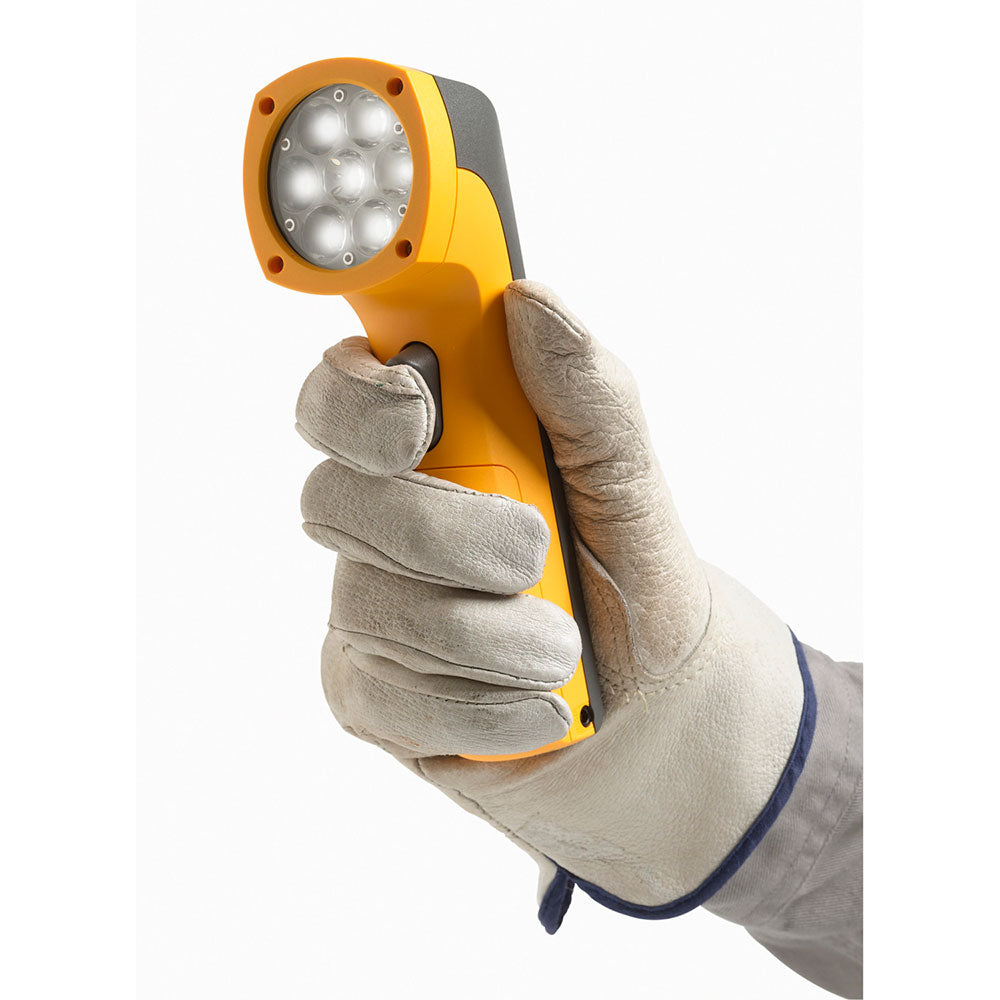

- Features high-intensity 7-LED array—4,800 Lux @ 6,000 FPM/30cm
- Provides a high-efficiency LED solid-state light source with uniform flash characteristics that allow for higher flash rates—30-300,000 FPM (flashes per minute)
- Includes digital pulse width modulation for exceptionally sharp images at high speeds
- Provides rugged, durable design that uses solid-state LEDs with no filaments, gases, hollow cavities, or glass; (1 meter drop tested)
- Features quartz-accuracy control system for high accuracy–0.02% (+/- 1 digit)

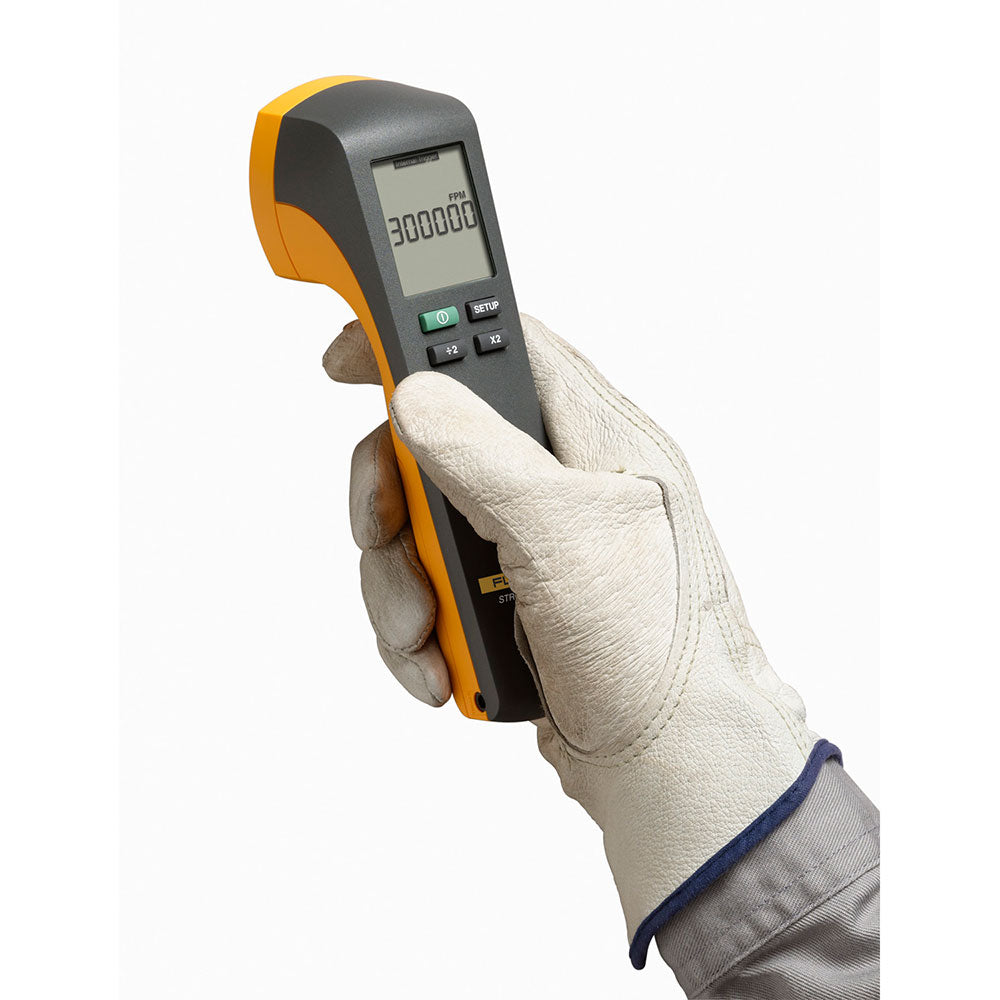

- Provides a multi-line LCD display
- Includes advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats, or drifting equipment
- Features simple push button operation with 2x and ÷2 buttons for easy adjustment
Fluke 4550041 Specifications
| Dimensions H x W x L | 2.25" x 2.4" x 7.5" |
| Operating temperature | 0 °C to +45 °C |
| Storage temperature | -10 °C to +50 °C |
| Operating humidity (without ondensation) | Non-condensing (<10 °C); 90 % RH (10 °C to 30 °C); 75 % RH (30 °C to 40 °C); 45 % RH (40 °C to 50 °C) |
| Absorption/corrosion | 30 °C, 95 % RH, 5 day, Product functions normally |
| Operating altitude | 2,000 m |
| Storage altitude | 12,000 m |
| Vibration | MIL-PRF-28800F Class 2 |
| Impact resistance | 1 m drop |
| EMI, RFI, EMC | EN61326-1 |
| Agency approvals | Class III (SELV) Pollution Degree 2; CE |
| Range | 30 to 300,000 FPM; 0.5 to 5000 Hz |
| Accuracy | 0.02 % |
| Resolution | 30 to 999 FPM = 0.1; 1000 to 300,000 = 1; 0.5 Hz to 999 Hz = 0.1; 1000 Hz to 5000 Hz = 1 |
| Frequency setting | FPM or Hz |
| Duration | Adjustable in μs or degrees |
| Delay | Adjustable in μs or degrees |
| Color | Approximately 6500 K |
| Emission output | 4,800 lx @ 6000 FPM at 30 cm |
| Method | Connector to externally control trigger |
| High level | 3 V to 32 V |
| Low level | <1 V |
| Minimum pulse width | 50 μs connection |
