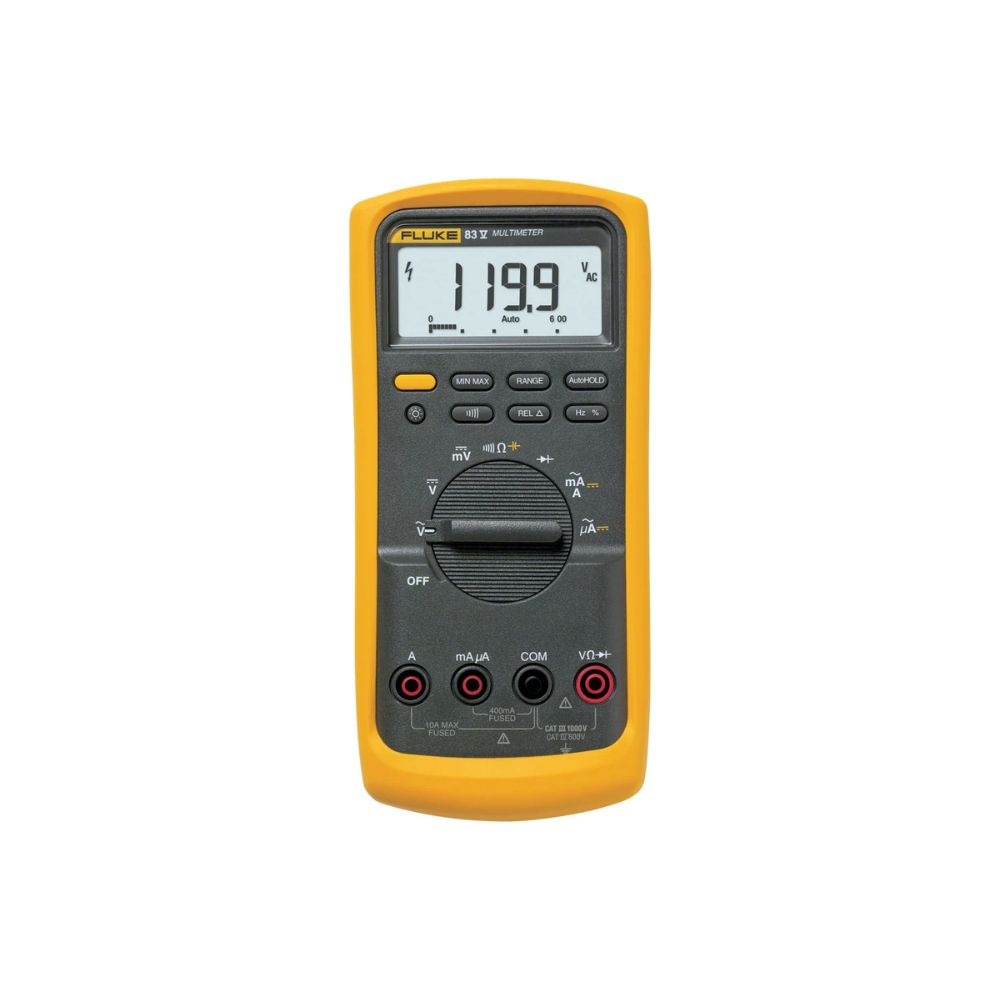

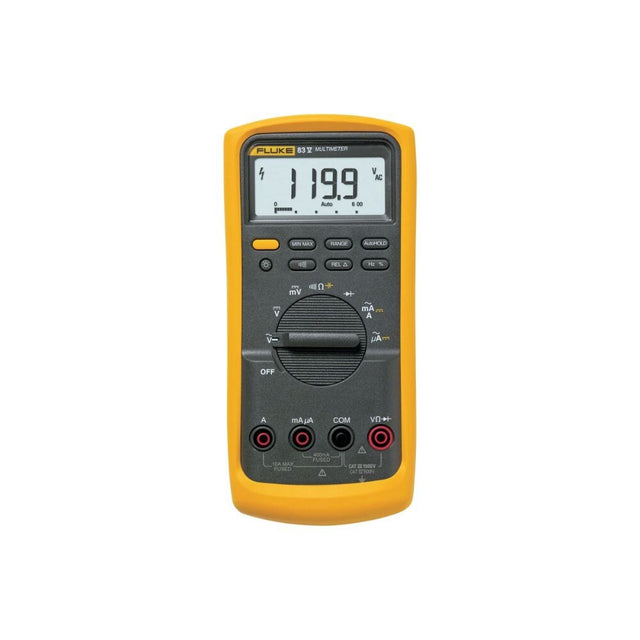

Fluke 83-5 83V Digital Industrial Multimeter
Description
Description
Fluke 2075004 Description
The Fluke 83 Series V Industrial Digital Multimeter is an average responding-RMS indicating digital multimeter (also known as a multitester) for measuring AC/DC voltage up to 1,000V, AC/DC current to 10 amp (20 amp for a maximum of 30 seconds), frequency to 200KHz, resistance to 50 megaohms, and capacitance to 9,999 microfarads and includes continuity and diode tests. The 6,000-count resolution, 3-3/4 digit digital display is backlit for readability in low-light conditions and includes an analog bar graph which updates 40 times per second which is useful for making peak and null adjustments and for observing rapidly changing inputs.
Fluke 2075004 Includes
- (1) Industrial Multimeter
Fluke 2075004 Features
- 6000 counts, 3-3/4 digits
- Measure up to 1000 V ac and dc
- Measure up to 10 A, 20 A for up to 30 seconds
- Resistance, continuity and diode test
- 10,000 µF capacitance range for components and motor caps
- MIN/MAX-Average recording with MIN/MAX alert to capture variations automatically
- Peak capture to record transients as fast as 250 µs
- Relative mode to remove test lead interference from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Touch hold to capture stable readings avoiding noisy signals
Fluke 2075004 Specifications
| Unit Weight (KG) | 1.205 |
| Unit Height (CM) | 8.9 |
| Unit Length (CM) | 27.9 |
| Unit Width (CM) | 16.5 |
