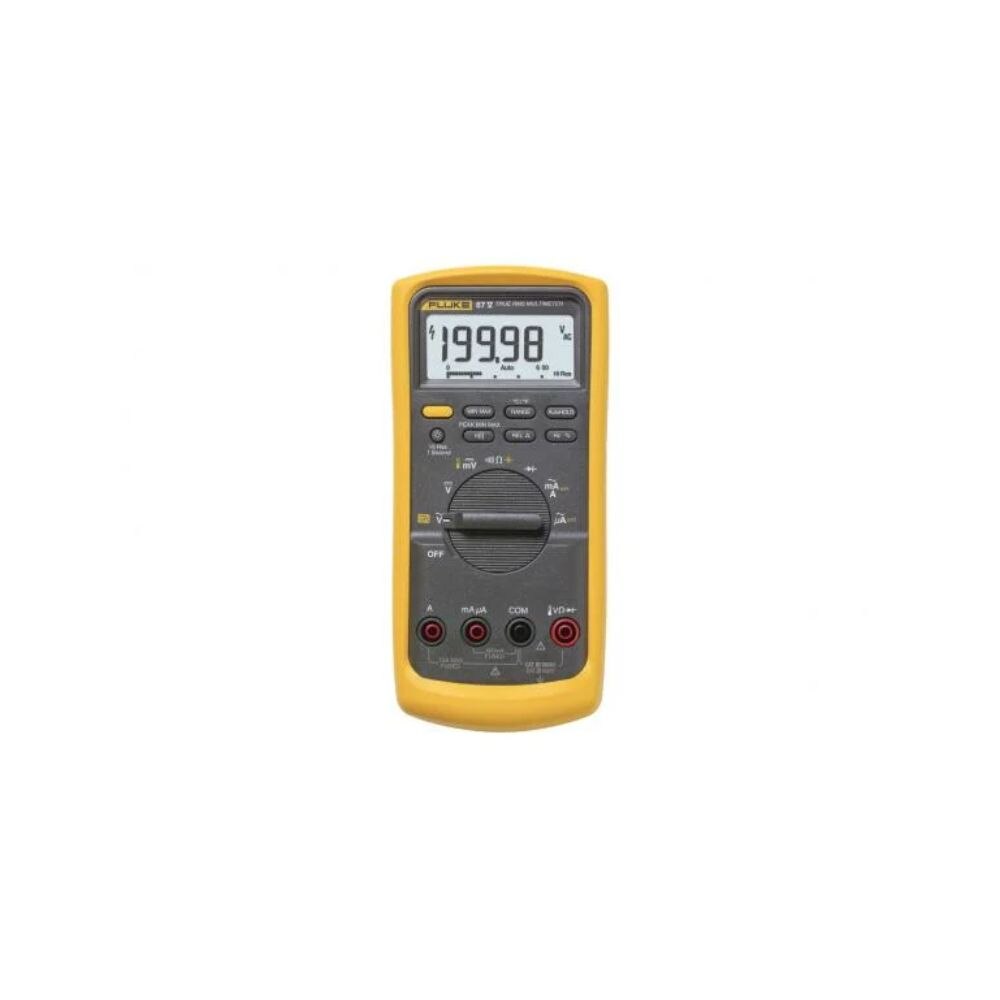

Fluke 87-5 CAL Industrial Digital Multimeter with Temperature Measurement and NIST Calibration

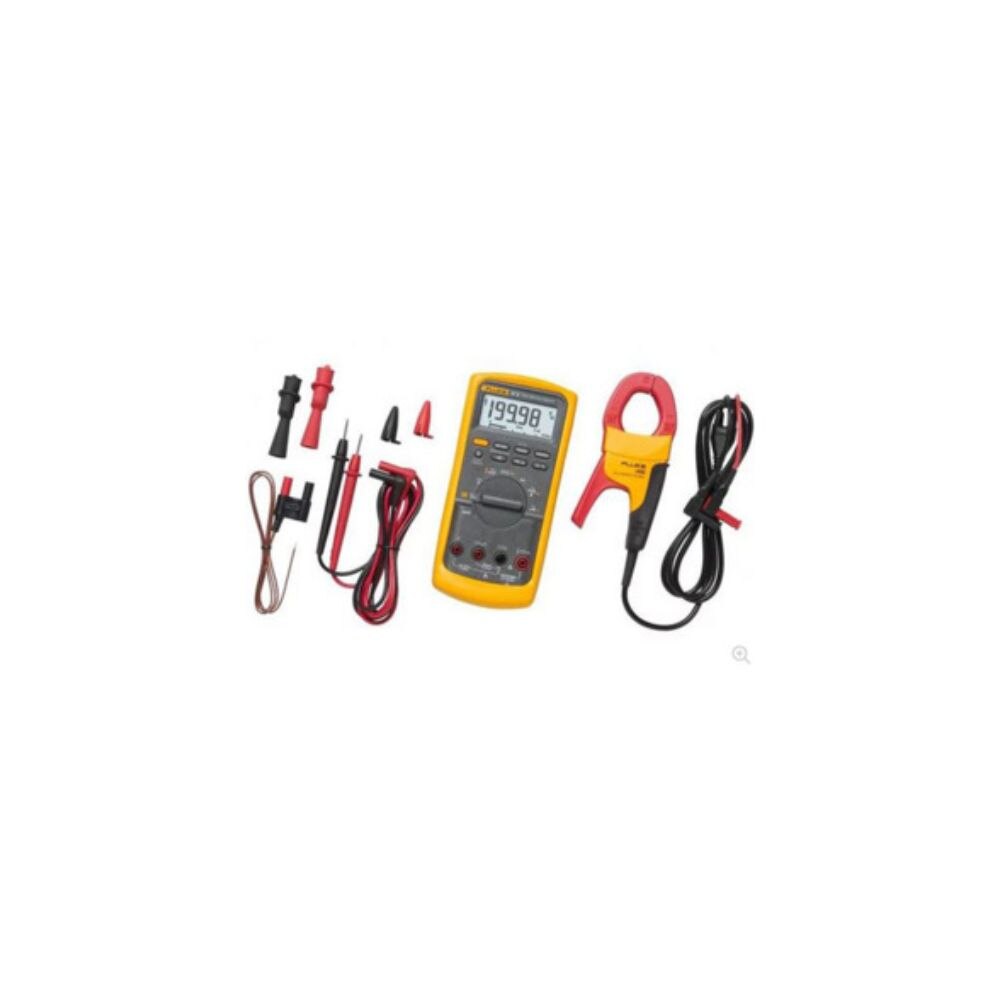

INCLUDES:
• (1) 87-5 CAL True-RMS Industrial Digital Multimeter with Temperature Measurement and NIST Calibration
• (1) Test Lead Set (TL75)
• (1) Temperature Probe (80BK)
• (1) Alligator Clip Set (AC175)
• (1) 9V Battery
• (1) Integrated Holster

FEATURES:
• True-RMS AC voltage and current for accurate measurements on non linear signals
• Backlit keypad buttons
• Large, 2-level, bright white, backlit display
• Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
• Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
• Selectable filter for accurate voltage and frequency measurements on motor drives
• 0.05% DC accuracy
• 6000 counts, 3-3/4 digits
• 4-1/2 digit mode for precise measurements (20,000 counts)
• Measure up to 1000 VAC and DC
• Measure up to 10 A, 20 A for up to 30 seconds
• Built in thermometer lets you carry one less tool (TC probe included)
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity and diode test
• 10,000 µF capacitance range for components and motor caps
• Min/Max-Average recording with Min/Max Alert to capture variations automatically
• Peak capture to record transients as fast as 250 µs

SPECIFICATIONS:
• AC/DC Voltage: 1000 V
• AC/DC Current: 10 A
• Maximum Resistance: 50 Mohm
• Maximum Capacitance: 9999 µF
• Maximum Frequency: 200 kHz
• Temperature: -328 to 1994°F (-200 to 1090°C) Excluding Probe
• Operating Temperature: -4 to 131°F (-20 to 55°C)
• Operating Altitude: 6561' (2000 m)

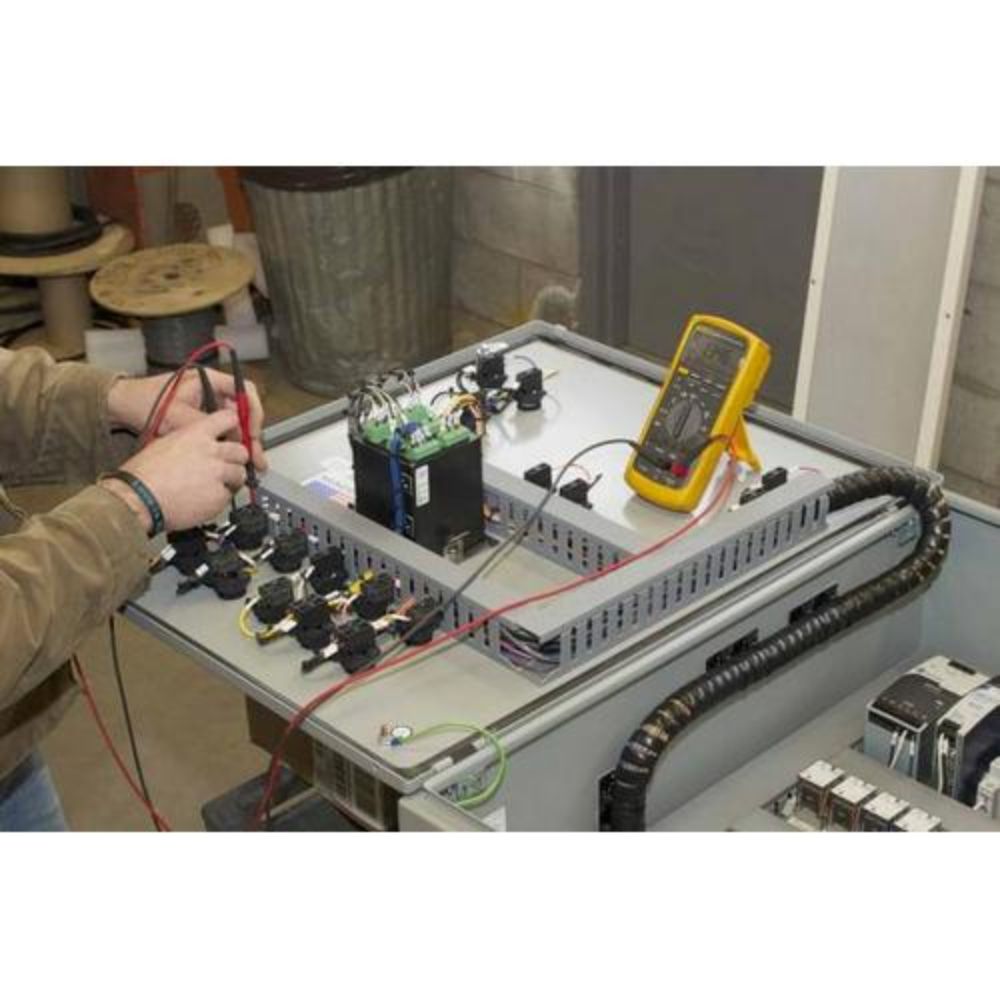

The 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations.
