Fluke 87V/IMSK Industrial Multimeter Service Combo Kit

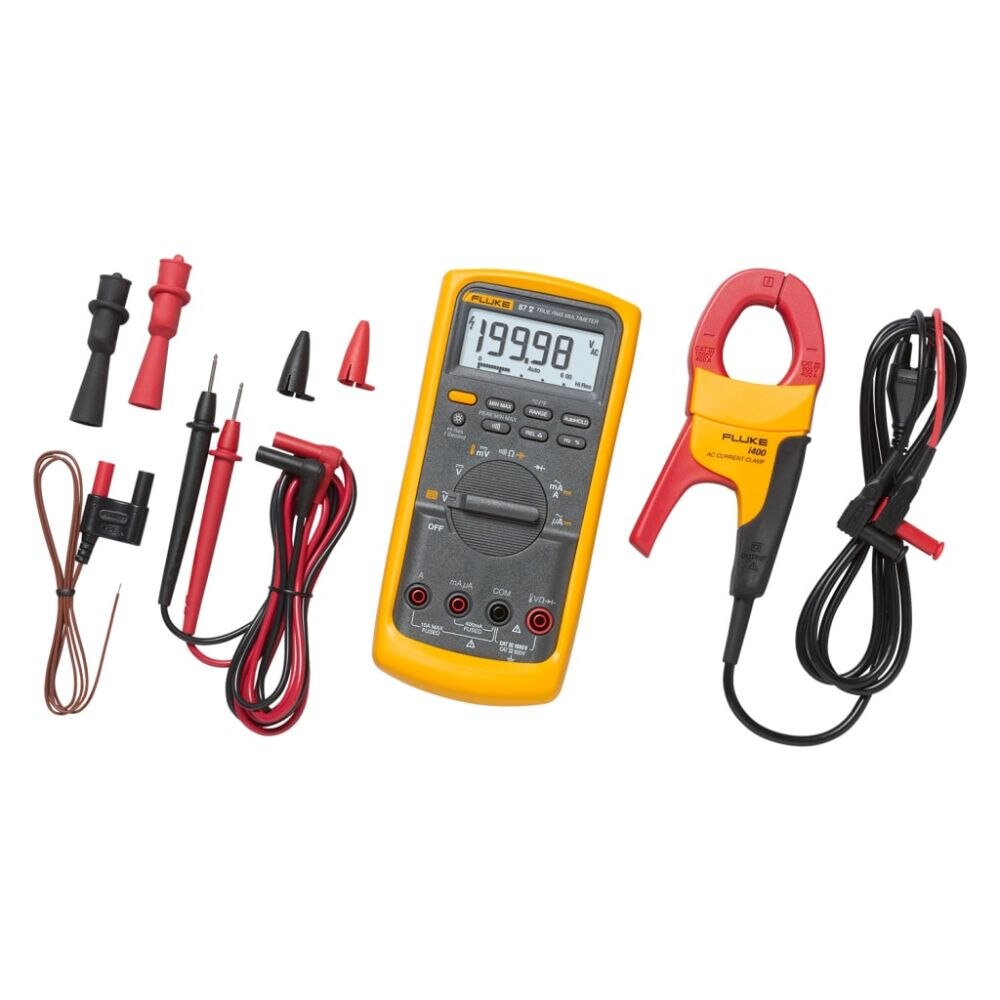

INCLUDES:

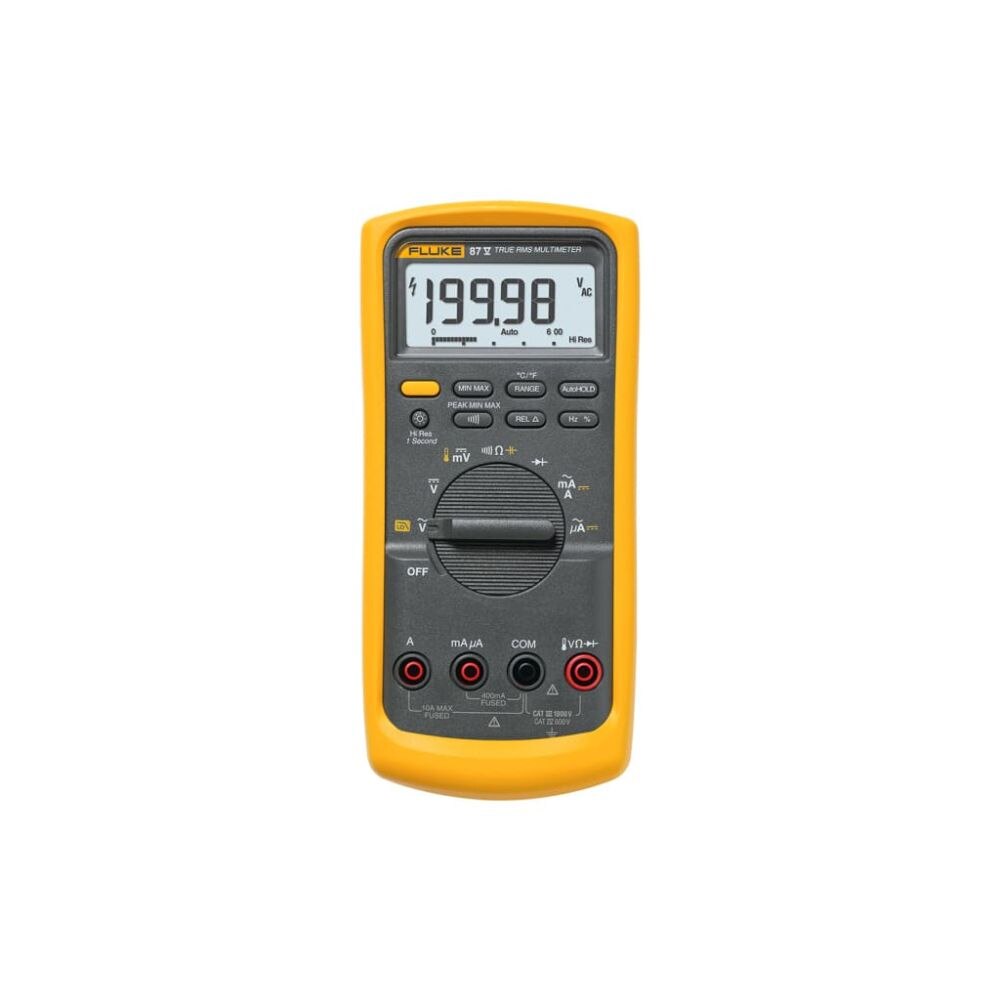

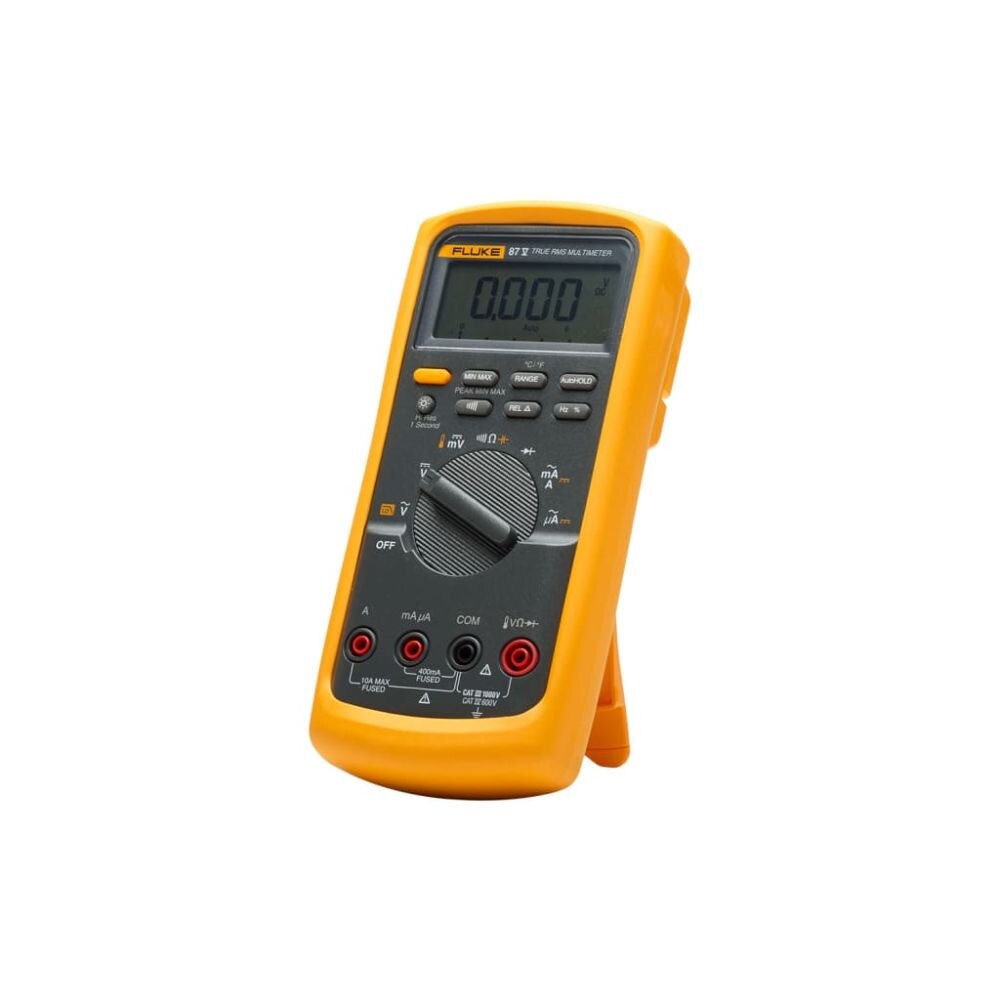

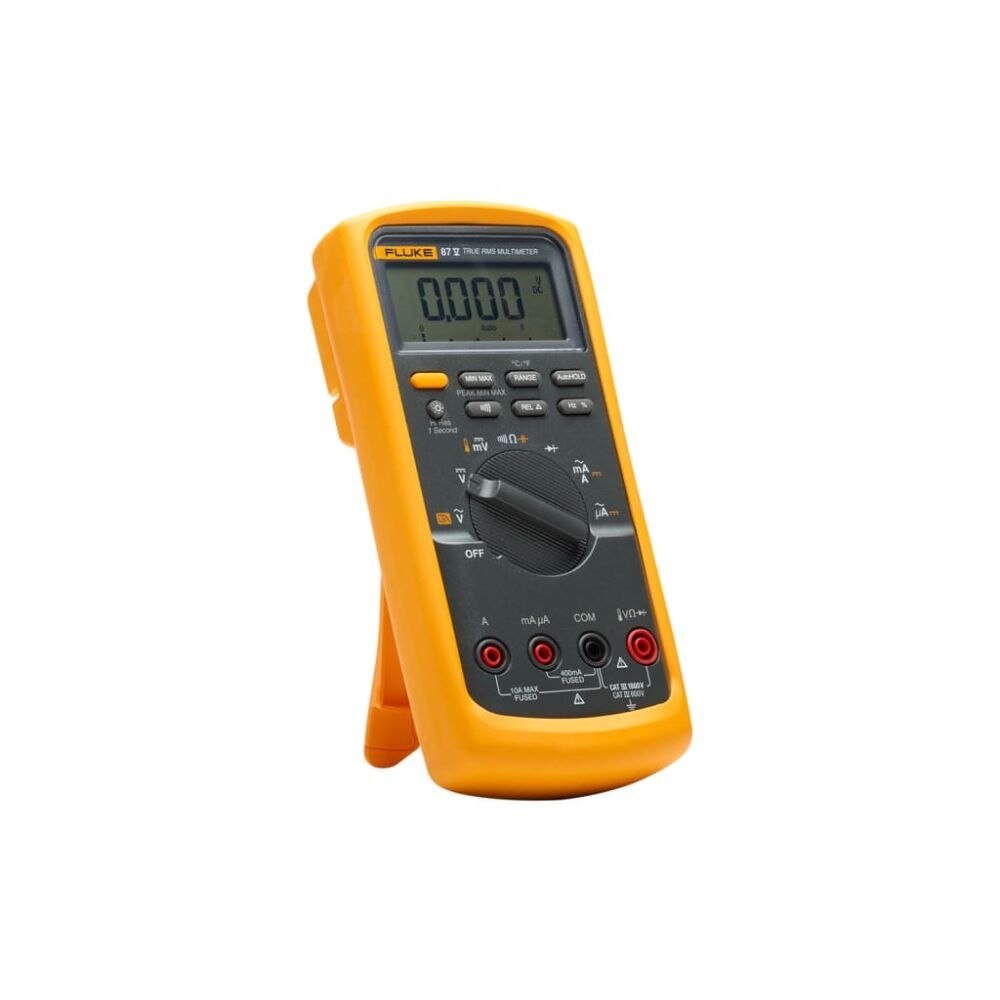

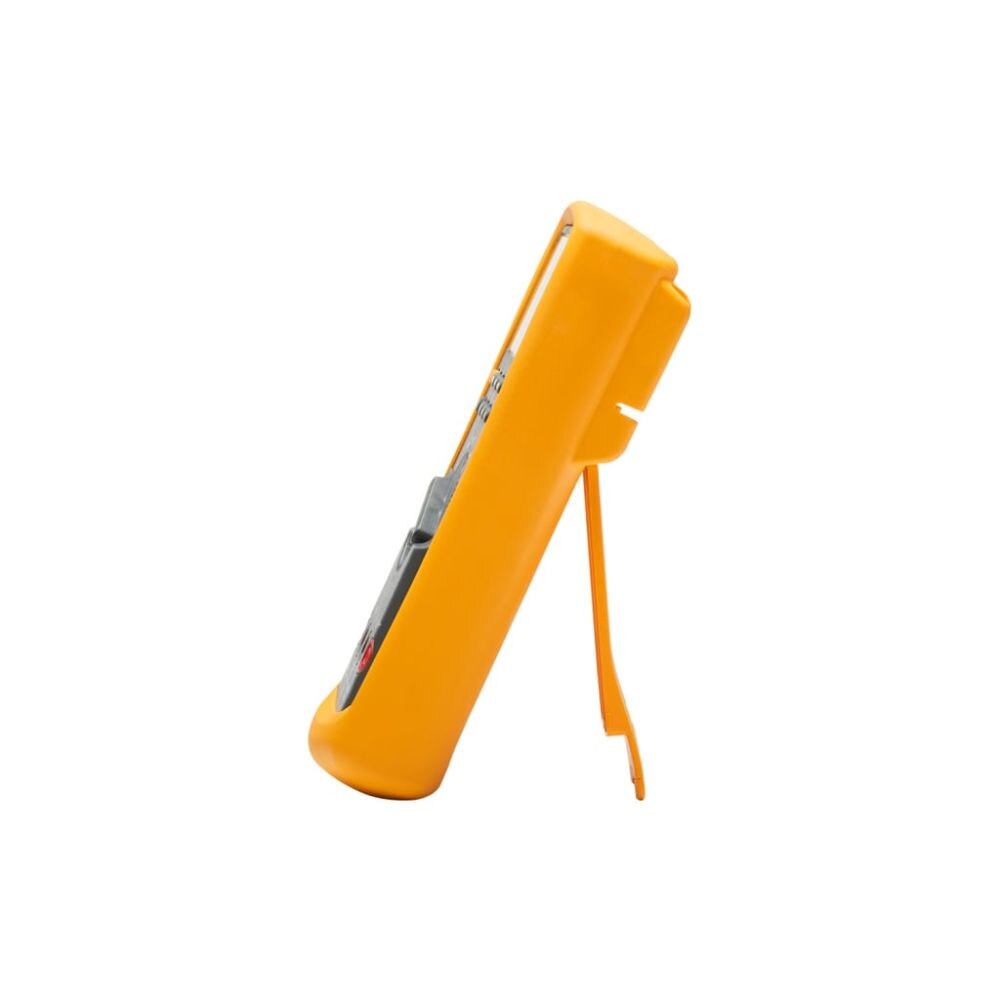

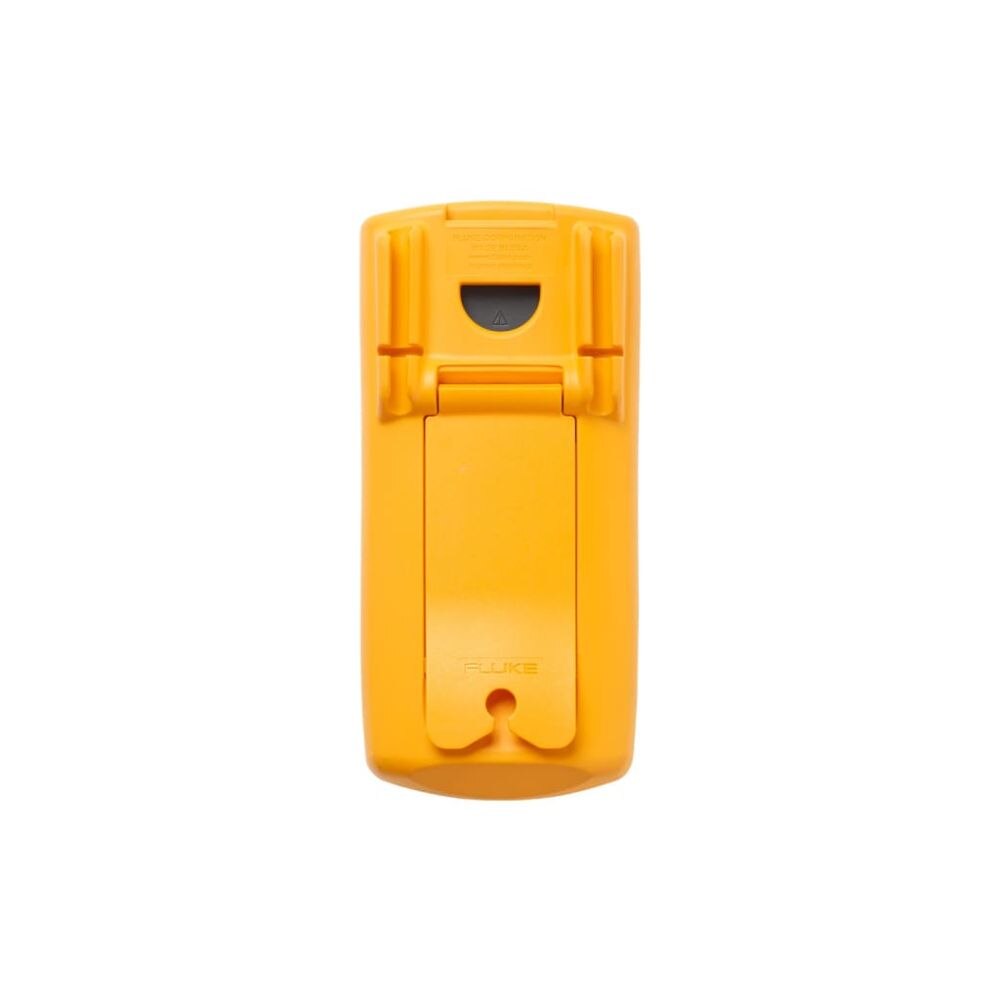

• (1) True-RMS Industrial Digital Multimeter (87V)

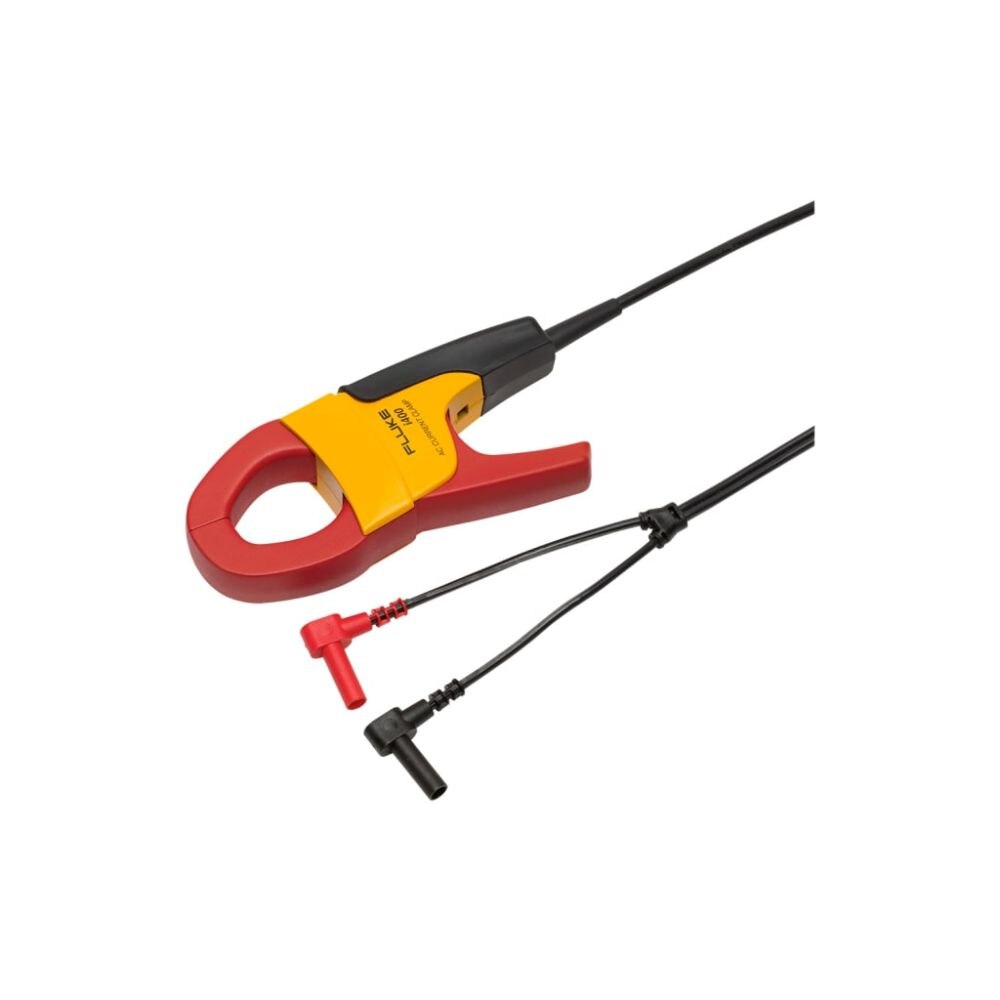

• (1) 400A AC Current Clamp (i400)
• (1) Temperature Probe (80BK-A)
• (1) Hard Point Test Lead Set (TL75)
• (1) Threaded Alligator Clip Set (AC175)

FEATURES:
• Fluke-87V Multimeter has True-RMS accuracy and advanced functionality to give you the results you need
• Fluke-i400 AC 400A Current Clamp turns the 87V into a clamp meter
• Select accessories like temperature probe, test leads and alligator clips included
• True-rms accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording
• Efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations
• A low pass filter supports accurate frequency measurements on VFDs and captures intermittents as fast 250 µs
• Lifetime warranty, backed by a brand you trust.

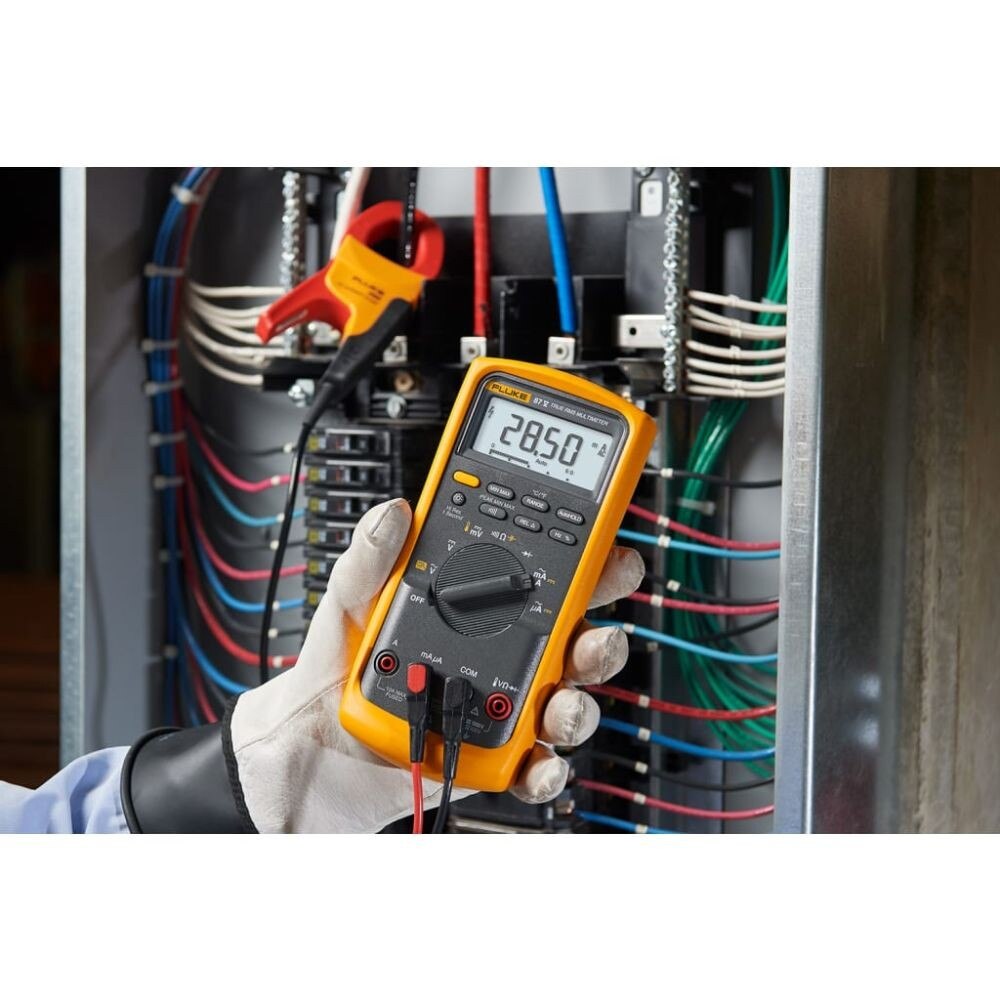

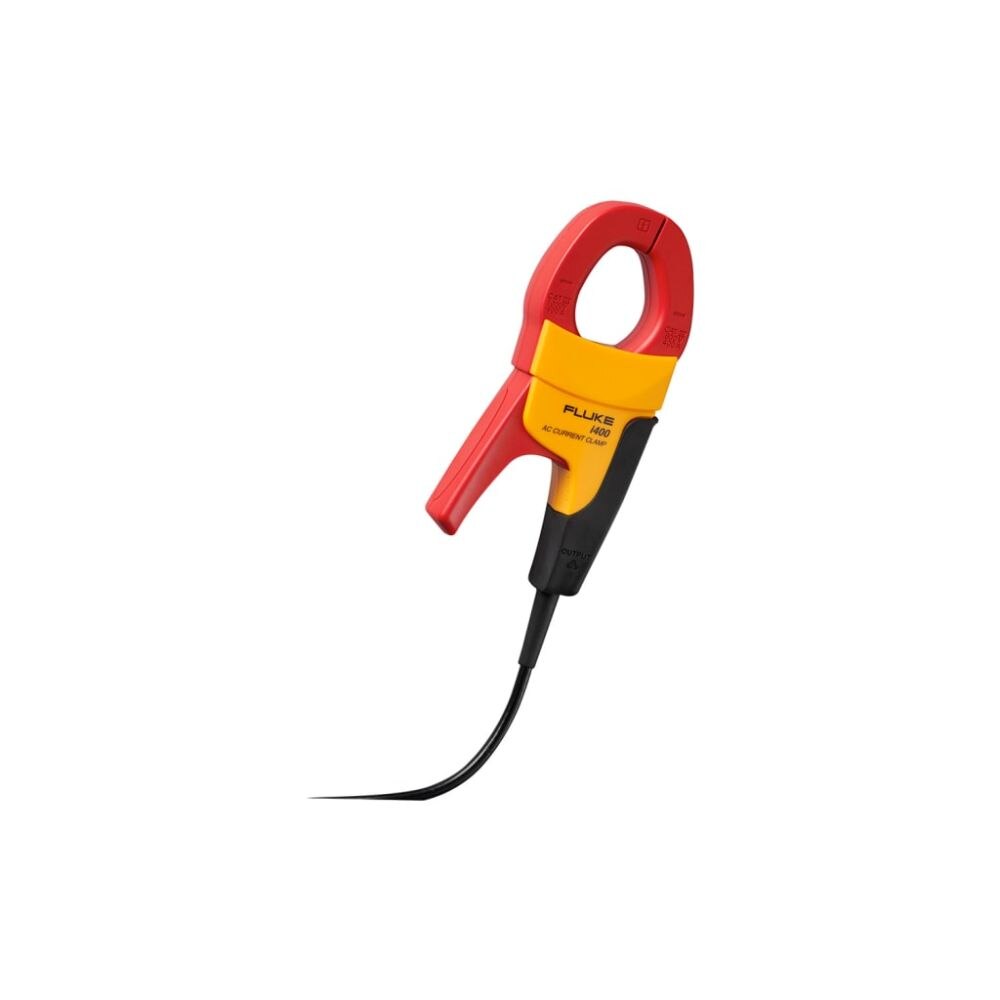

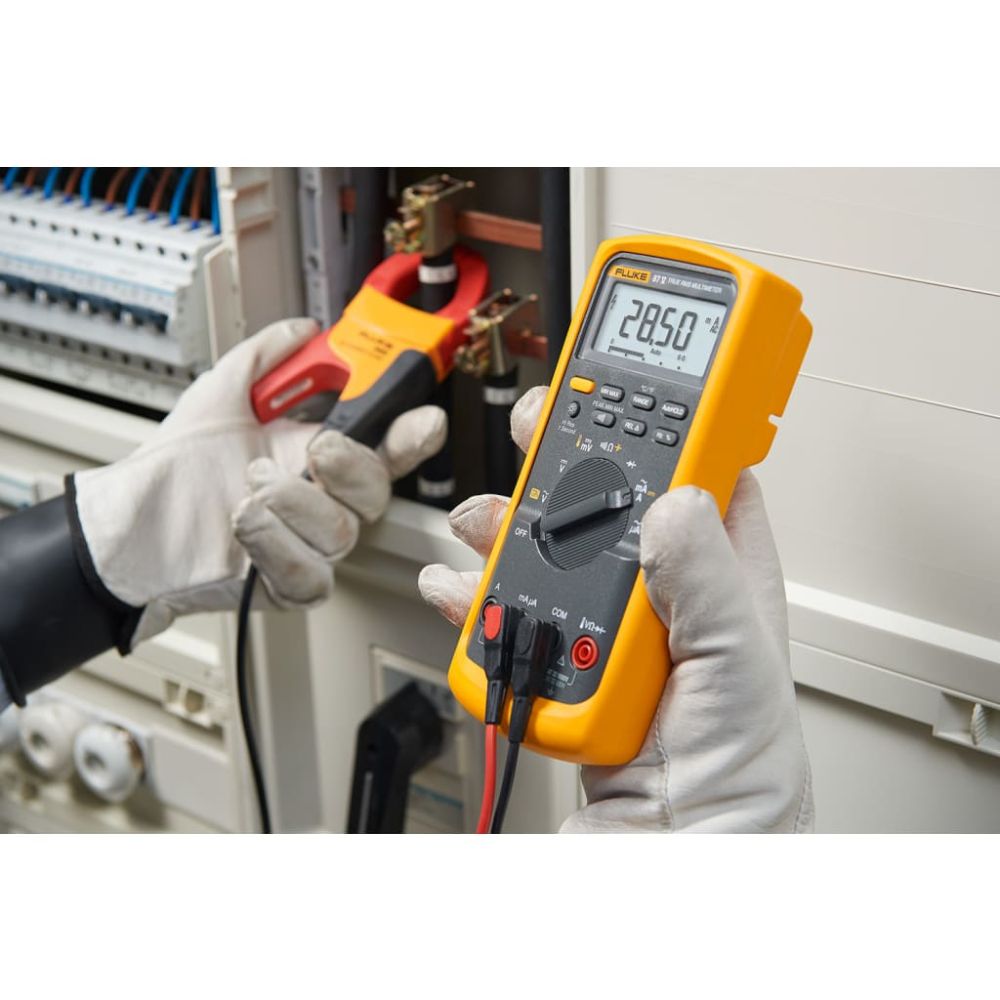

• The current clamp provides accurate current measurements up to 400 A ac without breaking electric circuits
• Allows taking measurements safely with industry standard safety ratings
• The 80BK-A DMM Temperature Probe plugs into the 87V’s voltage jacks and allows temperature measurements from -40 °C to 260 °C (-40 °F to 500 °F)
• TL75 Test Leads and AC175 Alligator Clips complete this versatile kit.
• Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.
• Designed to withstand spikes of more than 8000 V. Audible Input Alert warning against wrong use of input jacks.

SPECIFICATIONS:
• Voltage DC Maximum Voltage: 1000 V
• Voltage DC Accuracy: ±(0.05% + 1)
• Voltage DC Maximum Resolution: 10 µV
• Voltage AC Maximum Voltage: 1000 V
• Voltage AC Accuracy: ±(0.7% + 2) True RMS
• Voltage AC Bandwidth: 20 kHz with Low Pass Filter; 3 dB @ 1 kHz
• Voltage AC Maximum Resolution: 0.1 mV
• Current DC Maximum Amps: 10 A (20 A for 30 seconds Maximum)
• Current DC Amps Accuracy: ±(0.2% + 2)
• Current DC Maximum Resolution: 0.01 µA
• Current AC Maximum Amps: 10 A (20 A for 30 seconds Maximum)
• Current AC Amps Accuracy: ±(1.0% + 2) True RMS
• Current AC Maximum Resolution: 0.1 µA
• Maximum Resistance: 50 M?
• Resistance Accuracy: ±(0.2% + 1)
• Resistance Maximum Resolution: 0.1 ?
• Maximum Capacitance: 9,999 µF
• Capacitance Accuracy: ±(1% + 2)
• Capacitance Maximum Resolution: 0.01 nF
• Maximum Frequency: 200 kHz
• Frequency Accuracy: ±(0.005% + 1)
• Frequency Maximum Resolution: 0.01 Hz
• Maximum Duty Cycle: 99.9%
• Duty Cycle Accuracy: ±(0.2% per kHz + 0.1%)

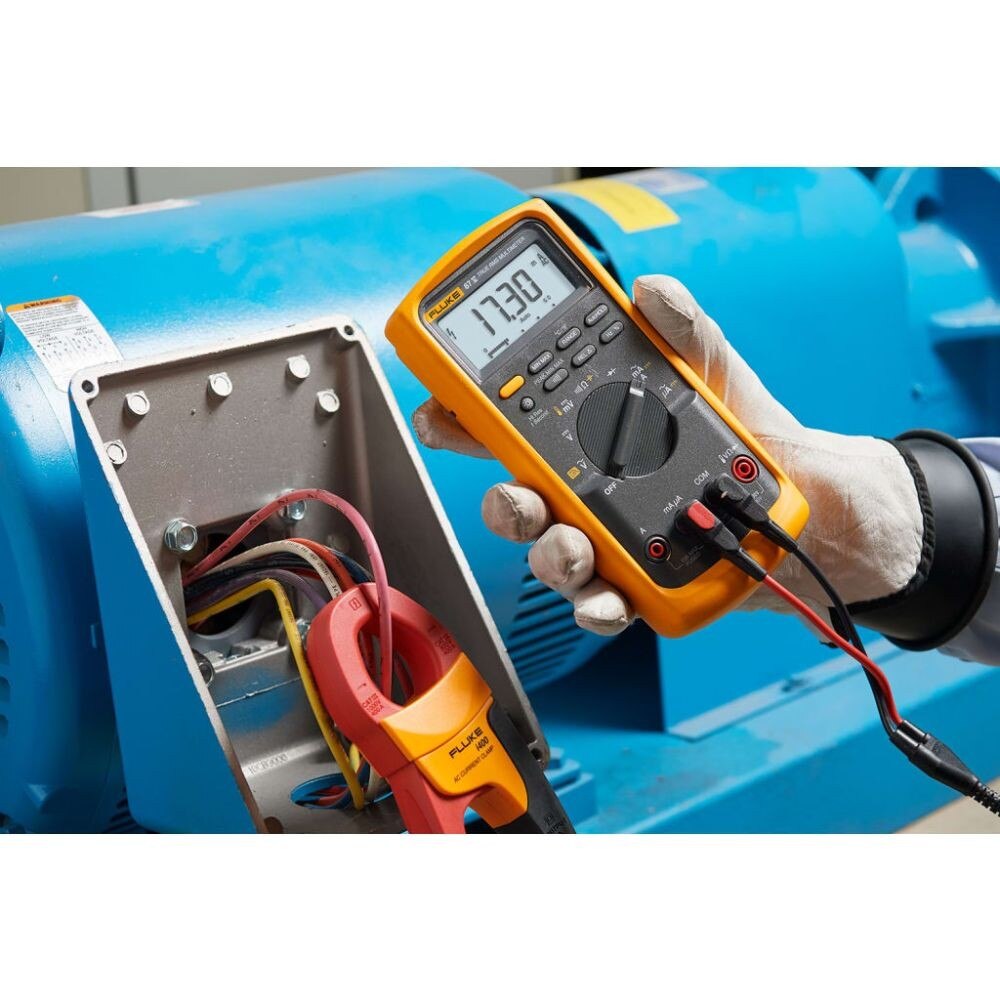

This combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, combined with the i400 AC current clamp. Together they provide the resolution and accuracy to efficiently troubleshoot any electrical system. The kit includes special accessories to make you even more productive on the job and will save over 15percent compared with the individually priced items. Plus, you'll be working with the most trusted tools in the world. True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording give you the results you need. Backlit digital display, analog bar graph, and intuitive design make this meter intuitive to use in the most demanding conditions. Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job. Designed to withstand spikes of more than 8000 V. Audible Input Alert warning against wrong use of input jacks.
