Fluke  |  SKU: 87V-MAX  |  Barcode: 095969926287

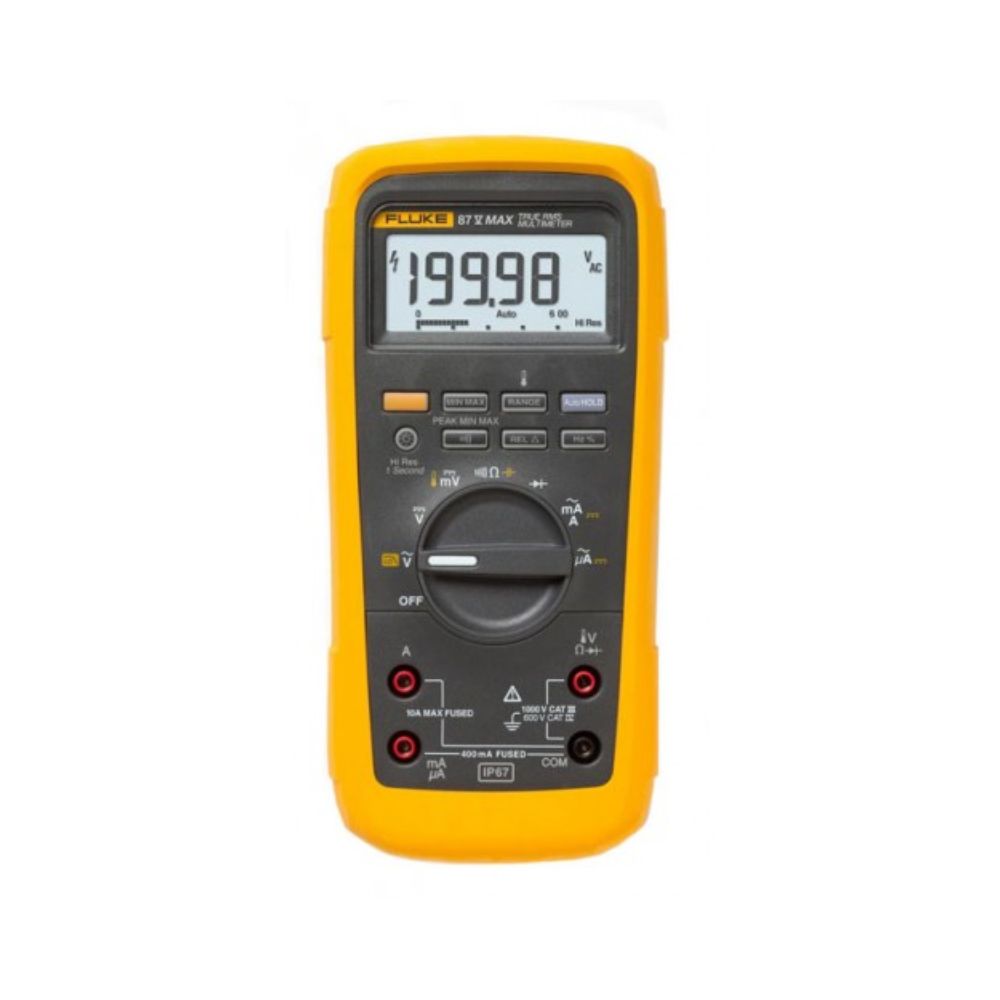

Fluke 87V-MAX True RMS Digital Multimeter with Built-In Thermometer

Free Shipping
$596.38

Description

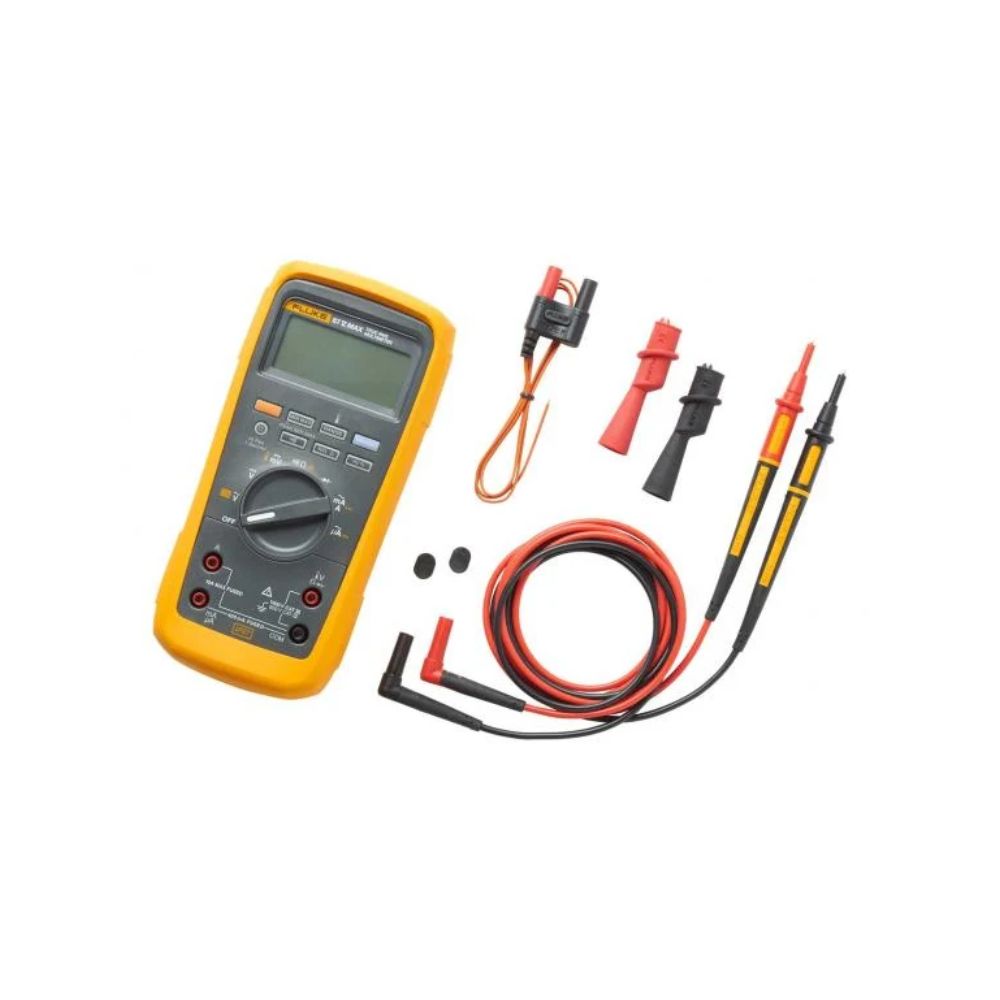

INCLUDES:
• (1) Digital Multimeter
• (1) Temperature Probe
• (1) Test Leads
• (1) Alligator Clips
• (1) Removable Holster with Test Lead Storage
• (3) AA Batteries

FEATURES:
• True-rms AC voltage and current for accurate measurements on non-linear signals
• Measure up to 1,000 V AC and DC
• Measure up to 10 A (20 A for 30 seconds)
• Frequency to 200 kHz
• Built in temperate function conveniently allows you to take temperature readings without having to carry a separate instrument using supplied thermocouple
• Minimum/maximum/average recording, plus 250 ?s Peak minimum-maximum to capture variations automatically
• Unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment
• Large display digits, 2-level bright white backlight and backlit keypad buttons for increased visibility
• Hi resolution 19,999 count display mode
• Long battery life (800 hours)

SPECIFICATIONS:
• DC Voltage Range/Resolution: 0.1 mV to 1000 V
• DC Voltage Accuracy: ±(0.05% + 1)
• AC Voltage Range/Resolution: 0.1 mV to 1000 V
• AC Voltage Accuracy: ±(0.7% + 4) True-rms
• AC Bandwidth: 20 kHz with Low Pass Filter; 3 dB @ 1 kHz
• DC Current Range/Resolution: 0.1 ?A to 10 A (20 A for 30 seconds maximum)
• DC Current Amps Accuracy: ±(0.2% + 2)
• AC Current Range: 0.1 ?A to 10 A (20 A for 30 seconds maximum)
• AC Current Amps Accuracy: ±(1.0% + 2) True-rms
• Resistance Range/Resolution: 0.1 ? to 50 M?
• Resistance Accuracy: ±(0.2% + 1)
• Capacitance Range/Resolution: 0.01 nF to 9999 ?F
• Capacitance Accuracy: ±(1% + 2)
• Frequency Range: 0.5 Hz to 199.99 kHz
• Frequency Accuracy: ±(0.005% + 1)
• Frequency Maximum Resolution: 0.01 Hz
• Maximum Duty Cycle: 99.9%
• Duty Cycle Accuracy: ±(0.2% per kHz + 0.1%)
• Duty cycle Maximum Resolution: 0.1%
• Temperature Measurement Range: –200.0 °C to 1090 °C, –328.0 °F to 1994.0 °F Excluding Probe
• 80 BK Temperature Probe: –40.0 °C to 260 °C, ± 2.2 °C or 2% Whichever is Greater, –40.0 °F to 500 °F, ± 4.0 °F or 2% Whichever is Greater
• Maximum Conductance: 60.00 nS
• Conductance Accuracy: ±(1.0% + 10)
• Conductance Maximum Resolution: 0.01 nS

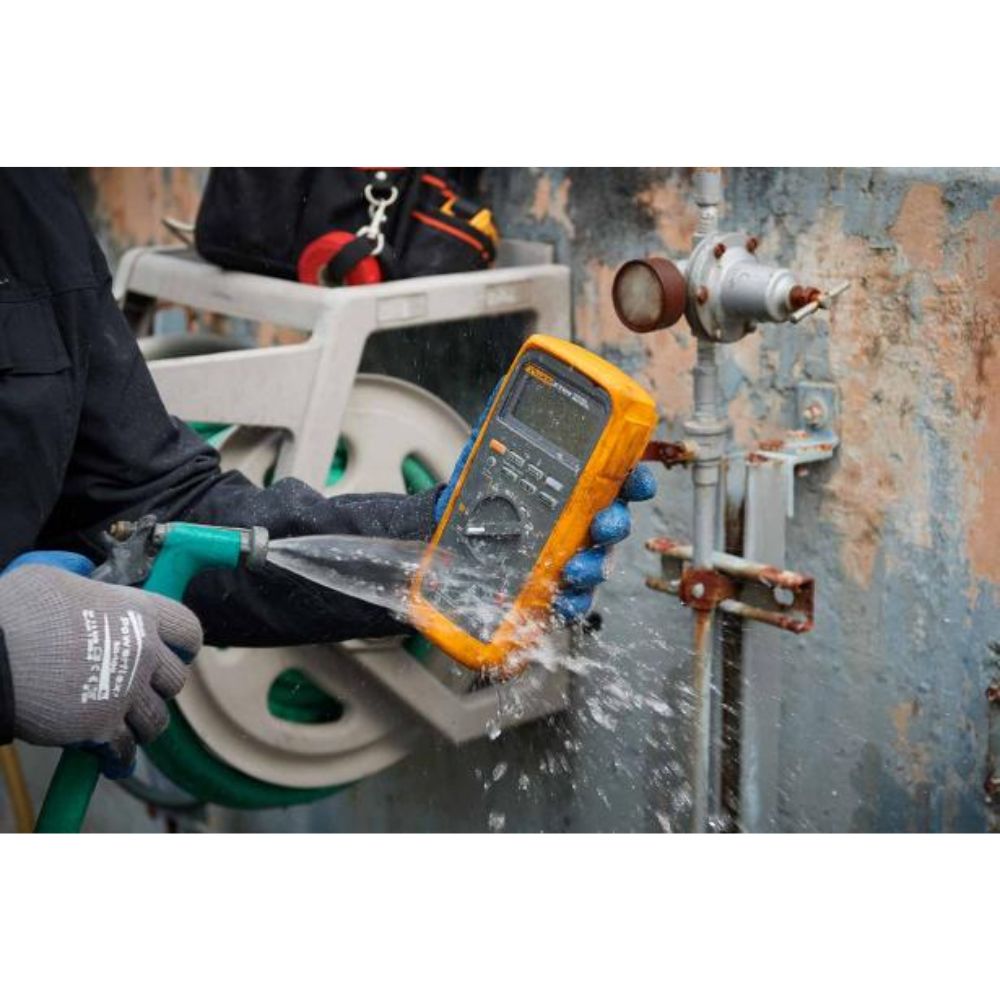

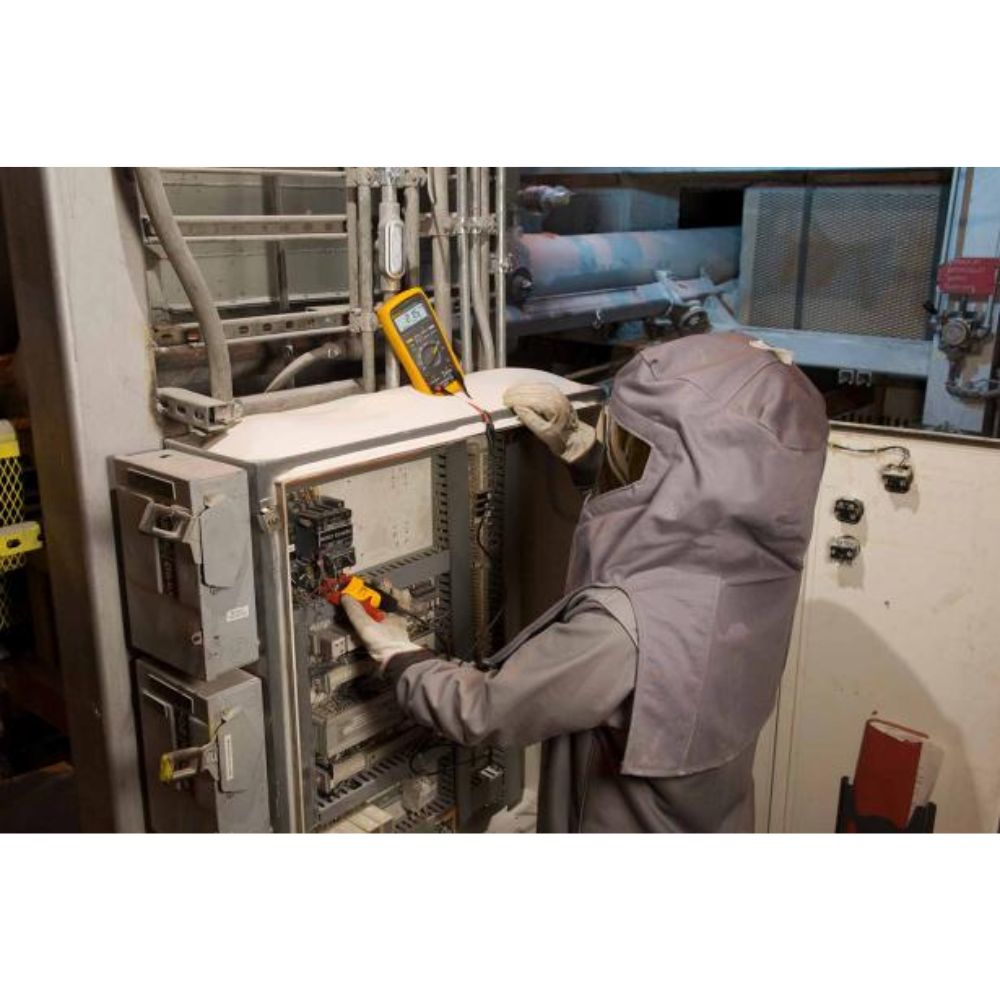

The Fluke 87V MAX is a heavy duty True-rms Digital Multimeter with IP67 rating and 4-meter drop proven. Built for customers whose job takes them to extreme environments: hot, cold, wet, dirty, up ladders, down a hole. This is the DMM that works where others can’t, plus all the trusted features from regular 87V. True-RMS accuracy with all functions of 87V and upgraded test leads. Fully waterproof and dustproof with IP67 rating and 4-meter drop proven. Built to take to harsh and extreme environments. Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.
