Fluke 88-5/A KIT Automotive Multimeter Combo Kit

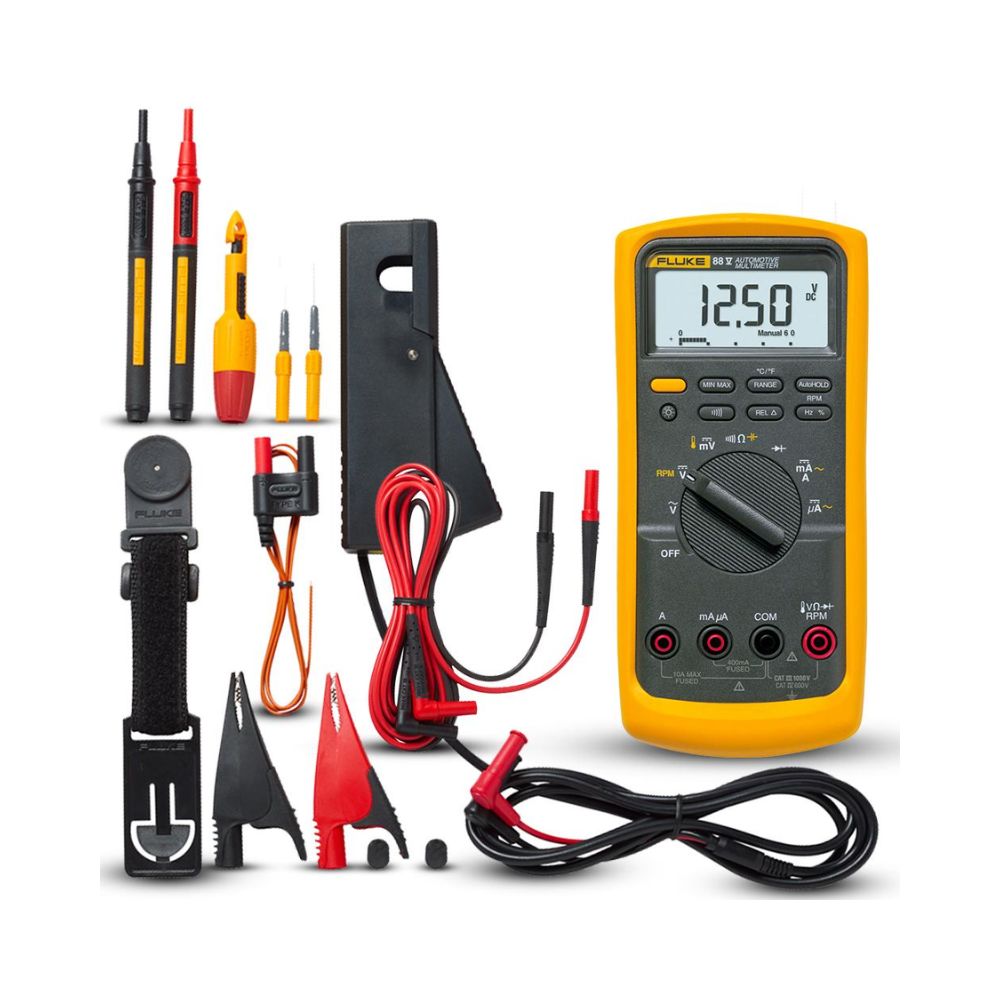

INCLUDES:

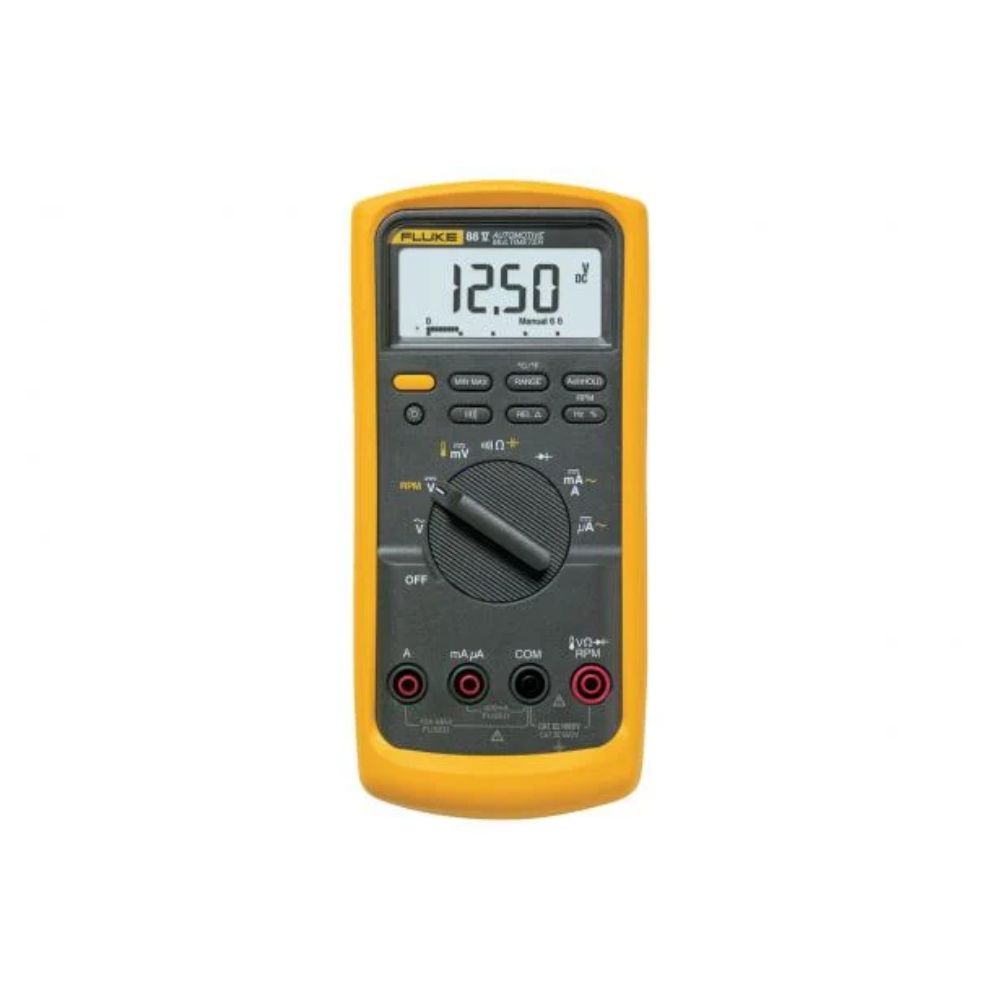

• (1) Automotive Multimeter
• (1) Silicone Test Leads
• (1) Long Reach Alligator Clips
• (1) Test Probes
• (1) RPM 80 Inductive RPM
• (1) TPAK ToolPak Magnetic Meter Hanging Kit
• (1) Temperature Probe
• (2) Automotive Backprobe Pins
• (1) Insulation Piercing Probe
• (1) Holster

FEATURES:
• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
• Magnetic hanger (included with kit) for easy set-up and viewing while freeing your hands for other tasks
• Peak minimum/maximum to capture intermittent events as short as 250 micro seconds
• Large digit display with bright, two-level backlight makes this multimeter significantly easier to read than the old version
• 6000 counts, 3-¾ digits
• Measure up to 1000 V AC and DC
• Measure up to 10 and 20 A for up to 30 seconds
• Built in thermometer lets you carry one less tool (temperature probe included)
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity
• RPM measurements with inductive pickup
• Millisecond pulse width measurements for fuel injectors
• Magnet hanger to attach meter to the vehicle and free your hands for other tasks
• 10,000 ?F capacitance range for components and motor caps
• Minimum/maximum-average recording with minimum/maximum alert to capture variations automatically
• Peak capture to record transients as fast as 250 ?s
• Relative mode to remove test lead interference from low ohms measurements
• Auto and manual ranging for maximum flexibility

SPECIFICATIONS:
• DCV Maximum Voltage: 1000 V, Accuracy: ±(0.1% + 1), Best Resolution: 0.01 mV
• ACV Maximum Voltage: 1000 V, Accuracy: ±(0.5% + 2), AC bandwidth: 5 kHz, Best resolution: 0.01 mV
• Current DC: Maximum Amps: 10 A, Amps Accuracy: ±(0.4% + 2), Best Resolution: 0.001 mA
• Current AC: Maximum Amps: 10 A, Amps Accuracy: ±(1.2% + 2), Best Resolution: 0.001 mA
• Resistance Maximum: 50 M?, Accuracy: ±(0.4% + 1), Best resolution: 0.1?
• Capacitance Maximum: 9999 ?F, Accuracy: ±(1% + 2), Best resolution: 0.01 nF
• Frequency Maximum: 200 KHz, Accuracy: ±(0.005% + 1), Best resolution: 0.01 Hz
• Duty Cycle Maximum: 99.9%, Accuracy: Within 2% per KHz +0.1%, Best resolution: 0.1%
• Temperature Measurements: -328 to 194°F (-200 to 1090°C), 1% Excluding Probe
• 80 BK Temperature Probe: -40 to 500°F (-40 to 260°C), 35.96°F (2.2°C) or 2% Whichever is Greater
• Conductance: Maximum: 60 nS, Accuracy: ±(1% + 10), Maximum resolution: 0.01 nS
• Temperature Range: Operating: -4 to 131°F (-20 to 55°C), Storage: -40 to 140 °F (-40 to 60°C)


Solve problems on conventional and hybrid vehicles with this automotive multimeter combo kit that has improved measurement functions, troubleshooting features, accuracy and allows for maximum productivity. This kit comes with silicone test leads, long reach alligator clips, test probes, and an RPM 80 inductive RPM.
