Fluke | SKU:
4489981

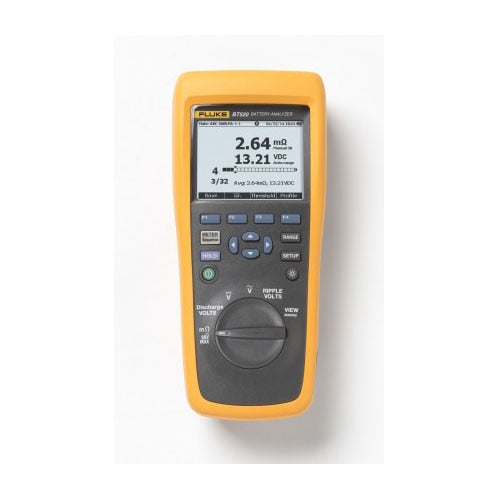

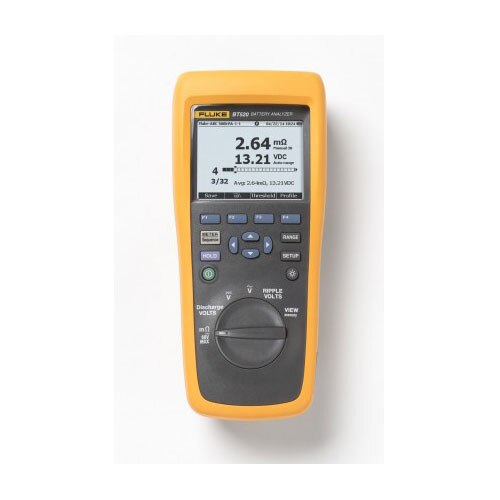

Fluke BT520 Battery Analyzer
Free Shipping
$6,010.99
Unit price
/
Unavailable
Description
Description
Fluke 4489981 Description
Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.
Fluke 4489981 Includes
- (1) Battery analyzer
- (4) Wire test pin (set)
- (1) BTL10 Basic Test Lead (set)
- (1) TL175 TwistGuard™ Test Leads with adapter
- (1) BTL20 Intelligent Test Probe Set, with extender (no temperature sensor)
- (1) BP500 lithium-ion battery
- (1) BC500 AC charger
- (1) Mini-USB cable
- (1) Shoulder strap
- (1) Belt strap
- (1) Magnetic hanging strap
- (1) FlukeView® Battery Management Software
- (1) Soft carrying case
- (2) Spare fuses
- Battery tags and Zero Ohm Calibration Resistor
Fluke 4489981 Features
- All of the above plus
- BTL20 Interactive Test Probe set, with long and short probe extenders and built-in LCD display and speaker for visual and audio feedback
- Large soft carry case
Fluke 4489981 Specifications
| Dimensions H x W x D | 9" x 4" x 2" |
| Screen dimensions | 3" x 2.2" |
| Interface | USB mini |
| Warranty | 3 years |
| Operating temperature | 0°C to 40°C |
| Storage temperature | -20°C to 50°C |
| Lithium-ion battery charging temperature | 0°C to 40°C |
| Operating humidity | Non-condensing (10°C); ≤ 80% RH (at 10°C to 30°C); ? 75% RH (at 30°C to 40°C) |
| Operating altitude | Sea level to 2000 meters |
| Storage altitude | Sea level to 12,000 meters |
| IP rating | IP40 |
| Radio | FCC Class A |
| Vibration requirements | MIL-PRF-28800F |
| Drop test requirements | 1 meter |
| Temperature coefficients | Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C |
| Safety compliance | 600 V CAT III |
| EMC | IEC 61326 |
| Protection class 2 | Pollution Degree II |
| Battery compliance | UN38.3; UL2054; IEC62133; 2 G per IEC68-2-26, 25 G, and 29 |
