Fluke | SKU:
FIBERLERT-125

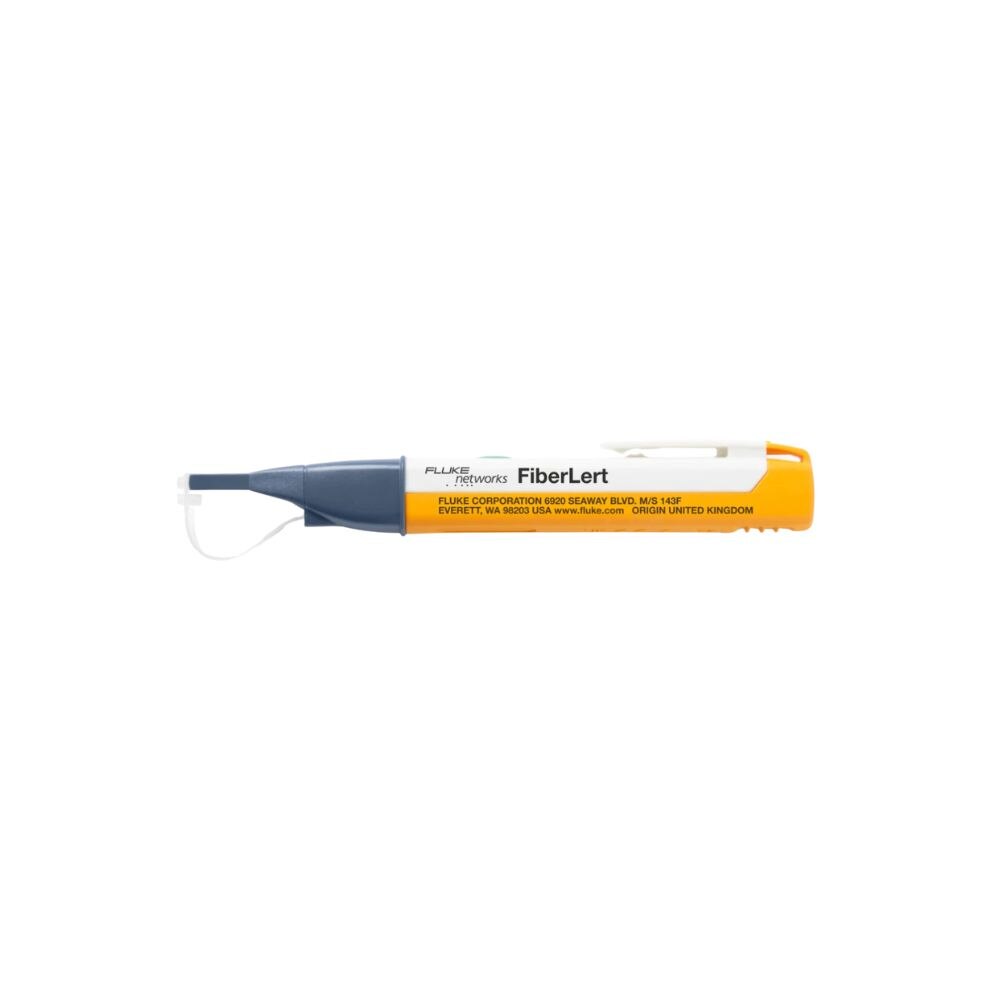

Fluke FIBERLERT-125 Fiber Optic Cable Tester and Detector, 850nm to 1625nm
$143.36
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
INCLUDES:
• (1) FiberLert Detector
• (2) AAA Batteries
• (1) Instruction Card
FEATURES:
• Detects optical power in SM and MM fiber (850 to 1625 nm)
• No setup or interpretation – light and sound indicate signal
• “Non-contact” detector reduces risk of contamination and damage
• Suitable for ports and patch cords, SM, MM, UPC and APC
• LightBeat feature indicates operation and battery status
SPECIFICATIONS:
• Operating Principle: FiberLert is a live fiber detector that senses near infrared light emitted from fiber optic cabling. A continuous red glow at the handle and an audible beeping noise (if not switched off) indicates the presence of near infrared light.
• Optical Interface: Non-contact ceramic ferrule. Fits directly with 1.25 mm LC receptacles. Tethered ferrule adapter for testing 1.25 mm ferrule patch cord. Supports single-mode, multimode, UPC and APC connectors and ports.
• Wavelength Detection: 850 nm to 1625 nm
• Optical Power Detection Range: +3 dBm to -30 dBm
• Light Detection: Visible steady red LED indicator when optical power is detected
• Lightbeat Indicator: Flashes twice every two seconds when unit is on and battery strength is sufficient.
• Battery Saver: Unit automatically turns off after five minutes of inactivity
• Batteries: 2 AAA Alkaline batteries included
• Battery Life: Typically, greater than 1 year (5 hrs. of use a week)
• Operating Temperature Range: -10 °C to 50 °C
• Operating Humidity Ranges 95 % (10 °C to 35 °C), Non-condensing 75 % (35 °C to 40 °C), Non-condensing uncontrolled < 10 °C
• Operating Altitude: ? 3000 meters
• Storage Temeperature: -20 °C to 50 °C
Quickly verify fiber activity, polarity, and connectivity with the FiberLert Live Fiber Detector. This pocket-sized tool tests single-mode, multimode, UPC and APC patch cords and ports with a non-contact / non-contaminating detector. The LightBeat feature flashes the LED, indicating a powered-on condition and good battery, a timer shuts FiberLert off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.
• (1) FiberLert Detector
• (2) AAA Batteries
• (1) Instruction Card
FEATURES:
• Detects optical power in SM and MM fiber (850 to 1625 nm)
• No setup or interpretation – light and sound indicate signal
• “Non-contact” detector reduces risk of contamination and damage
• Suitable for ports and patch cords, SM, MM, UPC and APC
• LightBeat feature indicates operation and battery status
SPECIFICATIONS:
• Operating Principle: FiberLert is a live fiber detector that senses near infrared light emitted from fiber optic cabling. A continuous red glow at the handle and an audible beeping noise (if not switched off) indicates the presence of near infrared light.
• Optical Interface: Non-contact ceramic ferrule. Fits directly with 1.25 mm LC receptacles. Tethered ferrule adapter for testing 1.25 mm ferrule patch cord. Supports single-mode, multimode, UPC and APC connectors and ports.
• Wavelength Detection: 850 nm to 1625 nm
• Optical Power Detection Range: +3 dBm to -30 dBm
• Light Detection: Visible steady red LED indicator when optical power is detected
• Lightbeat Indicator: Flashes twice every two seconds when unit is on and battery strength is sufficient.
• Battery Saver: Unit automatically turns off after five minutes of inactivity
• Batteries: 2 AAA Alkaline batteries included
• Battery Life: Typically, greater than 1 year (5 hrs. of use a week)
• Operating Temperature Range: -10 °C to 50 °C
• Operating Humidity Ranges 95 % (10 °C to 35 °C), Non-condensing 75 % (35 °C to 40 °C), Non-condensing uncontrolled < 10 °C
• Operating Altitude: ? 3000 meters
• Storage Temeperature: -20 °C to 50 °C
Quickly verify fiber activity, polarity, and connectivity with the FiberLert Live Fiber Detector. This pocket-sized tool tests single-mode, multimode, UPC and APC patch cords and ports with a non-contact / non-contaminating detector. The LightBeat feature flashes the LED, indicating a powered-on condition and good battery, a timer shuts FiberLert off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.
