Fluke FLK-287/FVF/IR3000 287 Industrial Logging Digital Multimeter Combo Kit with Fluke Connect Compatibility and FlukeView Software

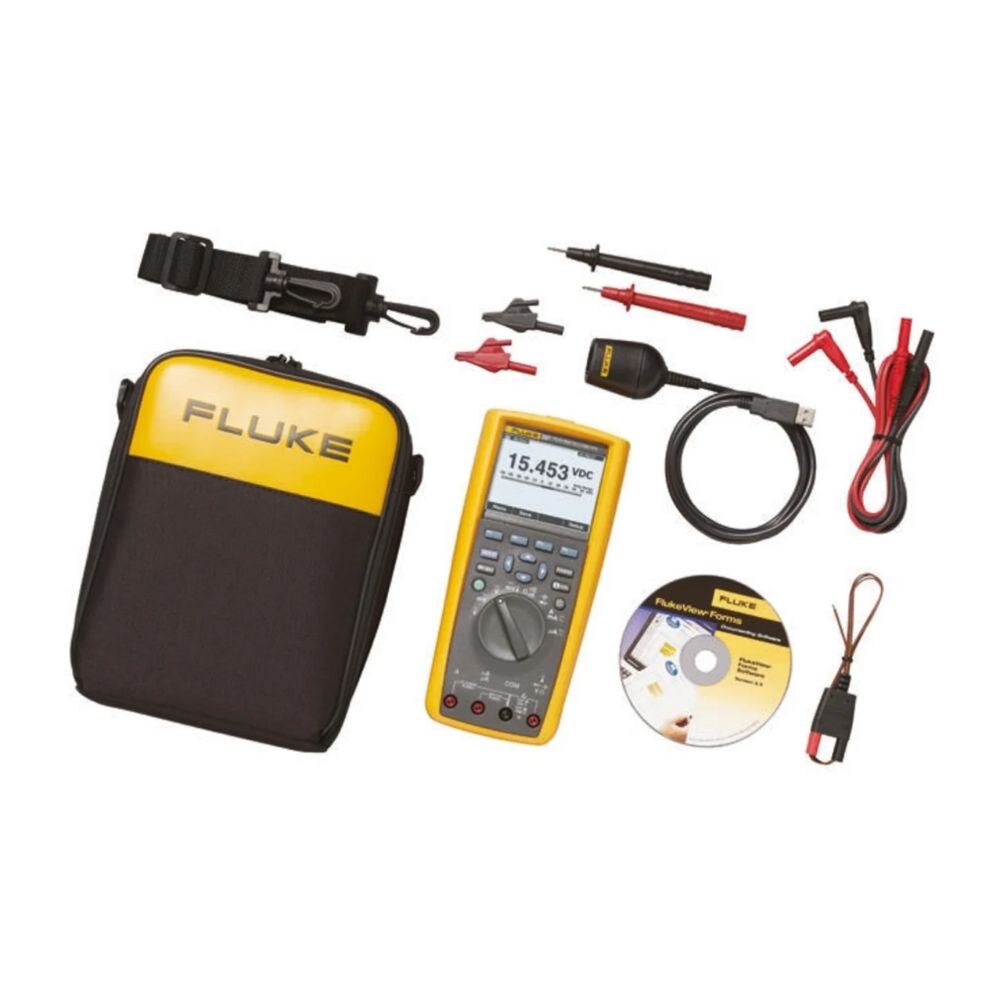

INCLUDES:

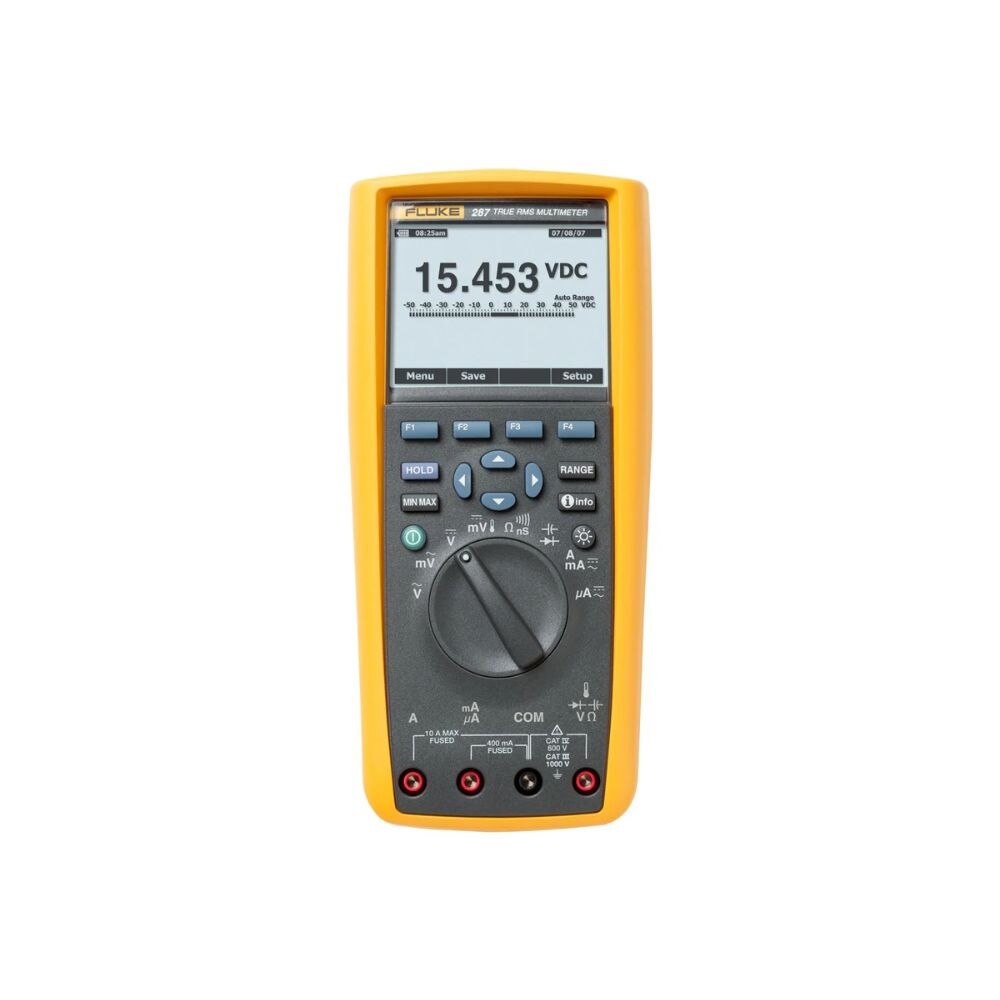

• (1) True-RMS Electronics Logging Digital Multimeter with TrendCapture (287)
• (1) Wireless Fluke Connect Module (ir3000 FC)
• (1) FlukeView Forms Software (CD)
• (1) Thermocouple Probe (80BK-A)
• (2) CAT II 1000V 10A Modular Test Probes with CAT III Caps
• (2) CAT III 1000V 10A Alligator Clips (Red, Black)
• (1) ToolPak Magnetic Hanging Kit (TPAK)
• (1) Soft Case (C280)
• (1) Amp Jack Plug Set

FEATURES:
• True-RMS Electronics Logging Digital Multimeter with TrendCapture
• True-RMS AC voltage and current for accurate measurements on complex signals or non linear loads
• Compatible with Fluke Connect (requires IR 3000 FC infrared connector)
• TrendCapture quickly and graphically displays logged data sessions
• Zoom on trend provides ability to view and analyze TrendCapture data; zoom in up to 14x
• Selectable AC filter (smoothing mode) displays steadier readings when input signal changes rapidly or noisily
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
• Large, white, 50,000-count, backlit 1/4 VGA display
• Multiple sets of measurements can be simultaneously displayed
• Logging function with expanded memory for unattended monitoring of signals over time
• Store up to 15,000 recorded events
• On-board help screens for measurement functions
• Saved measurements allow you to name and recall measurements made in the field
• Multi-lingual interface
• Multiple logging sessions possible without download
• 0.025% basic DC accuracy
• 100 kHz AC bandwidth
• Real-time clock for automatic time stamping

SPECIFICATIONS:
• DC Volts Range and Resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
• DC Volts Accuracy: 0.025 %
• AC Volts Range and Resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
• AC Volts Accuracy: 0.4 % (True-RMS)
• DC Current Range and Resolution: 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
• DC Current Accuracy: 0.05 %
• AC Current Range and Resolution: 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
• AC Current Accuracy: 0.6 % (True-RMS)
• Temperature (Excluding Probe): -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
• Temperature (Excluding Probe) Accuracy: 1.0 %
• Resistance range and Resolution: 500.00 ?, 5.0000 k?, 50.000 k?, 500.00 k?,5.0000 M?, 50.00 M?, 500.0 M?
• Resistance Accuracy: 0.05 %
• Capacitance Range and Resolution: 1.000 nF,10.00 nF 100.0 nF, 1.000 ?F, 10.00 ?F, 100.0 ?F, 1000 ?F, 10.00 mF, 100 mF
• Capacitance Accuracy: 1.0 %
• Frequency Range and Resolution: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
• Frequency Accuracy: 0.005 %
• Connectivity: Optional Infrared Connector Via Fluke ir3000 FC
• Maximum Voltage Between Any Terminal and Earth Ground: 1000 V
• Battery Type: 6 AA Alkaline Batteries, NEDA 15A IECLR6
• Battery Life: 100 hours Minimum, 200 hours in Logging Mode
• Temperature Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C
• Relative Humidity: 0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C)
• Electromagnetic Compatibility: EMC EN61326-1
• Vibration: Random Vibration per MIL-PRF-28800F Class 2

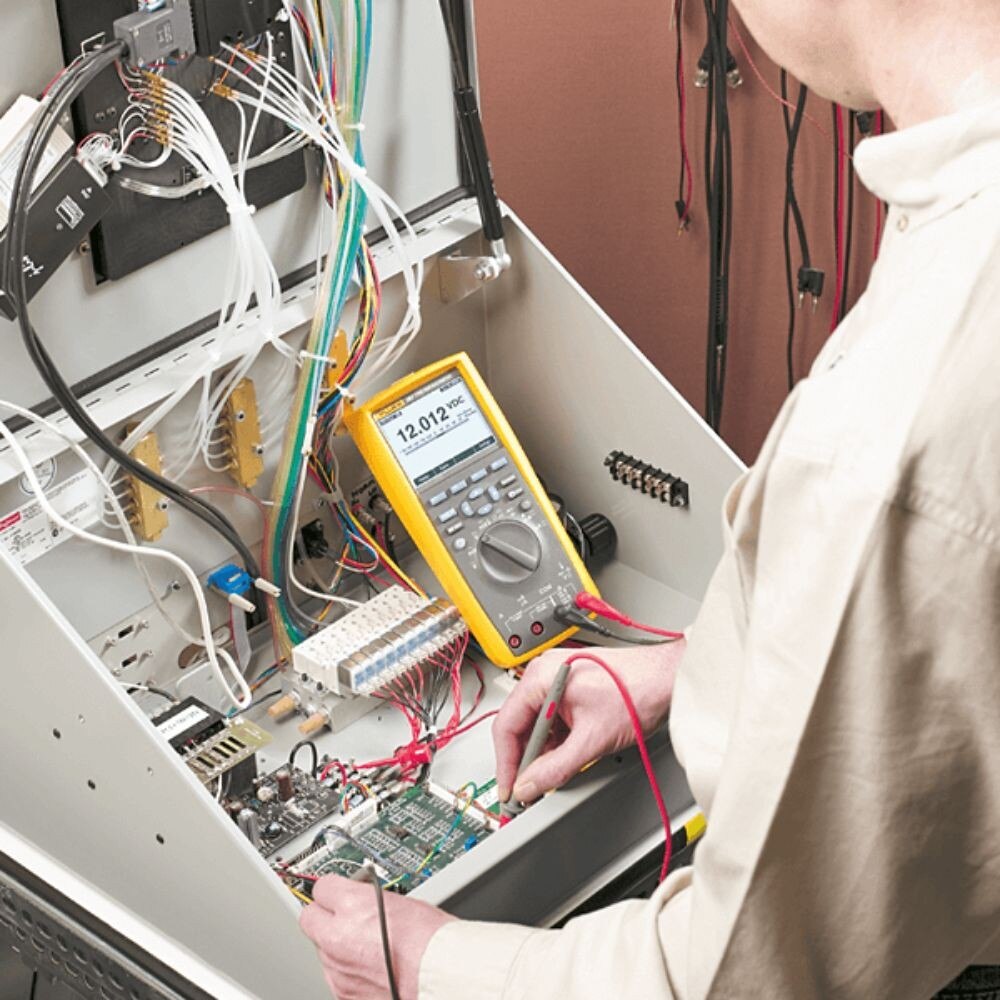

Maximize productivity with the combined Fluke 287 and FlukeView Forms Combo Kit. With built-in data logger and TrendCapture capability, the 287 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms software allows you to overlay your logged data from six meters or six time periods to find cause and affect relationships or for condition monitoring. Turn your data into meaningful graphs and tables for a professional report or analyze individual readings or series of measurements. The 287 is compatible with the Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit, which now includes the ir3000 FC Connector, gives you a practical and affordable approach to predictive maintenance.
