Fluke FLK-289/FVF/IR3000 289 True-RMS Electronics Logging Digital Multimeter Combo Kit

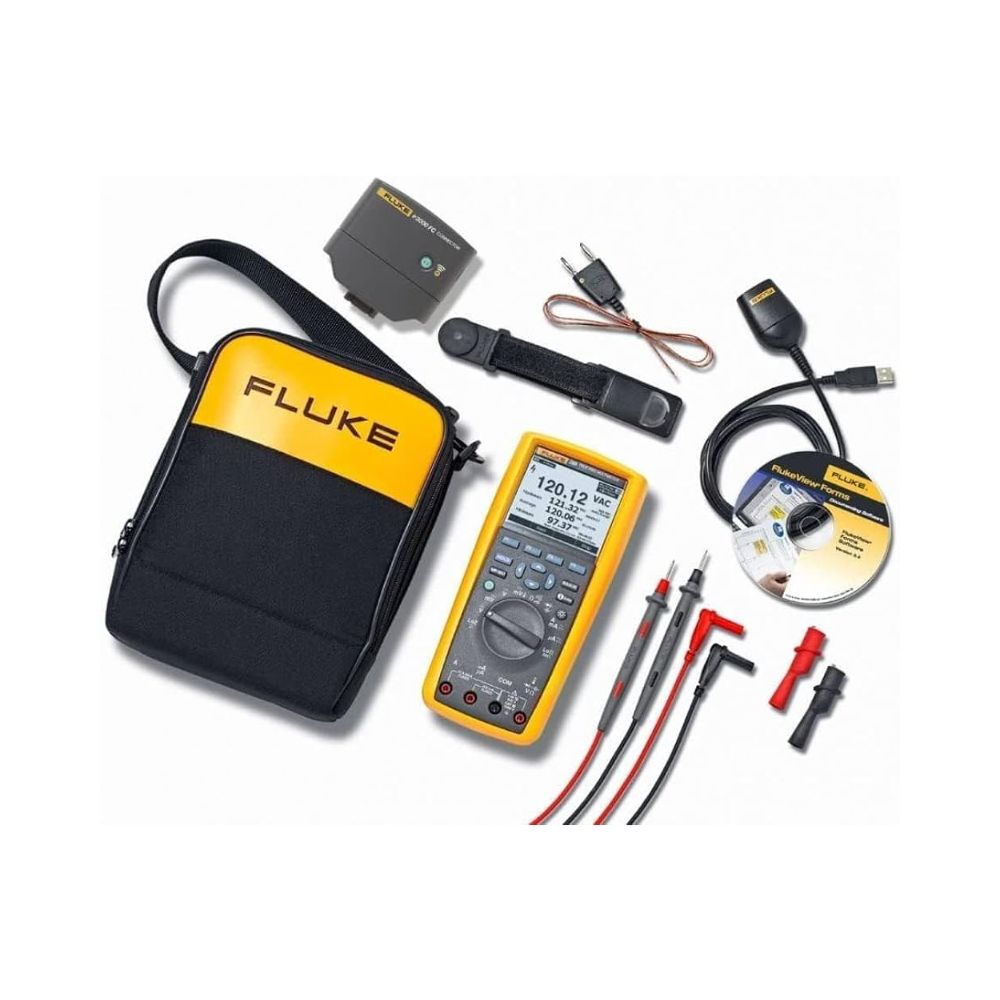

INCLUDES:
• (1) 289 True RMS Industrial Data Logging Multimeter
• (1) IR3000 FC Connector
• (1) FlukeView Forms Software and cable
• (1) TL71 Silicon Test Lead Set
• (1) AC175 Alligator Clips
• (1) 80BK-A Thermocouple Probe
• (1) TPAK Magnetic Meter Hanger Kit
• (1) Amp Jack Plug Set
• (1) Carrying Case

FEATURES:
• Share results with your team using ShareLive video call (requires ir3000 FC wireless connector [sold separately] and Fluke Connect mobile app)

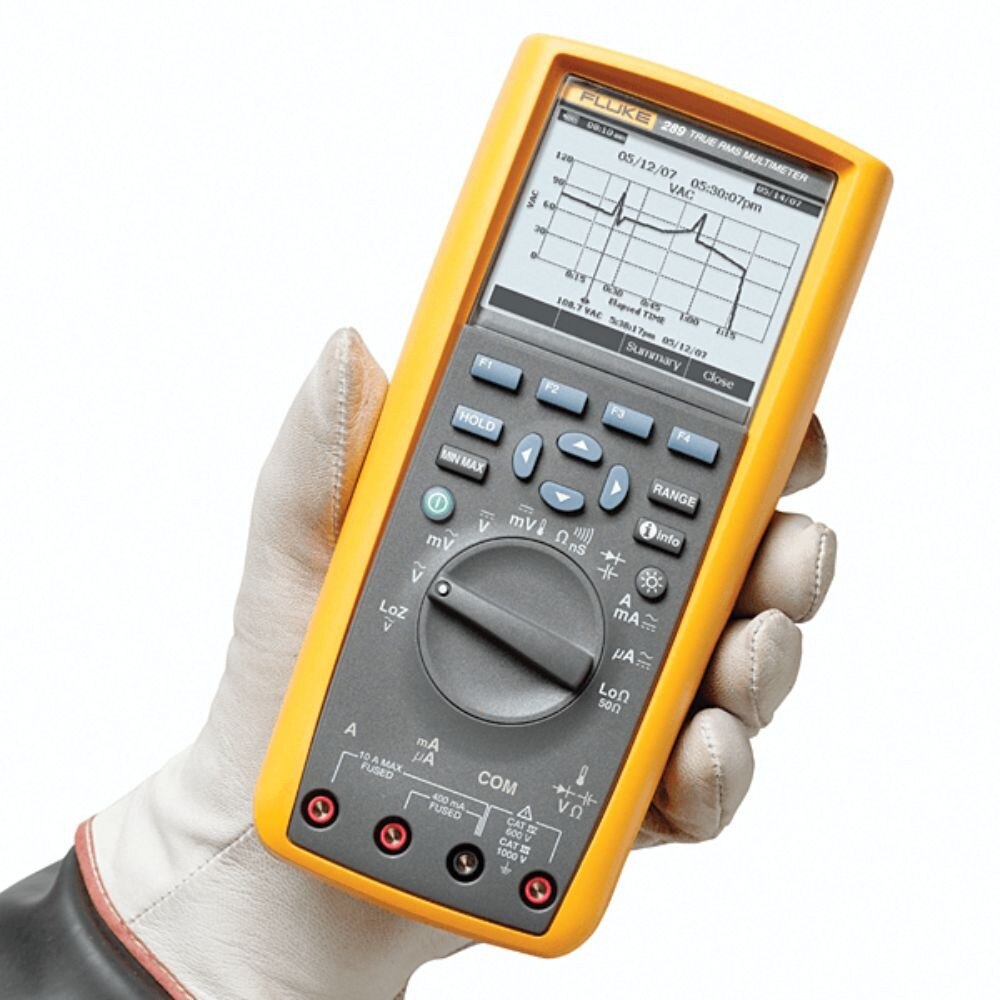

• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
• Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment
• LoZ volts, low impedance voltage function for eliminating ghost voltages
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
• Large 50,000 count, ¼ VGA dot matrix display with white backlight
• Logging function with expanded memory for unattended monitoring of signals over time
• Using on-board TrendCapture users can graphically review logged readings without needing a PC
• Store up to 15,000 recorded events
• Save multiple logging sessions before PC download is necessary
• Two terminal 50 ? range with 1 M? resolution, 10 mA source current
• On board help screens for measurement functions
• Real time clock for automatic time stamping of saved readings
• Relative mode to remove test lead resistance from low ohms or capacitance measurements
• True RMS AC voltage and current for accurate measurements on non-linear signals
• Measure up to 10 A (20 A for 30 seconds)

SPECIFICATIONS:
• DC Volts Range/Resolution: 50.000 to 500.00 mV, 5.0000 to 50.000 V, 500.00 to 1000.0 V
• DC Volts Basic Accuracy: 0.025%
• AC Volts Range/Resolution: 50.000 to 500.00 mV, 5.0000 to 50.000 V, 500.00 to 1000.0 V
• AC Volts Basic Accuracy: 0.4% (True RMS)
• DC Current Range/Resolution: 500.00 to 5000.0 µA, 50.000 to 400.00 mA, 5.0000 to 10.000 A
• DC Current Basic Accuracy: 0.05%
• AC Current Range/Resolution: 500.00 to 5000.0 µA, 50.000 to 400.00 mA, 5.0000 to 10.000 A
• AC Current Basic Accuracy: 0.6% (True RMS)
• Temperature (Excluding Probe) Range/Resolution: 328 to 2462°F (-200 to 1350°C)
• Temperature (Excluding Probe) Basic Accuracy: 1.0%
• Resistance Range/Resolution: 50.000 to 500.00 ?, 5.0000 to 50.000 k?, 500.00 k? to 5.0000 M?, 50.00 to 500.0 M?
• Resistance Basic Accuracy: 0.05%
• Capacitance Range/Resolution: 1.000 to 10.00 nF, 100.0 nF to 1.000 µF, 10.00 to 100.0 µF, 1000 µF to 100 mF
• Capacitance Basic Accuracy: 1.0%
• Frequency Range/Resolution: 99.999 to 999.99 Hz, 9.9999 to 999.99 kHz
• Frequency Basic Accuracy: 0.005%
• Maximum Voltage Between any Terminal and Earth Ground: 1000 V
• Battery Type: 6 x AA Alkaline Batteries, NEDA 15A IECLR6
• Battery Life: 100 hours Minimum, 200 hours in Logging Mode
• Operating Temperature: -4 to 131°F (-20 to 55°C)
• Storage Temperature: -40 to 140°F (-40 to 60°C)
• Relative Humidity: 0 to 90% (32 to 98.6°F [0 to 37°C]), 0 to 65% (98.6 to 113°F [37 to 45°C]), 0 to 45% (113 to 131°F [45 to 55°C])
• Electromagnetic Compatibility: EMC EN61326–1
• Vibration Random: Vibration per MIL-PRF-28800F Class 2


Comes equipped with a built-in data logger and TrendCapture capability, this instrument allows users to track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms software allows users to overlay their logged data from six meters or six periods to identify a cause and effect relationship or for condition monitoring. Users can also turn their data into graphs and tables for reports or analyze individual readings or series of measurements. Compatible with the Fluke ir3000 FC infrared connector, which enables users to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. This combo kit comes equipped with the ir3000 FC connector.
