Fluke | SKU:
FLK-729PRO 7M

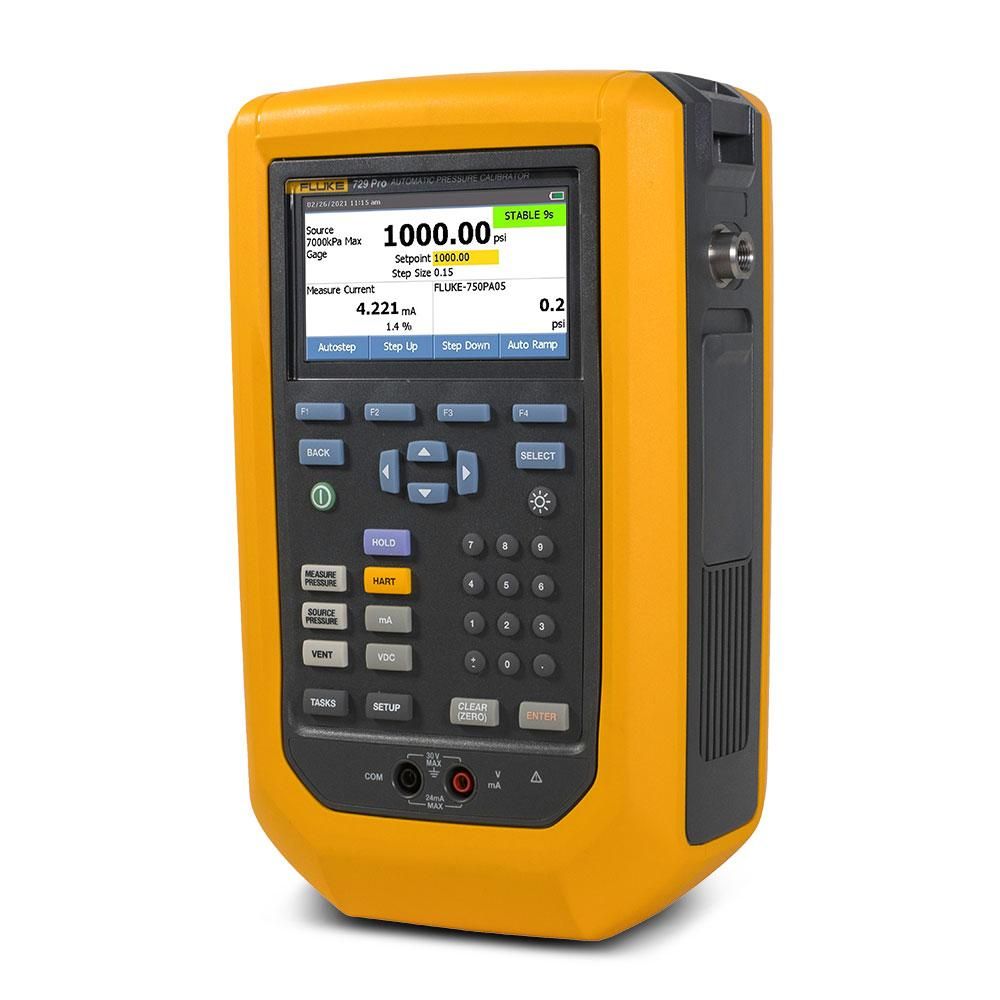

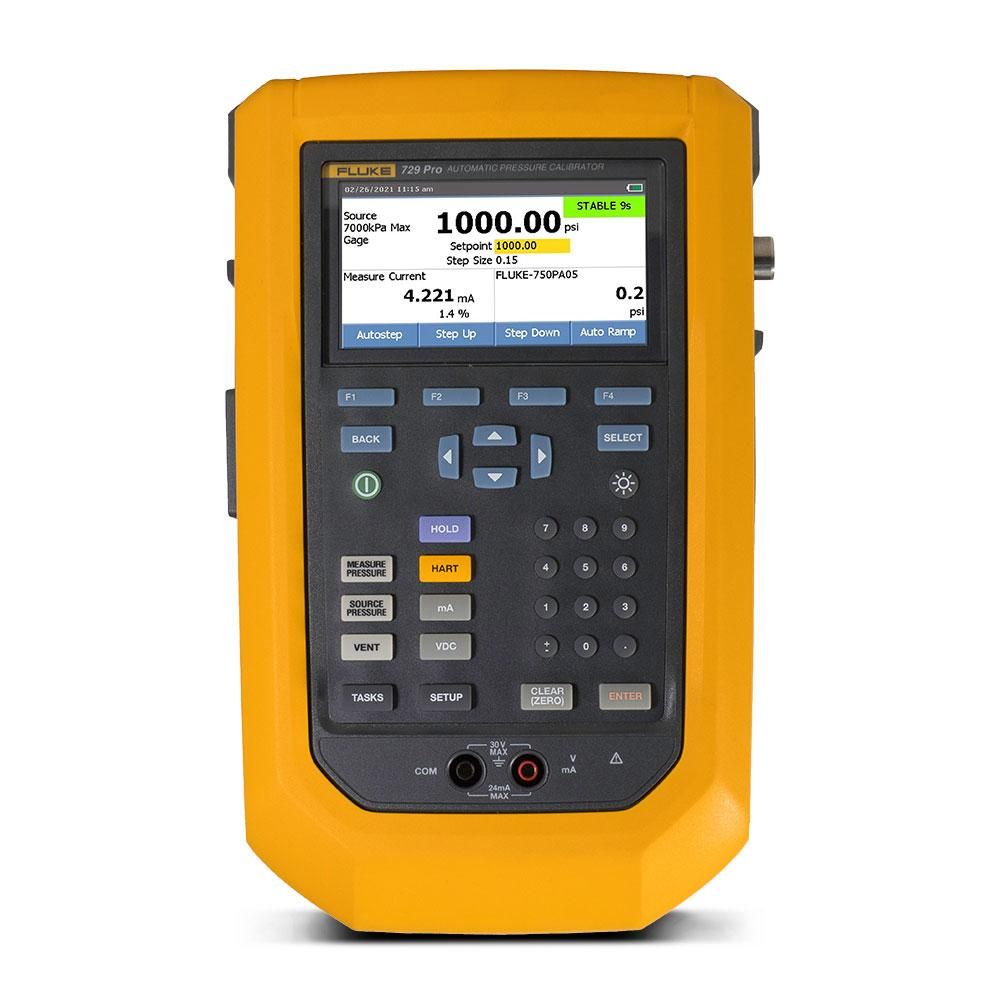

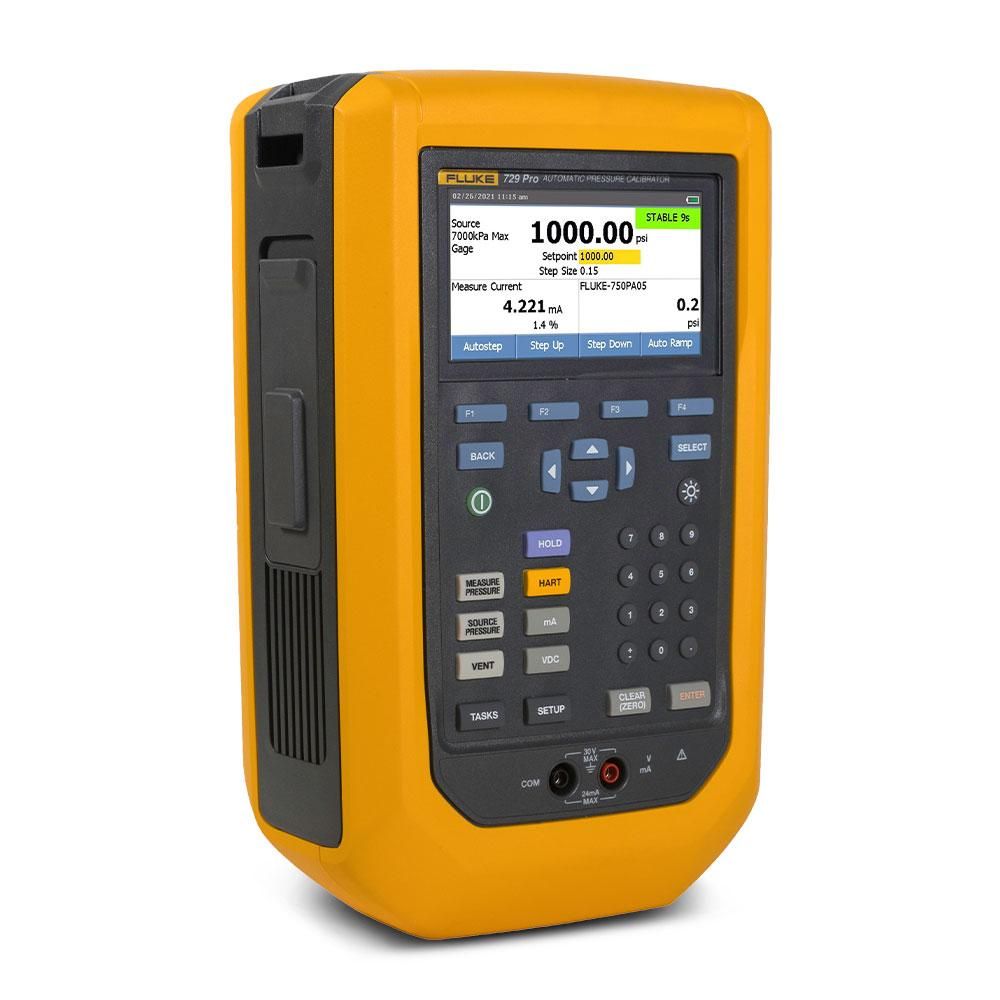

Fluke FLK-729PRO 7M 729 Pro Automatic Pressure Calibrator, 7MPA
Free Shipping
$16,656.99
Unit price
/
Unavailable
Description
Description
Fluke 5300483 Description
The Fluke 729 Pro 7M Automatic Pressure Calibrator is a portable field pressure calibration tool for lab or field use. This Automatic Pressure Calibrators covers a broad pressure range up to 1,000 psi. The 729Pro with its’ higher capacity built in electric pump is also much faster to pressures than the standard Fluke-729.
Fluke 5300483 Includes
- (1) AC/DC Converter
- (1) Power Cord
- (1) Rechargeable Lithium-ion Battery
- (1) Stackable Test Lead Set
- (1) AC280 Sure Grip Hook Set
- (1) Alligator Clips
- (1) TP220 Test Probes
- (1) USB Communication Cable
- (1) Flexible Hose
- (1) 1/8" FNPT to 1/4" FNPT
- (1) 1/8" MNPT to 1/4" MNPT
- (1) 1/8" F-NPT to F-M20
- (1) 1/4" FBSP to 1/8" FNPT
- (1) Pressure Measurement Module
- (1) PTFE Tape
- (1) Water Drain
- (1) Adjustable Quick-Release Hanging Strap
- (1) Safety Information and Traceable Calibration Report with Data
Fluke 5300483 Features

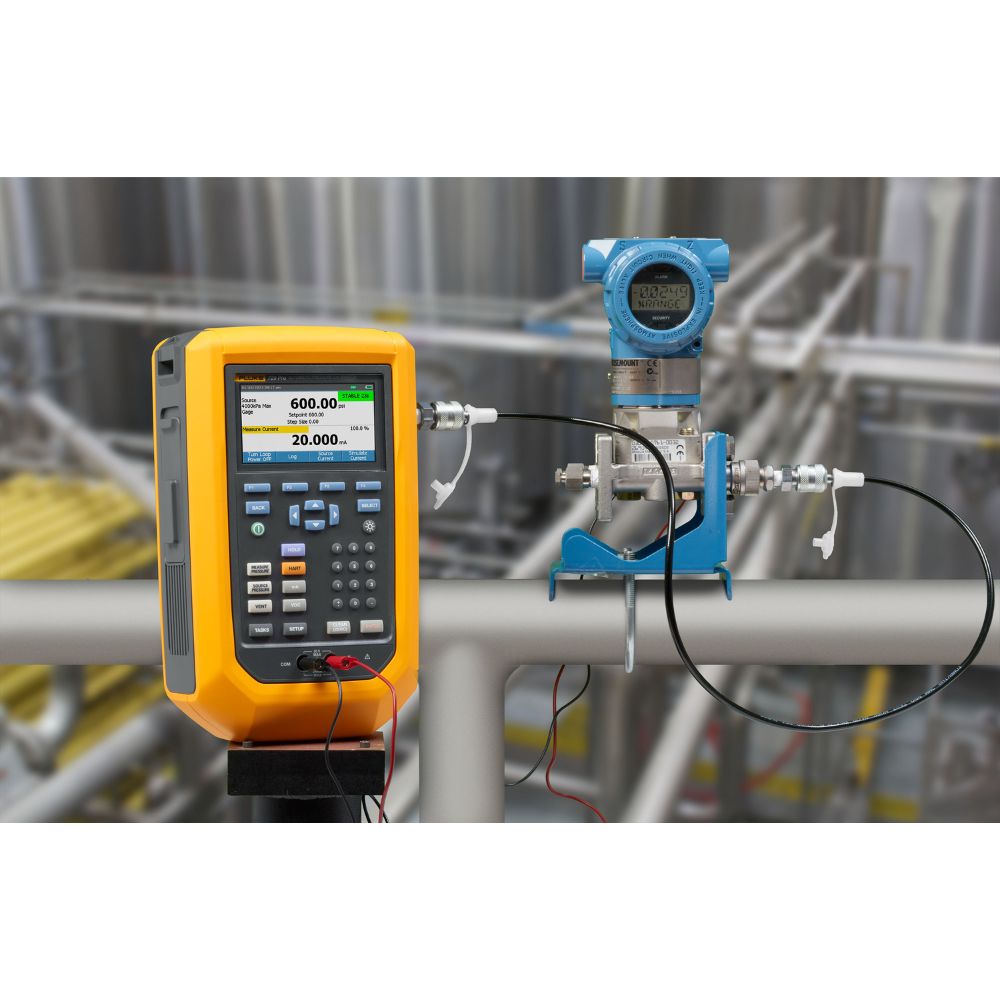

- Automatically source and measure pressure up to 1,000 psi to test and calibrate pressure sensors, transmitters and other pressure instruments
- Replaceable pressure control modules
- Built-in test templates, one-key calibration
- HART communication
- Pressure leakage testing
- Automatic fine-pressure adjustment, automatic pressure stabilization
- Powerful, replaceable Li-ion battery
- Quick pressure release valve with a muffler
- Extend measurement range with 750P Series pressure modules
- Measure temperature with 720RTD probe
- Bright dual-three-channel /color graphic display
- Rugged and portable design with standard 3-year warranty
- Absolute and gauge pressure modules up to 7MPa.
- Use the modules to change the Fluke 729Pro to a different output pressure range
Fluke 5300483 Specifications
| Pressure Control Range | -13 to 1000 psi, -90 to 7000 kPa, -0.90 to 70 bar |
| Pressure Type | Gauge/Absolute (Depends on the type of internal or external pressure module) |
| Pressure Accuracy and Control Stability | 0.02% of FS, 0.005% of FS |
| Replaceable Pressure Measurement Modules | Yes, 6 Modules |
| mA Sourcing/Measurement | Yes |
| Voltage Measurement | Yes |
| Loop Power | 24V DC |
| Pressure Switch Testing | Yes |
| Pressure Leakage Testing | Yes |
| HART Communication | Yes, Basic Commands Supported |
| Autostep/Auto Ramp | Yes (with customizable speed, mode and style) |
| Battery | Rechargeable Lithium Battery with Charge Indication (charged in the instrument or separately) |
| Stability | Pumps to Target Pressure and Automatically Stabilizes |
| Display | Multi-Color Triple Display |
| Length | 9.4" |
| Width | 4.4" |
| Height | 4.3" |
