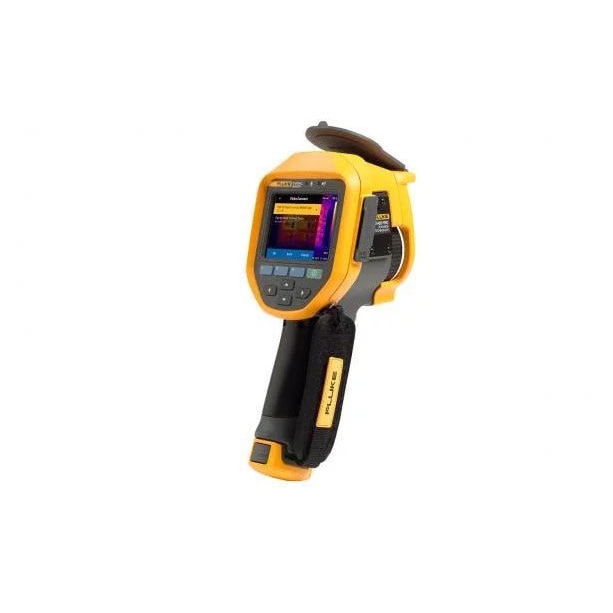

Fluke FLK-Ti480 PRO 9 Hz PRO Infrared Camera
Description
Description
Fluke 4947326 Description
With the Ti480 PRO MultiSharp™ focus captures images that are focused throughout the field of view, even if you start from a completely blurry target. The camera takes multiple images and combines them to give a clear, accurate focus on targets near and far. See more detail with SuperResolution, offering 4x the pixel data. Using the software and SuperResolution you can view images with up to 1280 x 960 resolution. You can wirelessly sync images directly from your camera to the Fluke Connect® system, and attach it to an asset record or work order. Having access to maintenance records simultaneously at the inspection site and from the office or an off-site location enables faster decision making and real time collaboration between team members. You can also live stream the camera display to your smartphone or PC and remotely control the camera.
Fluke 4947326 Includes
- (1) Thermal imager with standard infrared lens
- (1) AC power supply and battery pack charger (including universal AC adapters)
- (2) Rugged lithium ion smart battery packs
- (1) USB cable
- (1) HDMI video cable
- (1) 4 GB micro SD card
- (1) Rugged, hard carrying case
- (1) Soft transport bag
- (1) Adjustable hand strap
Fluke 4947326 Features
- Increased sensitivity to visualize temperature differences
- Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
- More intuitive visual interface, improved, user-tested, touch screen interface
- More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
- Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
- Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
- Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
- Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
- Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
- Capture smaller temperature differences with increased thermal sensitivity
- Sharper onscreen images with better visual color differentiation
- Display deviations from standard temperatures and communicate issues with your team using multiple Delta-T markers - choose one as a reference point and the others to display a value as a difference
- Multiple rectangle markers in-camera - identify min/max temperatures for an area of the equipment or an equipment array
- Distinguish heat differences more easily with a new palette and a wider array of yellows and greens in the display
- Improved, user-tested, touch screen interface leverages current styles and is more intuitive than ever
- Macro, telephoto and wide angle – from tiny to large, capture your target
Fluke 4947326 Specifications
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D |
| Detector resolution | 640 x 480 |
| SuperResolution | Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image |
| Infrared resolution | 307,200 pixels |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5" (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | 2x and 4x |
