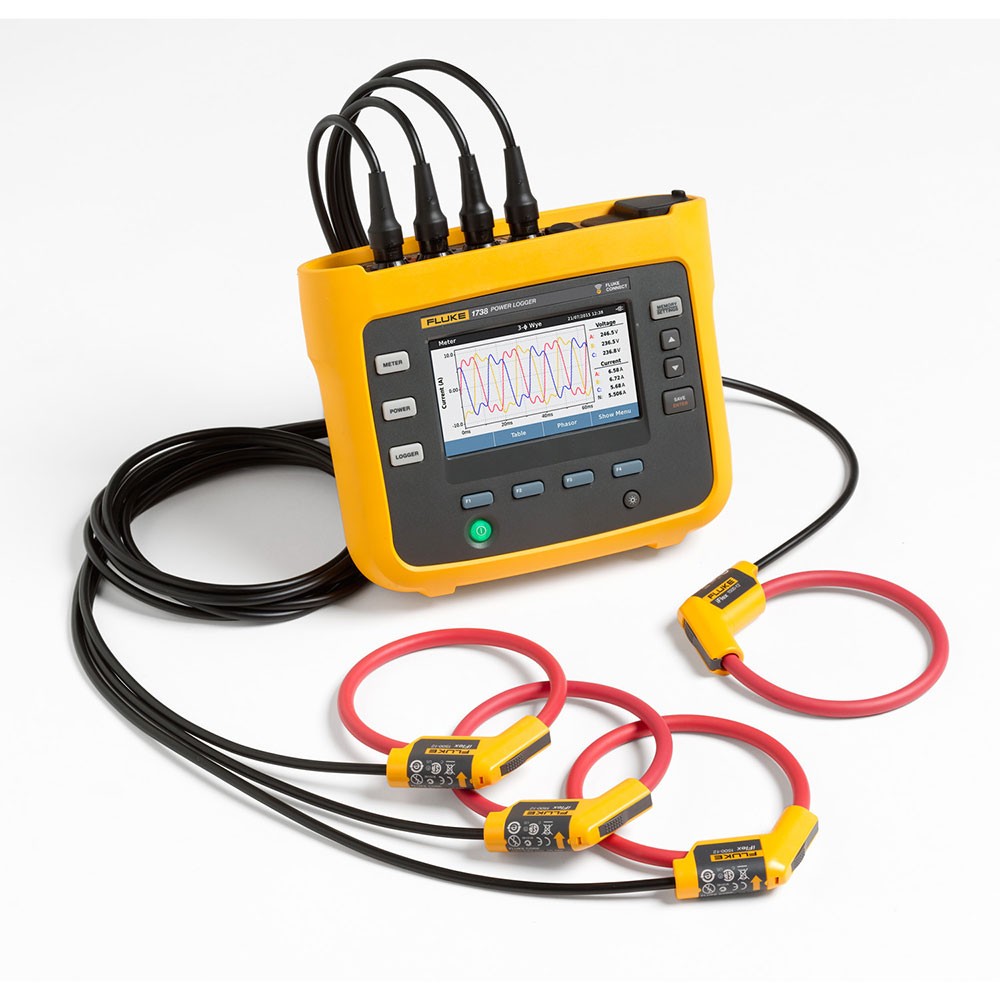

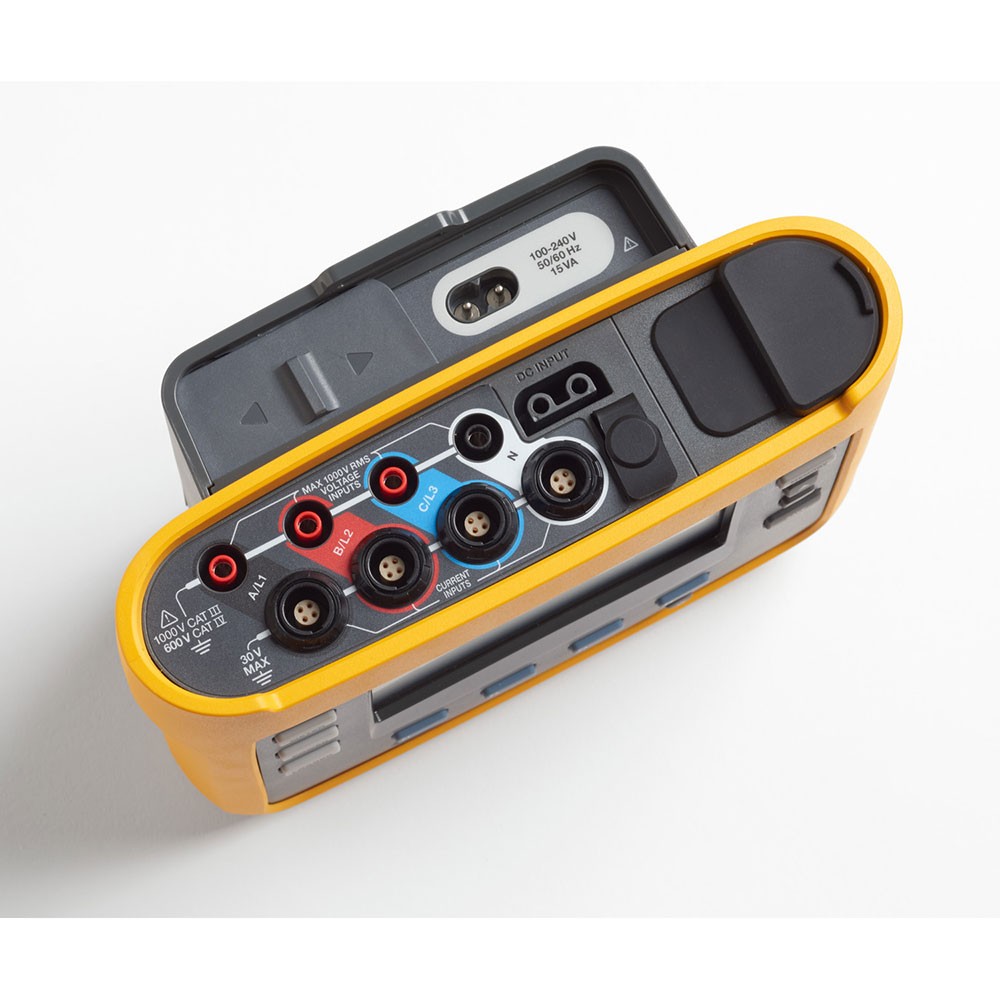

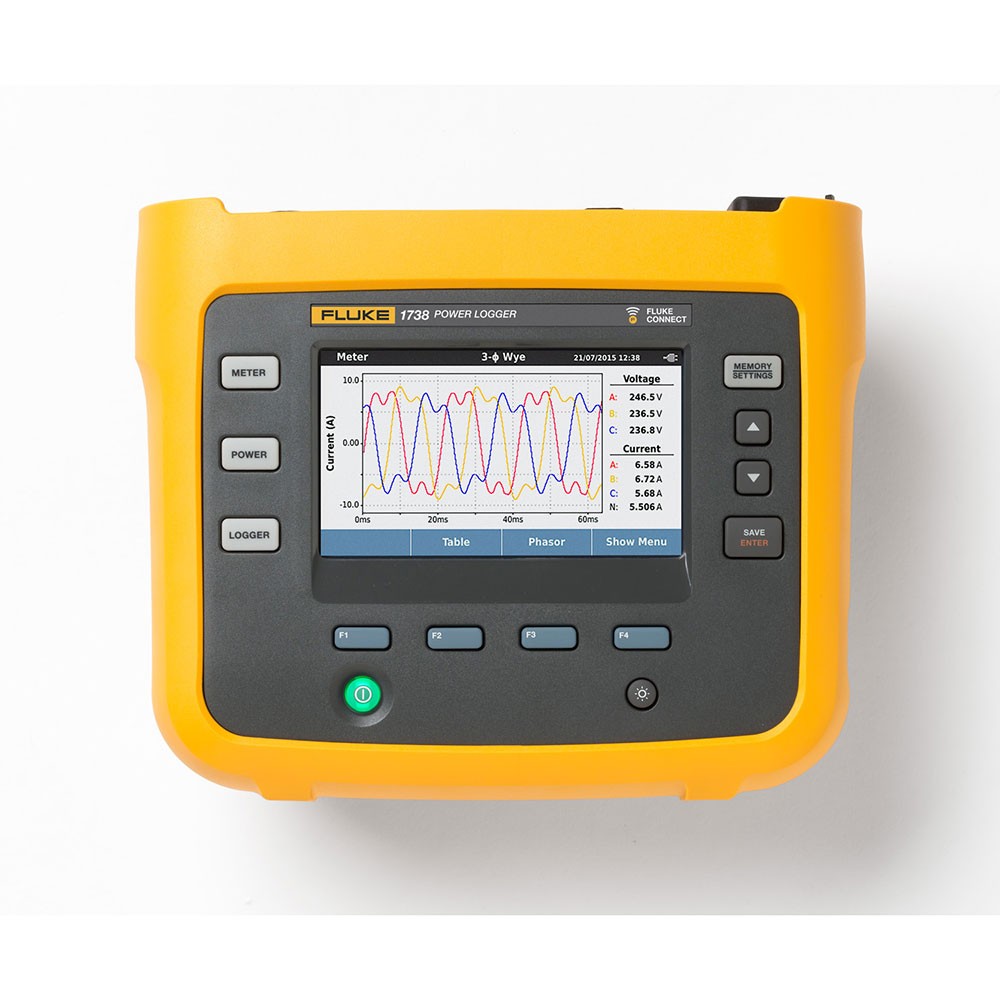

Fluke FLUKE-1738/EUS Phase Advanced Power Logger w Current Probes
Description
Description
Fluke 4563577 Description
More visibility, reduced uncertainty and better power quality and energy consumption decisions . The Fluke 1738 Three-Phase Advanced Power Logger built with Fluke Connect® mobile app and desktop software compatibility give you the data you need to make critical power quality and energy decisions in real-time. The ideal test tools for conducting energy studies and basic power quality logging, the 1738 automatically captures and logs over 500 power quality parameters so you have more visibility into the data you need to optimize system reliability and savings.
Fluke 4563577 Includes
- (1) WiFi and BLE Adapter
- (1) 4GB USB Flash Drive
- (1) USB Cable
- (1) Flat Cable (3PHVL-173)
- (1) .1m Cable (Red)
- (1) .1m Cable (Black)
- (1) 1.5m Test Lead (Red)
- (1) 1.5m Test Lead (Black)
- (4) Alligator Clips
- (1) Soft Carrying Case (C173X)
- (1) Color Coding Set
- (1) Hanger Kit
- (4) Magnetic Voltage Probes
- (4) 12" Flexible Probes (i173X-FLEX1500)
- (1) EU/US/UK Line Cord
Fluke 4563577 Features
- Automatically capture and log voltage, current, power, harmonics and associated power quality values
- Fluke Connect® compatible*: View data locally on the instrument or via Fluke Connect mobile app and desktop software
- Convenient instrument powering: Power instrument directly from the measured circuit
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
- Comprehensive logging: Store 20+ logging sessions Values automatically logged Review during logging/before downloading for real-time analysis
- Capture dips, swells, and inrush currents: event waveform snapshot and high resolution RMS profile, date, timestamp to see root causes of PQ issues.
- Energy Analyze Plus application software: get every detail of energy consumption and power quality state of health with automated reporting.
- Optimized user interface: Get the right data with, graphical setup. Reduce uncertainty about your connections with intelligent verification function.
- Complete “in-the-field” setup through the front panel or Fluke Connect App.
- Fully integrated logging: Connect other Fluke Connect devices to the Fluke 1738 to simultaneously log up to two other measurement parameters
Fluke 4563577 Specifications
| Power Measurements | Current, Current Harmonic, Frequency, TDD, THD Current, THD Voltage, Unbalance, Voltage, Voltage Harmonic |
| Single Phase Test | Yes |
| 3 Phase Test | Yes |
| Three Phase Type | Aron/Blondel, Delta, Delta Open Leg, Wye, Wye Balanced, Wye IT |
| Data Logging | Yes |
| Interface Type | Bluetooth, USB, Wireless |
| Power Source | Battery, Mains |
| Dimensions | 7.80" x 6.57" x 2.17" |
| Maximum Frequency | 69Hz |
| Minimum Frequency | 42.5 Hz |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Model Number p | 1738 |
