Fluke FLUKE-T5-1K/PRV240 Proving Unit Kit
Description
Description
Fluke 4636998 Description

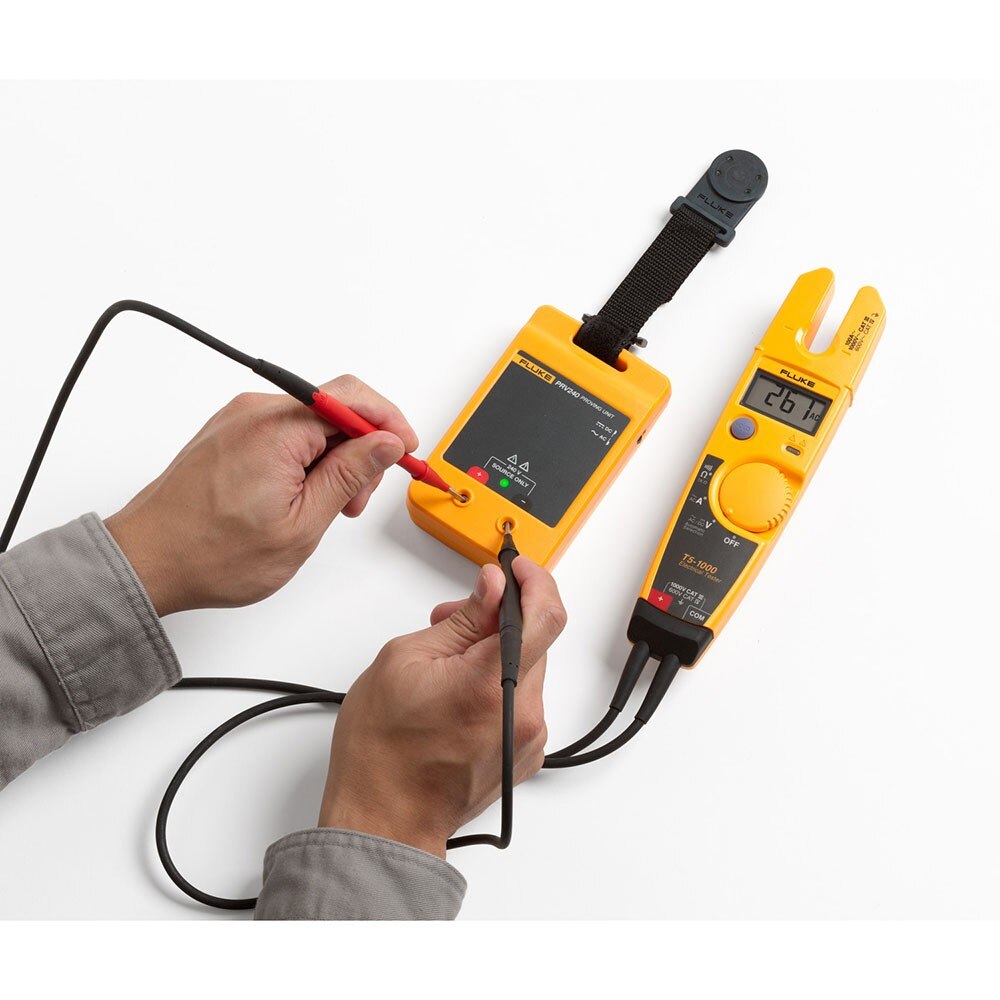

Fluke proving unit kits combine the PRV420 proving unit with either a Fluke multimeter, clamp meter, or electrical tester providing you optimal flexibility based on your application requirements. These kits are ideal for electrical maintenance personnel, electrical contractors, and electricians in the electrical, oil and gas, utilities markets, and more. These kits, with included PRV240 proving unit, are designed for safety and compliance applying the concept of test before touch (TBT) that involves testing your meter against a known live source before and after measurements. This verifies that your test tool is operating properly during the actual measurement without exposing yourself to shock or arc flash.

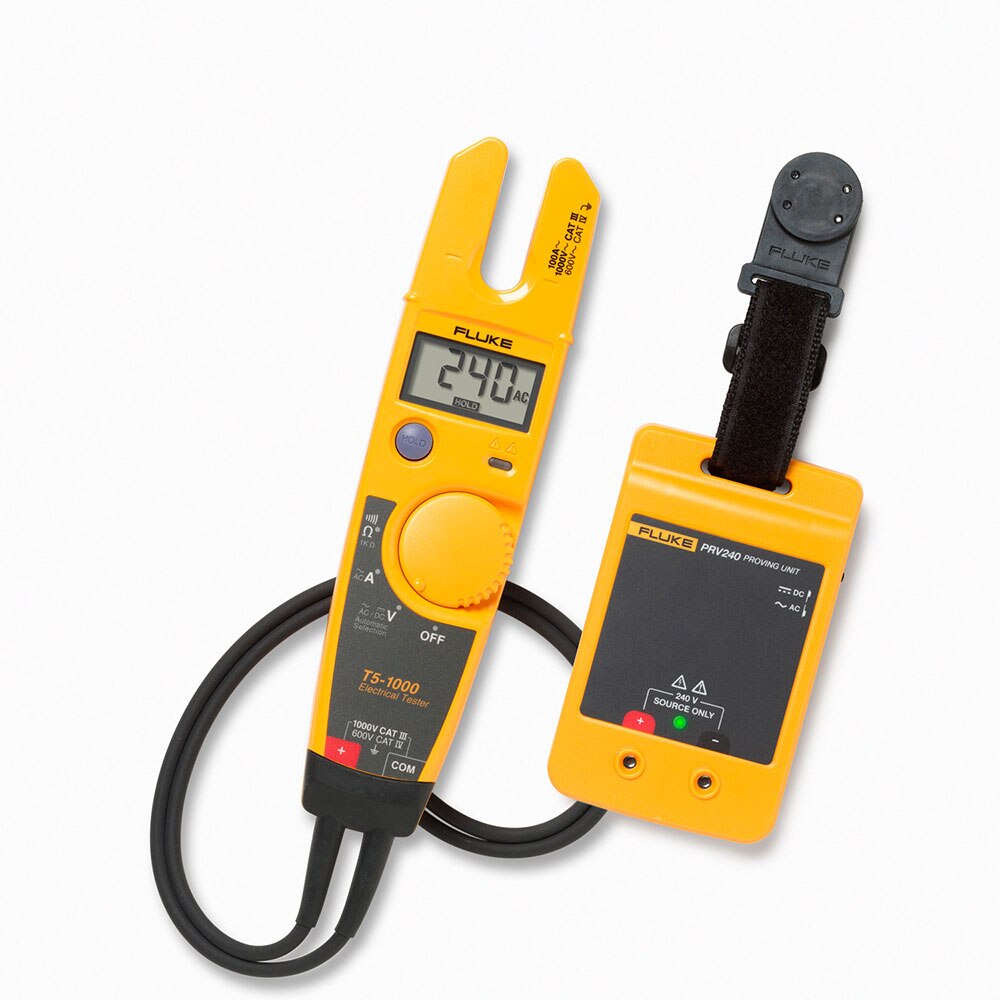

Fluke 4636998 Includes
- (1) T5-1000
- (1) PRV240
Fluke 4636998 Features
- T5-1000 Measures AC/DC Voltage to 1000V, AC Current to 100A, Resistance to 1000 Ohms
- T5-1000 DCV Accuracy: ±(1% + 1 digit)
- T5-1000 Has Continuity Beeper
- T5-1000 Checks Current without Breaking Circuit
- T5-1000 Test Leads Are Built In
- T5-1000 Compact: 8" High, 10 Oz.
- PRV240 Using the PRV240 reduces the risk of shock and arc flash by validating the functionality of test tools without placing yourself in a potentially hazardous electrical environment
- PRV240 Sources both ac and dc steady-state voltage—supplies 240 V dc/ac
- PRV240 A single LED indicates functionality, making this unit a simple-to-use solution for complying with TBT verification of your test tool
- PRV240 Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
- PRV240 Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
- PRV240 Includes TPak™ Magnetic Hanging Strap
- PRV240 Long battery life—5,000 tests per set of four AA batteries
Fluke 4636998 Specifications
| Output Voltage | 240 V ac rms or dc (± 10 % ? 1 M?); LoZ >3 kO load (60 V ac typical, 50 V ac rms minimum) |
| LED power indicator | Turns on when output voltage is present |
| Battery | 4 AA Alkaline batteries NEDA, 24 A IEC LR03 |
| Battery life | 5000 (5-second duration) test cycles with >1 MO load, 300 tests minimum with >3 kO load |
| Operating temperature | -10 °C to +50 °C |
| Operating humidity | 0 % to 90 % (0 °C to 35 °C), 0 % to 70 % (35 °C to 55 °C) |
| Operating altitude | 2000 m |
| Dimensions | 4.6" x 2.9" x 1.1" |
| Pollution Degree | 2 |
| Safety | IEC61010-1, IEC61010-2-030 |
| Warranty | One-year |
| Electromagnetic Compatibility (EMC) | Portable EM environment; CISPR 11, Group 1, Class A; 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103; Class A Equipment (Industrial Broadcasting & Communication Equipment) |
