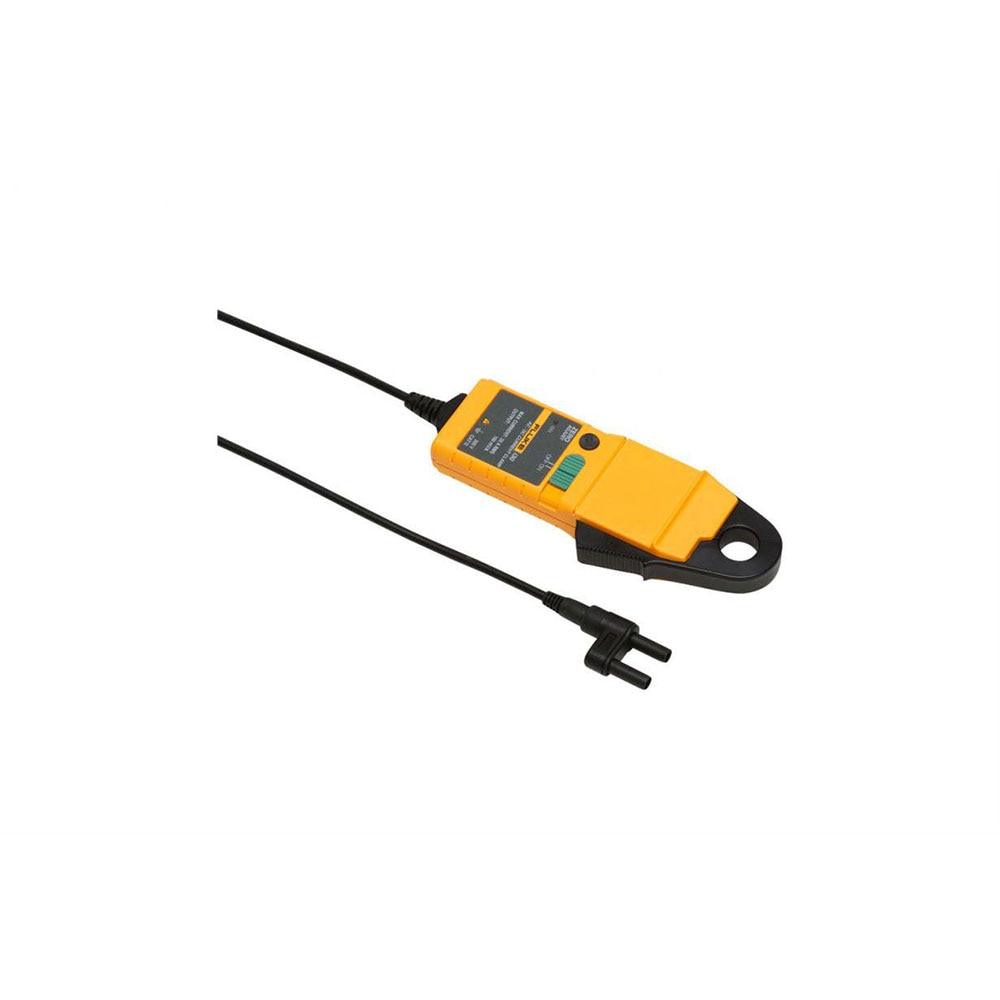

Fluke I30 AC/DC Current Clamp/Banana Plugs, 30mA-20Arms AC/30mA-30A DC
Free Shipping
$589.99
$646.99
Unit price
/
Unavailable
Description
Description
Fluke 2584920 Description
The i30 current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30 may be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke 2584920 Includes
- (1) AC/DC Current Clamp/Banana Plugs
Fluke 2584920 Features
- Specified current range: 30 mA to 30 A dc, 30 mA to 20 A ac rms
- Usable current range: 5 mA to 30 A dc, 30 mA to 20 A ac rms
- Crest Factor: 1.4 in.
- Accuracy (at +25 °C): ± 1 % of reading ± 2 mA
- Resolution: ± 1 mA
- Conductor position sensitivity: ± 1 % relative to center reading
- Frequency range: DC to 20 kHz (- 0.5 dB)
- Temperature Coefficient: ± 0.01 % of reading/°C
- Power supply: 9 V alkaline, MN1604/PP3, 30 hours, low Battery indicator
Fluke 2584920 Specifications
| Unit Weight (KG) | 0.432 |
| Unit Height (CM) | 6.3 |
| Unit Length (CM) | 25.2 |
| Unit Width (CM) | 10.1 |
