Fluke | SKU:
2584935

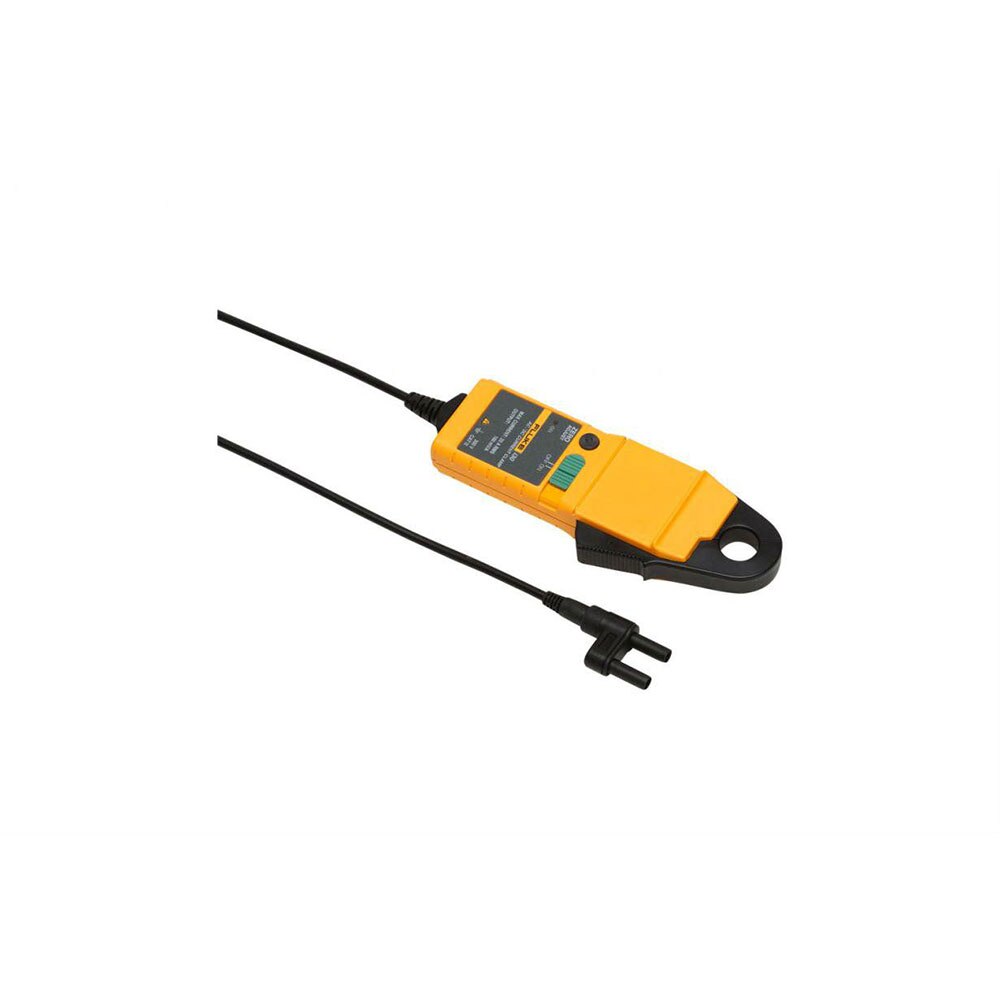

Fluke I30SAC/DC AC/DC Current Clamp/BNC, 30mA-20Arms AC/30mA-30A DC
Free Shipping
$699.99
$768.99
Unit price
/
Unavailable
Description
Description
Fluke 2584935 Description
The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement.
Fluke 2584935 Includes
- (1) AC/DC Current Clamp
Fluke 2584935 Features
- Specified current range: 30 mA to 30 A dc, 30 mA to 20 A ac rms
- Usable current range: 5 mA to 30 A dc, 30 mA to 20 A ac rms
- Crest Factor: 1.4 in.
- Accuracy (at +25 °C): ± 1 % of reading ± 2 mA
- Resolution: ± 1 mA
- Conductor position sensitivity: ± 1 % relative to center reading
- Frequency range: DC to 20 kHz (- 0.5 dB)
- Temperature Coefficient: ± 0.01 % of reading/°C
- Power supply: 9 V alkaline, MN1604/PP3, 30 hours, low Battery indicator
Fluke 2584935 Specifications
| Unit Weight (KG) | 0.46 |
| Unit Height (CM) | 6.3 |
| Unit Length (CM) | 25.3 |
| Unit Width (CM) | 10 |
